Zanda Juno Lever Handle BN Satin Chrome Passage Privacy Entrance Astron Range

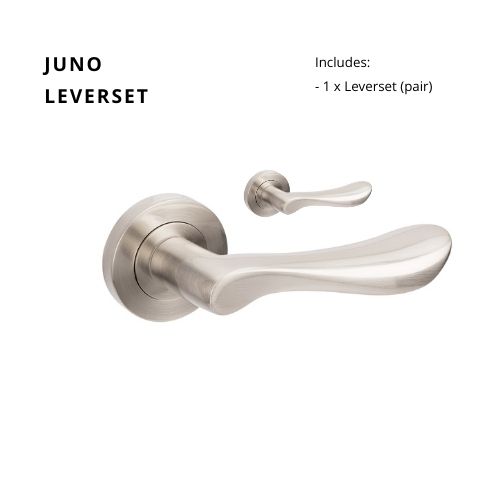

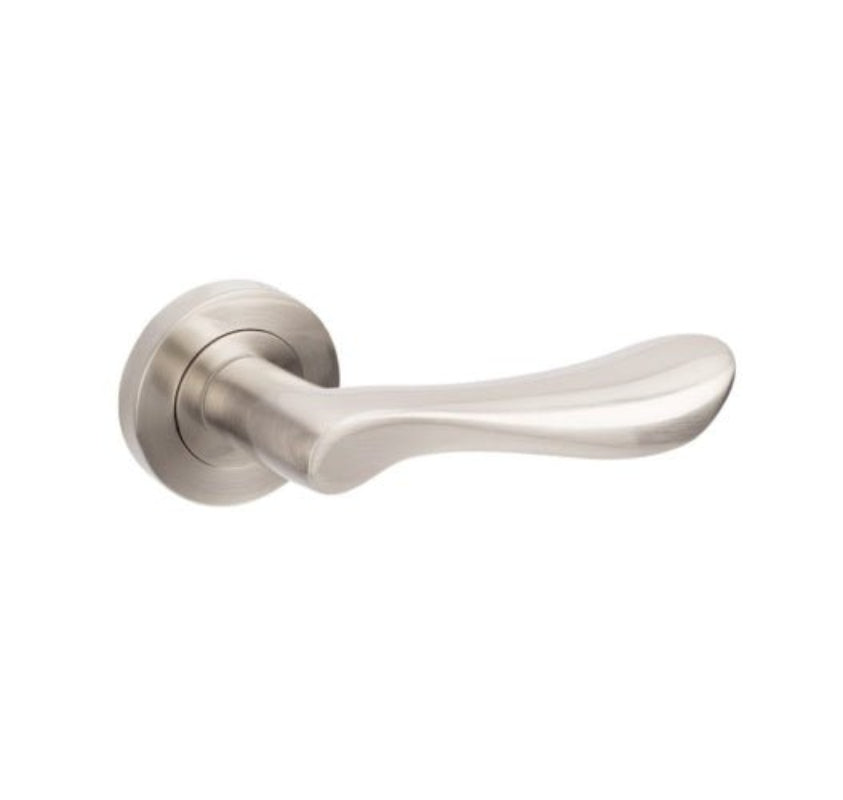

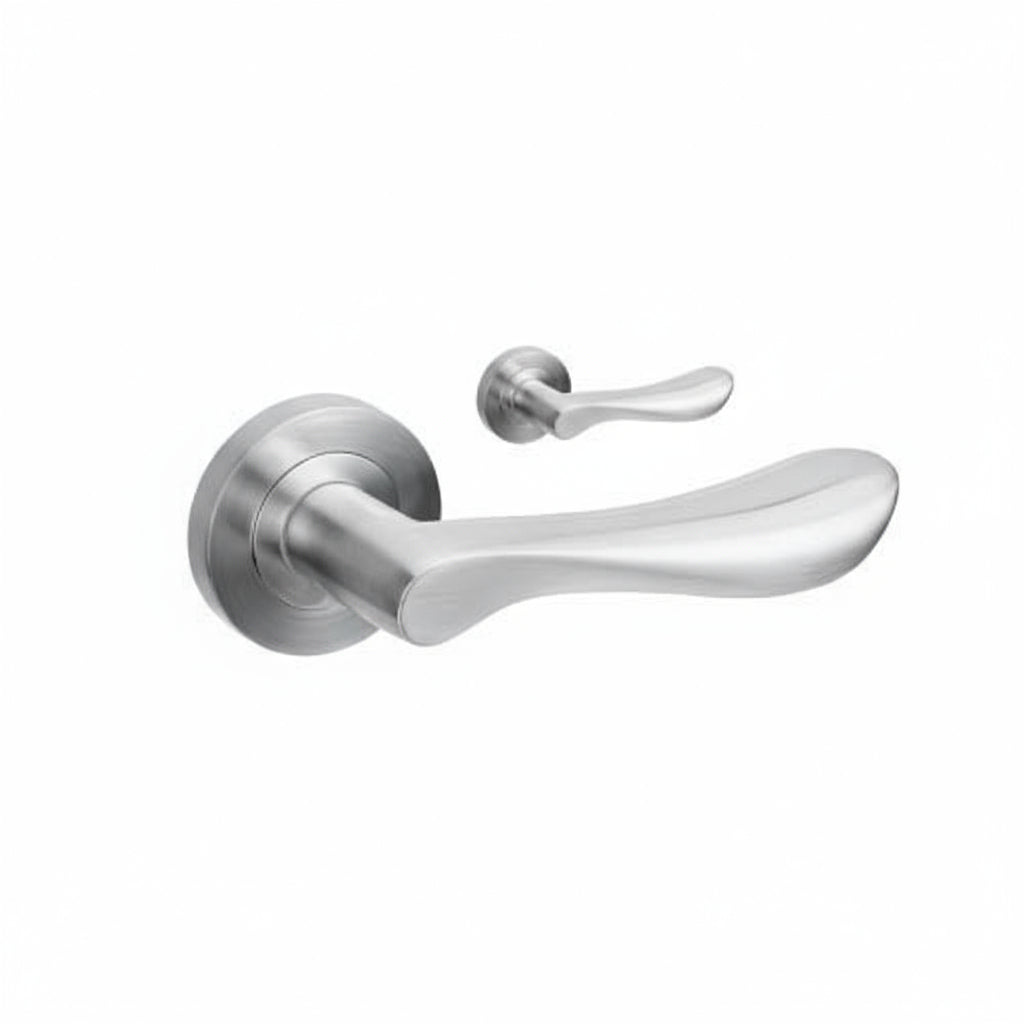

The Zanda Juno Lever Handle from the Astron range is available in brushed nickel and satin chrome. 7036: Passage, 7037: Separate Privacy, 7019: Dummy, 7081: Entrance
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | 7019 Juno Leverset Only | Passage | Privacy | Dummy | Dummy | 7081.3 Juno Rose Entrance Set - includes 7109 1143 7020 & 1147 (70mm Key/Key) | 7081.4 Juno Rose Entrance Set - includes 7109 1143 7020 & 1148 (70mm Key/Turn) |
|---|---|---|---|---|---|---|---|
| Satin Chrome | 7019.SC | 7036.SC | 7037.SC | 7019.DL.SC | 7019.DR.SC | 7081.3.SC | 7081.4.SC |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Astron |
| Product type | Door lever on round rose |

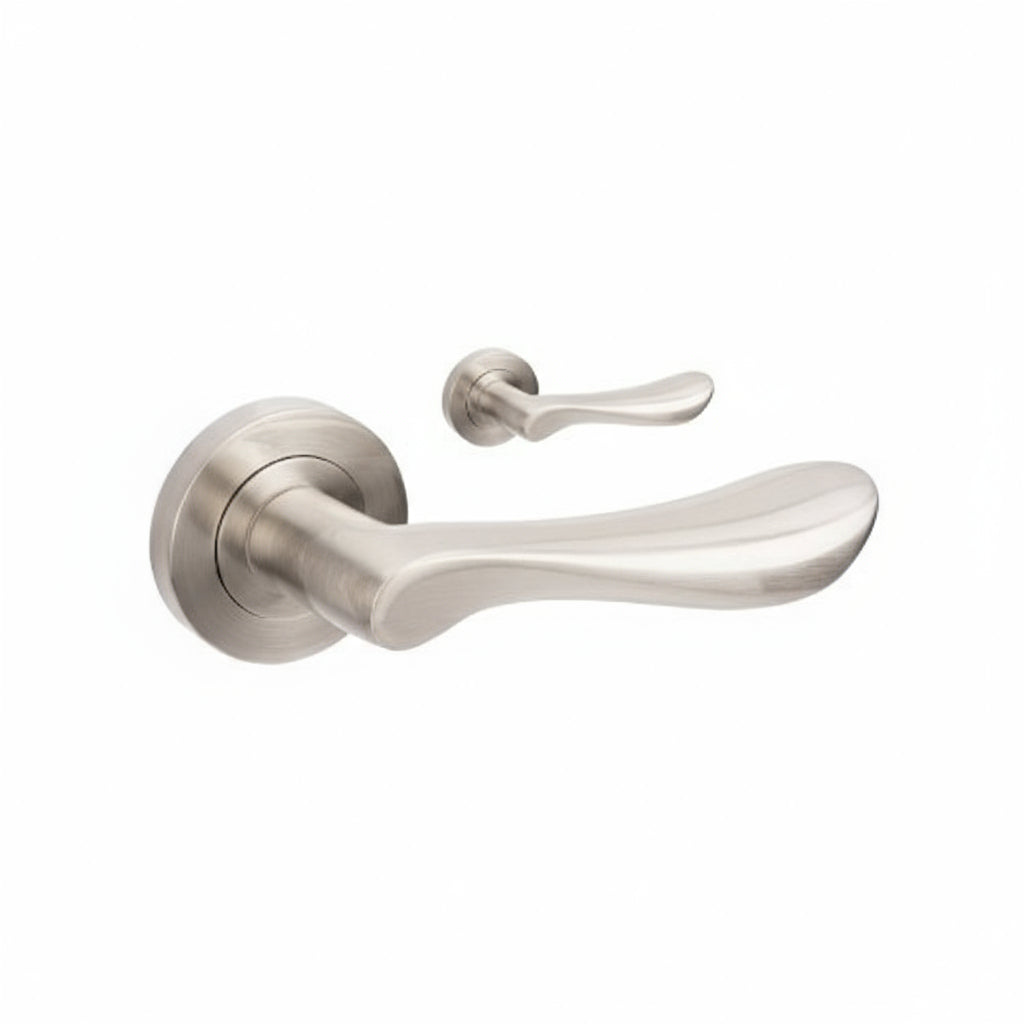

| Function | Privacy set, Passage set, Entrance set, Leverset only (no latch), Dummy set |
| Product code | 7019.SC, 7036.SC, 7037.SC, 7019.DL.SC, 7019.DR.SC, 7081.3.SC, 7081.4.SC |

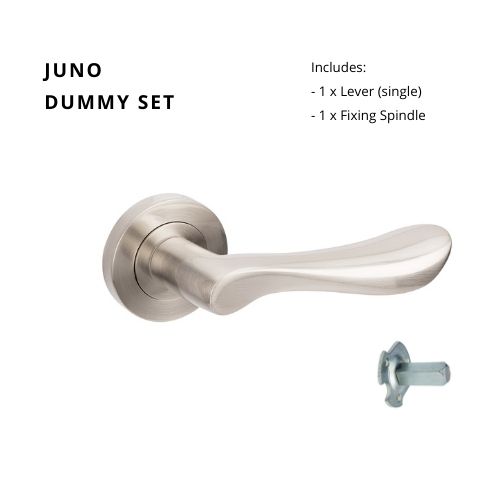

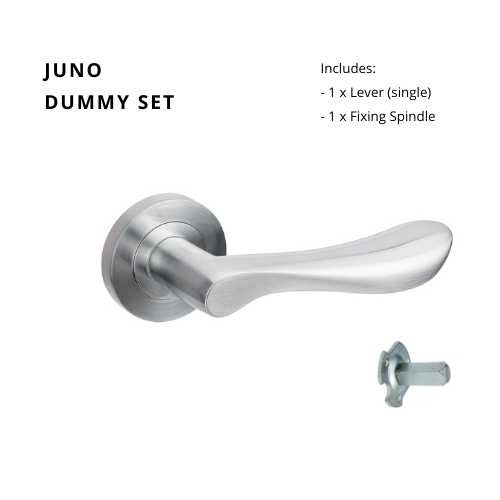

| Set 7019 | DR Juno Dummy Set - Right Hand |

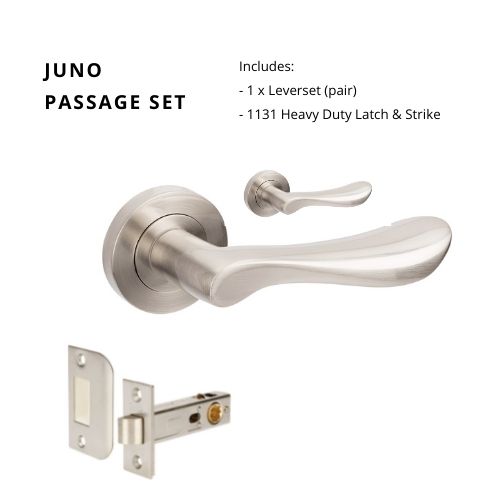

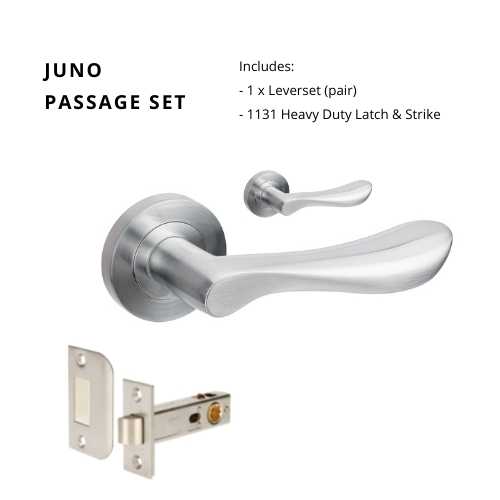

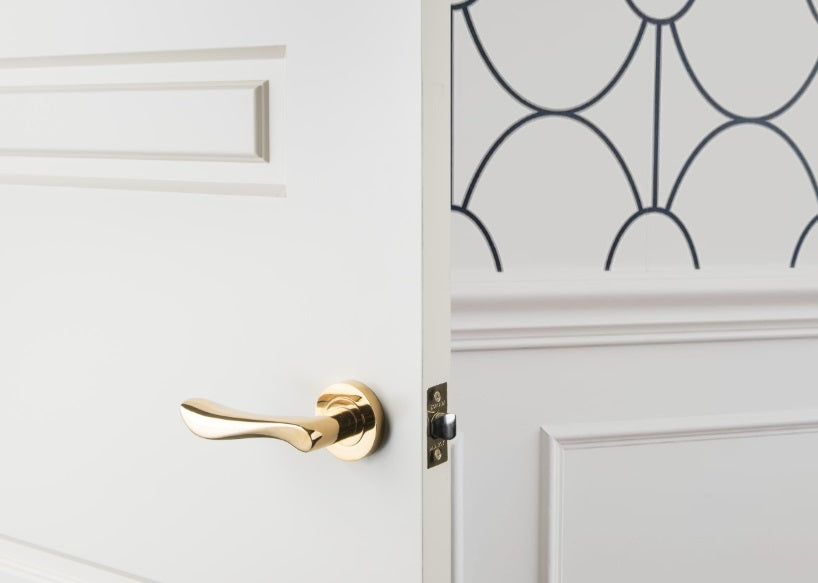

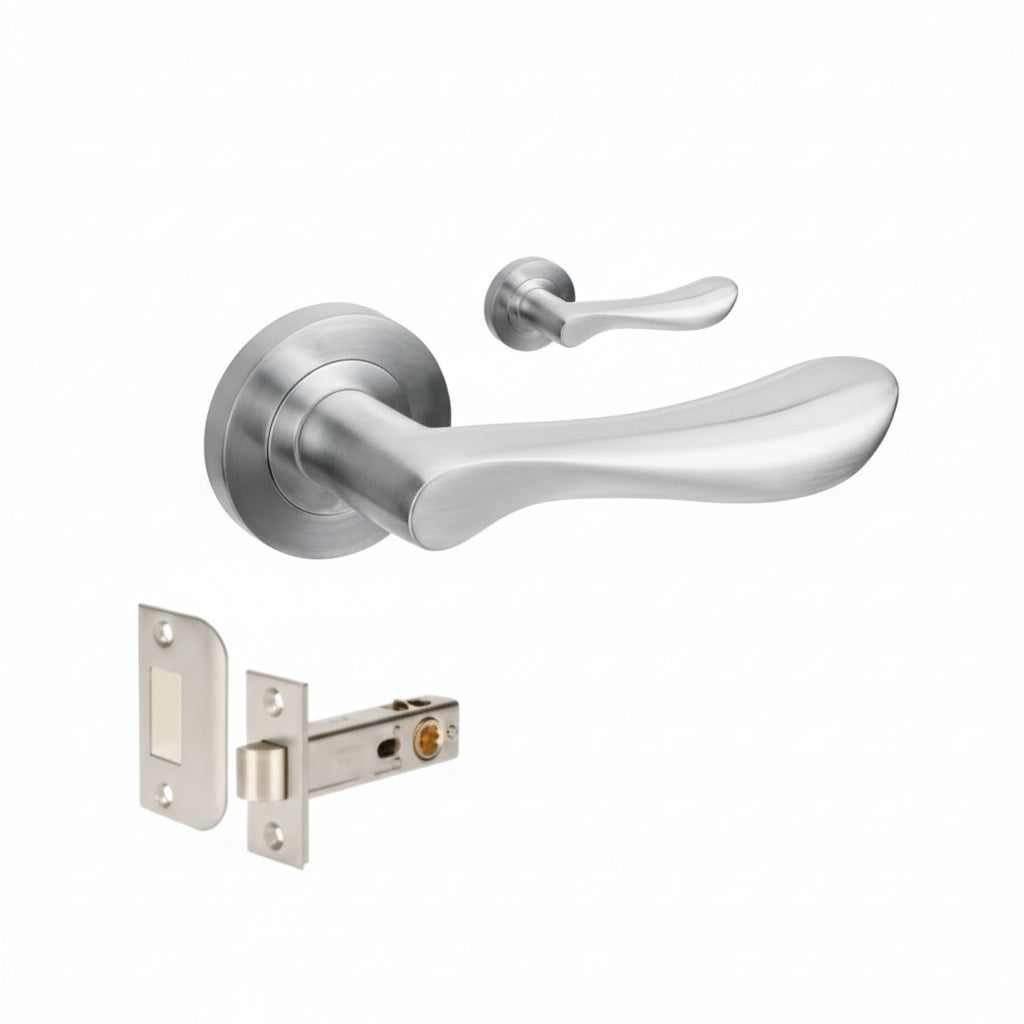

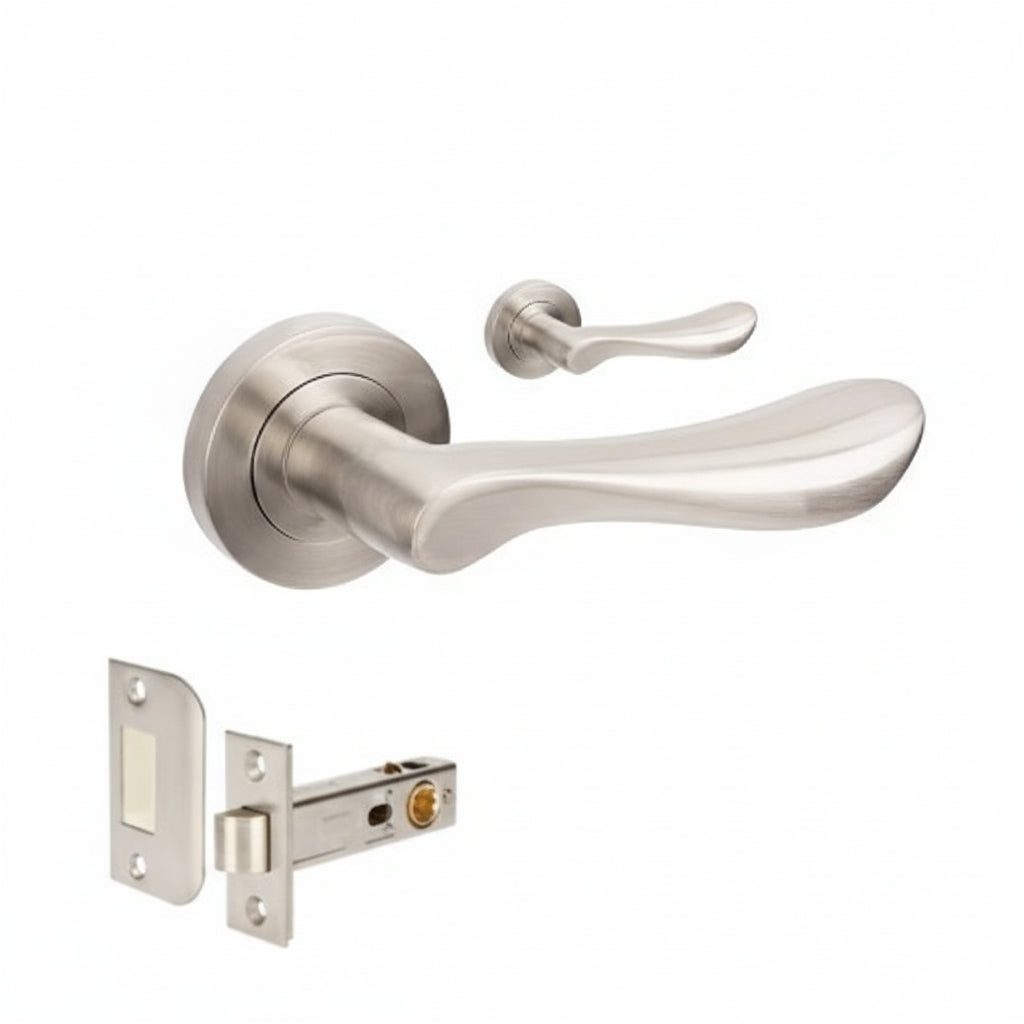

| Set 7036 | Juno Passage Set, includes 1131 latch |

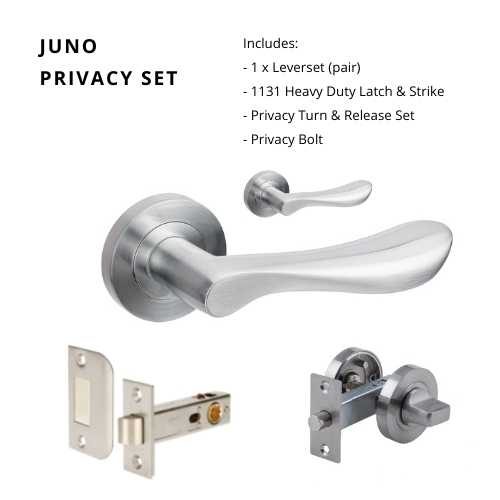

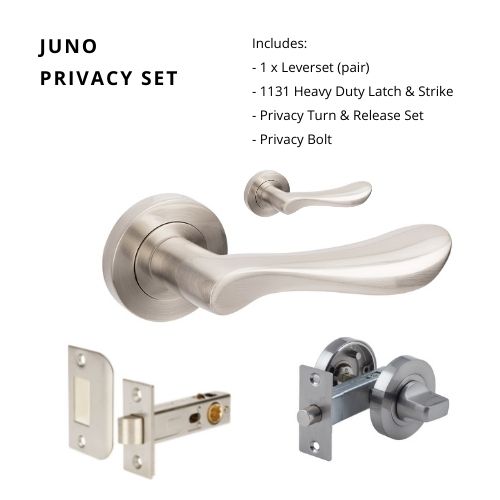

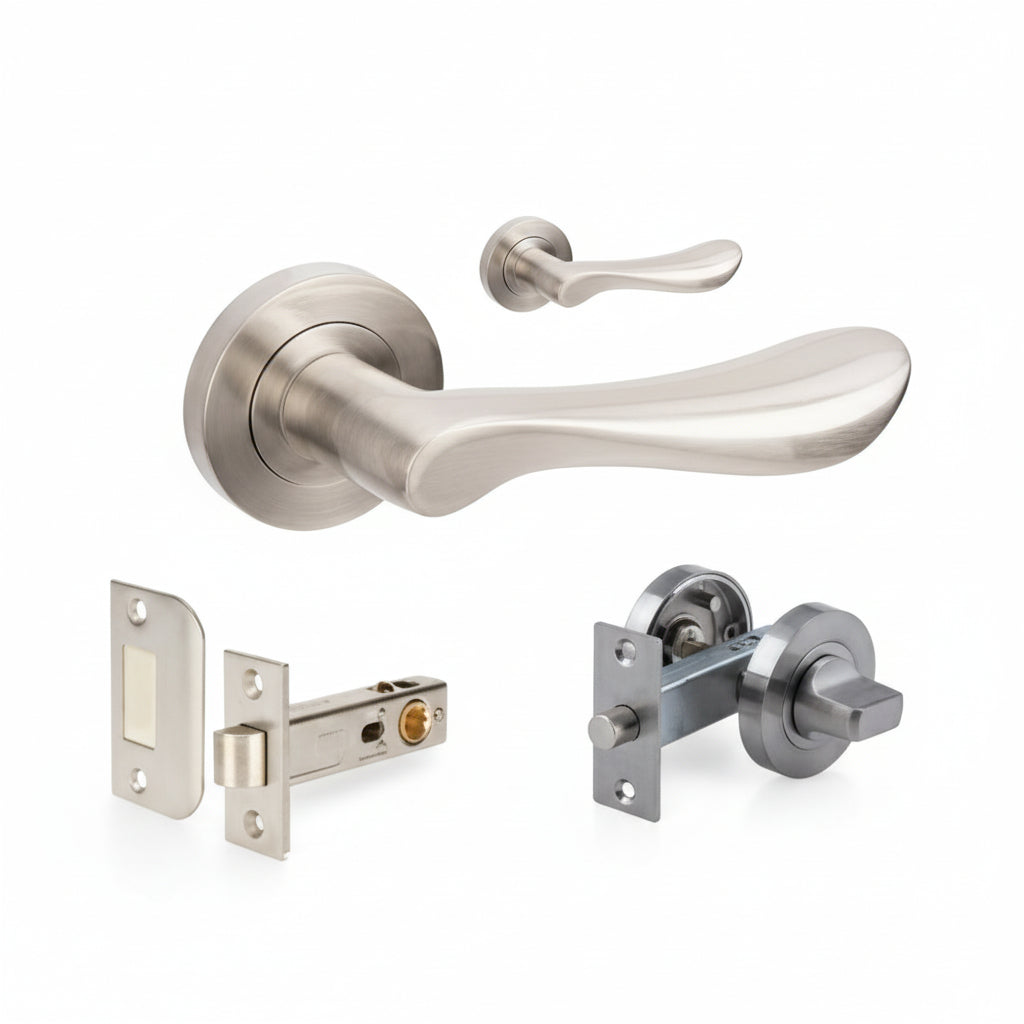

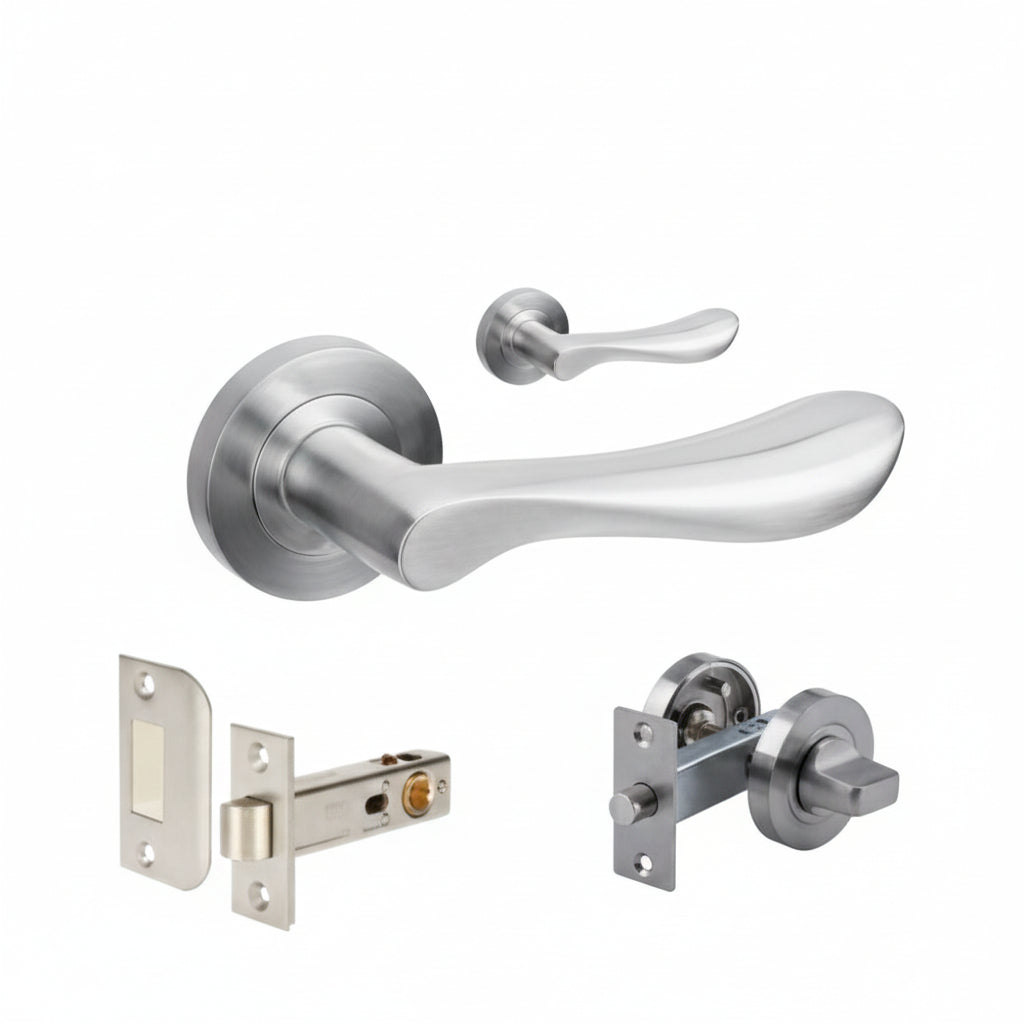

| Set 7037 | Juno Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release) |

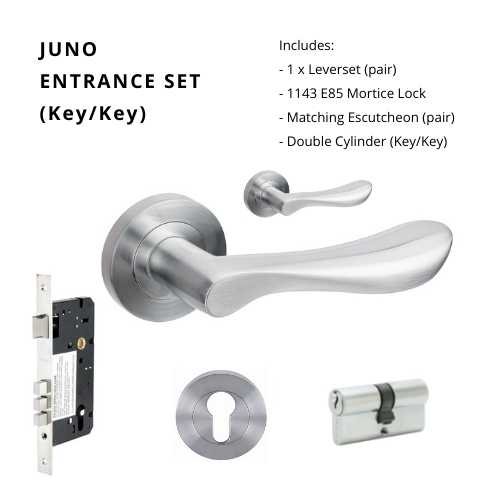

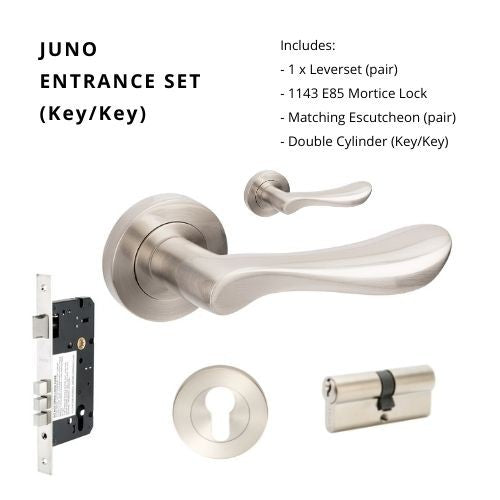

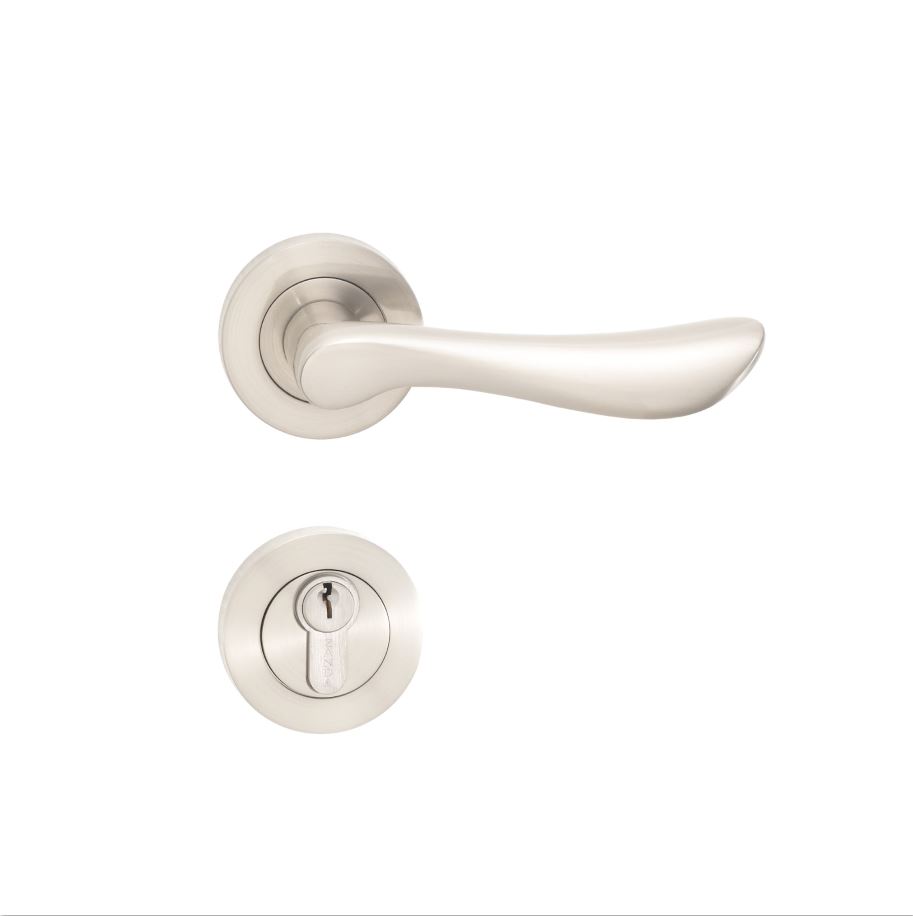

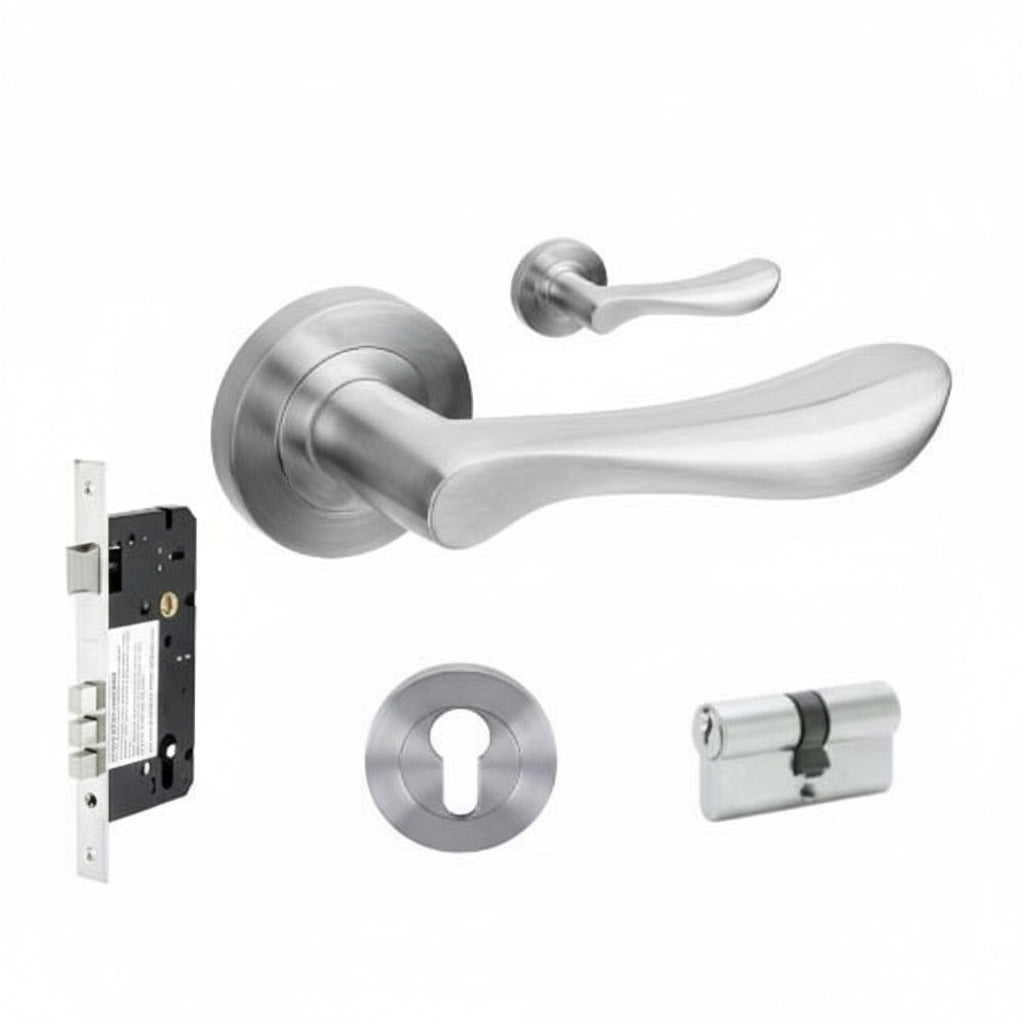

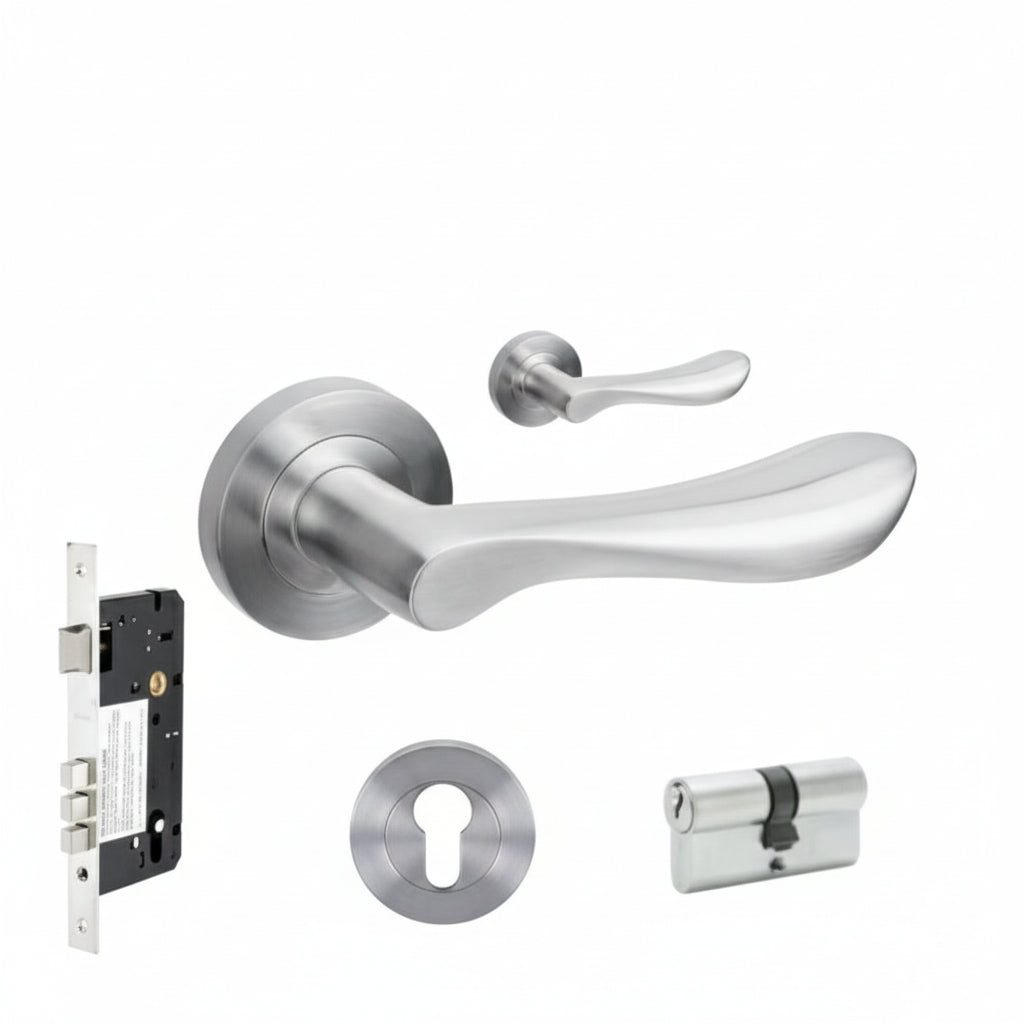

| Set 7081.3 | Juno Rose Entrance Set - includes 7019, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |

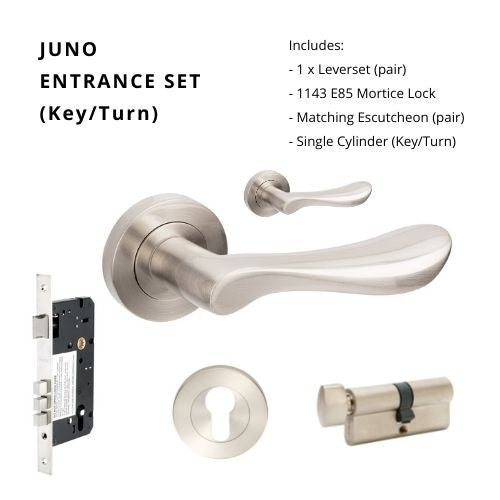

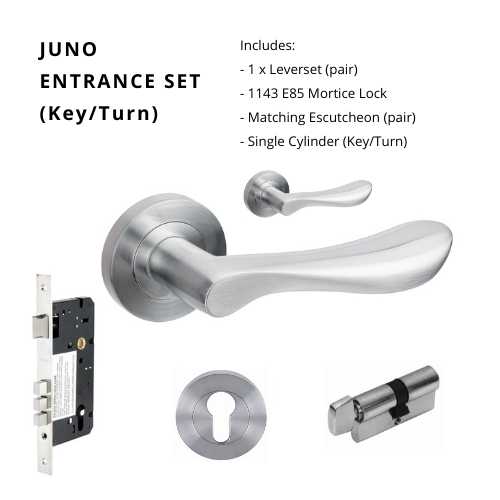

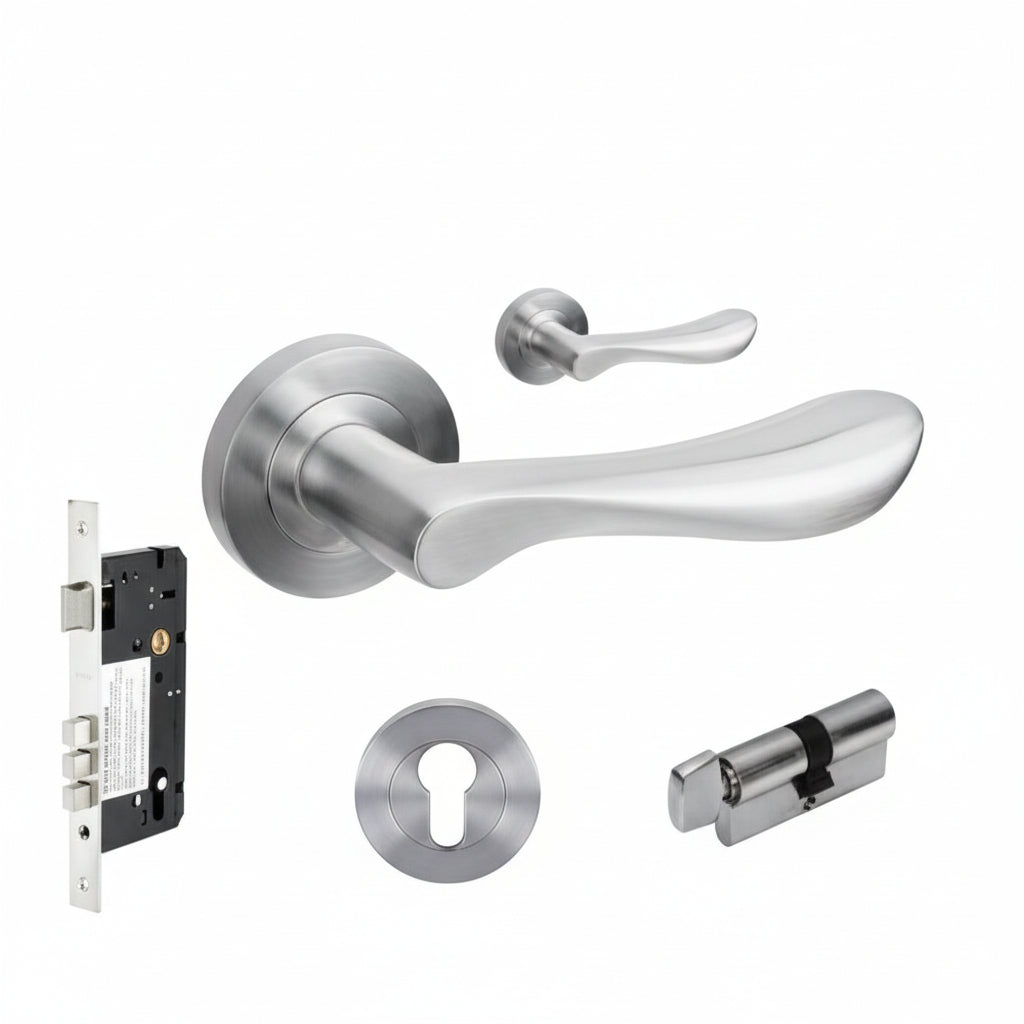

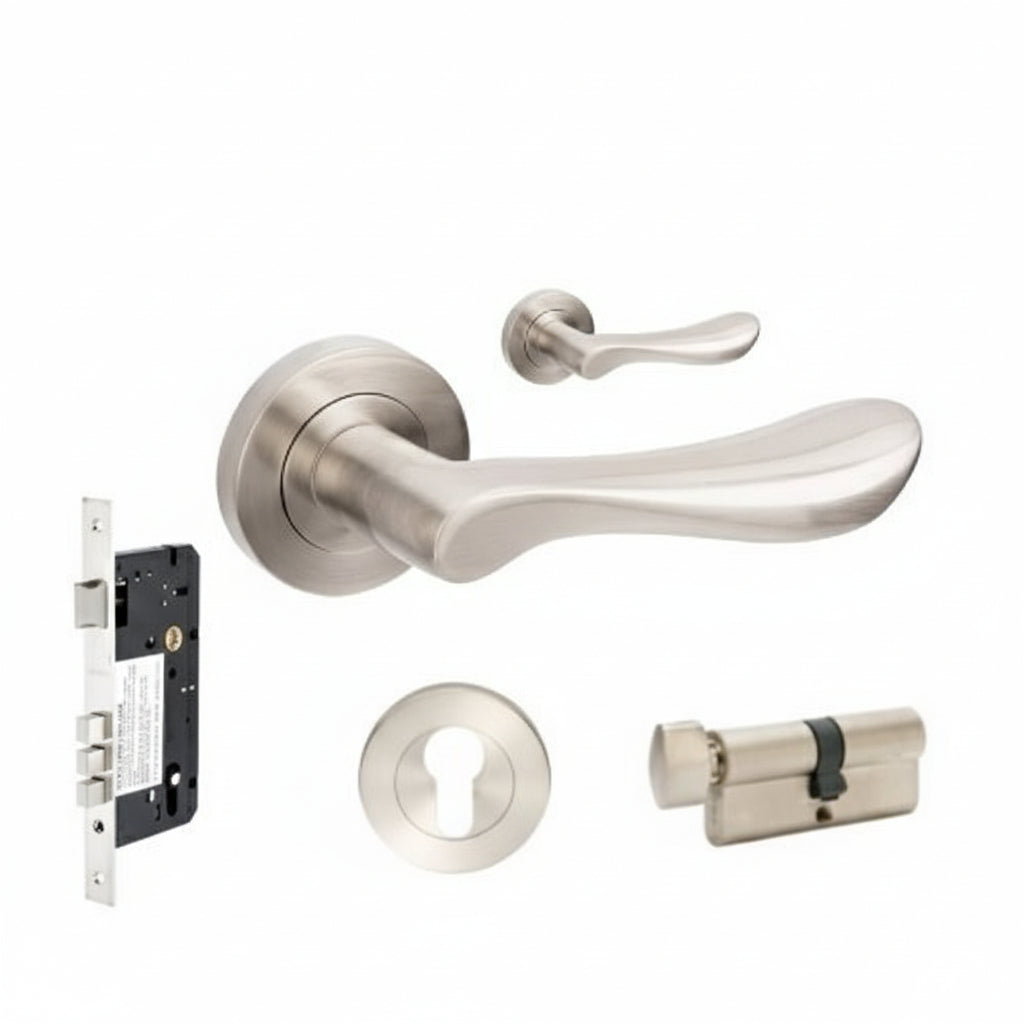

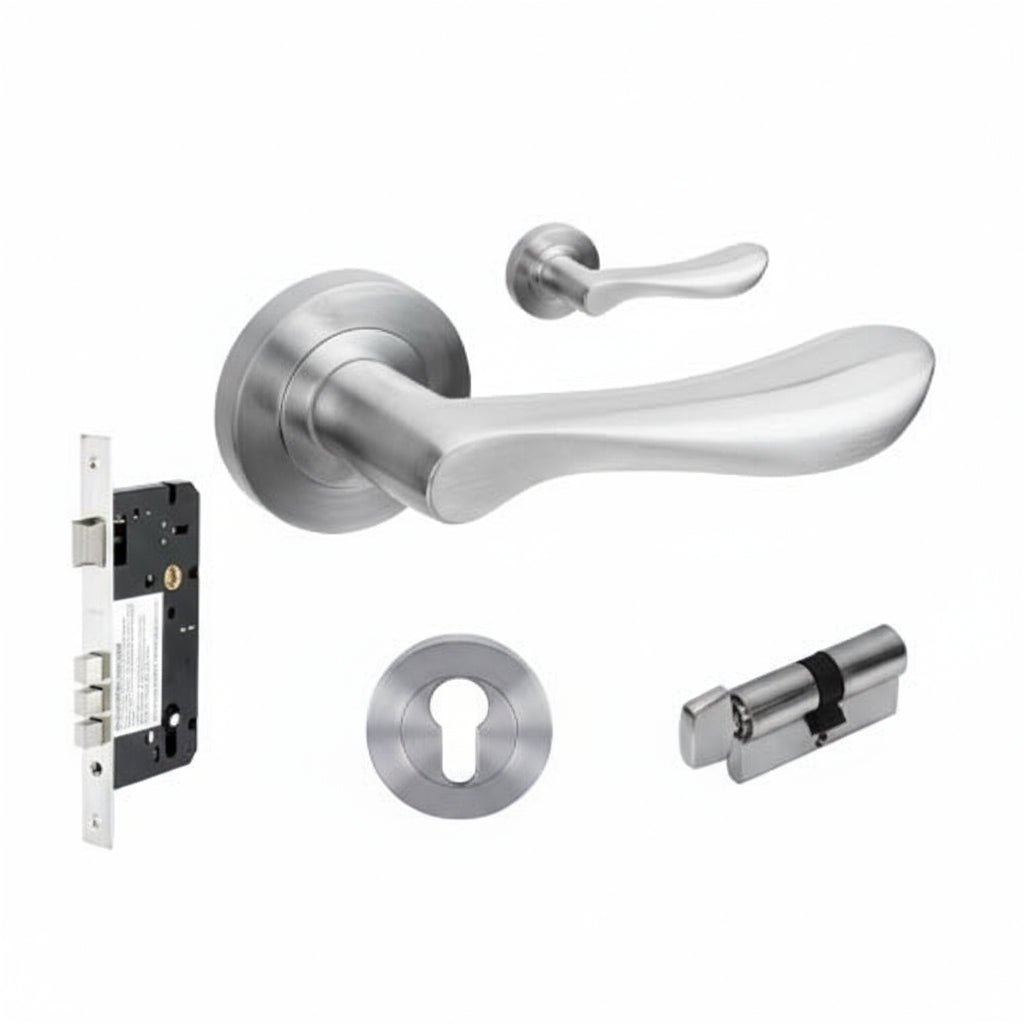

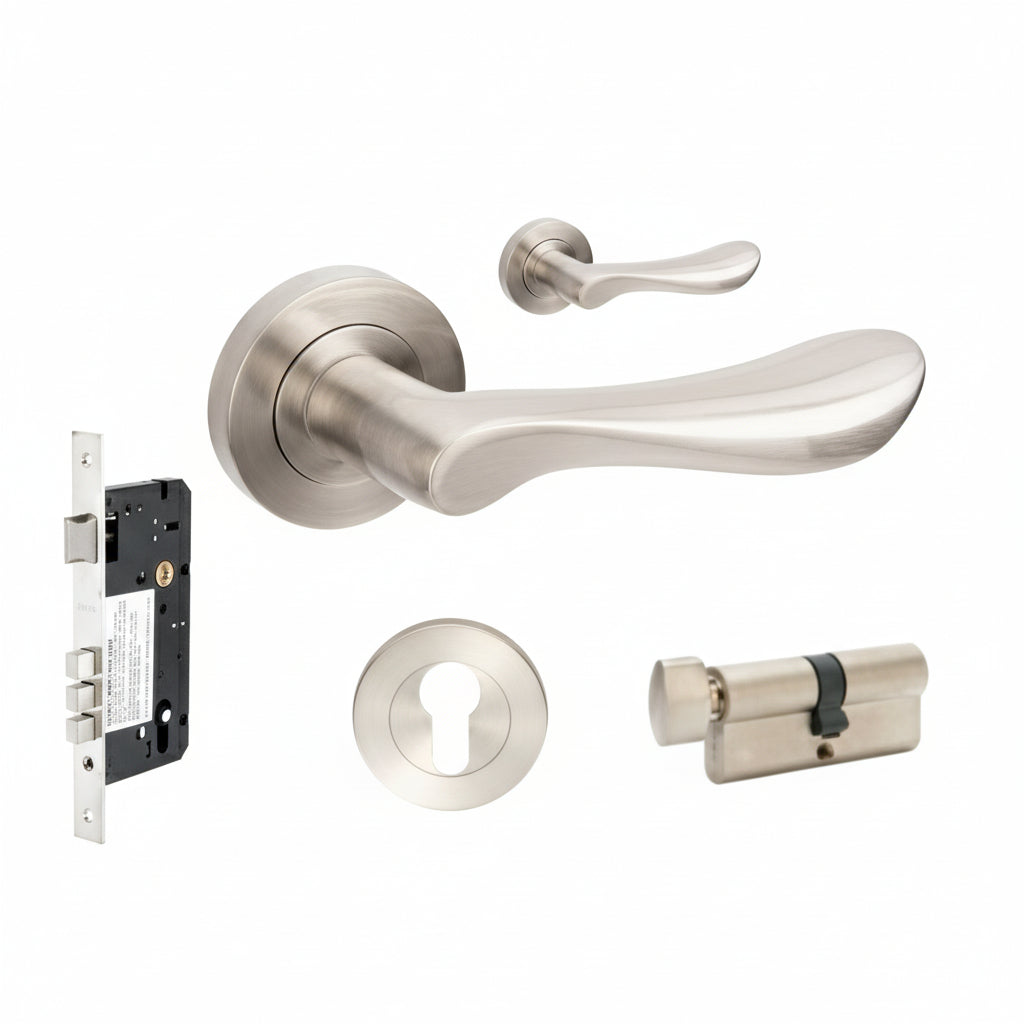

| Set 7081.4 | Juno Rose Entrance Set - includes 7019, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Satin Chrome |
| Backset | 60mm |

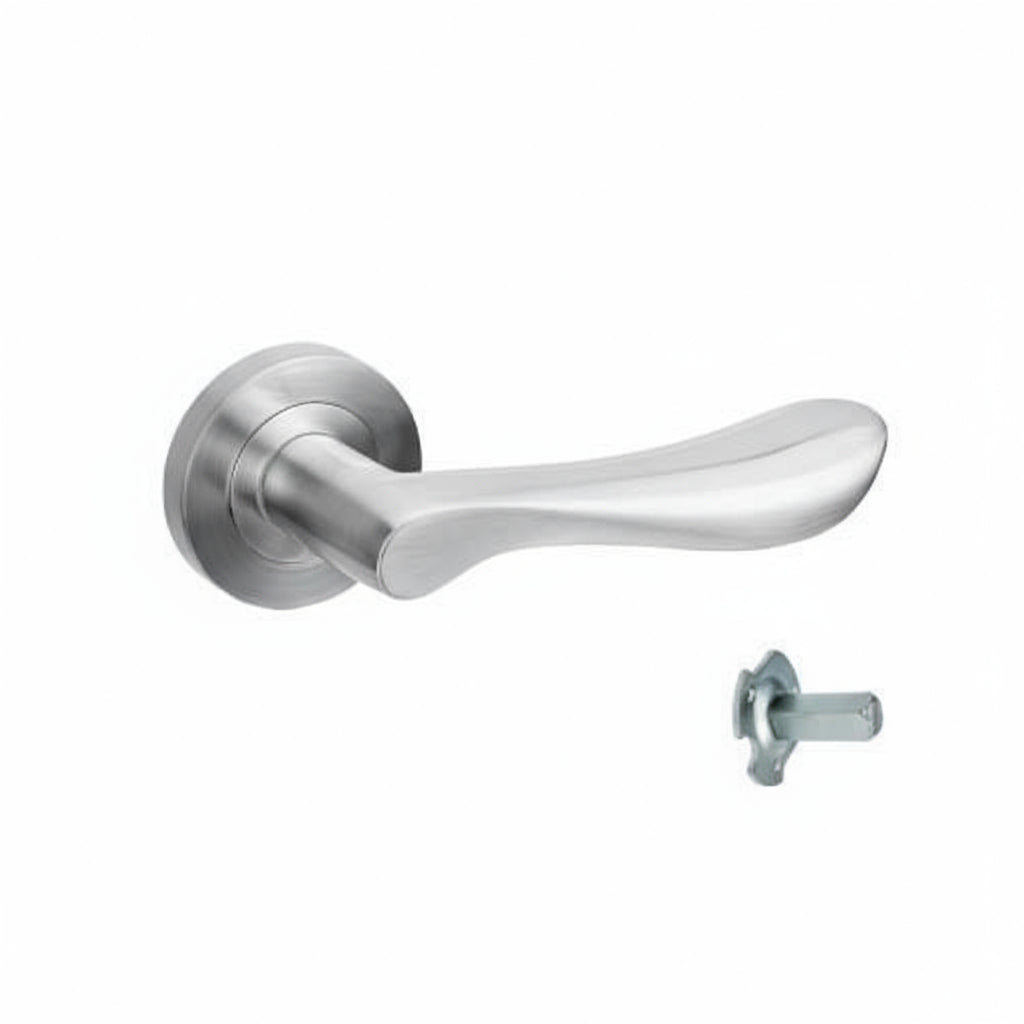

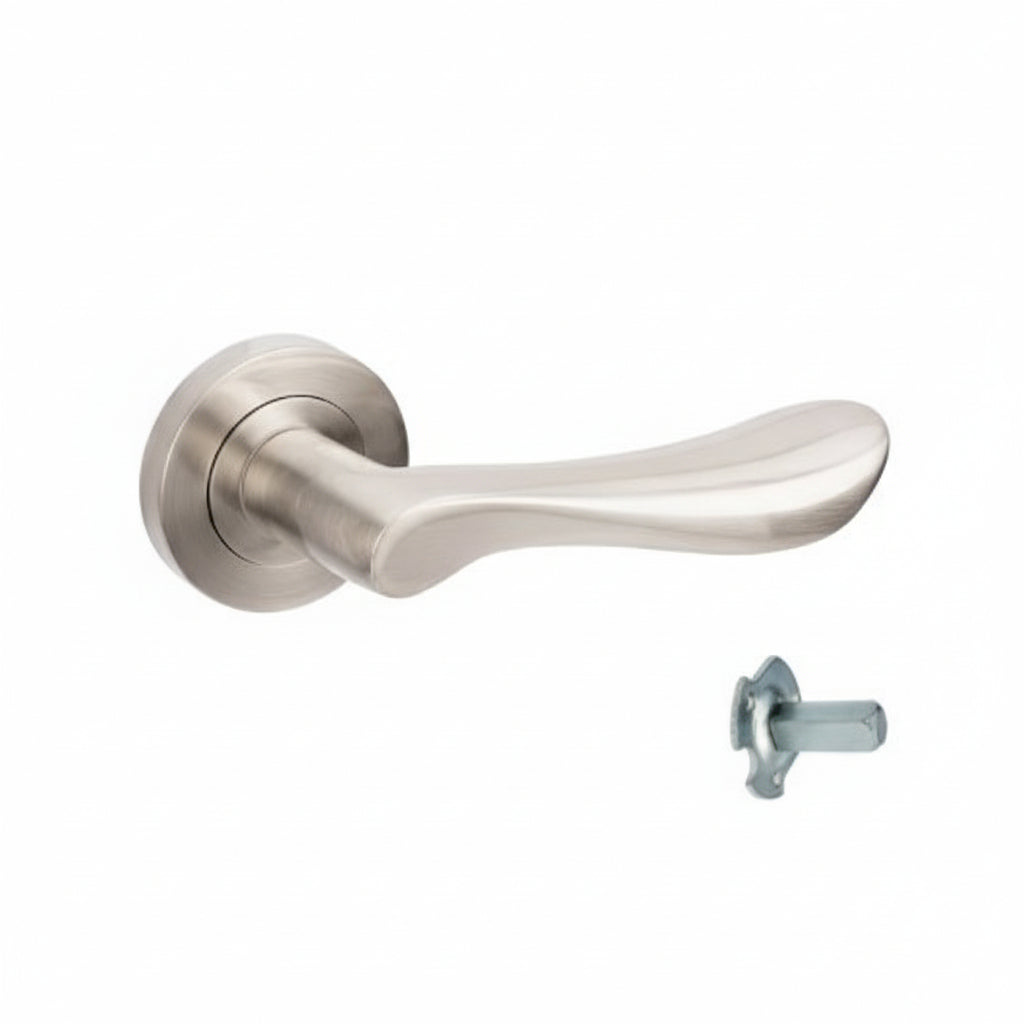

| Dummy sets | Fixed, with rear fixing plate; left or right hand |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Juno Lever Handle BN Satin Chrome Passage Privacy Entrance Astron Range?
It is a Zanda door lever on round rose from the Astron range. Function: privacy set, Passage set, Entrance set, Leverset only (no latch), Dummy set. Product code: 7019.SC, 7036.SC, 7037.SC, 7019.DL.SC, 7019.DR.SC, 7081.3.SC, 7081.4.SC.
What does each option include?
7019: DR Juno Dummy Set - Right Hand; 7036: Juno Passage Set, includes 1131 latch; 7037: Juno Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release); 7081.3: Juno Rose Entrance Set - includes 7019, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 7081.4: Juno Rose Entrance Set - includes 7019, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
This listing is finished in Satin Chrome. Other Zanda finishes may be available — contact us to check.
What backset does it suit?
Backset: 60mm. Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
