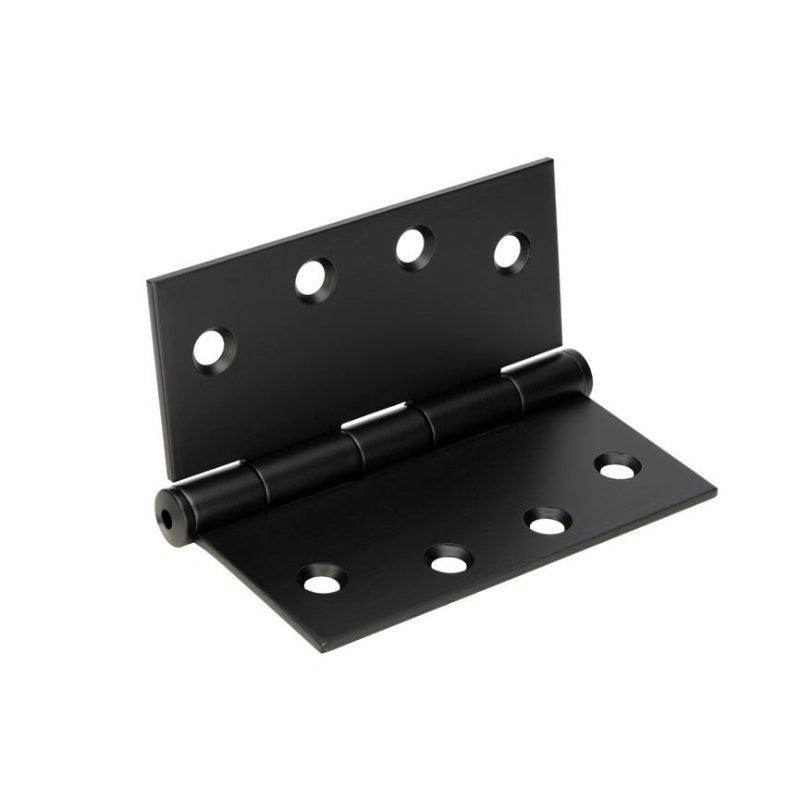

Zanda Wide Throw Hinge Matt Black Fixed Pin 100x100x2.5mm Fire Rated
You May Also Need
This product is included in the bundle below
Zanda 10500 Magnetic Door Stop — 5 Finishes | Wall & Floor Mount
Zanda Wide Throw Hinge Matt Black Fixed Pin 100x100x2.5mm Fire Rated
The Zanda 5910.BLK Wide Throw Fixed Pin Butt Hinge in matt black at 100x100mm for heavier doors.
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Matt Black | 5910.BLK |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Hinge Type: Fixed pin hinge
The pin is fixed in the knuckle. A reliable all-rounder for most internal doors.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Brand | Zanda |
| Product type | Wide throw butt hinge, fixed pin |
| Product code | 5910.BLK |
| Finish | Matt Black |
| Material | Stainless steel |
| Dimensions | 100 x 100 x 2.5mm, fixed pin |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Wide Throw Hinge Matt Black Fixed Pin 100x100x2.5mm Fire Rated?
It is a Zanda wide throw butt hinge, fixed pin, made from stainless steel. Product code: 5910.BLK.
What finishes is it available in?
This listing is finished in Matt Black. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Dimensions: 100 x 100 x 2.5mm, fixed pin.
How many hinges do I need per door?
Three hinges per door is standard for internal and entrance doors. Taller or heavier doors may need a fourth. Hinges are priced as listed — check whether the listing is each, a pair or a pack.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
