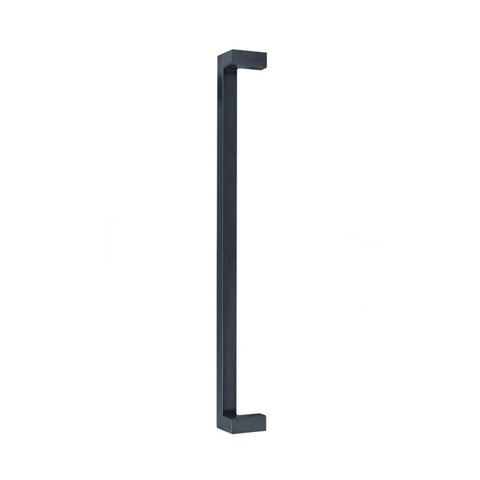

Zanda Nitro Offset Pull Handle – Square Profile | 316 Stainless Steel Zanda Nitro Offset Pull Handle in Marine Grade 316 Stainless Steel. Contemporary square-profile bar handle available in four sizes from 300mm to 900mm. Three finishes: Stainless Steel, Matt Black, Graphite Nickel. AS1428 compliant across all four sizes.
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 7128 | 300 mm | | 316 Stainless Steel Zanda Nitro Offset | ||
| 7129 | 450 mm | | 316 Stainless Steel Zanda Nitro Offset | ||
| 7130 | 625 mm | | 316 Stainless Steel Zanda Nitro Offset | ||
| 7131 | 900 mm | | 316 Stainless Steel Zanda Nitro Offset | ||
| 7132 | 1500 mm | | 316 Stainless Steel Zanda Nitro Offset |
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Matt Black | — | 1125.BLK |
| Graphite Nickel | 1147.GN | 1148.GN |

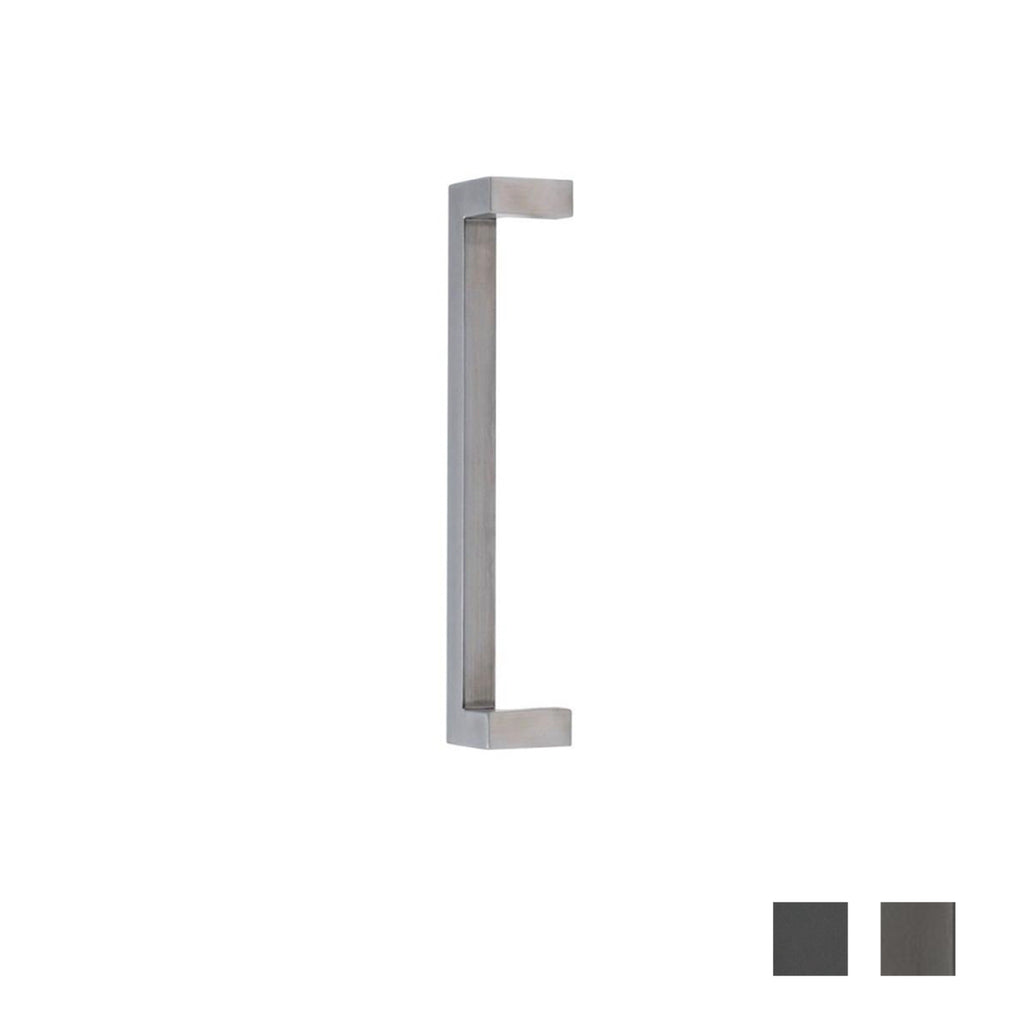

Available Finishes (3) & Product Codes
| Finish | Handle set |
|---|---|

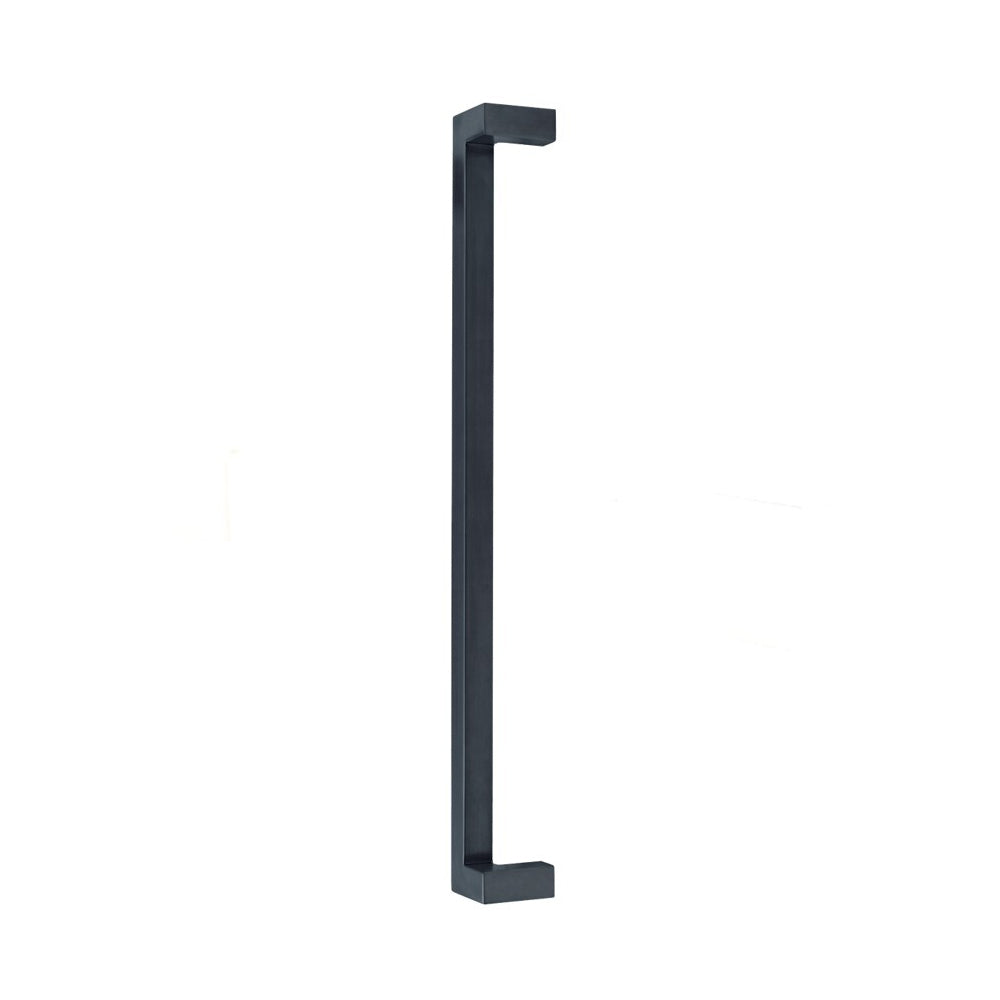

| Matt Black | 7131RFBLK |

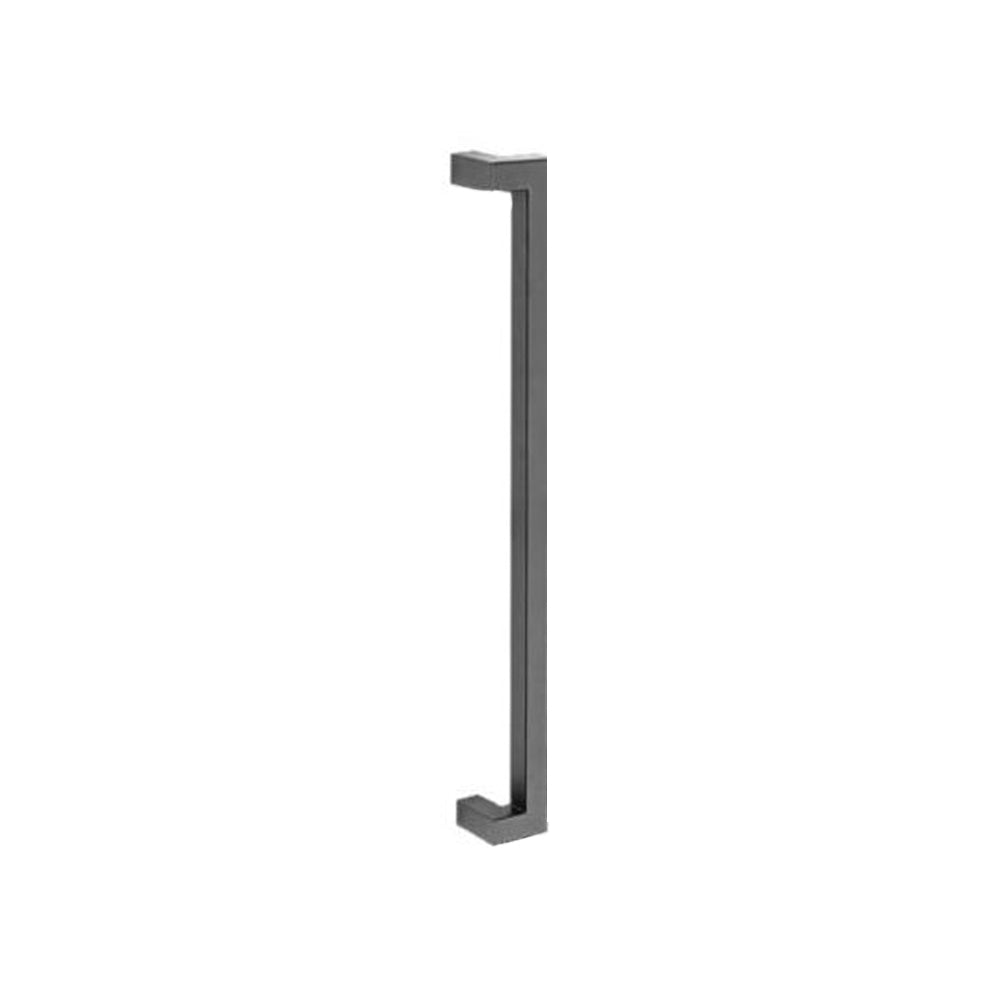

| Graphite Nickel | 7130BBGN |

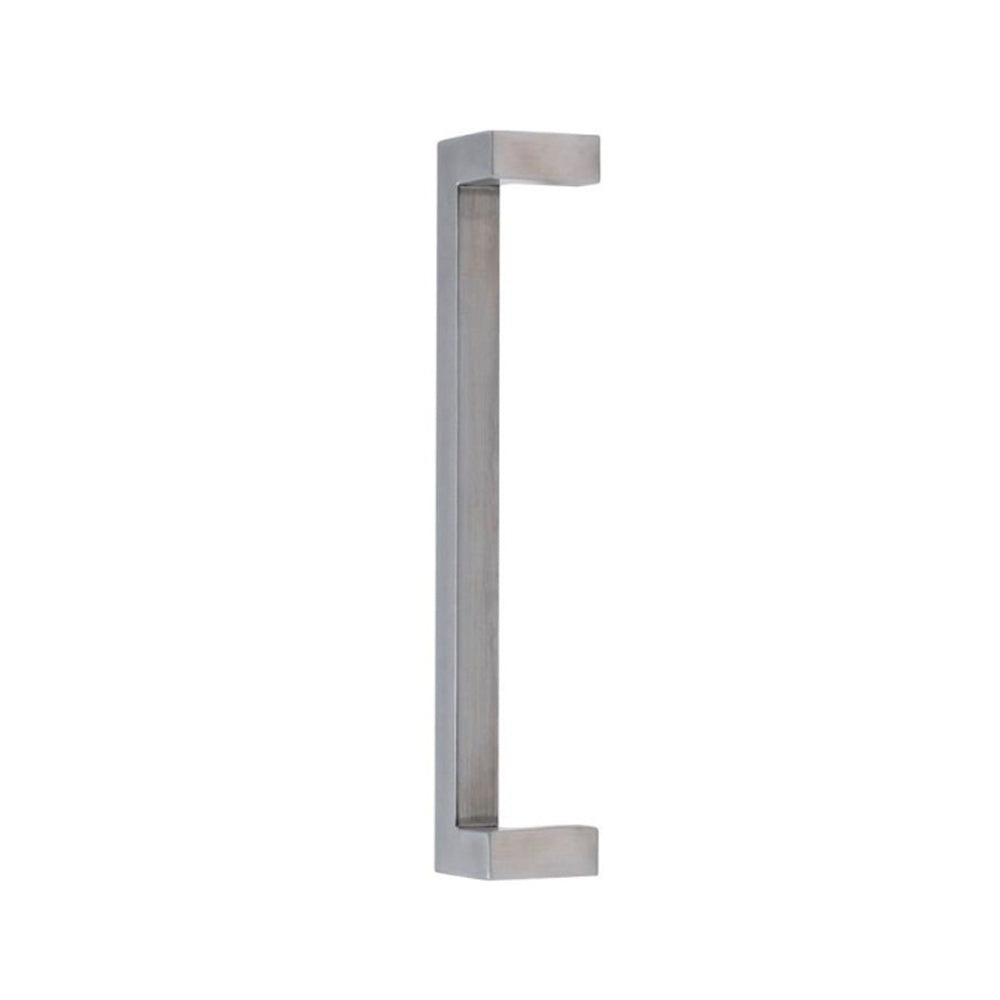

| Stainless Steel | 7132RFSS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Nitro |
| Product type | Offset entrance pull handle (square) |
| Product code | 7128, 7129, 7130, 7131, 7132 (finish suffix varies — see table above) |
| Finish | Graphite Nickel, Matt Black, Stainless Steel |
| Material | 316 marine grade stainless steel |
| Size — 7128 | 280mm centres, 300mm overall, 20 x 20mm tube, 50mm projection, 50mm offset |
| Size — 7129 | 425mm centres, 450mm overall, 25 x 25mm tube, 60mm projection, 60mm offset |
| Size — 7130 | 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection, 60mm offset |
| Size — 7131 | 875mm centres, 900mm overall, 25 x 25mm tube, 60mm projection, 60mm offset |
| Fixing | Back to Back (Pair), Face Fix (Single), Rear Fix (Single) |
| Compliance | AS1428.1 disabled access compliant: 7129, 7130, 7131 (per Zanda) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Nitro Offset Pull Handle – Square Profile?
It is a Zanda offset entrance pull handle (square) from the Nitro range, made from 316 marine grade stainless steel. Product code: 7128, 7129, 7130, 7131, 7132 (finish suffix varies — see table above).
What finishes is it available in?
It is available in Graphite Nickel, Matt Black, Stainless Steel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 7128: 280mm centres, 300mm overall, 20 x 20mm tube, 50mm projection, 50mm offset; code 7129: 425mm centres, 450mm overall, 25 x 25mm tube, 60mm projection, 60mm offset; code 7130: 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection, 60mm offset; code 7131: 875mm centres, 900mm overall, 25 x 25mm tube, 60mm projection, 60mm offset.
What is the difference between back to back, face fix and rear fix?

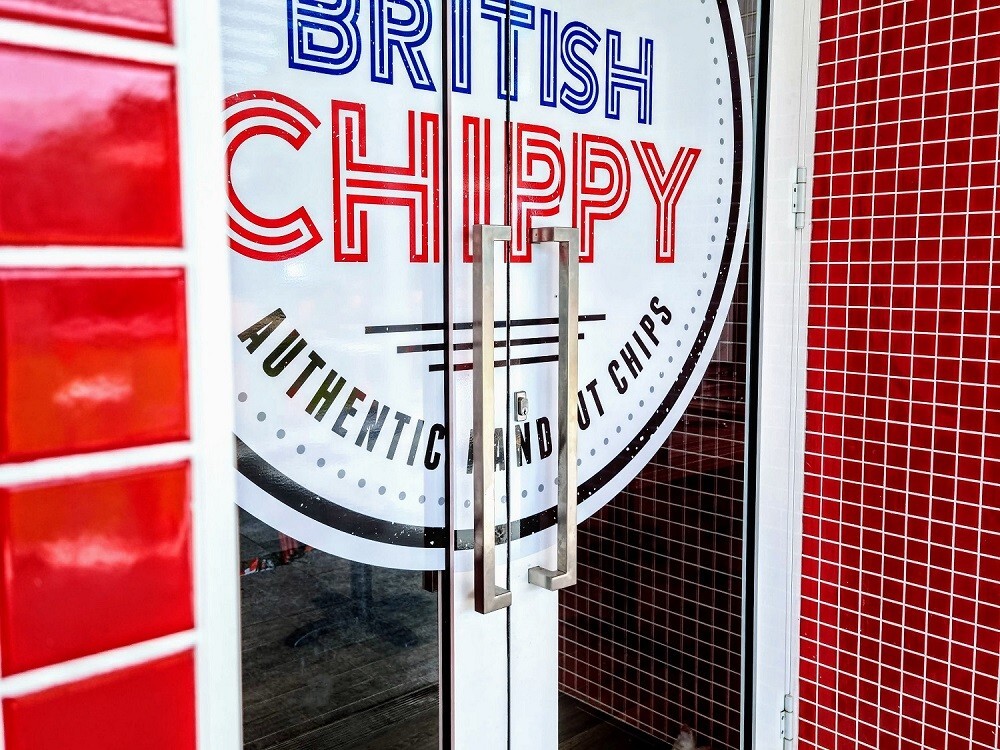

Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant: 7129, 7130, 7131 (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
