Zanda Nitro+ Offset Door Pull Handle 900mm — Rear Fix
Zanda Nitro+ Offset Door Pull Handle 900mm — Rear Fix
The Zanda Nitro+ Offset Door Pull Handle 900mm — Rear Fix is a Zanda pull handle for entrance and commercial doors, available in Matt Black and Stainless Steel. Key dimensions: centre to centre 875mm, overall length 900mm, projection 60mm. Each finish has its own Zanda product code, listed below.
Available Finishes (2) & Product Codes
| Finish | Rear Fix |
|---|---|

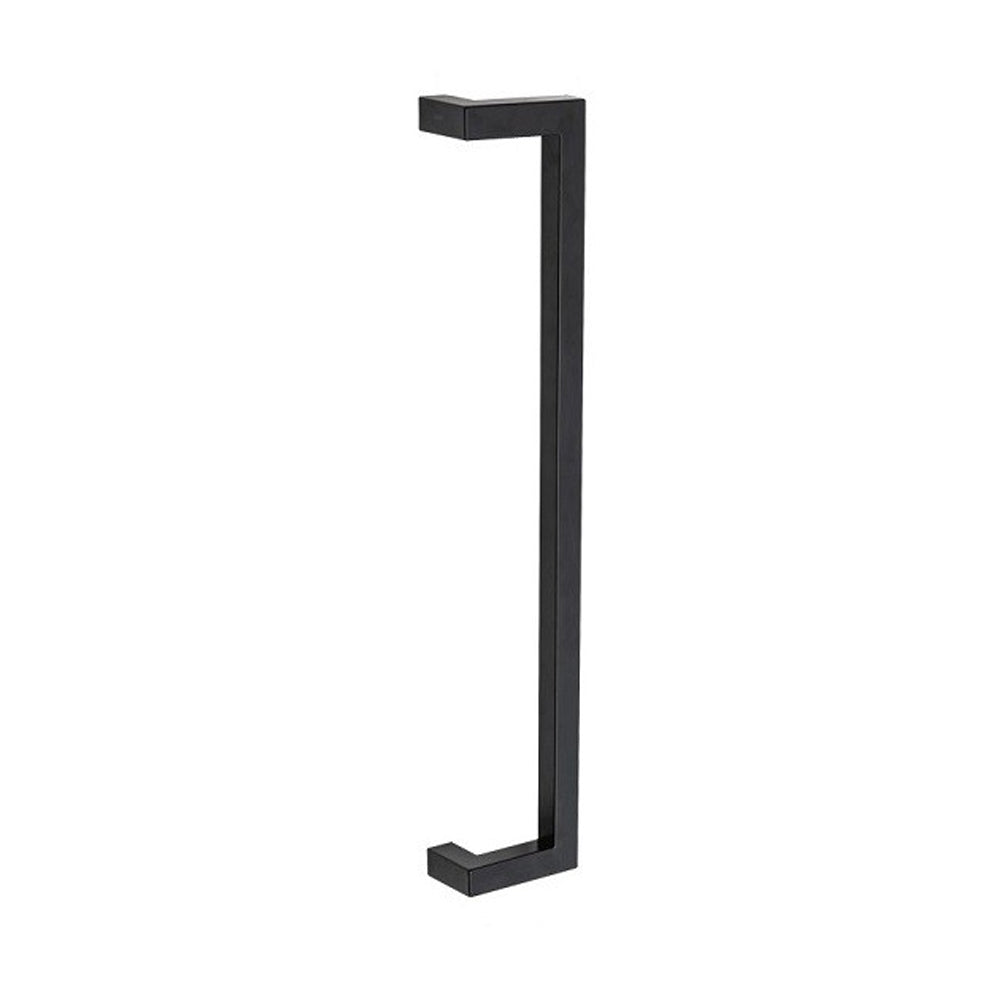

| Matt Black | 7136.RF.BLK |

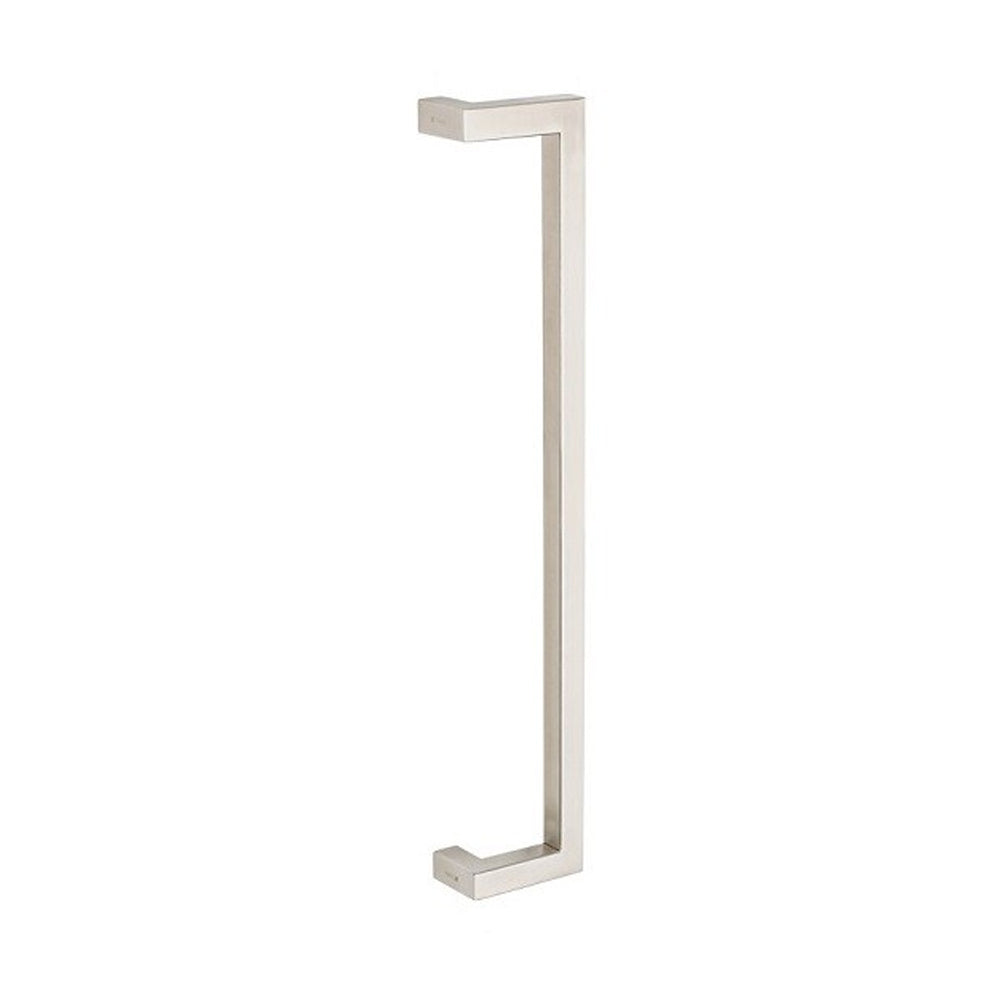

| Stainless Steel | 7136.RF.SS |
Specifications
| Brand | Zanda |
| Range | Nitro+ |
| Product type | Offset entrance pull handle (square) |
| Product code | 7136.RF.BLK, 7136.RF.SS |
| Finish | Matt Black, Stainless Steel |
| Material | 316 marine grade stainless steel |
| Dimensions | 900mm centres, 925mm overall, 25 x 25mm tube, 60mm projection, 110mm offset |
| Tube size | 25 x 25mm |
| Fixing | Rear fix (single) — suits timber and aluminium doors |
| Compliance | AS1428.1 disabled access compliant (per Zanda) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Nitro+ Offset Door Pull Handle 900mm — Rear Fix?
It is a Zanda offset entrance pull handle (square) from the Nitro+ range, made from 316 marine grade stainless steel. Product code: 7136.RF.BLK, 7136.RF.SS.
What finishes is it available in?
It is available in Matt Black, Stainless Steel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Dimensions: 900mm centres, 925mm overall, 25 x 25mm tube, 60mm projection, 110mm offset; Tube size: 25 x 25mm.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
