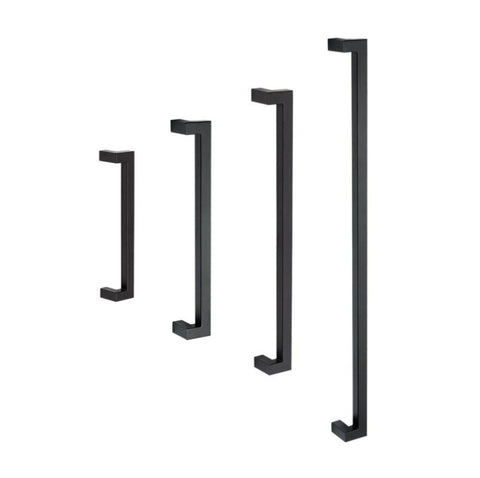

Zanda Nitro Offset Pull Handle | 316SS Square Profile — 300mm / 450mm / 625mm / 900mm Marine Grade 316 Stainless Steel. Square offset pull handle with radiused corners for improved ergonomics. AS1428 compliant in 450mm, 625mm, and 900mm sizes. Available in Stainless Steel, Matt Black, and Graphite Nickel.
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 7128 | 300 mm | — 300mm / 450mm / 625mm / 900mm Marine G |
Fixing Types Explained
| Fixing | What it means |
|---|---|
| Back to Back (Pair) | Two handles fixed through the door, one each side, bolted to each other. The strongest fixing and the usual choice for entry doors. |
| Face Fix (Single) | A single handle fixed from the front, with the screws visible on the face of the handle. |
| Rear Fix (Single) | A single handle fixed from behind the door, so no screws are visible on the handle face. |
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Matt Black | — | 1125.BLK |

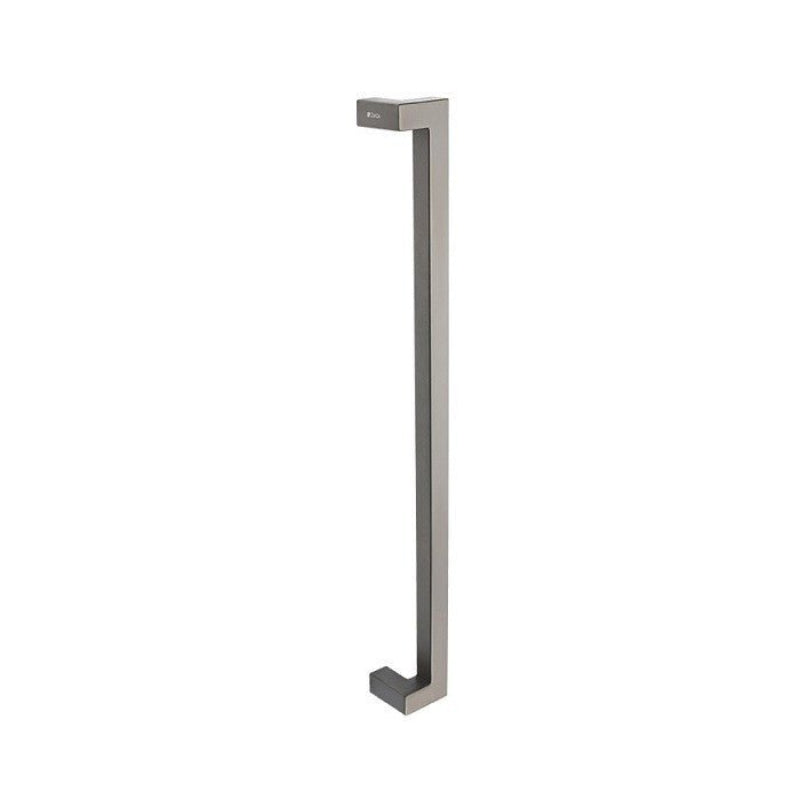

| Graphite Nickel | 1147.GN | 1148.GN |
Available Finishes (4) & Product Codes
| Finish | Back to Back (Pair) | Face Fix (Single) | Rear Fix (Single) |
|---|---|---|---|
| Matt Black | 7131.BB.BLK | 7130.FF.BLK | 7130.RF.BLK |
| Graphite Nickel | 7130.BB.GN | — | — |
| 316 Stainless Steel | 7131.BB.SS | 7131.FF.SS | 7131.RF.SS |
| Matt White | 7135.BB.WHT | — | — |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Nitro |
| Product type | Offset entrance pull handle (square) |
| Product code | 7128, 7129, 7130, 7131, 7135 (finish suffix varies — see table above) |
| Finish | 316 Stainless Steel, Matt White, Matt Black, Graphite Nickel |
| Material | 316 marine grade stainless steel |
| Size — 7128 | 280mm centres, 300mm overall, 20 x 20mm tube, 50mm projection, 50mm offset |
| Size — 7129 | 425mm centres, 450mm overall, 25 x 25mm tube, 60mm projection, 60mm offset |
| Size — 7130 | 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection, 60mm offset |
| Size — 7131 | 875mm centres, 900mm overall, 25 x 25mm tube, 60mm projection, 60mm offset |

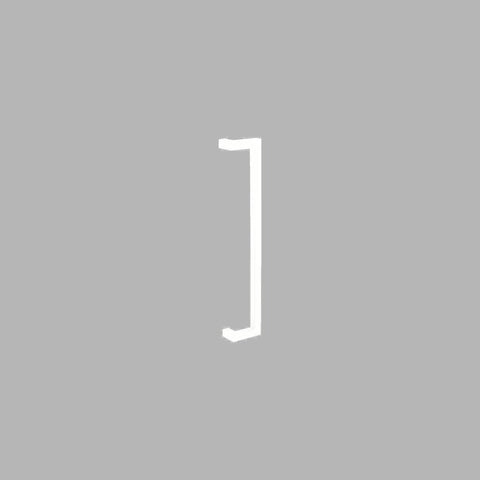

| Size — 7135 | 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection, 110mm offset |
| Fixing | Back to back (pair) — suits timber, aluminium and glass doors; Face fix (single) — suits timber doors; Rear fix (single) — suits timber and aluminium doors |
| Compliance | AS1428.1 disabled access compliant: 7129, 7130, 7131, 7135 (per Zanda) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Nitro Offset Pull Handle?
It is a Zanda offset entrance pull handle (square) from the Nitro range, made from 316 marine grade stainless steel. Product code: 7128, 7129, 7130, 7131, 7135 (finish suffix varies — see table above).
What finishes is it available in?
It is available in 316 Stainless Steel, Matt White, Matt Black, Graphite Nickel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 7128: 280mm centres, 300mm overall, 20 x 20mm tube, 50mm projection, 50mm offset; code 7129: 425mm centres, 450mm overall, 25 x 25mm tube, 60mm projection, 60mm offset; code 7130: 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection, 60mm offset; code 7131: 875mm centres, 900mm overall, 25 x 25mm tube, 60mm projection, 60mm offset; code 7135: 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection, 110mm offset.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant: 7129, 7130, 7131, 7135 (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
