Zanda Oxford Lever Handle — Satin Brass | Astron Range
Zanda Oxford Lever Handle — Satin Brass Part of Zanda's Astron range, the Oxford lever features a knurled detail on a 54mm rose, finished in Satin Brass. Available in passage, privacy, entrance and dummy configurations, so you can match the right function to every door in a single, consistent design. Astron Knurled Detail on 54mm Rose — One Design for Every Door RANGE Astron FINISH Satin Brass ROSE 54mm DETAIL Knurled Functions & Model Codes Function Model Use Passage 10071 Non-locking — bedrooms, living rooms, hallways Integrated Privacy 10072 Built-in inside lock with emergency release Separate Privacy 10076 Inside lock using a separate privacy bolt Dummy 10073.D Fixed pull — no latch, for wardrobes and fixed panels Entrance 10074 Keyed — front, back and main-access doors Specification Detail Range Astron Finish Satin Brass Detail Knurled Rose diameter 54mm Functions Passage, integrated privacy, separate privacy, dummy, entrance Also available in Brushed Nickel/Chrome Plate, Graphite Nickel, Matt Black
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Satin Brass | 10071.SB |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Astron |
| Product type | Door lever on round rose |
| Product code | 10071.SB |

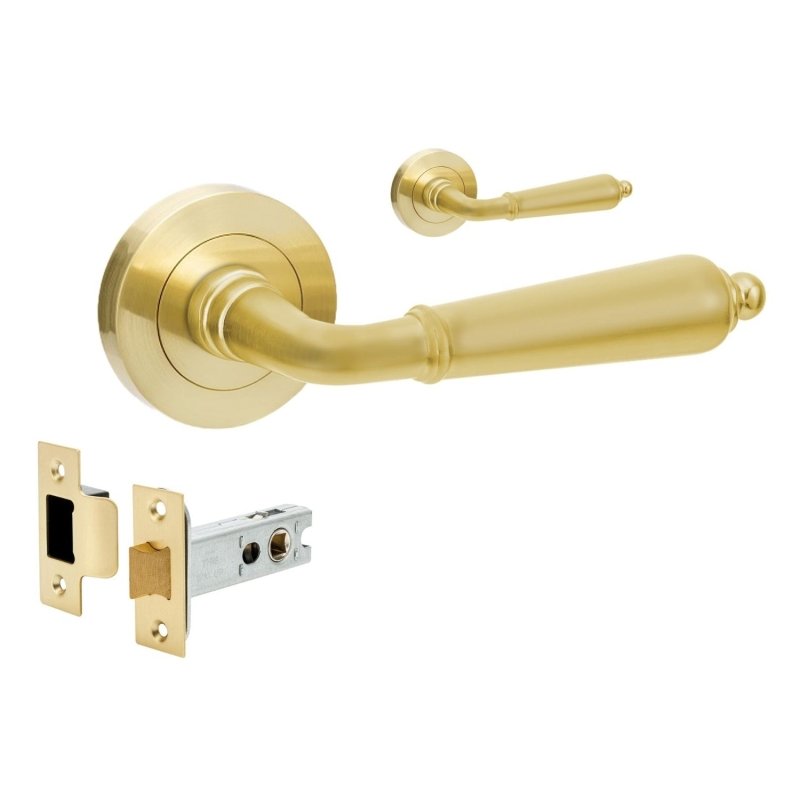

| Zanda set | 10071 — Oxford Passage Set, includes 1131 latch |
| Finish | Satin Brass |
| Material | Solid Brass |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts |
| Rebate kits | 1102.A.SC (passage and privacy sets); 1146.SS (entrance sets) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Oxford Lever Handle — Satin Brass?
It is a Zanda door lever on round rose from the Astron range, made from solid brass. Product code: 10071.SB.
What is included in this set?
Oxford Passage Set, includes 1131 latch. Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
This listing is finished in Satin Brass. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
