Zanda
SKU: 11019.SC

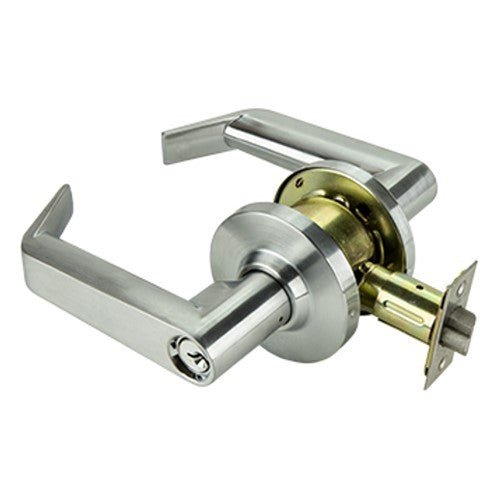

Zanda Phoenix CL Series Commercial Lever Sets — DDA Compliant

PRODUCT: 11019 - (CL8082D)Phoenix Fire Rated Lever Passage Set
FINISH: Satin Chrome
$118.17 $162.43
You Save $44.26 (27% Off)
Tax included. Shipping calculated at checkout
Availability
Online: In Stock With Supplier

Ships within 4–8 business days

Showroom: Check before visiting

Call us to confirm pickup availability.

Stock can move quickly. For urgent pickup, please call before visiting.
✓

You May Also Need

This product is included in the bundle below

✓ Included
Zanda Phoenix CL Series Commercial Lever Sets — DDA Compliant
Zanda Phoenix CL Series Commercial Lever Sets — DDA Compliant
$118.17 $162.43
You save $44.26 (27%)
Zanda Skirting Mount Door Stop 5240 85mm Projection 16mm Diameter Multiple Finishes Zanda Skirting Mount Door Stop 5240 85mm Projection 16mm Diameter Multiple Finishes
$14.83 $20.38
You save $5.55 (27%)
This product $118.17
Selected accessories $0
Bundle total $0
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection
Zanda

Zanda Phoenix CL Series Commercial Lever Sets — DDA Compliant

Product code (SKU): 11019.SC–11026.SC (by finish / function)

DDA compliant for accessible use, the series is available in passage, privacy and entrance configurations across multiple finishes, so you can specify a consistent lever throughout a project. DDA Compliant — Commercial Grade for Heavy-Traffic Doors SERIES Phoenix CL GRADE Commercial COMPLIANCE DDA FUNCTIONS 3 Functions Function Use Passage Non-locking — corridors, common areas, internal doors Privacy Inside lock with emergency release — bathrooms, change rooms Entrance Keyed — main-access and secured doors Specification Detail Series Phoenix CL Grade Commercial Compliance DDA compliant Functions Passage, privacy, entrance Suited to Commercial and institutional buildings

Satin ChromeFinish

Door Functions Explained

Passage The latch operates from both sides and does not lock — for bedrooms, living rooms and studies.
Privacy Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites.
Entrance Key-lockable using a euro cylinder — for front and back doors.
Dummy / Fixed A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door.

What's in the Box

  • 1 pair of levers (or knobs) with roses / backplates
  • Face-fix wood screws and tie bolts
  • The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
  • Not included: hinges and flush bolts

Complete Your Door Hardware

The items below are sold separately. The product code for each finish is listed.

Complete Your Door Hardware
Zanda Door Stop
Protects the wall and the handle when the door swings open. Floor, skirting and magnetic types available.
Satin Chrome 5240.SC
Zanda Hinges — 3 per door
Ball bearing suits heavy and high-use doors; butt hinges suit standard internal doors.
Ember Bronze 5901.EBMatt Black 5910BLKSatin Brass 5902SBGraphite Nickel 5910GNStainless Steel 5910SS
Zanda Flush Bolt
Secures the inactive leaf of a double door. A dust socket is used at the floor.
Ember Bronze 10423.EBSatin Brass 10423.SB

Available Finishes (1) & Product Codes

Satin Chrome
Finish Passage Privacy 11020 - (CL8000D) Phoenix Fire Rated Lever Entrance Set 11022 - (CL8052D) Phoenix Fire Rated Lever Escape / Half Set 11023 - (CL8012D) Phoenix Fire Rated Lever Classroom Set 11024 - (CL8062D) Phoenix Fire Rated Lever Storeroom Set 11025 - (CL8095D) Phoenix Fire Rated Lever Double Vestibule Set 11026 - (CL8011D) Phoenix Fire Rated Lever Double Communicating Set
Satin Chrome 11019.SC 11021.SC 11020.SC 11022.SC 11023.SC 11024.SC 11025.SC 11026.SC

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

1What is your door made of?
Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.
Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm the latch or lock suits your frame profile.
2What does the door need to do?
PassageBedrooms, living rooms, studies — the door opens and closes but never locks.
You need tube latch
PrivacyBathrooms, ensuites and bedrooms — locks from the inside with a snib, emergency release outside.
You need tube latch + privacy turn, or a privacy mortice lock
Backset & door thickness The backset is the distance from the door edge to the spindle centre — tube latches come in 45, 60 and 70 mm; mortice locks in 44, 46 and 57 mm. Measure before ordering. A rebated double door needs the rebated version of the lock.
3Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

Hinges — Which One Do You Need?

Hinge type Best for Why
Ball bearing Entrance and heavier doors Bearings reduce friction and wear — best for high-use doors.
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications.
Loose pin Internal use — ideal for bathrooms The pin withdraws so the door lifts off without unscrewing the hinge.
Parliament Doors that must open 180° Projects the door clear of the frame or architrave so it swings back against the wall.

Three hinges per door is standard for internal and entrance doors.

Specifications

Brand Zanda
Range Phoenix CL Series (Garrison)
Product type Commercial cylindrical lever set
Function Passage set, Privacy set, Entrance set, Classroom set, Storeroom set, Double vestibule set, Communicating set
Product code 11019.SC, 11021.SC, 11020.SC, 11022.SC, 11023.SC, 11024.SC, 11025.SC, 11026.SC
Set 11019.SC (CL8082D-SC)Phoenix Fire Rated Lever Passage Set
Set 11021.SC (CL8030D-SC) Phoenix Fire Rated Lever Privacy Set
Set 11020.SC (CL8000D-SC) Phoenix Fire Rated Lever Entrance Set
Set 11023.SC (CL8012D-SC) Phoenix Fire Rated Lever Classroom Set
Set 11024.SC (CL8062D-SC) Phoenix Fire Rated Lever Storeroom Set
Set 11025.SC (CL8095D-SC) Phoenix Fire Rated Lever Double Vestibule Set
Set 11026.SC (CL8011D-SC) Phoenix Fire Rated Lever Double Communicating Set
Finish Satin Chrome
Rose / plate 75mm round rose
Backset 70mm
Door thickness 35–47mm
Keyway C4, 6 pin
Latchbolt Stainless steel
Compliance Disabled access compliant (AS1428.1)
Fire rating Fire tested to AS1530.4
Warranty 10-year manufacturer mechanical warranty

Warranty

✓10-Year Manufacturer Warranty

10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.

ⓘFinish care

Wipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.

What is the Zanda Phoenix CL Series Commercial Lever Sets — DDA Compliant?

It is a Zanda commercial cylindrical lever set from the Phoenix CL Series (Garrison) range. Function: passage set, Privacy set, Entrance set, Classroom set, Storeroom set, Double vestibule set, Communicating set. Product code: 11019.SC, 11021.SC, 11020.SC, 11022.SC, 11023.SC, 11024.SC, 11025.SC, 11026.SC.

What does each option include?

11019.SC: (CL8082D-SC)Phoenix Fire Rated Lever Passage Set; 11021.SC: (CL8030D-SC) Phoenix Fire Rated Lever Privacy Set; 11020.SC: (CL8000D-SC) Phoenix Fire Rated Lever Entrance Set; 11023.SC: (CL8012D-SC) Phoenix Fire Rated Lever Classroom Set; 11024.SC: (CL8062D-SC) Phoenix Fire Rated Lever Storeroom Set; 11025.SC: (CL8095D-SC) Phoenix Fire Rated Lever Double Vestibule Set; 11026.SC: (CL8011D-SC) Phoenix Fire Rated Lever Double Communicating Set.

What finishes is it available in?

This listing is finished in Satin Chrome. Other Zanda finishes may be available — contact us to check.

What are the dimensions?

Rose / plate: 75mm round rose.

What door thickness does it suit?

Zanda specifies 35–47mm. Measure your door before ordering; for thicker doors, contact us about longer fixings or alternatives.

Which set do I need for my door?

Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.

Is it disabled access compliant?

Disabled access compliant (AS1428.1). Always confirm requirements with your certifier for the specific project.

Is it suitable for fire-rated doors?

Fire tested to AS1530.4. Fire door hardware must be installed as part of a tested door assembly — check with your certifier.

What warranty does it have?

10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.

How can I get help choosing the right product?

Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
