Zanda Phoenix CL Series Key-in-Knob/Lever | Commercial Lock Sets

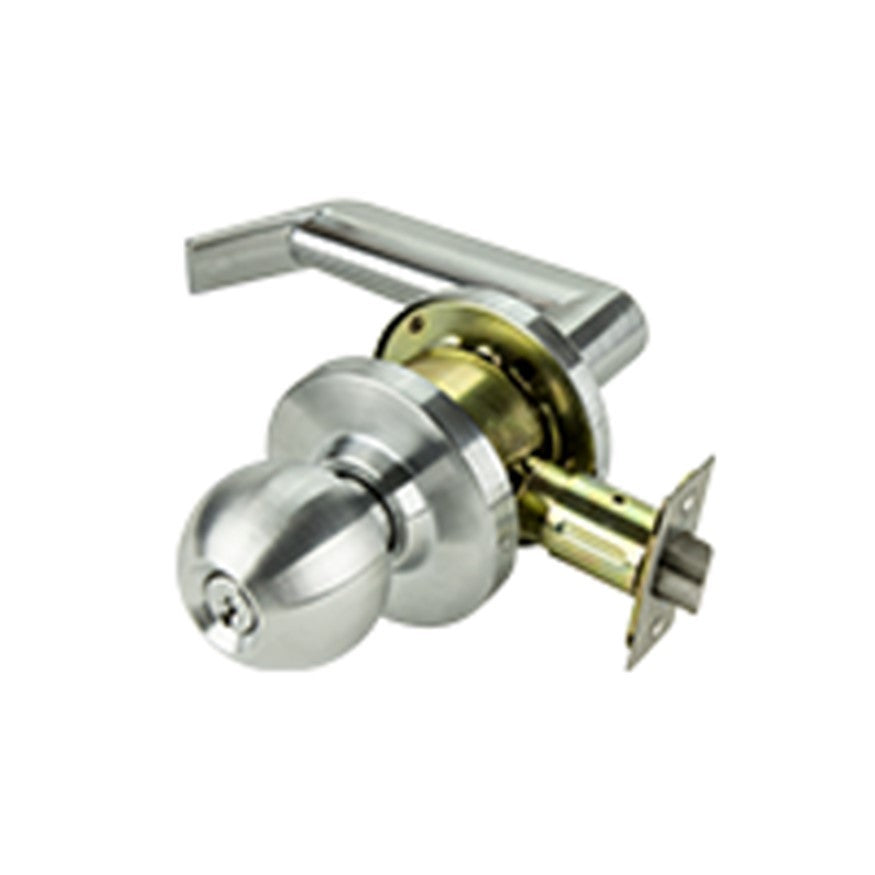

Zanda · Commercial Lock Set Phoenix CL Series Key-in-Knob/Lever The Zanda Phoenix CL Series Key-in-Knob/Lever integrates the key cylinder directly into the handle for a clean, functional look on commercial doors. Stainless steel Fire tested to AS1530.4 Commercial grade What's Included ✓ Key-in-knob or key-in-lever handle set ✓ Cylinder integrated into handle ✓ 75mm diameter rose ✓ Stainless steel latchbolt Available in a range of functions to suit different commercial applications — see the guide below to select the right set for your door. Function guide — which set do you need? Storeroom Outside knob or lever always rigid; key retracts the latch.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Satin Chrome | 11027.SC |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Phoenix CL Series (Garrison) |
| Product type | Commercial key-in-knob / key-in-lever lockset |
| Function | Entrance set, Storeroom set |
| Product code | 11028.SC, 11027.SC |
| Finish | Satin Chrome |
| Material | Stainless Steel |
| Rose / plate | 75mm round rose |
| Backset | 70mm |
| Door thickness | 35–47mm |
| Keyway | C4, 6 pin |
| Latchbolt | Stainless steel |
| Fire rating | Fire tested to AS1530.4 |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Phoenix CL Series Key-in-Knob/Lever?
It is a Zanda commercial key-in-knob / key-in-lever lockset from the Phoenix CL Series (Garrison) range, made from stainless steel. Function: entrance set, Storeroom set. Product code: 11028.SC, 11027.SC.
What finishes is it available in?
This listing is finished in Satin Chrome. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 75mm round rose.
What door thickness does it suit?
Zanda specifies 35–47mm. Measure your door before ordering; for thicker doors, contact us about longer fixings or alternatives.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
Is it suitable for fire-rated doors?
Fire tested to AS1530.4. Fire door hardware must be installed as part of a tested door assembly — check with your certifier.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
