Zanda Polo Pull Handle 316SS AS1428 | 6 Sizes 5 Finishes The Zanda Polo Pull Handle is one of Australia's most popular entrance pull handles. Available in six sizes from 300mm to 1800mm overall length, and five finishes including PVD Graphite Nickel and Satin Brass. Suits back-to-back, single face fix, and rear fix installations on residential and commercial entry doors. Backed by a 20-year mechanical warranty.
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 7098 | 300 mm | 270 mm | 30x15mm | 50 mm |
| 7099 | 450 mm | 410 mm | 40x20mm | 60 mm |
| 7100 | 600 mm | 560 mm | 40x20mm | 60 mm |
| 7101 | 900 mm | 860 mm | 40x20mm | 60 mm |
| 7103 | 1240 mm | 1200 mm | 40x20mm | 60 mm |
| 7102 | 1800 mm | 1760 mm | 40x20mm | 60 mm |
Fixing Types Explained
| Fixing | What it means |
|---|---|
| Back to Back (Pair) | Two handles fixed through the door, one each side, bolted to each other. The strongest fixing and the usual choice for entry doors. |
| Face Fix (Single) | A single handle fixed from the front, with the screws visible on the face of the handle. |
| Rear Fix (Single) | A single handle fixed from behind the door, so no screws are visible on the handle face. |
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Matt Black | — | 1125.BLK |
| Graphite Nickel | 1147.GN | 1148.GN |
Available Finishes (3) & Product Codes
| Finish | 7098 - 300mm o/a length — Back to Back (Pair) | 7098 - 300mm o/a length — Face Fix (Single) | 7098 - 300mm o/a length — Rear Fix (Single) | 7099 - 450mm o/a length — Back to Back (Pair) | 7099 - 450mm o/a length — Face Fix (Single) | 7099 - 450mm o/a length — Rear Fix (Single) | 7100 - 600mm o/a length — Back to Back (Pair) | 7100 - 600mm o/a length — Face Fix (Single) | 7100 - 600mm o/a length — Rear Fix (Single) | 7101 - 900mm o/a length — Back to Back (Pair) | 7101 - 900mm o/a length — Face Fix (Single) | 7101 - 900mm o/a length — Rear Fix (Single) | 7102 - 1800mm o/a length — Back to Back (Pair) | 7102 - 1800mm o/a length — Face Fix (Single) | 7102 - 1800mm o/a length — Rear Fix (Single) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Matt Black | 7098.BB.BLK | 7098.FF.BLK | 7098.RF.BLK | 7099.BB.BLK | 7099.FF.BLK | 7099.RF.BLK | 7100.BB.BLK | 7100.FF.BLK | 7100.RF.BLK | 7101.BB.BLK | 7101.FF.BLK | 7101.RF.BLK | 7102.BB.BLK | 7102.FF.BLK | 7102.RF.BLK |
| Graphite Nickel | 7098.BB.GN | — | — | — | — | — | 7100.BB.GN | — | — | 7101.BB.GN | — | — | 7102.BB.GN | — | — |
| 316 Satin Stainless Steel | 7098.BB.SS | 7098.FF.SS | 7098.RF.SS | 7099.BB.SS | 7099.FF.SS | 7099.RF.SS | 7100.BB.SS | 7100.FF.SS | 7100.RF.SS | 7101.BB.SS | 7101.FF.SS | 7101.RF.SS | 7102.BB.SS | 7102.FF.SS | 7102.RF.SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Polo |

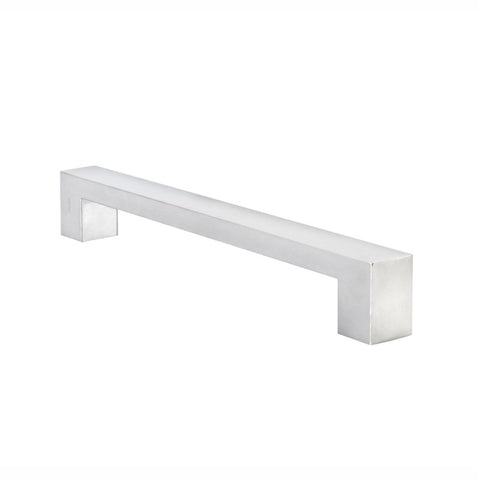

| Product type | Entrance pull handle (rectangular bar, radiused corners) |
| Product code | 7098, 7099, 7100, 7101, 7102 (finish suffix varies — see table above) |
| Finish | 316 Satin Stainless Steel, Matt Black, Graphite Nickel |
| Material | 316 marine grade stainless steel |
| Size — 7098 | 270mm centres, 300mm overall, 30 x 15mm bar, 50mm projection |
| Size — 7099 | 410mm centres, 450mm overall, 40 x 20mm bar, 60mm projection |
| Size — 7100 | 560mm centres, 600mm overall, 40 x 20mm bar, 60mm projection |

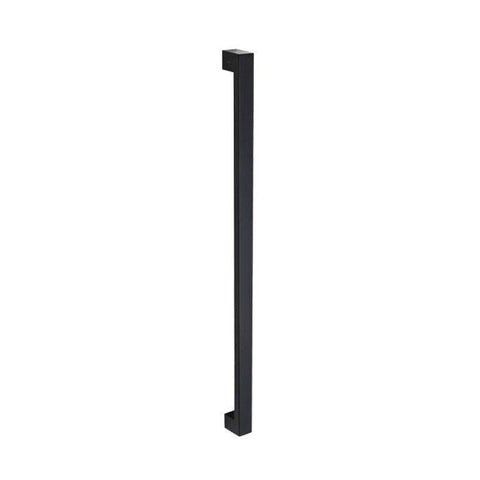

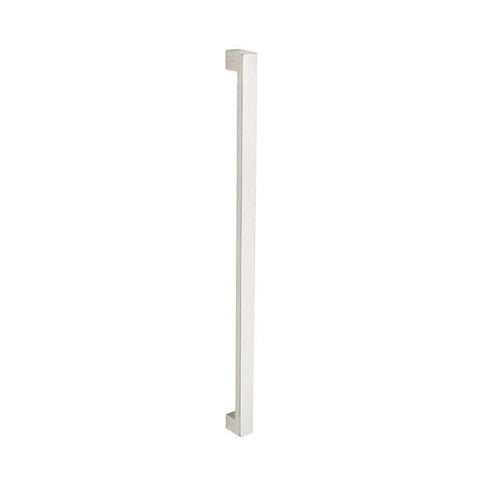

| Size — 7101 | 860mm centres, 900mm overall, 40 x 20mm bar, 60mm projection |
| Size — 7102 | 1760mm centres, 1800mm overall, 40 x 20mm bar, 60mm projection |
| Fixings | Includes fixings for metal, timber and glass doors |
| Fixing | Back to back (pair) — suits timber, aluminium and glass doors; Face fix (single) — suits timber doors; Rear fix (single) — suits timber and aluminium doors |
| Compliance | AS1428.1 disabled access compliant (per Zanda) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Polo Pull Handle 316SS AS1428?
It is a Zanda entrance pull handle (rectangular bar, radiused corners) from the Polo range, made from 316 marine grade stainless steel. Product code: 7098, 7099, 7100, 7101, 7102 (finish suffix varies — see table above).
What finishes is it available in?
It is available in 316 Satin Stainless Steel, Matt Black, Graphite Nickel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 7098: 270mm centres, 300mm overall, 30 x 15mm bar, 50mm projection; code 7099: 410mm centres, 450mm overall, 40 x 20mm bar, 60mm projection; code 7100: 560mm centres, 600mm overall, 40 x 20mm bar, 60mm projection; code 7101: 860mm centres, 900mm overall, 40 x 20mm bar, 60mm projection; code 7102: 1760mm centres, 1800mm overall, 40 x 20mm bar, 60mm projection.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
