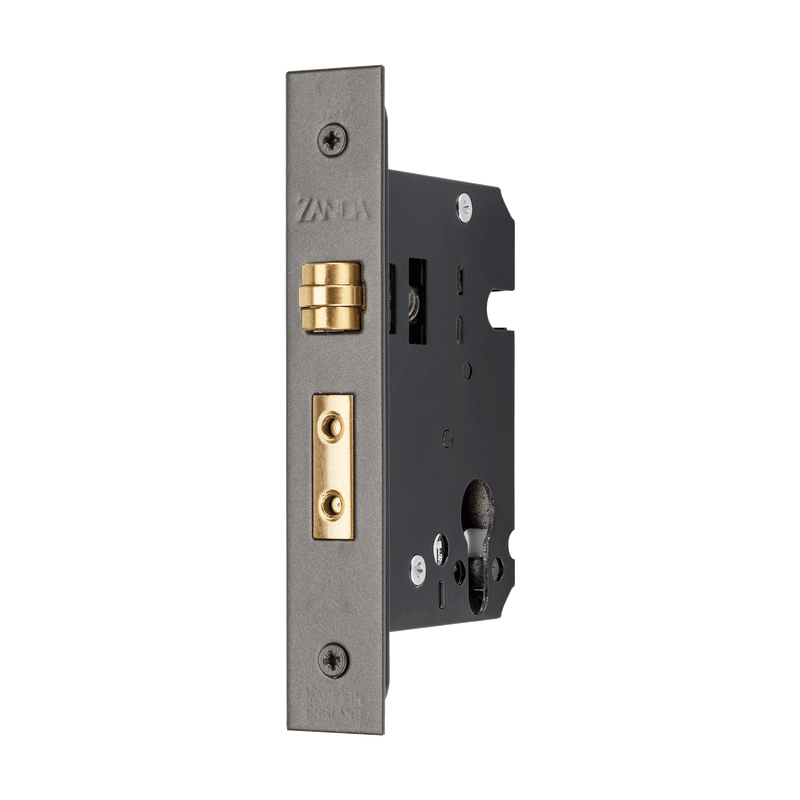

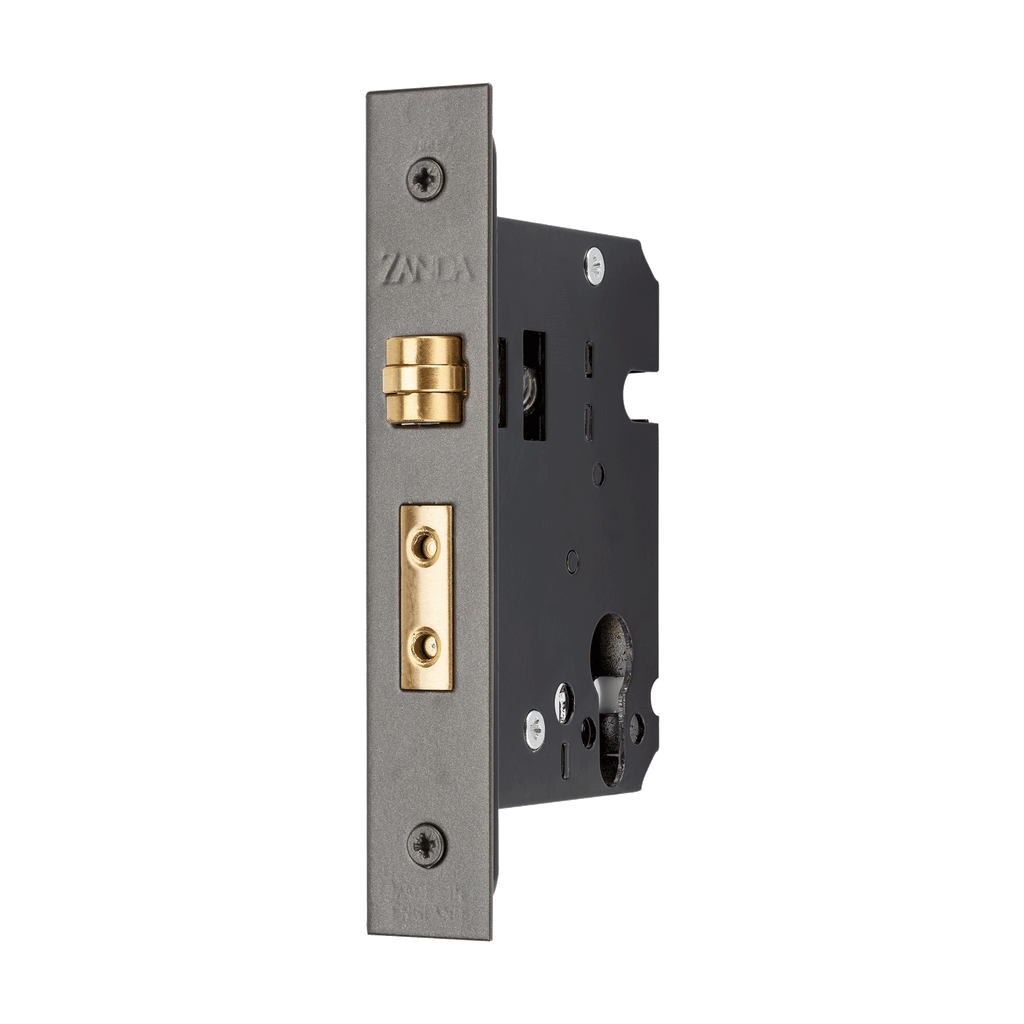

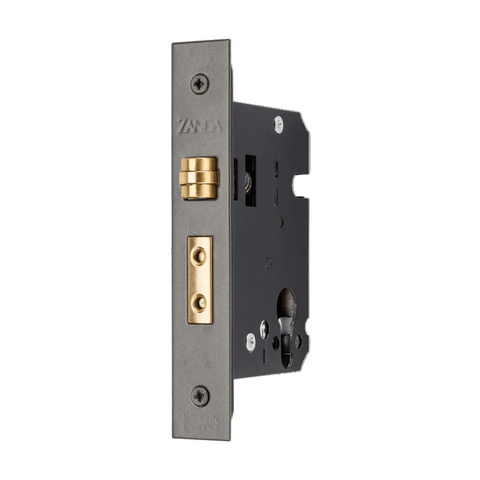

Zanda Heavy Duty Roller Mortice Lock — 45mm & 57mm Backset | SS, Graphite Nickel, Matt Black, Satin Brass
Zanda Heavy Duty Roller Mortice Lock — 45mm & 57mm Backset | SS, Graphite Nickel, Matt Black, Satin Brass
Zanda Heavy Duty Roller Mortice Lock — Push/Pull Operation for Entry Doors with Pull Handles | 2 Backset Sizes, 4 Finishes The Zanda Heavy Duty Roller Mortice Lock is a UK-manufactured spring-loaded roller bolt lock designed for entry and internal doors fitted with fixed pull handles or lever handles. Unlike a standard spring latch — which requires a lever handle to retract — the roller bolt compresses automatically as the door closes and springs into the strike plate without any handle operation. The door holds shut without locking, making it ideal for going outside without being locked out, while the euro cylinder provides deadbolt security when needed. Available in two backset sizes and four finishes, backed by a 10 Year Mechanical
Available Finishes (4) & Product Codes
| Finish | Handle set |
|---|---|

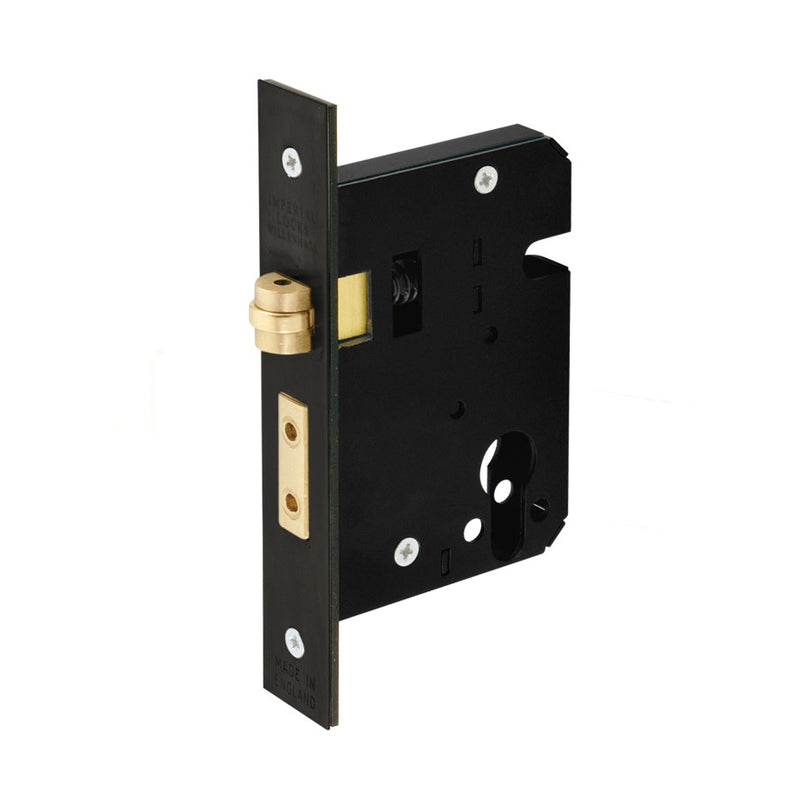

| Matt Black | 1140.BLK |

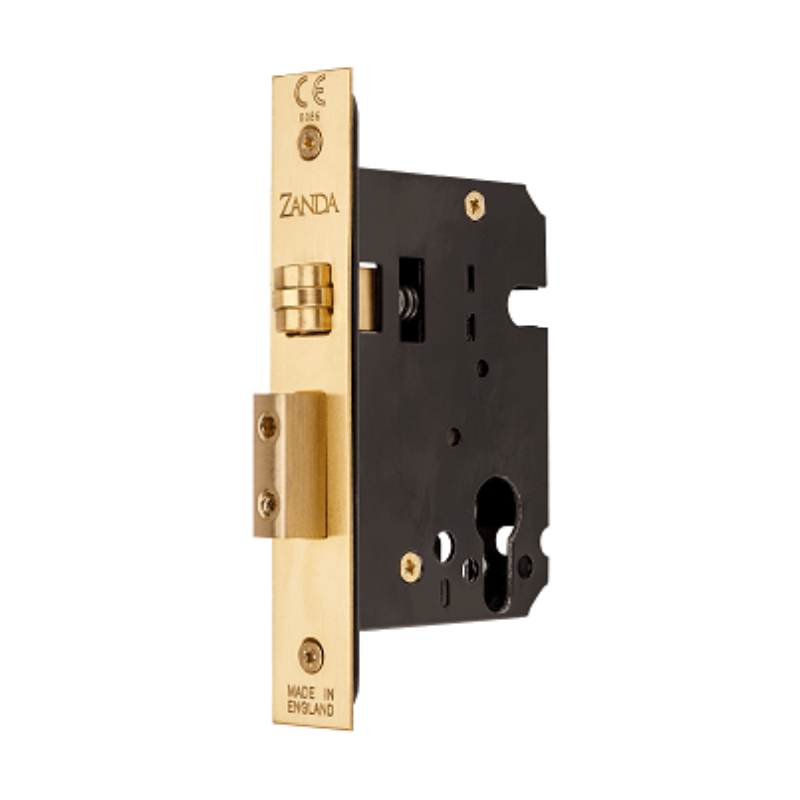

| Satin Brass | 1140.SB |
| Graphite Nickel | 1140.GN |

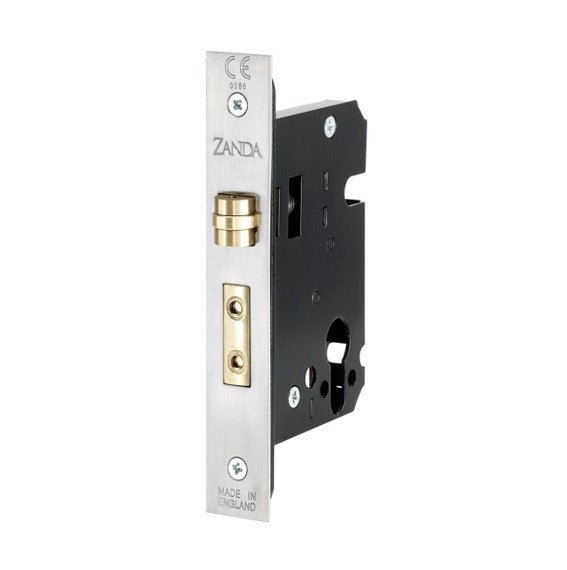

| Stainless Steel | 1140.SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Product type | Heavy duty roller mortice lock (euro profile) |
| Product code | 1139.SS, 1140.SS, 1140.SB, 1140.GN, 1140.BLK |
| Set 1139 | 45mm backset, 65mm case size |
| Set 1140 | 57mm backset, 76mm case size |
| Finish | Stainless Steel, Satin Brass, Graphite Nickel, Matt Black |
| Material | Stainless Steel |
| Size — 1139 | 45mm backset, 65mm case |
| Size — 1140 | 57mm backset, 76mm case |
| Case / backset | 1139: 65mm case, 45mm backset; 1140: 76mm case, 57mm backset |
| Roller | Heavy duty, adjustable from the back |
| Origin | Manufactured in the UK |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Heavy Duty Roller Mortice Lock — 45mm & 57mm Backset?
It is a Zanda heavy duty roller mortice lock (euro profile), made from stainless steel. Product code: 1139.SS, 1140.SS, 1140.SB, 1140.GN, 1140.BLK.
What does each option include?
1139: 45mm backset, 65mm case size; 1140: 57mm backset, 76mm case size.
What finishes is it available in?
It is available in Stainless Steel, Satin Brass, Graphite Nickel, Matt Black. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 1139: 45mm backset, 65mm case; code 1140: 57mm backset, 76mm case.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
