Zanda Round Slimline Deadbolt Single Cylinder Multiple Finishes
Zanda Round Slimline Deadbolt Single Cylinder Multiple Finishes

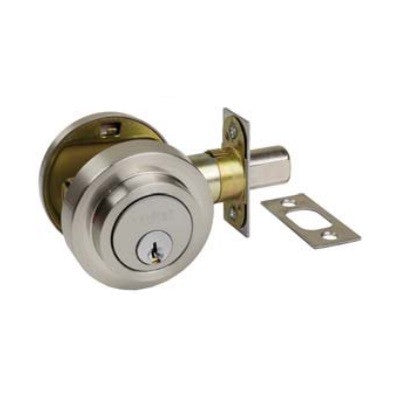

The Zanda Round Slimline Deadbolt is a slim surface-mounted deadbolt with round profile for internal security applications. Round profile, single cylinder (key/turn)
Available Finishes (4) & Product Codes
| Finish | Handle set |
|---|---|
| Brushed Nickel | 9063.BN |

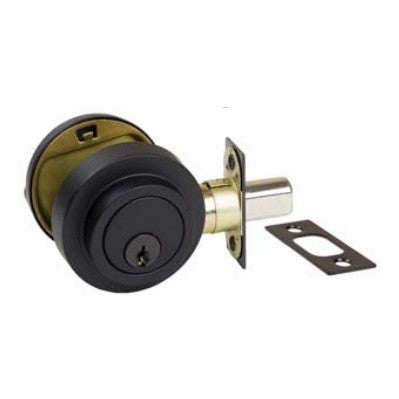

| Matt Black | 9063.BLK |
| Satin Brass | 9063.SB |
| Graphite Nickle | 9063.GN |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Jura |
| Product type | Slimline deadbolt (key and snib) |
| Product code | 9063.BN, 9063.BLK, 9063.SB, 9063.GN |
| Finish | Brushed Nickel, Matt Black, Satin Brass, Graphite Nickel |
| Rose / plate | 63mm rose |
| Backset | Adjustable 60mm / 70mm (54mm x 25mm door preparation) |
| Door thickness | 32–50mm |
| Fixing | Fully concealed, non-handed |
| Cylinder | 6-pin PD cylinder, 5 pins loaded; C4 brass cylinder and plug; 2 keys |
| Keying | Compatible with most restricted key systems |
| Casing | Reinforced external casing |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Round Slimline Deadbolt Single Cylinder Multiple Finishes?
It is a Zanda slimline deadbolt (key and snib) from the Jura range. Product code: 9063.BN, 9063.BLK, 9063.SB, 9063.GN.
What finishes is it available in?
It is available in Brushed Nickel, Matt Black, Satin Brass, Graphite Nickel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Rose / plate: 63mm rose; Backset: Adjustable 60mm / 70mm (54mm x 25mm door preparation).
What door thickness does it suit?
Zanda specifies 32–50mm. Measure your door before ordering; for thicker doors, contact us about longer fixings or alternatives.
How do I choose the right cylinder length?
Measure the door thickness and the lock position. Zanda cylinders are sold in fixed lengths (for example 40, 60, 70 and 90mm); the cylinder should sit flush with, or slightly proud of, the escutcheons on both sides. If unsure, send us the door thickness and lock model.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
