Zanda Square Double Turn Lock Kits 60mm Backset Multiple Finishes
Zanda Square Double Turn Lock Kits 60mm Backset Multiple Finishes

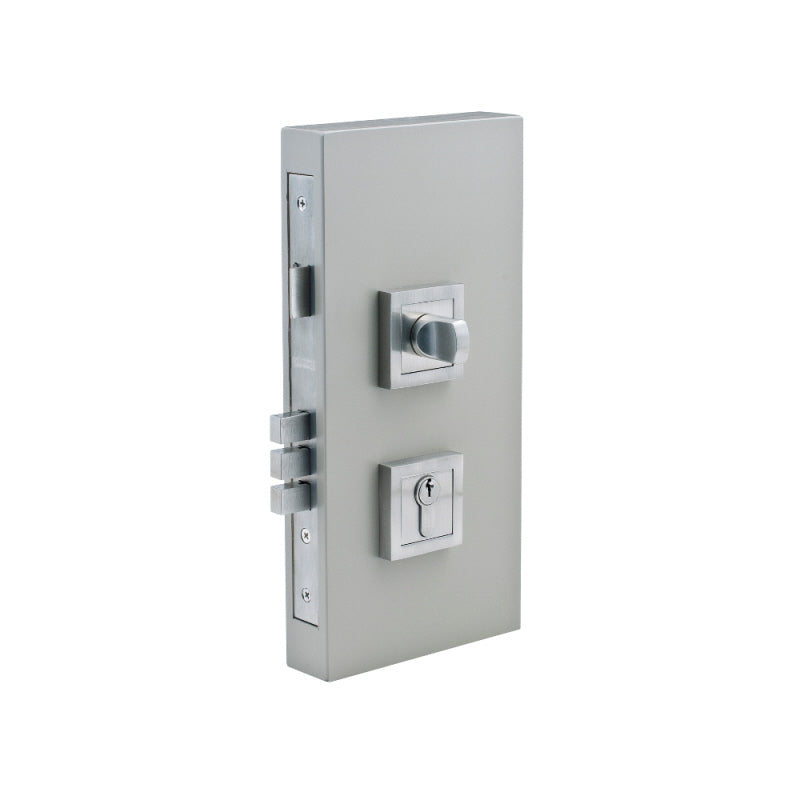

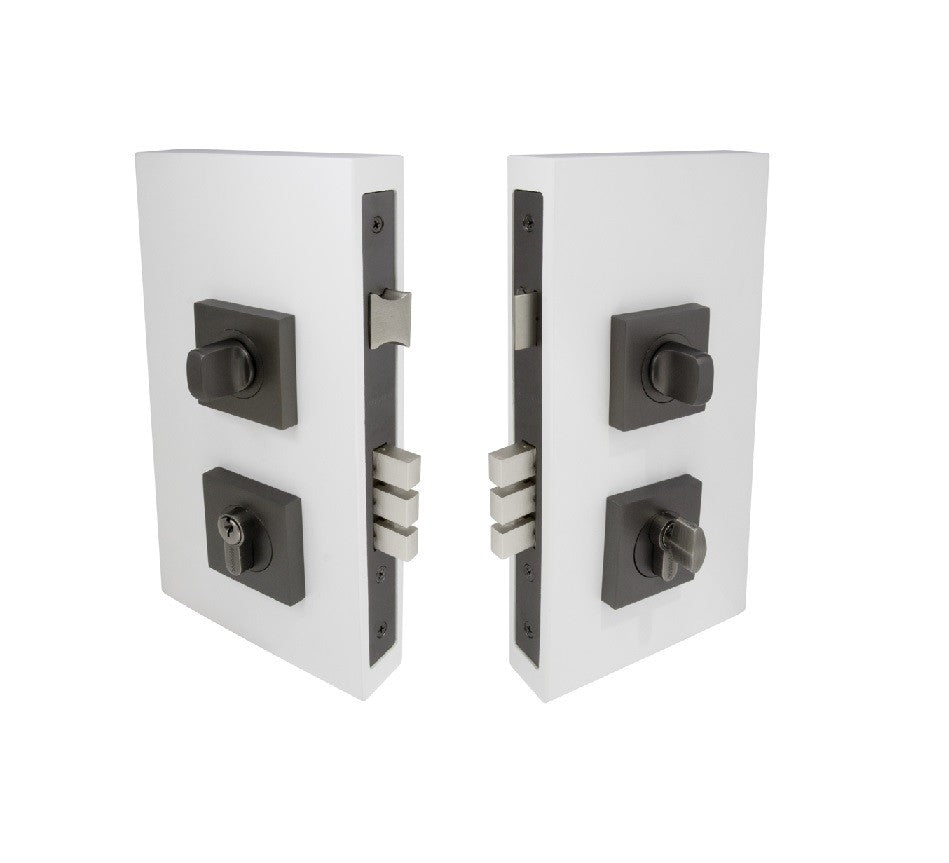

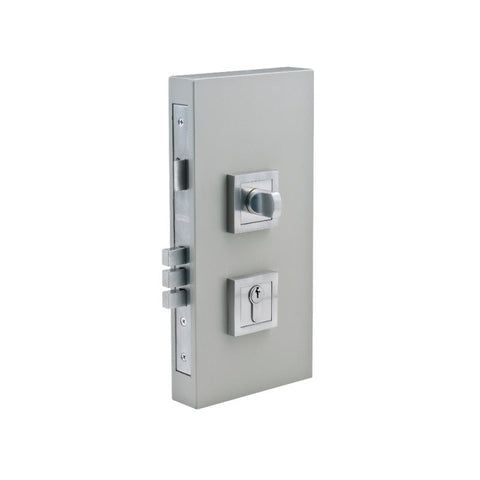

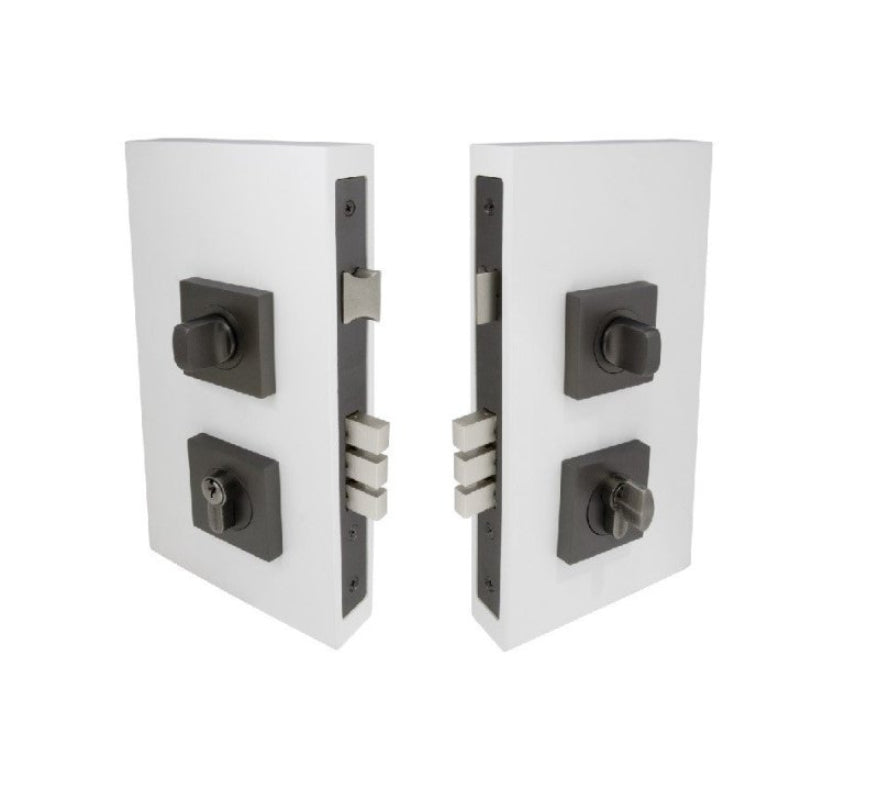

Zanda Square Double Turn Lock Kits provide a communicating (two-way) locking solution with square rose design for coordinated hardware suites. Square rose double turn - locks from both sides, 60mm backset
Available Finishes (4) & Product Codes
| Finish | Handle set |
|---|---|
| Brushed Nickel | 1184.BN |

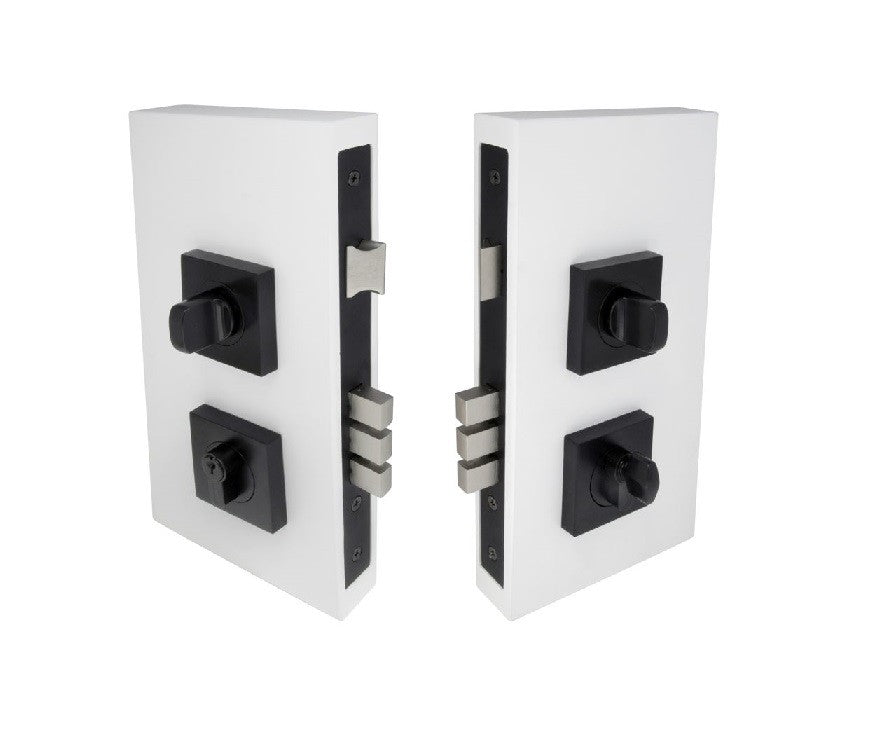

| Matt Black | 1184.BLK |
| Graphite Nickel | 1184.GN |
| Satin Chrome | 1184.SC |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Product type | Double turn lock kit for pull handles |
| Product code | 1184.GN, 1184.BLK, 1184.BN, 1184.SC |
| Zanda set | 1184 — Square Double Turn Lock Kit, 51x51mm plates - includes single cylinder & escutcheons 60mm backset |
| Finish | Graphite Nickel, Matt Black, Brushed Nickel, Satin Chrome |
| Backset | 60mm |
| Includes | 1143 euro mortice lock, turn snibs (pair) and 70mm euro single cylinder (key/turn) |
| Operation | Thumb turn retracts the latch; no adjustment needed once installed |
| Warranty | 15-year manufacturer warranty |
Warranty
15-year manufacturer warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Square Double Turn Lock Kits 60mm Backset Multiple Finishes?
It is a Zanda double turn lock kit for pull handles. Product code: 1184.GN, 1184.BLK, 1184.BN, 1184.SC.
What is included in this set?
Square Double Turn Lock Kit, 51x51mm plates - includes single cylinder & escutcheons 60mm backset. Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
It is available in Graphite Nickel, Matt Black, Brushed Nickel, Satin Chrome. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Backset: 60mm.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
What warranty does it have?
15-year manufacturer warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
