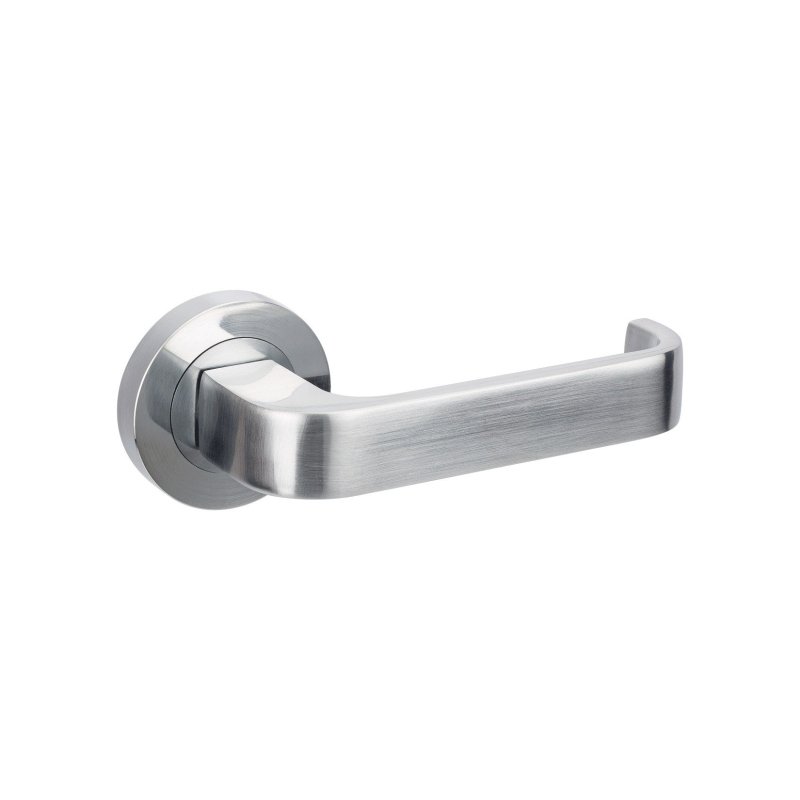

Zanda Streamline Door Lever Handle in Brushed Nickel/Satin Chrome (BN/SC). 54mm rose diameter. Available in passage, privacy, entrance and dummy. Pairs with Streamline Pull Handle 7240.
Zanda Streamline Door Lever Handle in Brushed Nickel/Satin Chrome (BN/SC). 54mm rose diameter. Available in passage, privacy, entrance and dummy. Pairs with Streamline Pull Handle 7240.
Zanda Streamline Lever Handle – Brushed Nickel / Satin Chrome (BN/SC) Zanda Streamline Door Lever Handle in Brushed Nickel / Satin Chrome (BN/SC). Available in passage, privacy, entrance and dummy configurations. Pairs with Streamline Pull Handle 7240 for a coordinated entry. Why Choose the Streamline Lever?
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Brushed Nickel | 1147.BN | 1148.BN |
| Satin Chrome | 1147.SC | 1148.SC |
Available Finishes (2) & Product Codes
| Finish | 7313 - Streamline Leverset Only | Passage | Privacy | Dummy | 7316E-1 Streamline Rose Entrance Set - includes 7313 1143 8102E & 1121 (60mm Key/Key) | 7316E-2 Streamline Rose Entrance Set - includes 7313 1143 8102E & 1122 (60mm Key/Turn) | 7316E-3 Streamline Rose Entrance Set - includes 8133 1143 8102E & 1147 (70mm Key/Key) | 7316E-4 Streamline Rose Entrance Set - includes 8133 1143 8102E & 1148 (70mm Key/Turn) |
|---|---|---|---|---|---|---|---|---|
| Brushed Nickel | 7313.BN | 7314.BN | 7315.PR.BN | 7313.D.BN | 7316.1.BN | 7316.2.BN | 7316.3.BN | 7316.4.BN |
| Satin Chrome | 7313.SC | 7314.SC | 7315.PR.SC | 7313.D.SC | 7316.1.SC | 7316.2.SC | 7316.3.SC | 7316.4.SC |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Product code | 7313, 7314, 7315, 7316 (finish suffix varies — see table above) |

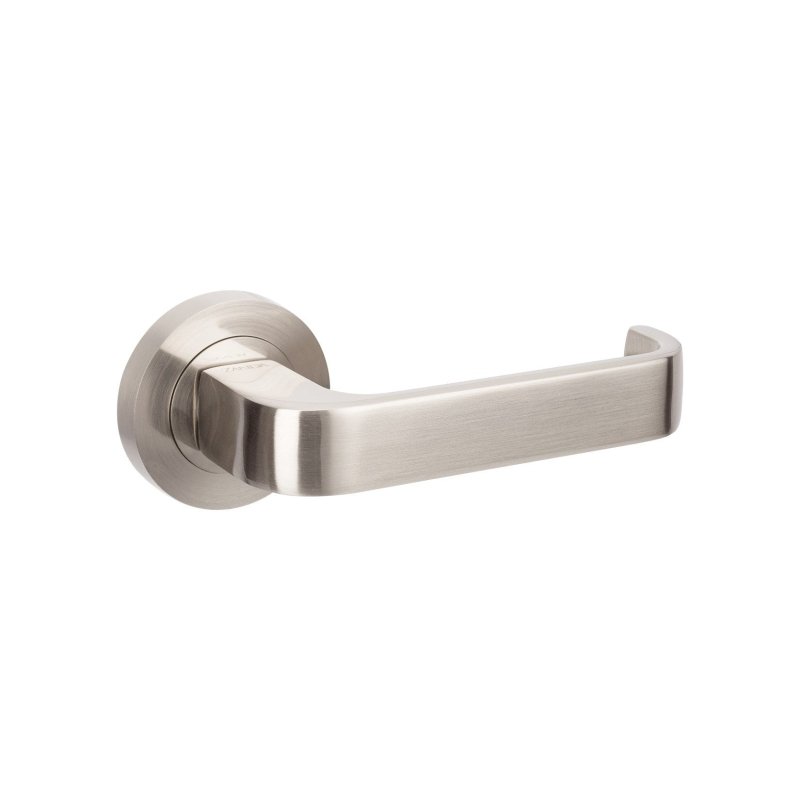

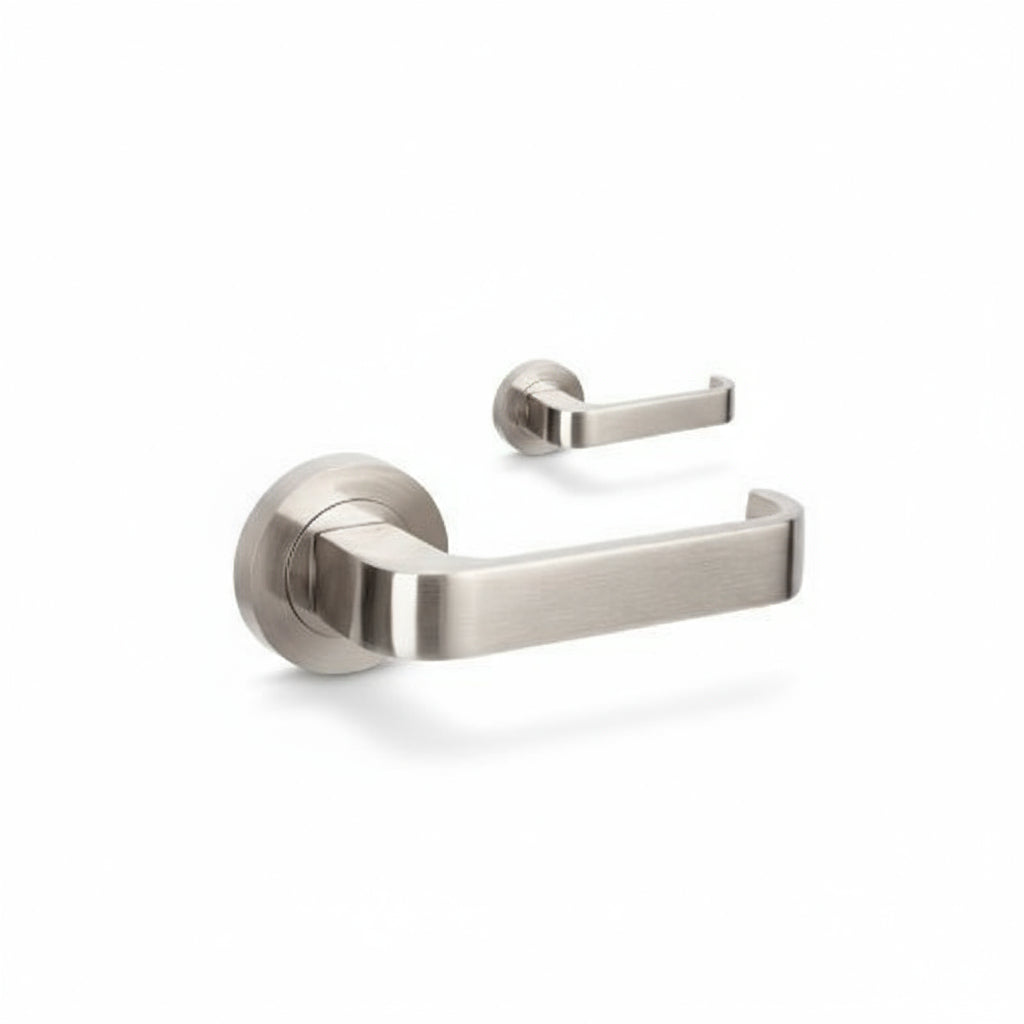

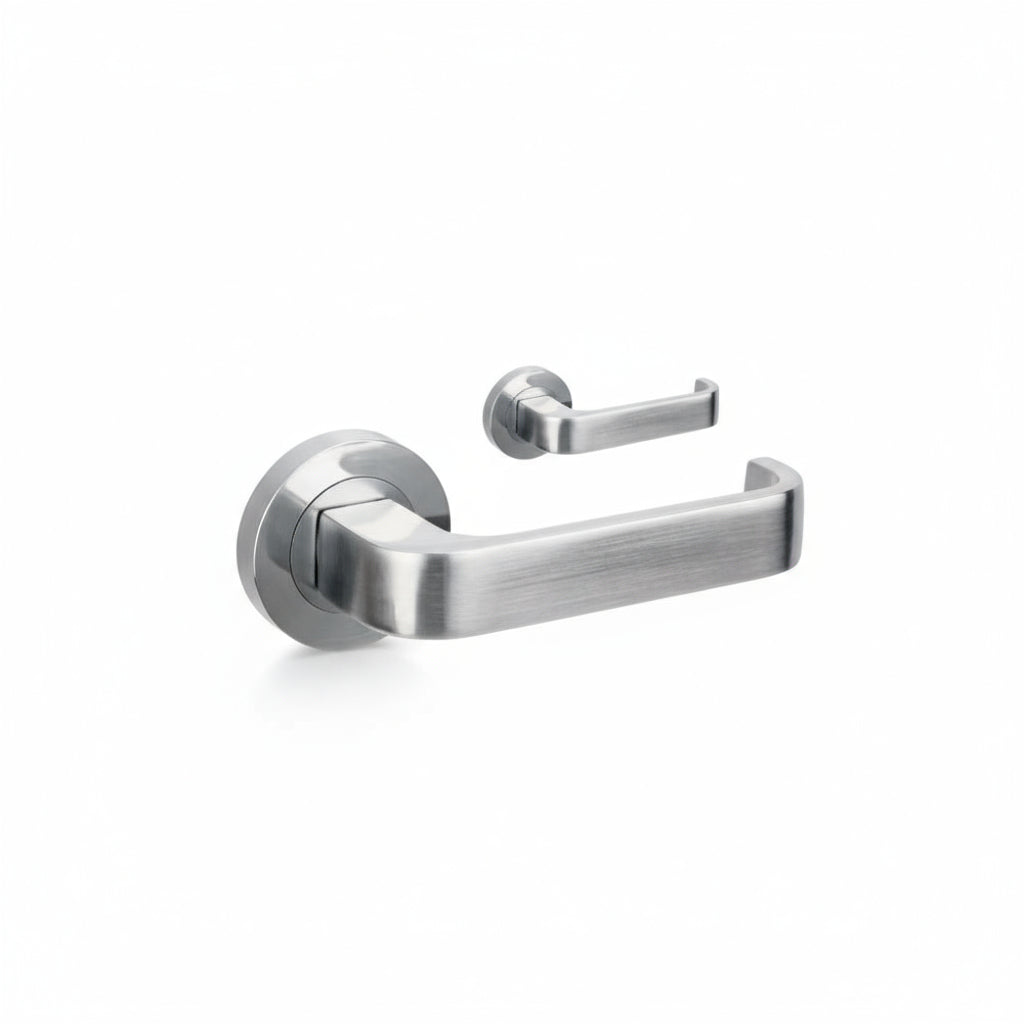

| Set 7313 | Streamline Leverset Only |

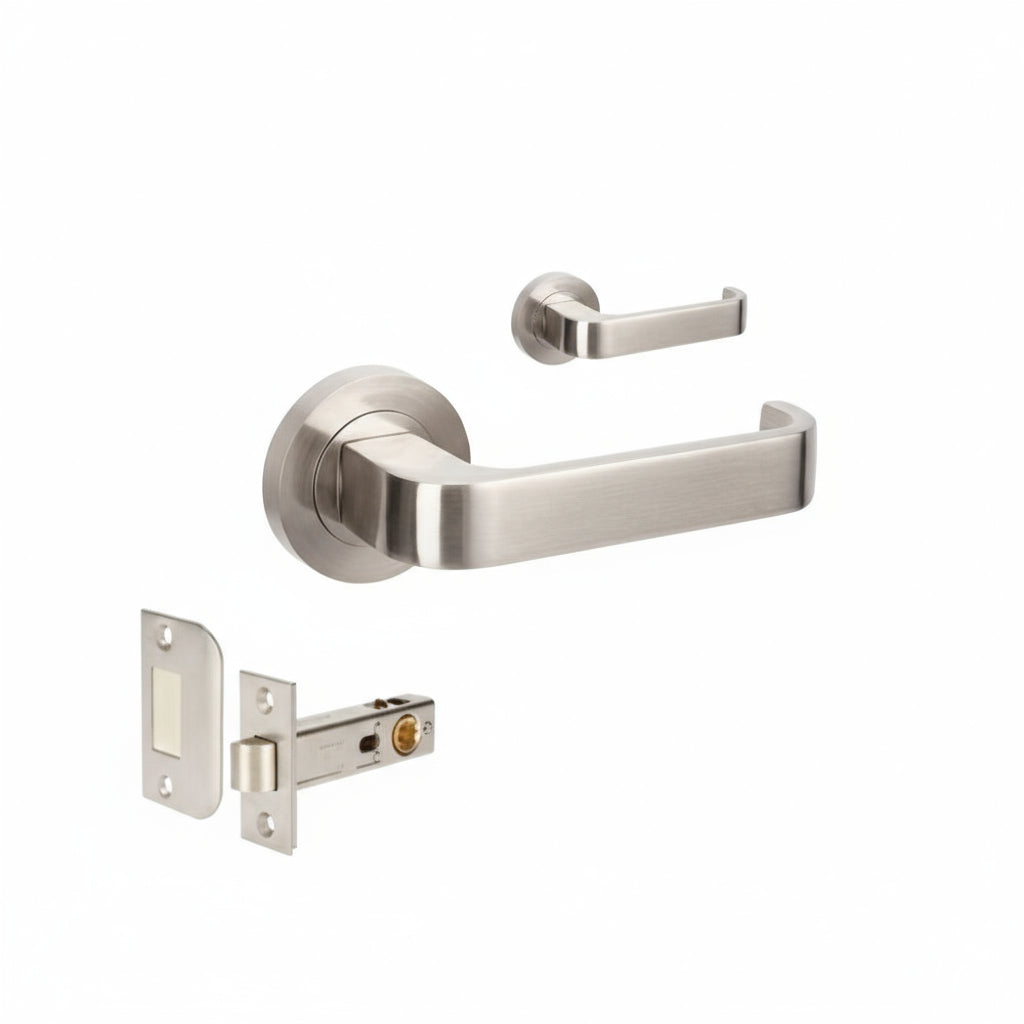

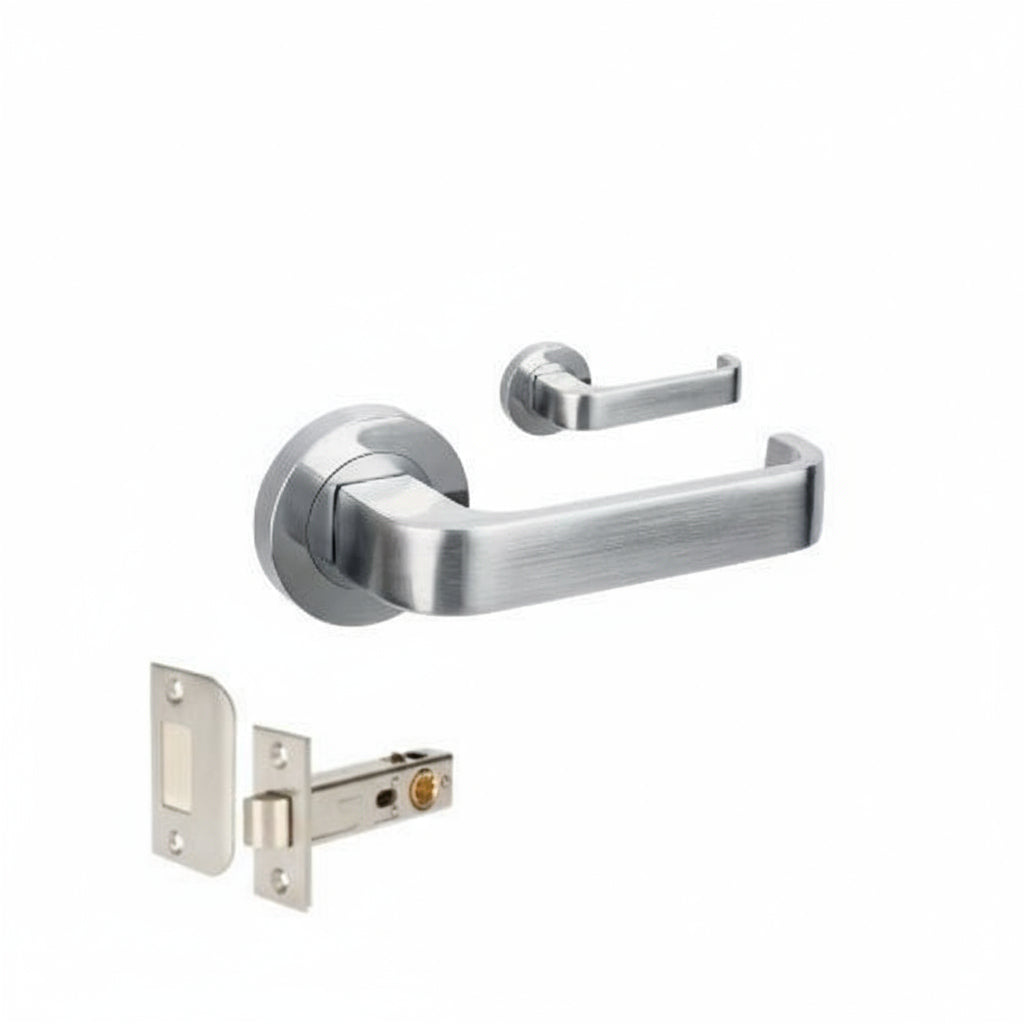

| Set 7314 | Streamline Passage Set, includes 1131 latch |

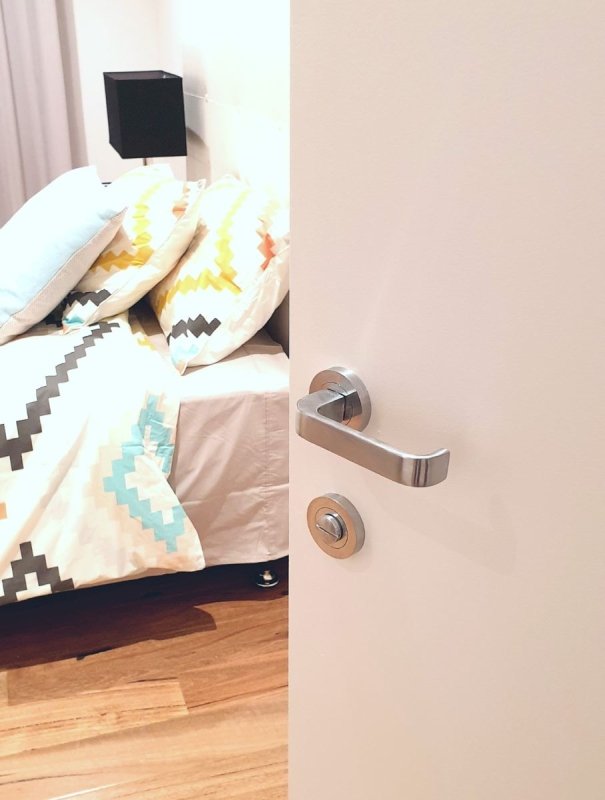

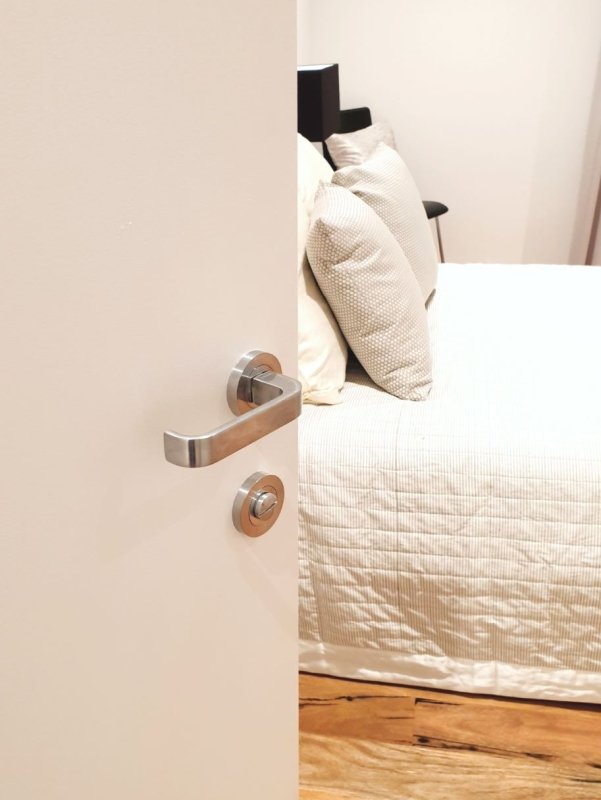

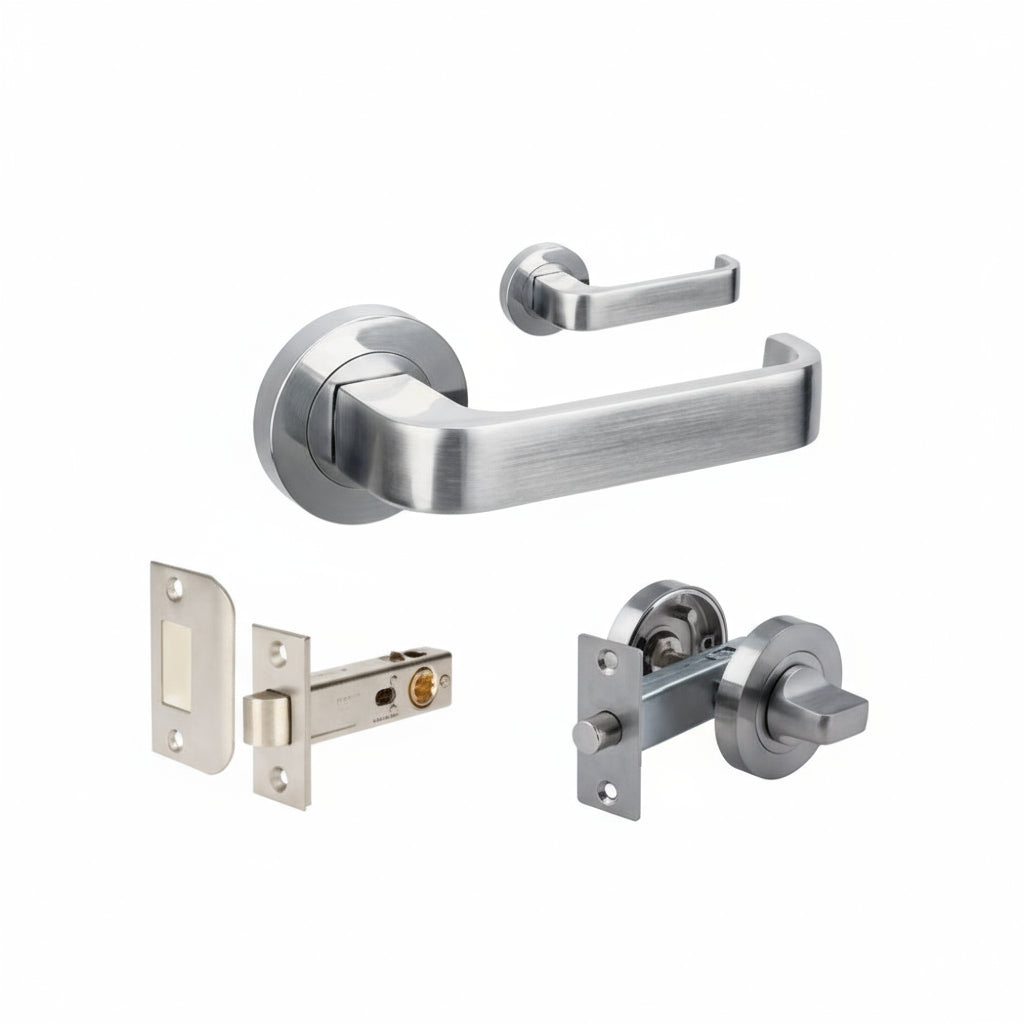

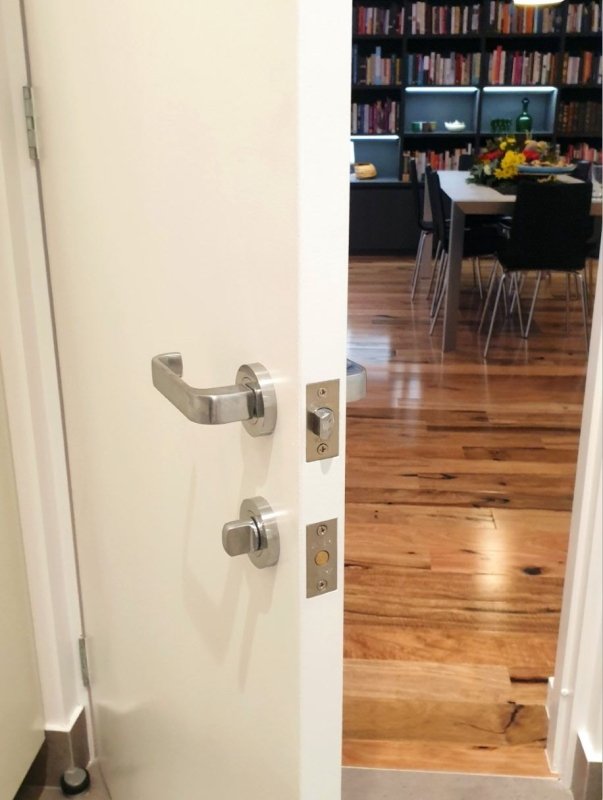

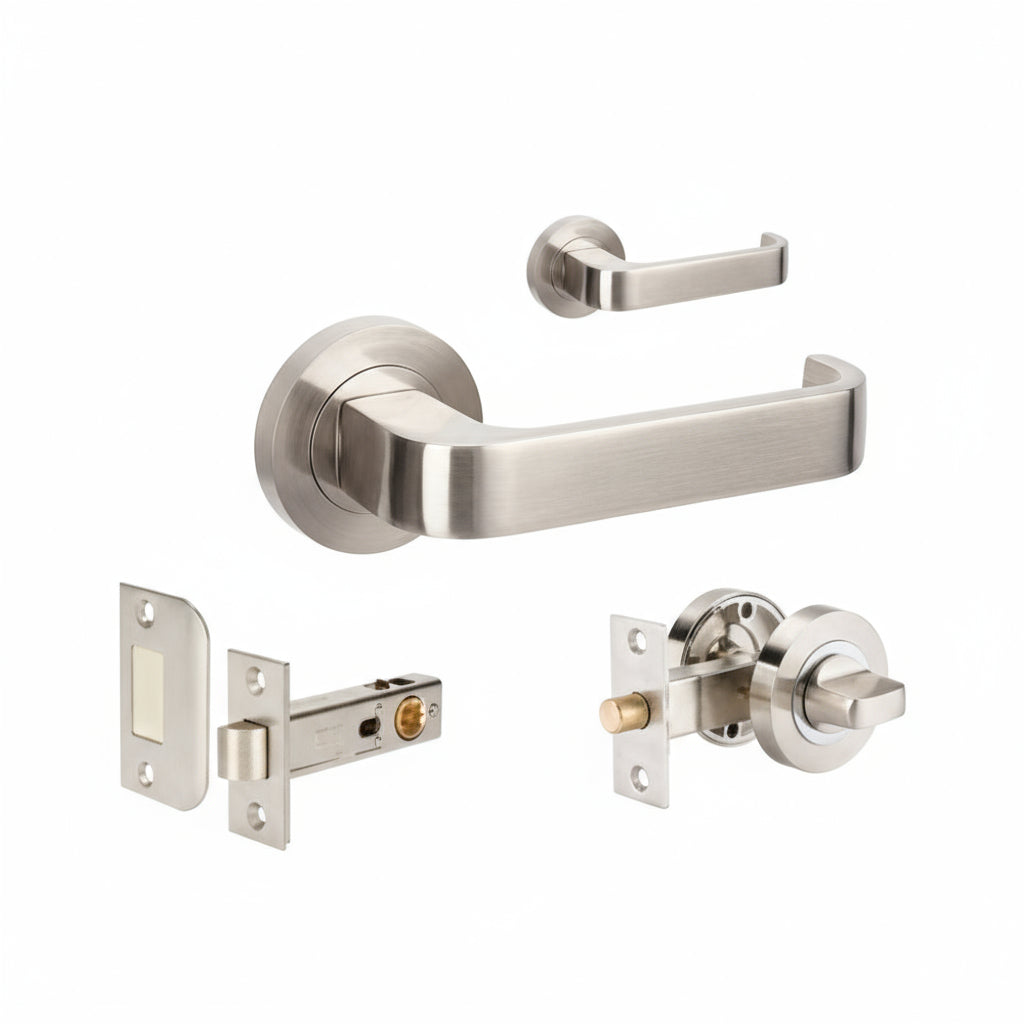

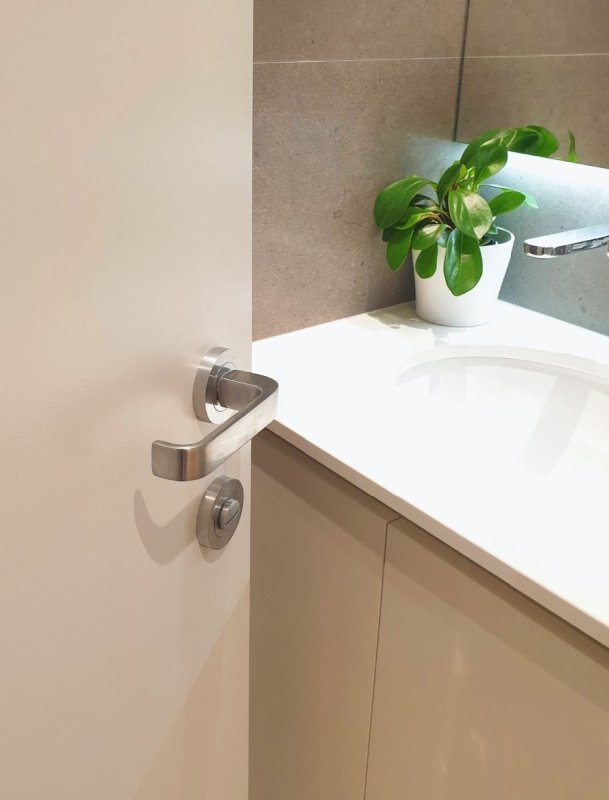

| Set 7315.PR | Streamline Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release) |

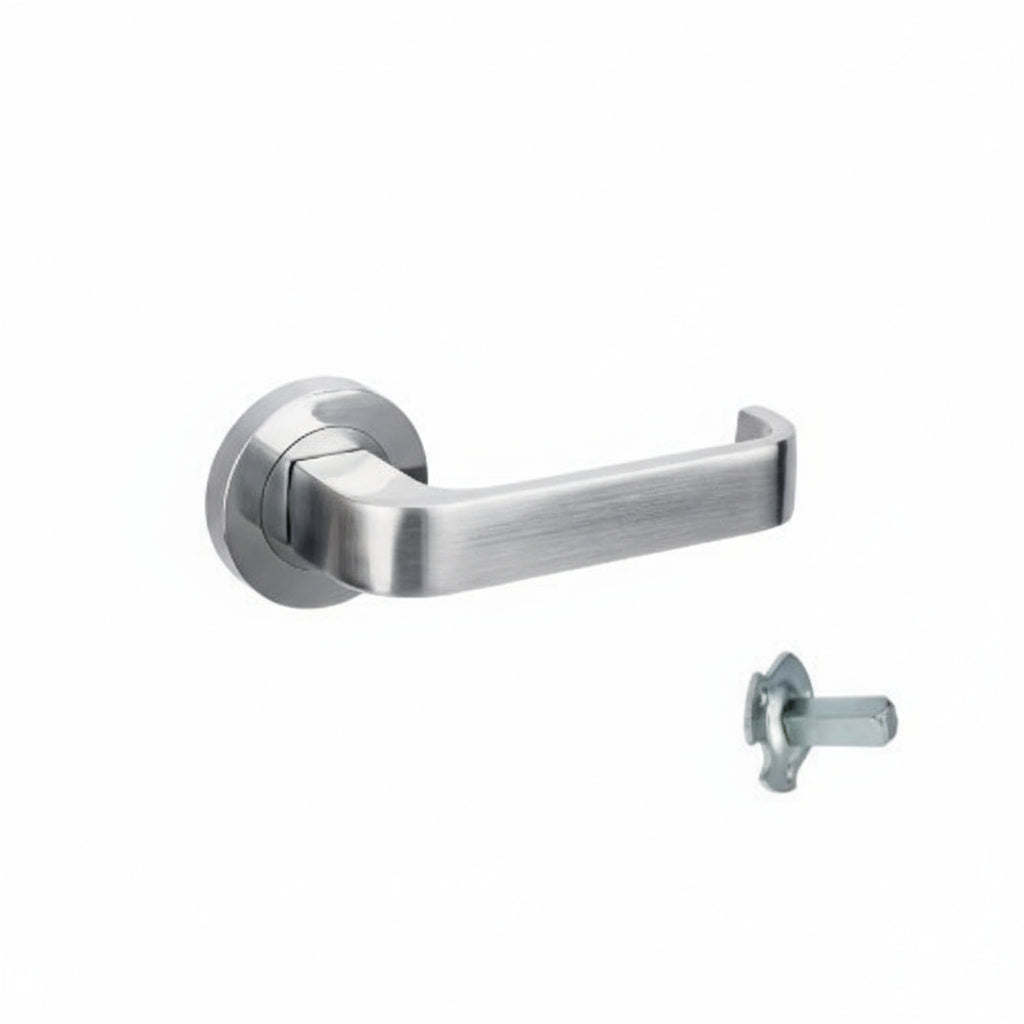

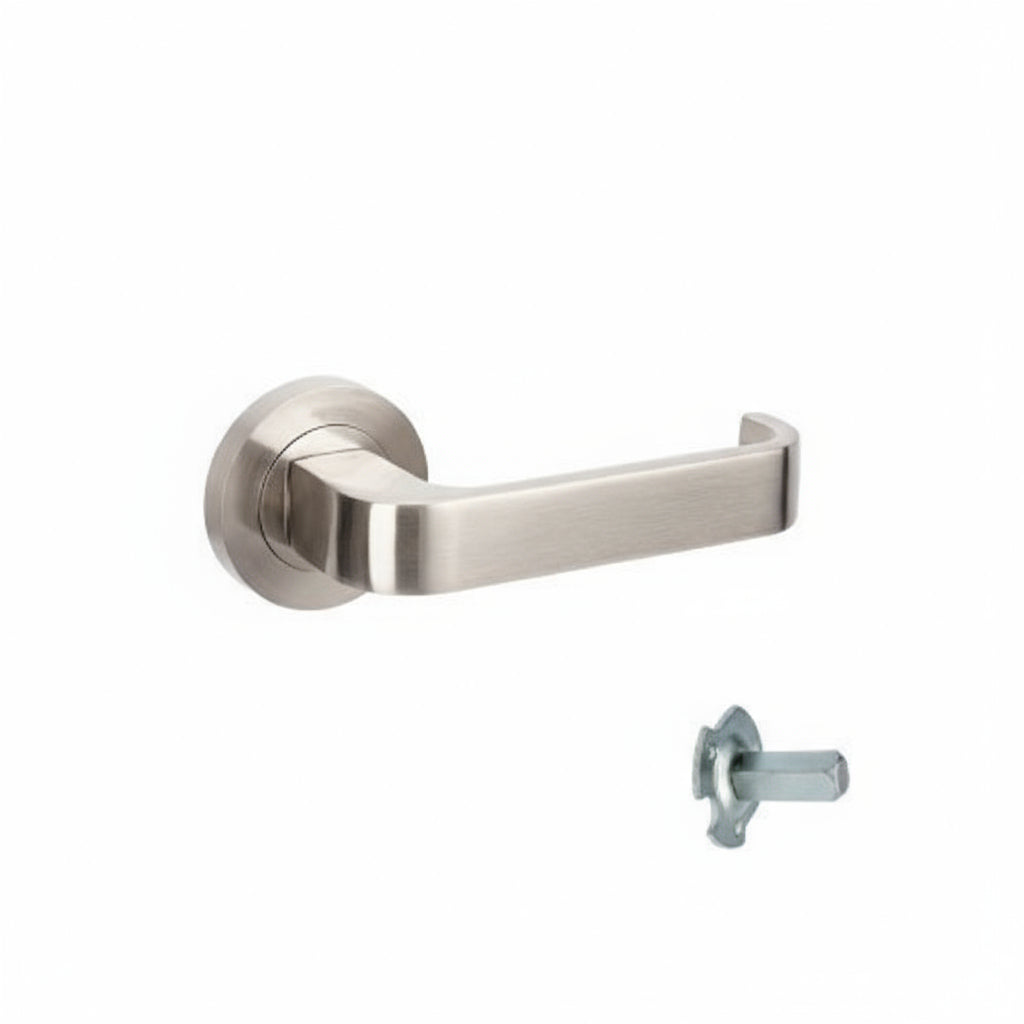

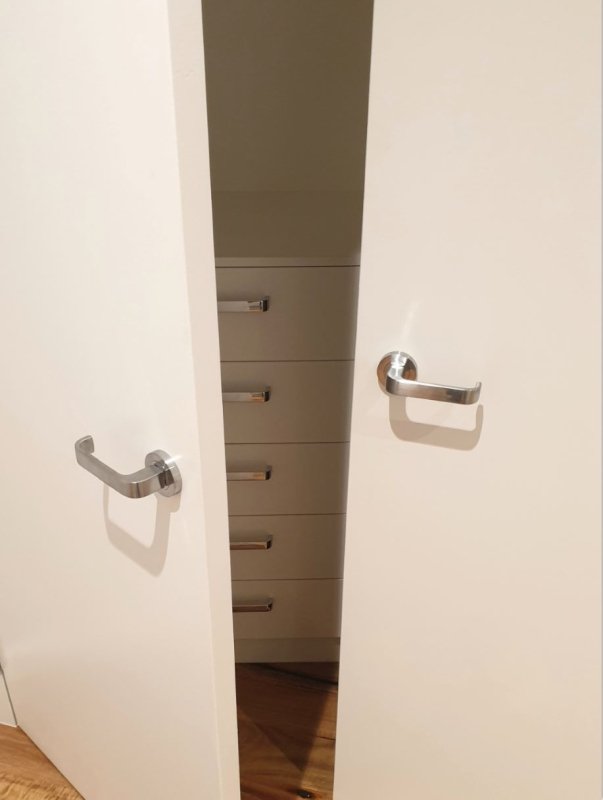

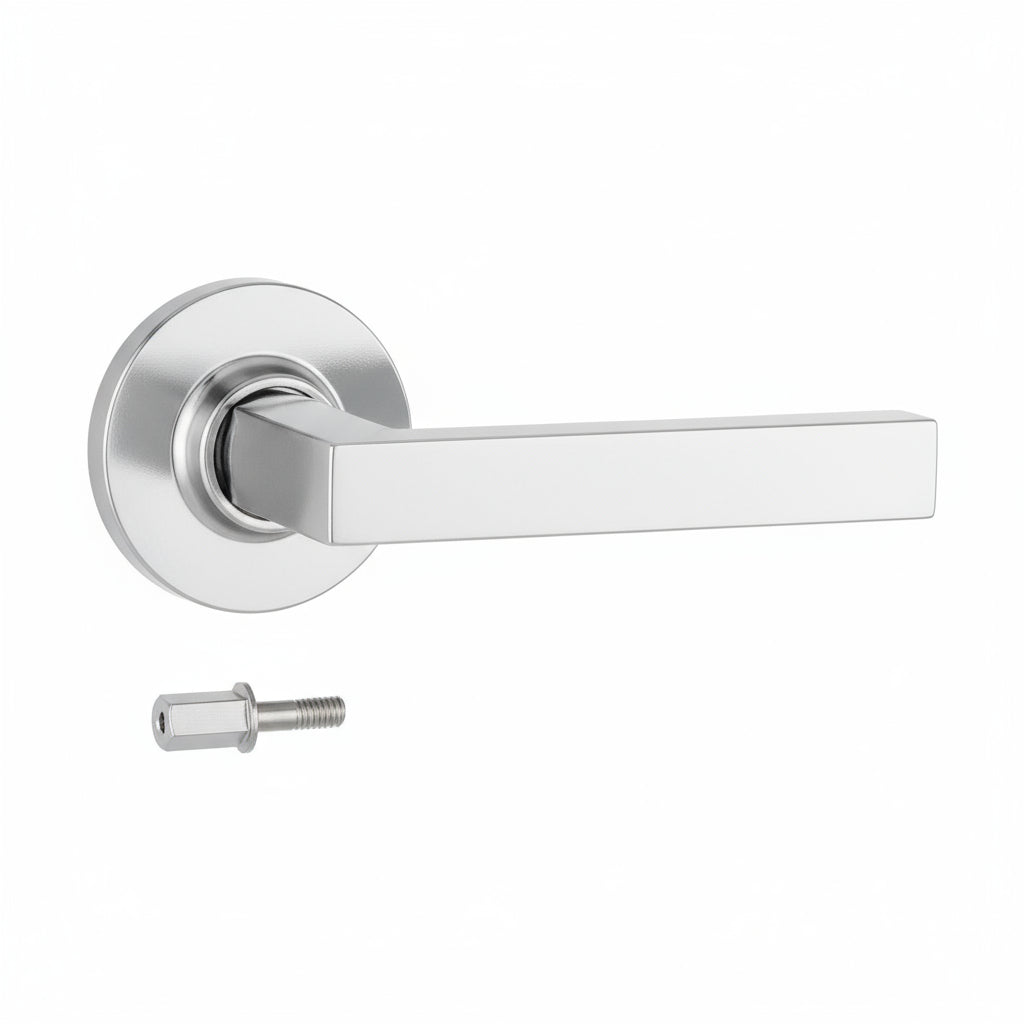

| Set 7313.D | Streamline Dummy Set - Non Handed |

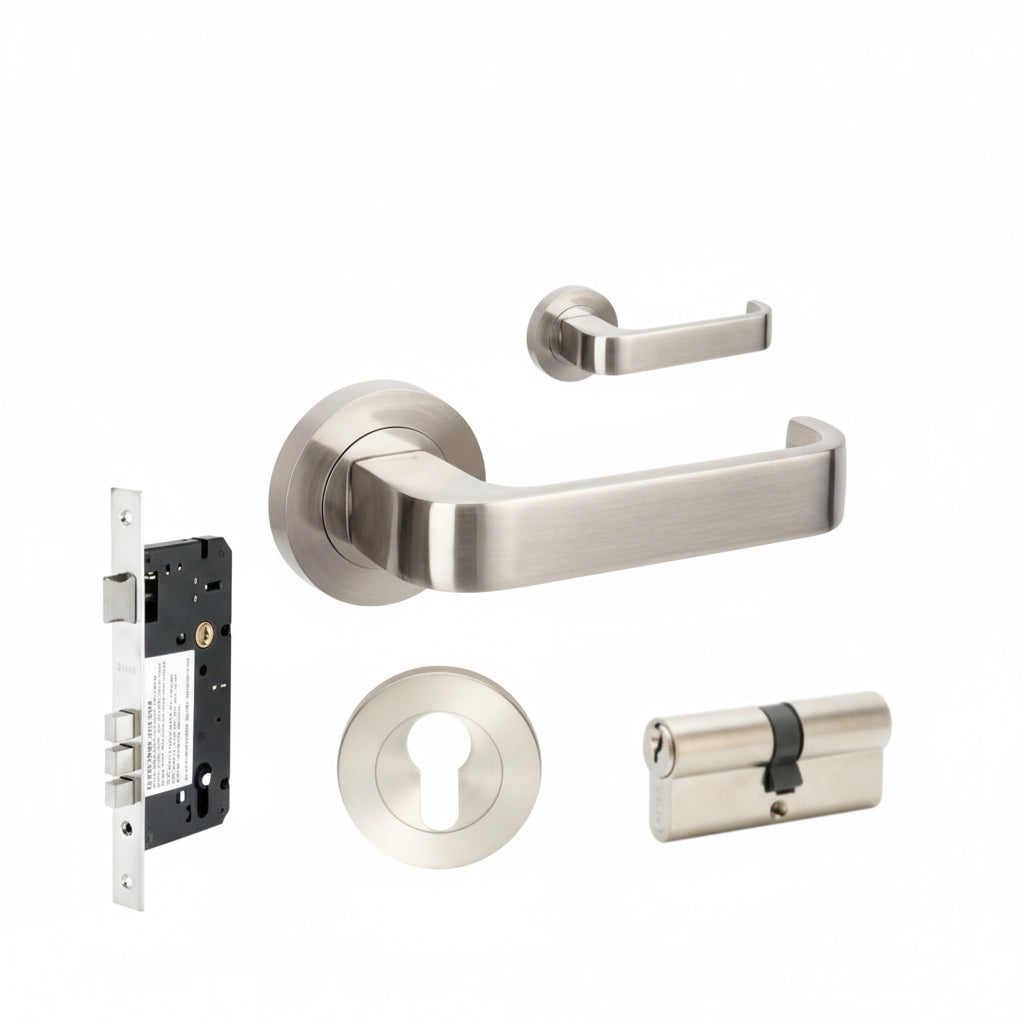

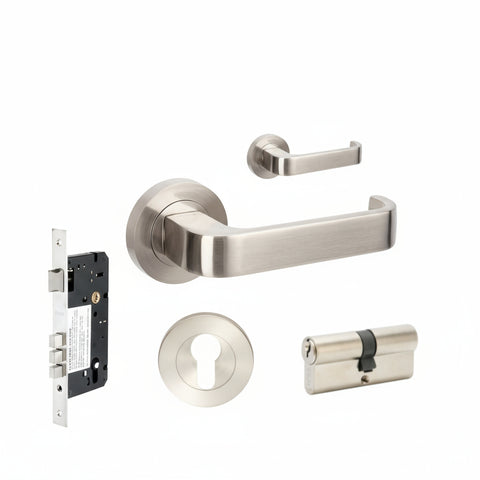

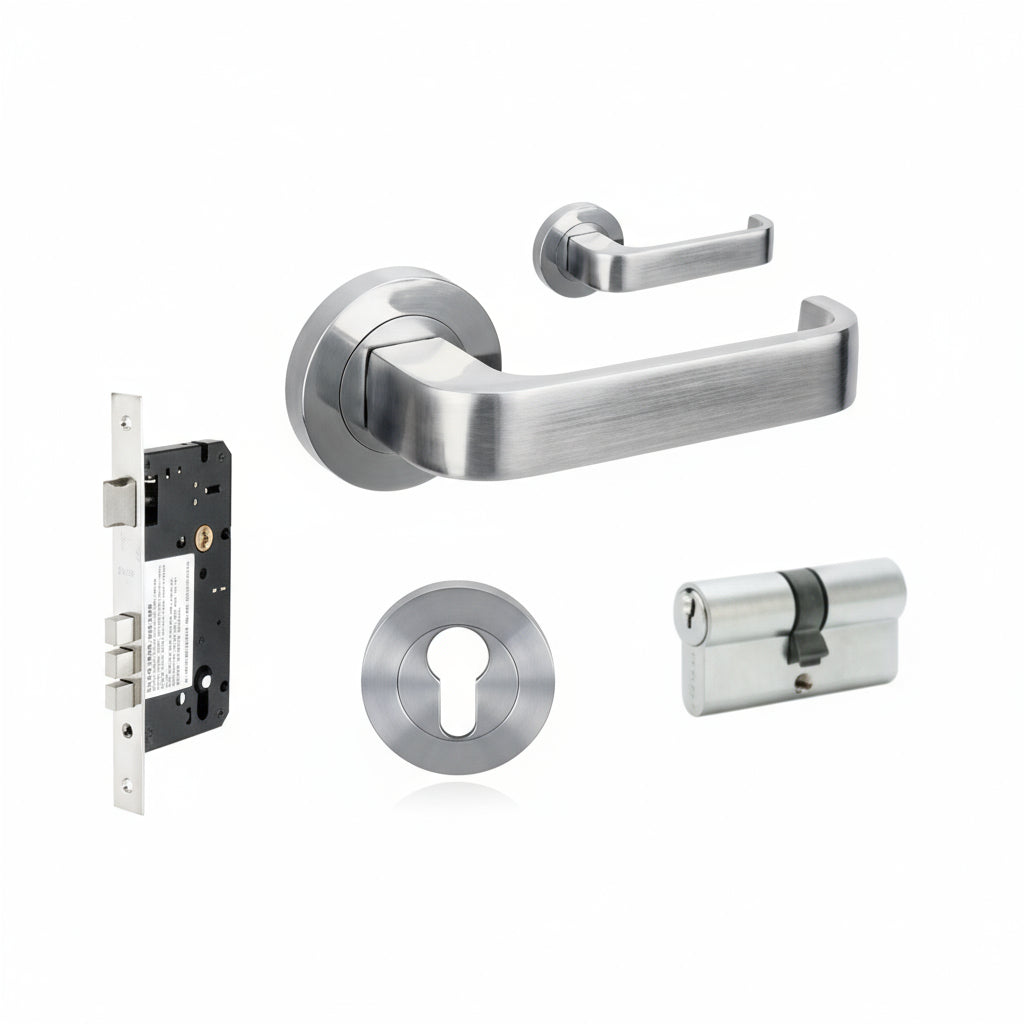

| Set 7316.1 | Streamline Rose Entrance Set - includes 7313, 1143 euro mortice lock, 8102E square euro escutcheons & 1121 60mm double cylinder (60mm Key/Key) |

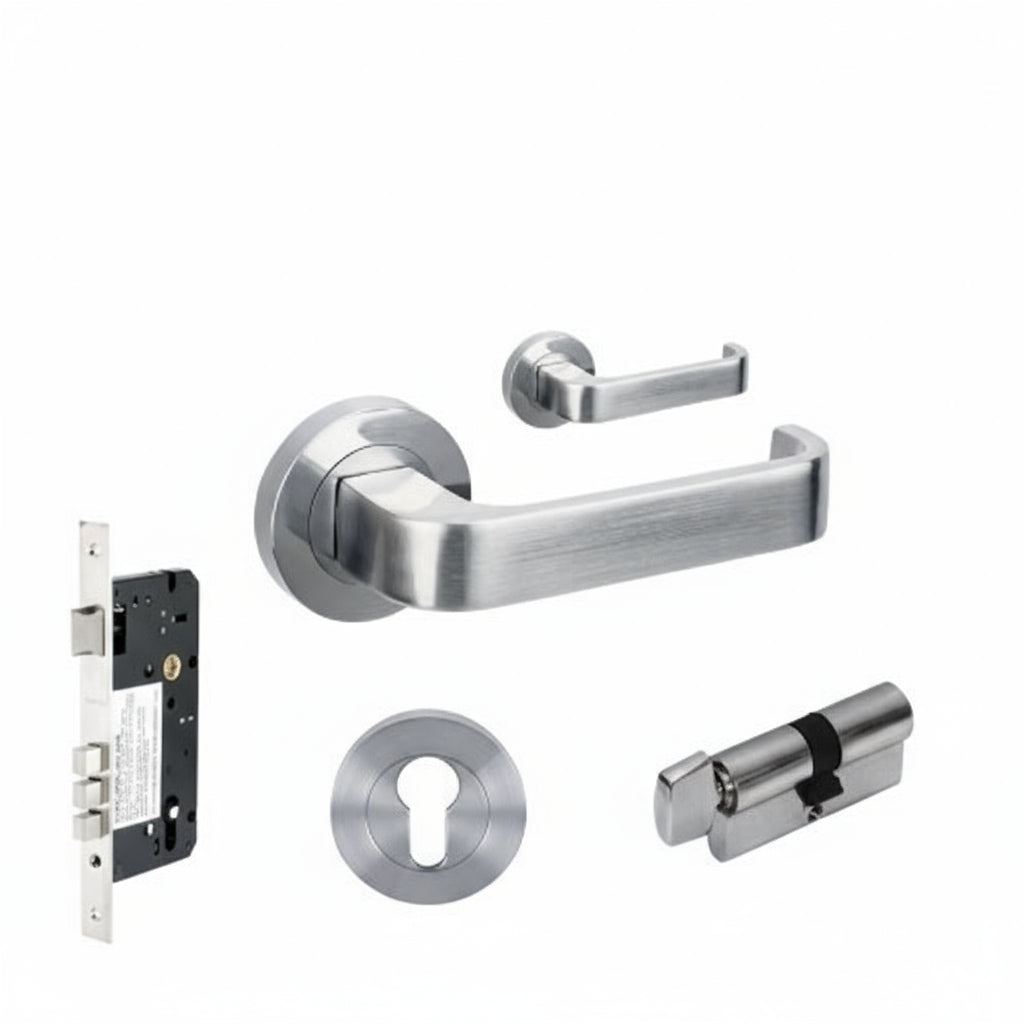

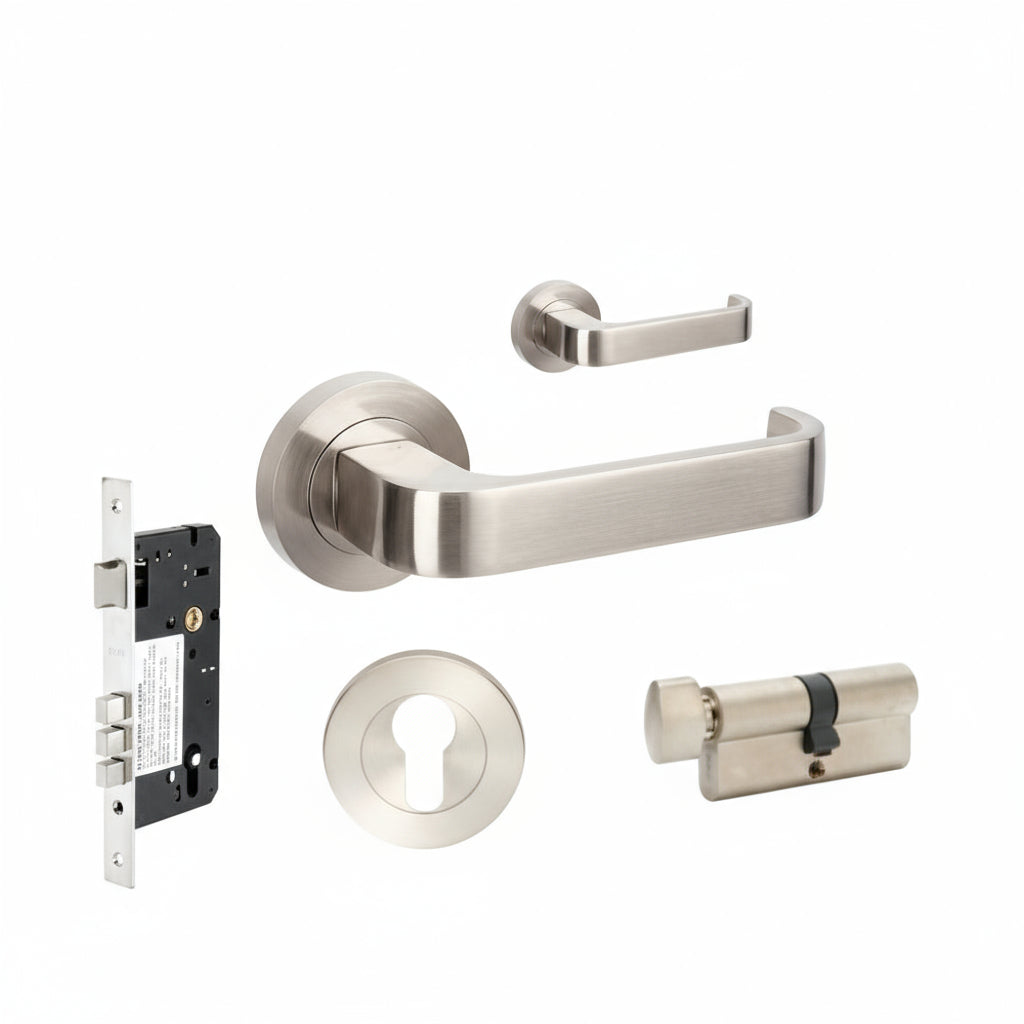

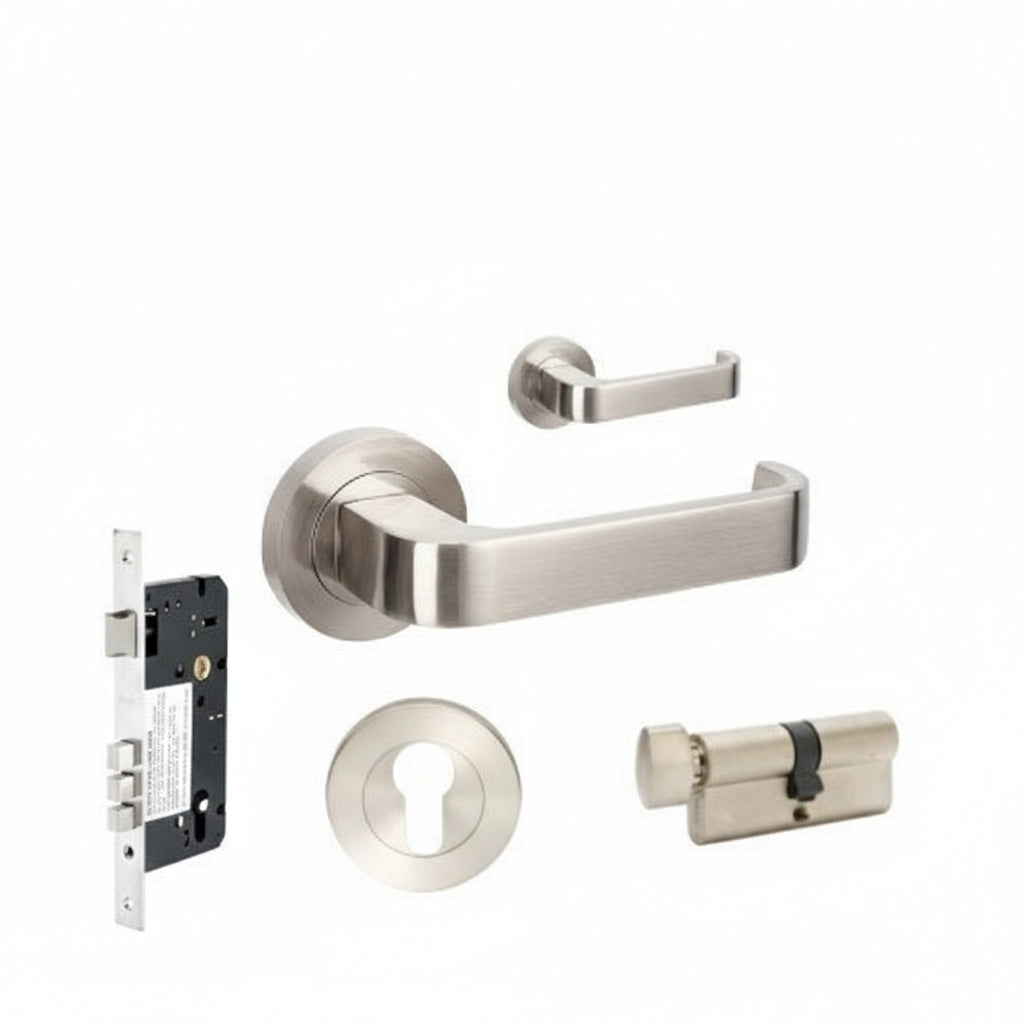

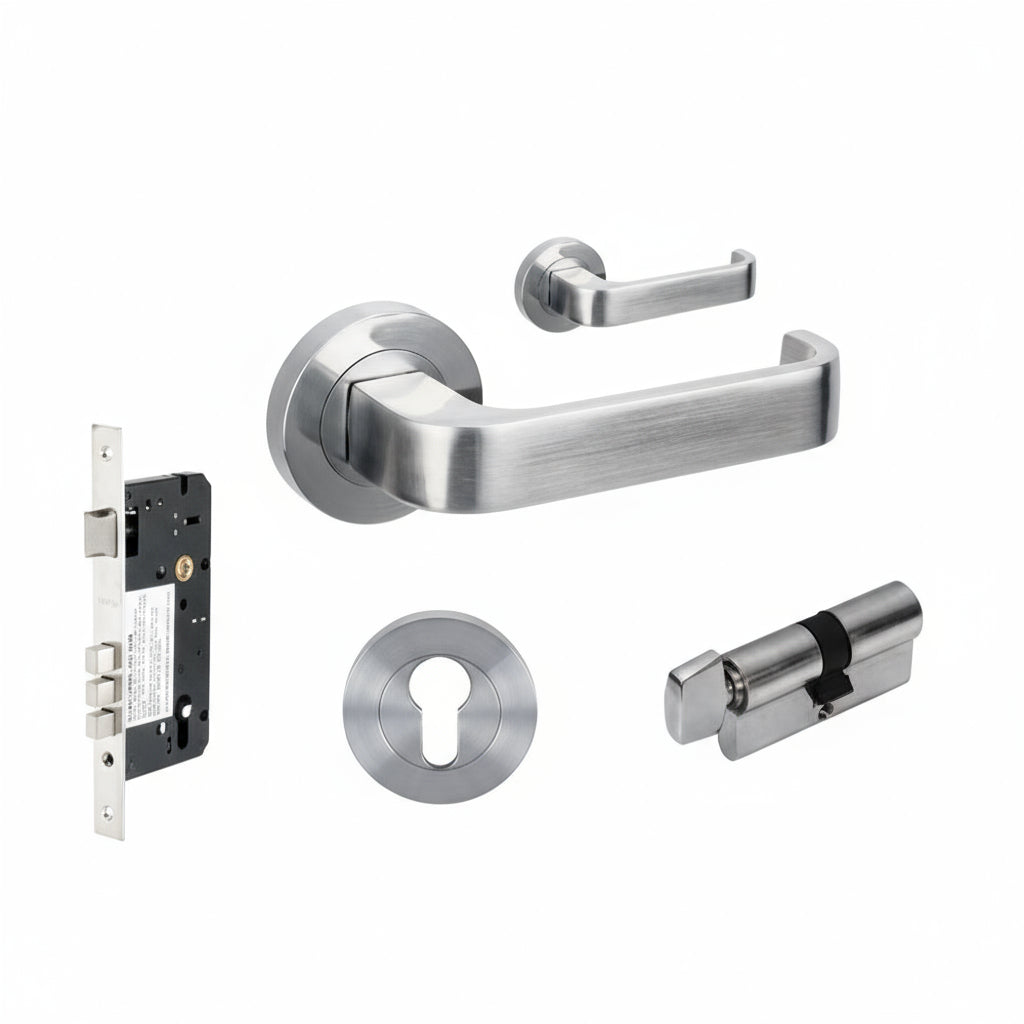

| Set 7316.2 | Streamline Rose Entrance Set - includes 7313, 1143 euro mortice lock, 8102E square euro escutcheons & 1122 60mm single cylinder (60mm Key/Turn) |

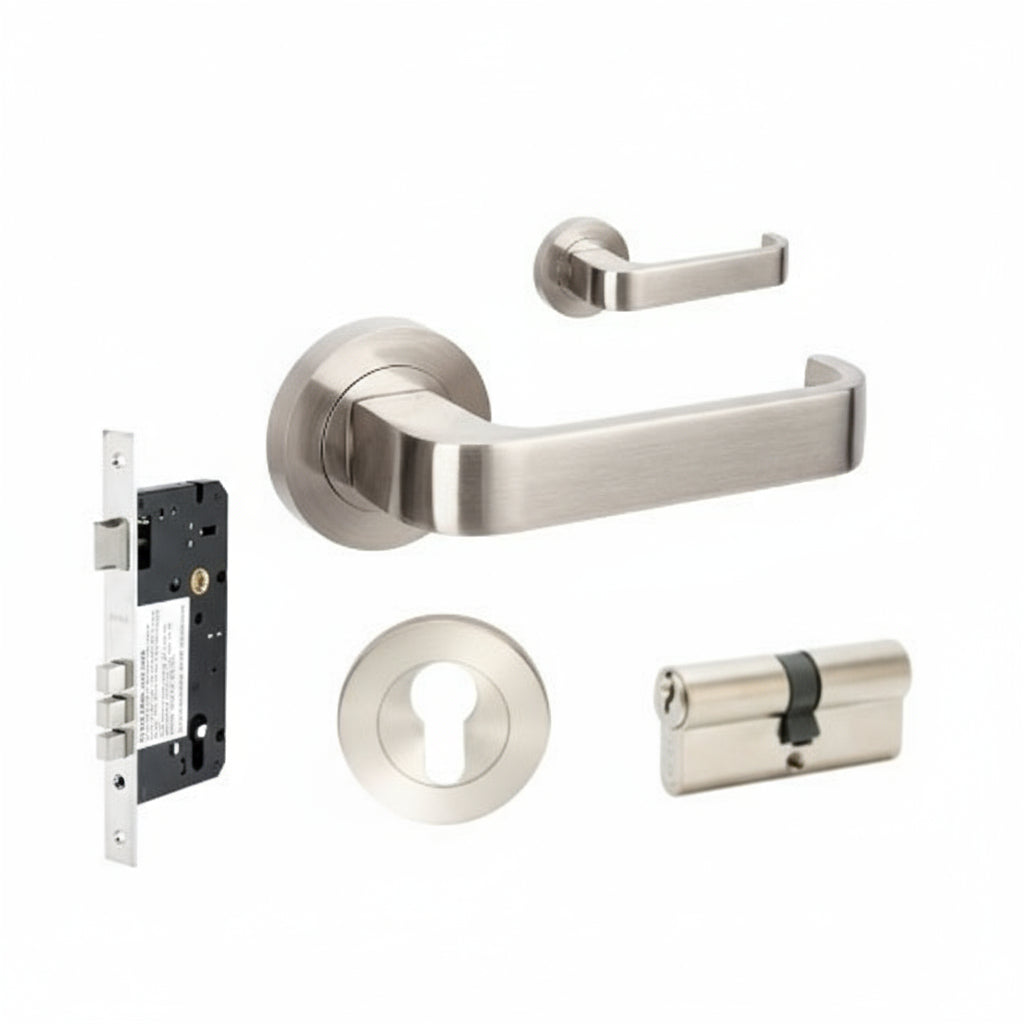

| Set 7316.3 | Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |
| Set 7316.4 | Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Brushed Nickel, Satin Chrome |
| Material | Iron |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Matching pull handle | Streamline Pull Handle 7240 |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Compliance | AS1428.1 disabled access compliant |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Streamline Door Lever Handle in Brushed Nickel/Satin Chrome (BN/SC). 54mm rose diameter. Available in passage, privacy, entrance and dummy. Pairs with Streamline Pull Handle 7240.?
It is a Zanda door lever on round rose from the Futura range, made from iron. Product code: 7313, 7314, 7315, 7316 (finish suffix varies — see table above).
What does each option include?
7313: Streamline Leverset Only; 7314: Streamline Passage Set, includes 1131 latch; 7315.PR: Streamline Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release); 7313.D: Streamline Dummy Set - Non Handed; 7316.1: Streamline Rose Entrance Set - includes 7313, 1143 euro mortice lock, 8102E square euro escutcheons & 1121 60mm double cylinder (60mm Key/Key); 7316.2: Streamline Rose Entrance Set - includes 7313, 1143 euro mortice lock, 8102E square euro escutcheons & 1122 60mm single cylinder (60mm Key/Turn); 7316.3: Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 7316.4: Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
It is available in Brushed Nickel, Satin Chrome. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing; Backset: 60mm (passage, privacy and entrance sets).
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant. Always confirm requirements with your certifier for the specific project.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
