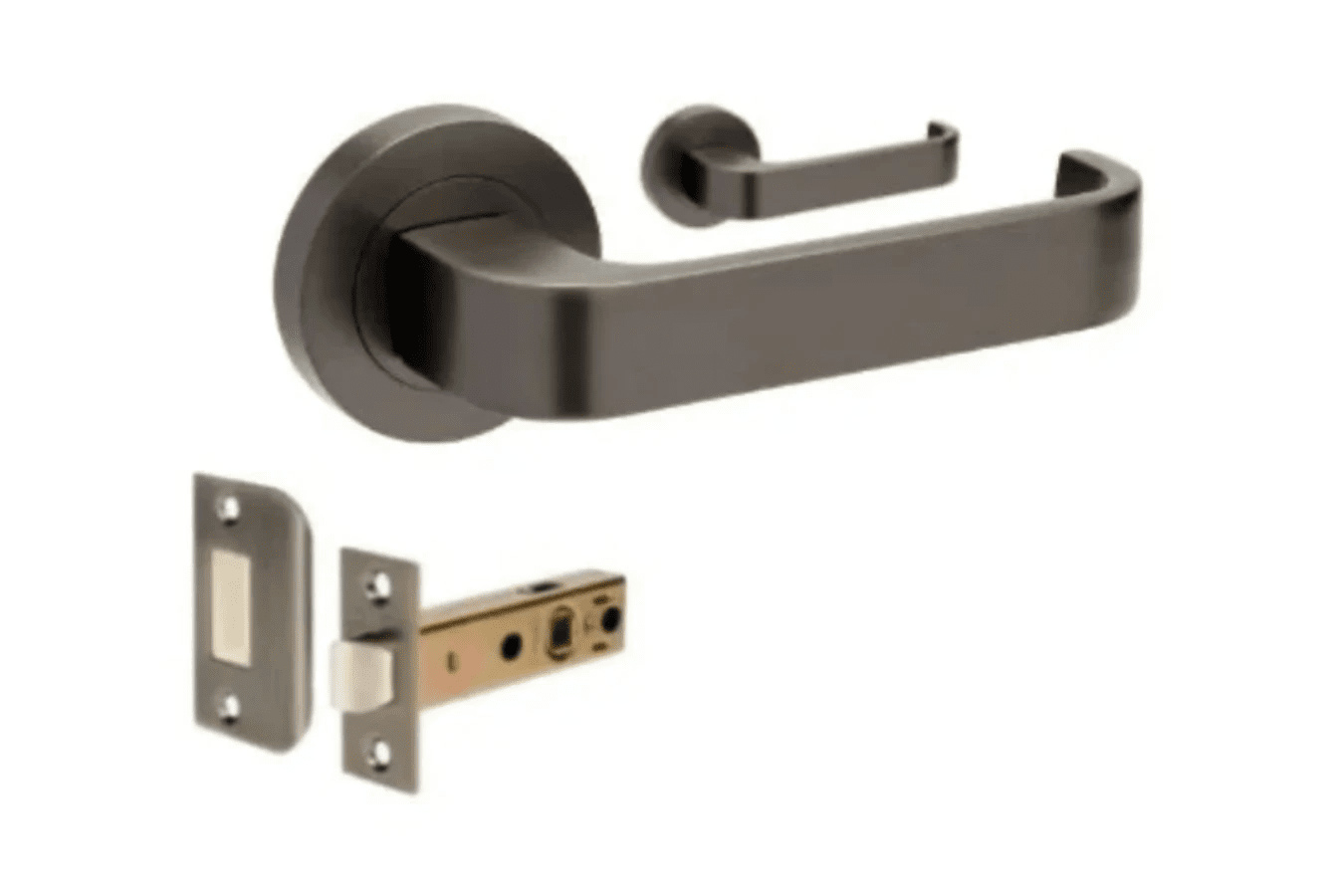

Zanda Streamline Lever Handle – Graphite Nickel (GN)

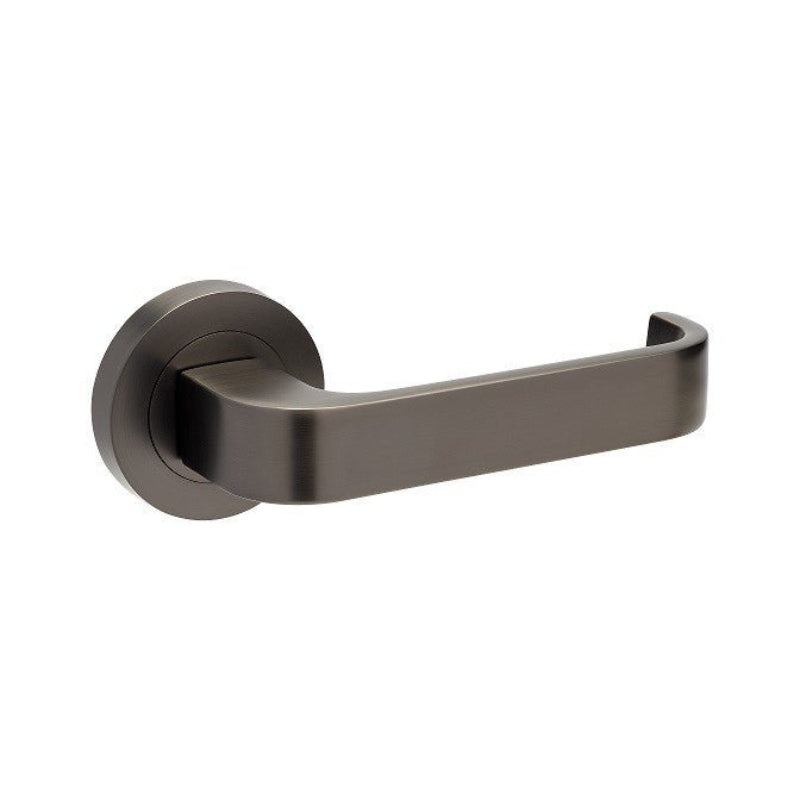

Zanda Streamline Lever Handle – Graphite Nickel (GN) Zanda Streamline Door Lever Handle in Graphite Nickel (GN). Available in passage, privacy, entrance and dummy configurations. Pairs with Streamline Pull Handle 7240 for a coordinated entry. Why Choose the Streamline Lever in Graphite Nickel?
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes

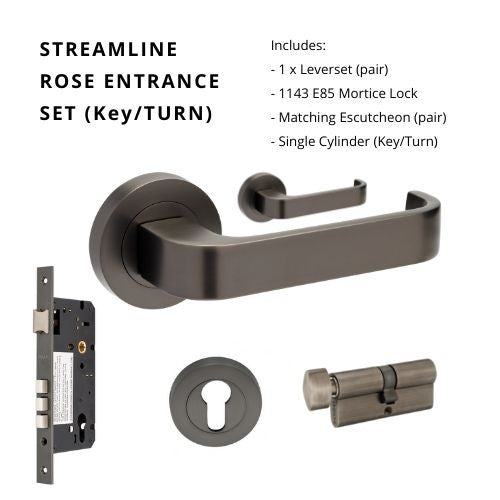

| Finish | 7313 - Streamline Leverset Only | Passage | Privacy | Dummy | 7316.E3 Streamline Rose Entrance Set - includes 7313 leverset 1143 7020 & 1147 (70mm Key/Key) | 7316.E4 Streamline Rose Entrance Set - includes 7313 leverset 1143 7020 & 1148 (70mm Key/Turn) | Privacy |
|---|---|---|---|---|---|---|---|
| Graphite Nickel | 7313.GN | 7314.GN | 7315.PR.GN | 7313.D.GN | 7316.E3.GN | 7316.E4.GN | 7090.GN |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Leverset only (no latch), Passage set, Dummy set, Entrance set, Integrated privacy set |
| Product code | 7313.GN, 7314.GN, 7315.PR.GN, 7313.D.GN, 7316.E3.GN, 7316.E4.GN, 7090.GN |

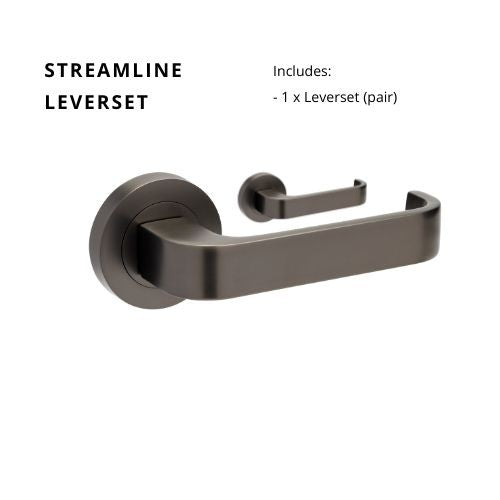

| Set 7313 | Streamline Leverset Only |

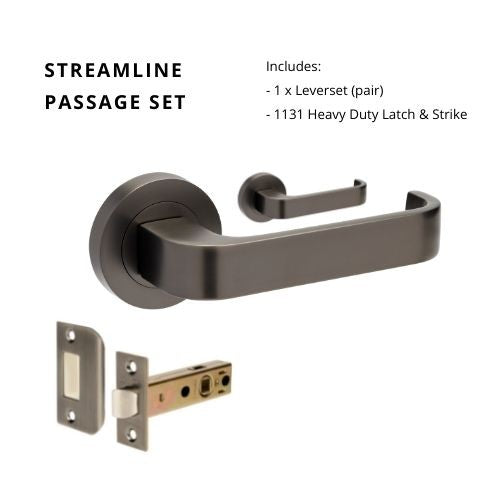

| Set 7314 | Streamline Passage Set, includes 1131 latch |

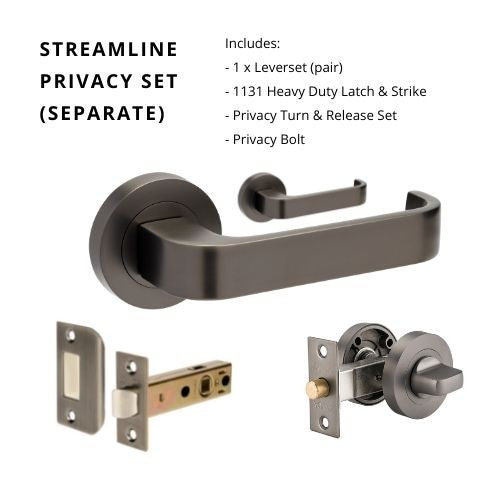

| Set 7315.PR | Streamline Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release) |

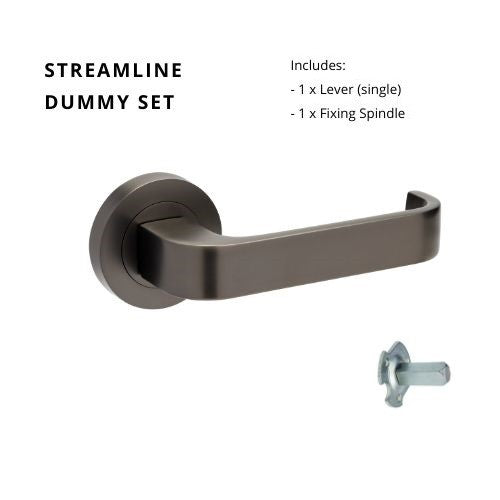

| Set 7313.D | Streamline Dummy Set - Non Handed |

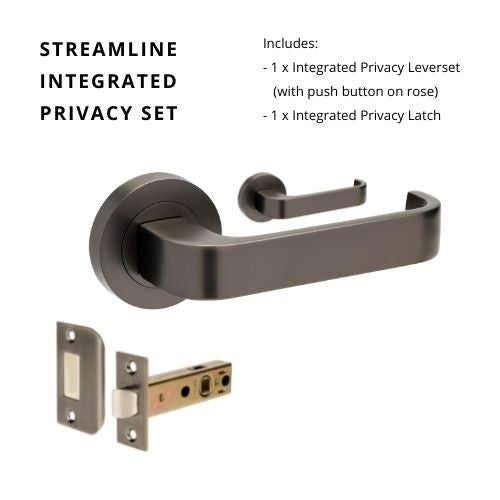

| Set 7090 | Streamline Integrated Privacy Set - includes integrated privacy kit |
| Finish | Graphite Nickel |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Matching pull handle | Streamline Pull Handle 7240 |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Compliance | AS1428.1 disabled access compliant |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Streamline Lever Handle – Graphite Nickel (GN)?
It is a Zanda door lever on round rose from the Futura range. Function: leverset only (no latch), Passage set, Dummy set, Entrance set, Integrated privacy set. Product code: 7313.GN, 7314.GN, 7315.PR.GN, 7313.D.GN, 7316.E3.GN, 7316.E4.GN, 7090.GN.
What does each option include?
7313: Streamline Leverset Only; 7314: Streamline Passage Set, includes 1131 latch; 7315.PR: Streamline Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release); 7313.D: Streamline Dummy Set - Non Handed; 7090: Streamline Integrated Privacy Set - includes integrated privacy kit.
What finishes is it available in?
This listing is finished in Graphite Nickel. Other Zanda finishes may be available — contact us to check.
What are the dimensions?

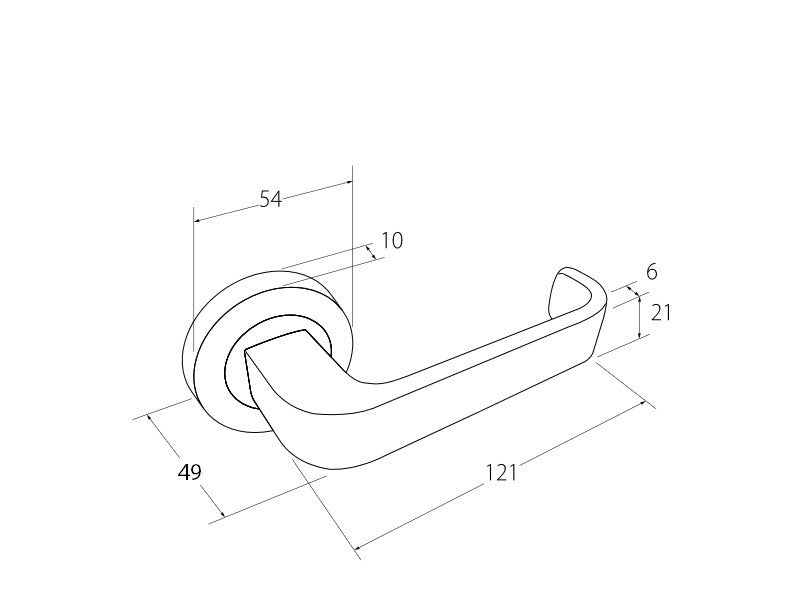

Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
Is it disabled access compliant?
AS1428.1 disabled access compliant. Always confirm requirements with your certifier for the specific project.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
