Zanda Streamline Pull Handle — Back to Back
Zanda Streamline Pull Handle — Back to Back

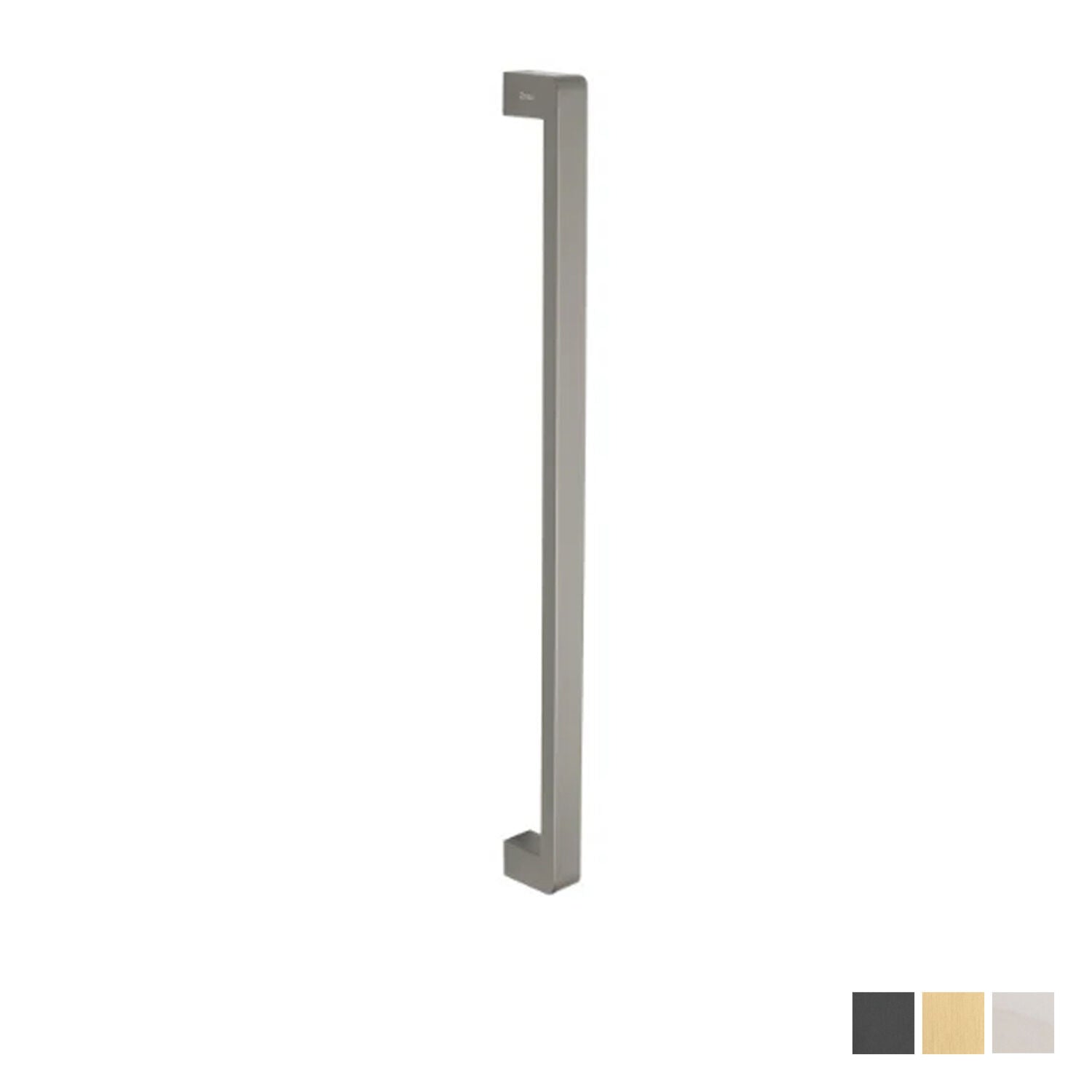

The Zanda Streamline Pull Handle — Back to Back is a Zanda pull handle for entrance and commercial doors, available in Graphite Nickel, Matt Black and Satin Brass. Key dimensions: length 600mm, centre to centre 570mm, width 30mm, projection 58mm. Made from -316 marine grade stainless steel. Each finish has its own Zanda product code, listed below.
Available Finishes (3) & Product Codes
| Finish | Back to Back |
|---|---|

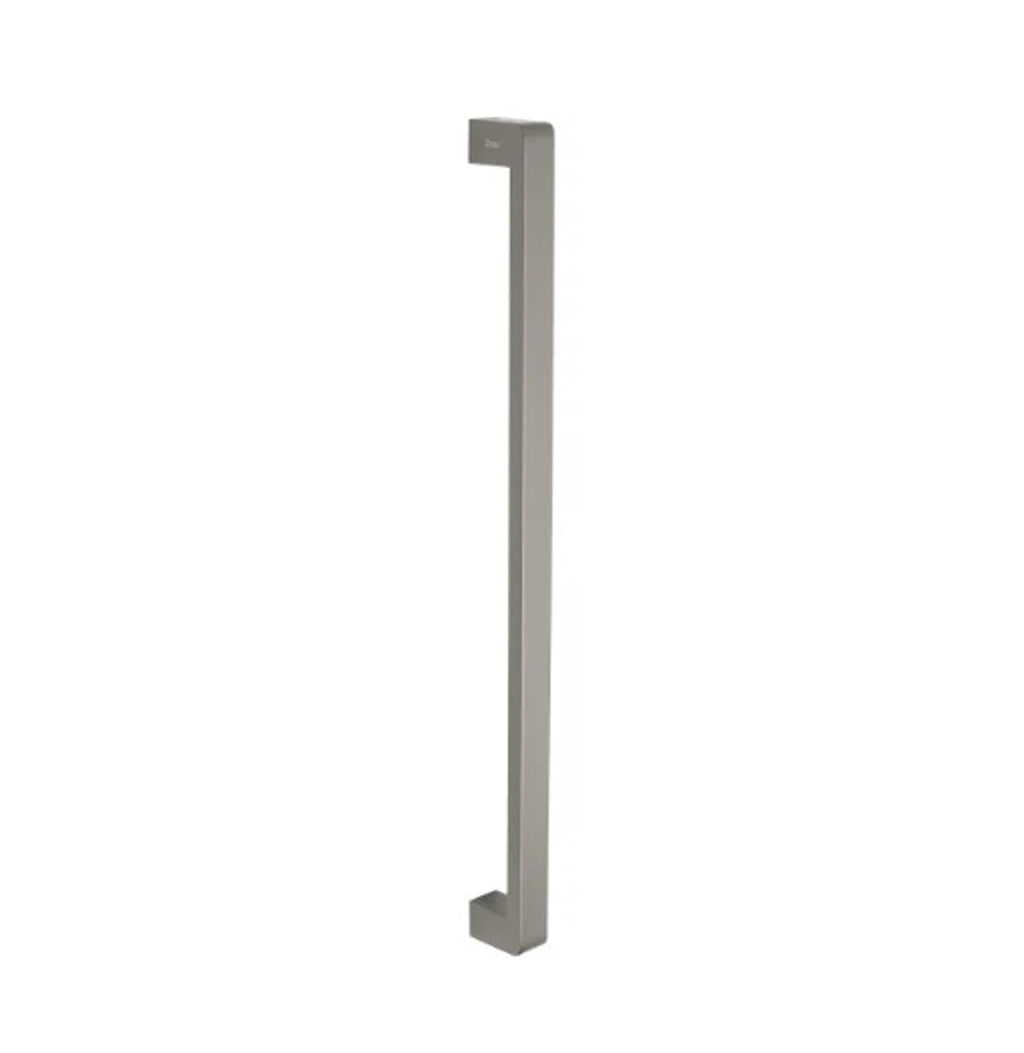

| Graphite Nickel | 7240.BB.GN |

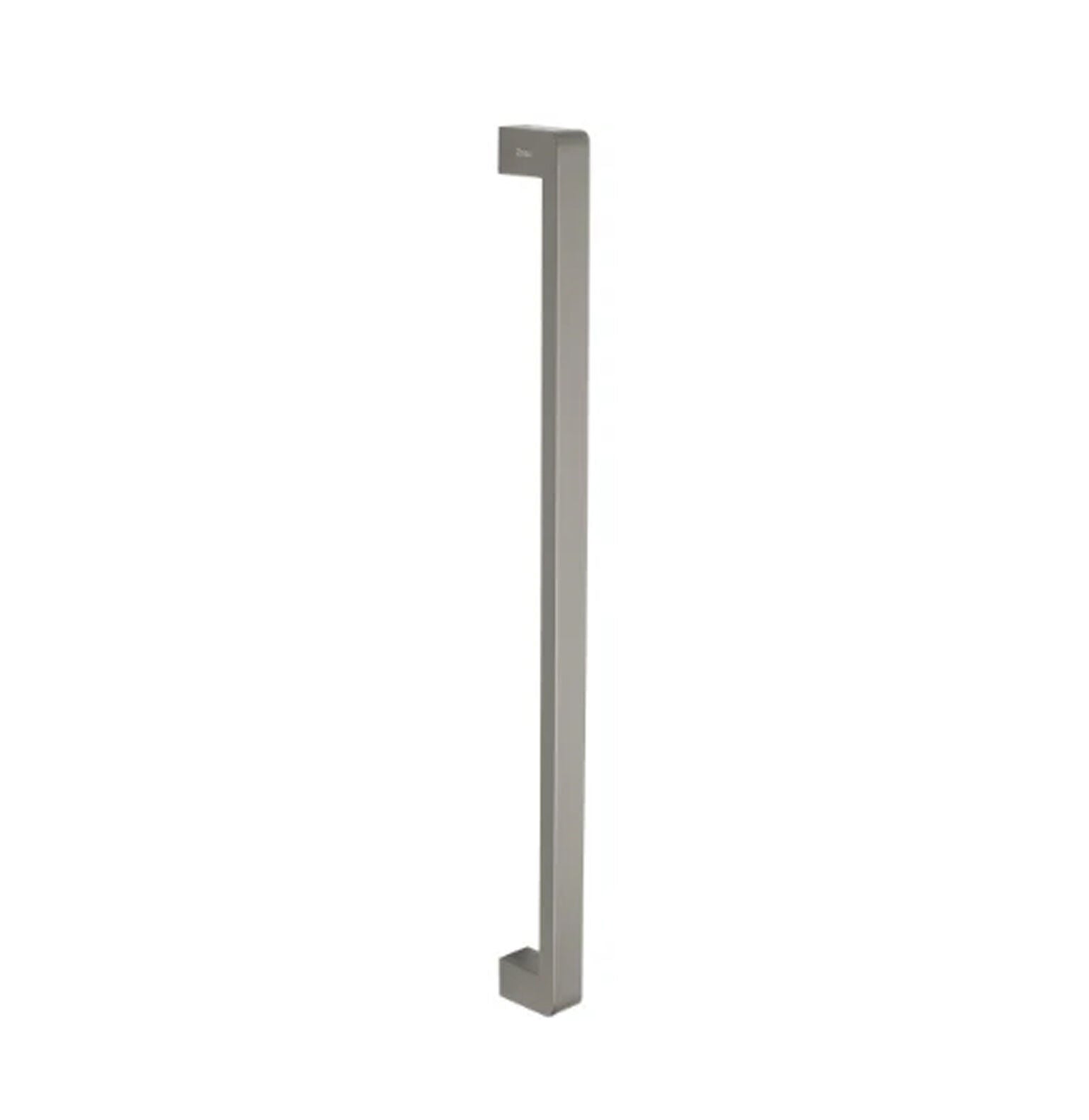

| Matt Black | 7240.BB.BLK |

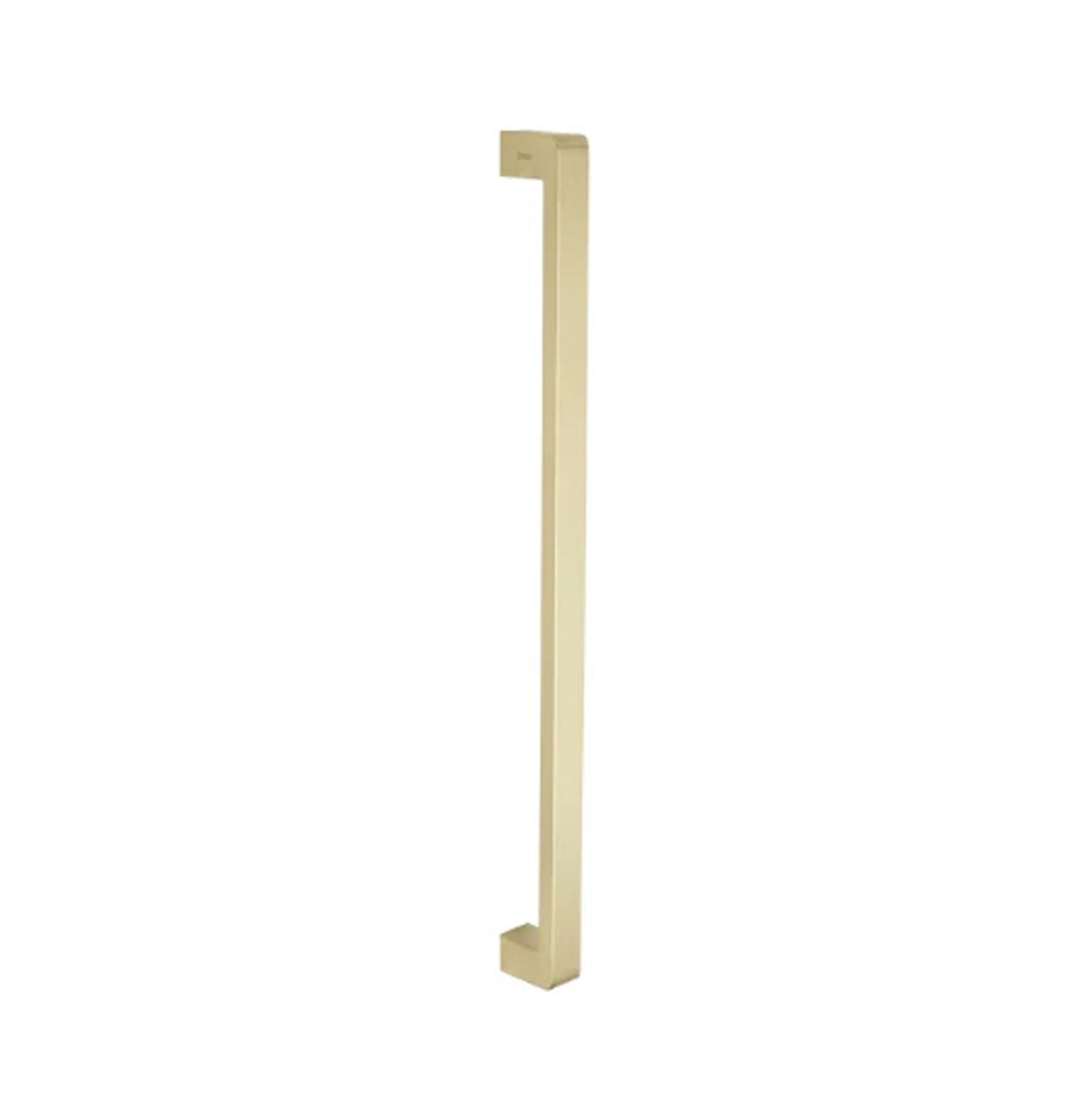

| Satin Brass | 7240.BB.SB |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Streamline |
| Product type | Entrance pull handle |
| Product code | 7240.BB.GN, 7240.BB.BLK, 7240.BB.SB |
| Finish | Graphite Nickel, Matt Black, Satin Brass |
| Material | 316 marine grade stainless steel |
| Dimensions | 570mm centres, 600mm overall, 30 x 15mm bar, 58mm projection |
| Bar profile | 30 x 15mm, radiused corners |
| Fixing | Back to back (pair) — suits timber, aluminium and glass doors |
| Compliance | AS1428.1 disabled access compliant (per Zanda) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Streamline Pull Handle — Back to Back?
It is a Zanda entrance pull handle from the Streamline range, made from 316 marine grade stainless steel. Product code: 7240.BB.GN, 7240.BB.BLK, 7240.BB.SB.
What finishes is it available in?
It is available in Graphite Nickel, Matt Black, Satin Brass. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Dimensions: 570mm centres, 600mm overall, 30 x 15mm bar, 58mm projection.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
