Zanda Streamline Lever Handle – Satin Brass (SB)
Zanda Streamline Lever Handle – Satin Brass (SB) Zanda Streamline Door Lever Handle in Satin Brass (SB). Available in passage, privacy, entrance and dummy configurations. Pairs with Streamline Pull Handle 7240 for a coordinated entry. Why Choose the Streamline Lever in Satin Brass?
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | 7313 - Streamline Leverset Only | Passage | Dummy | 7316.3 Streamline Rose Entrance Set - includes 7313 leverset 1143 7020 & 1147 (70mm Key/Key) | 7316.4 Streamline Rose Entrance Set - includes 7313 leverset 1143 7020 & 1148 (70mm Key/Turn) | Privacy |
|---|---|---|---|---|---|---|
| Satin Brass | 7313.SB | 7314.SB | 7313.D.SB | 7316.3.SB | 7316.4.SB | 7090.SB |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Futura |
| Product type | Door lever on round rose |
| Function | Leverset only (no latch), Passage set, Dummy set, Entrance set, Integrated privacy set |
| Product code | 7313.SB, 7314.SB, 7313.D.SB, 7316.3.SB, 7316.4.SB, 7090.SB |

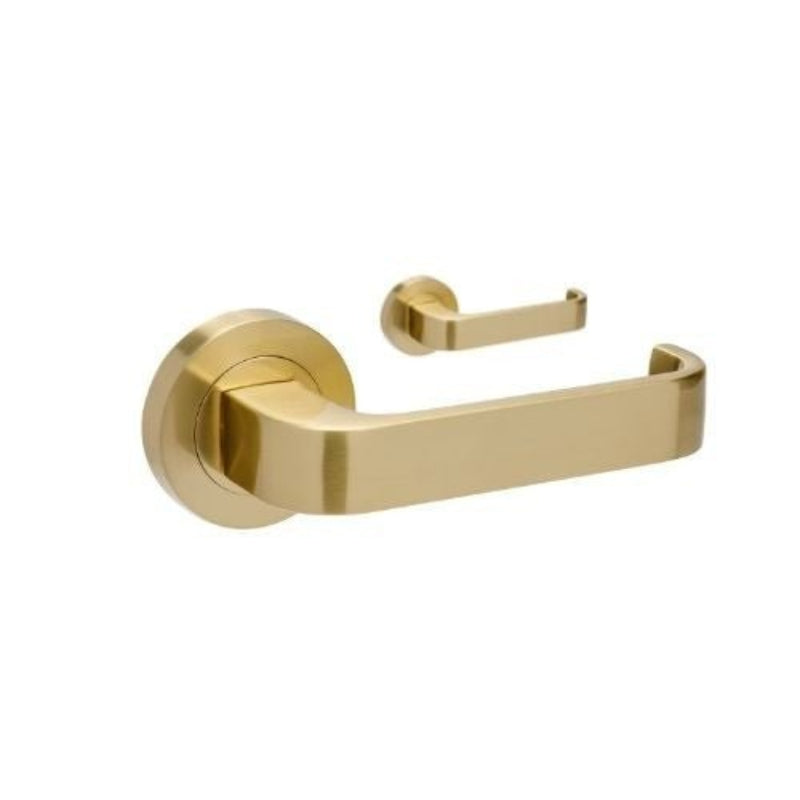

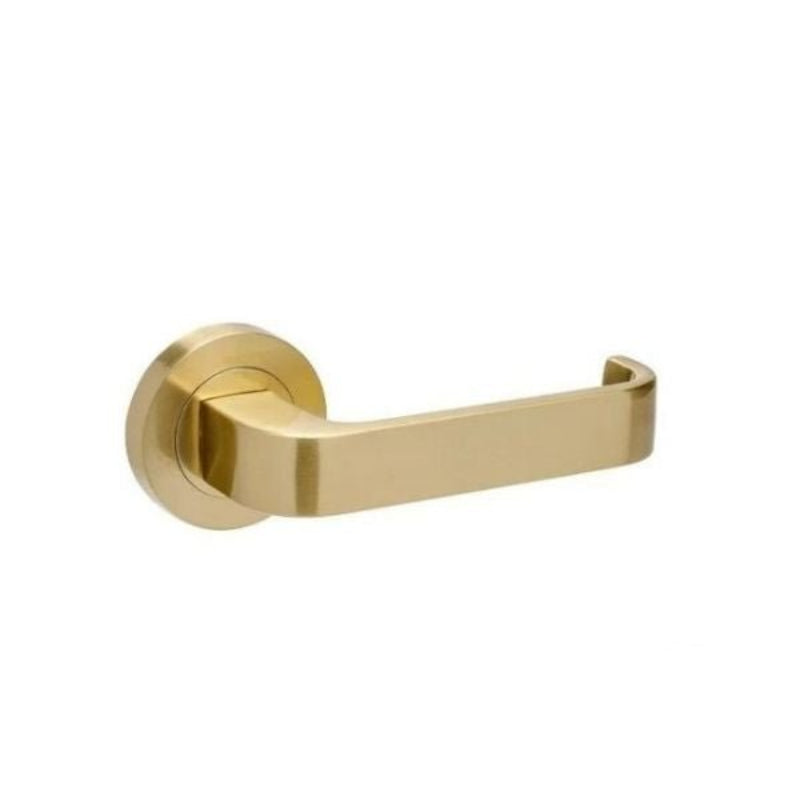

| Set 7313 | Streamline Leverset Only |

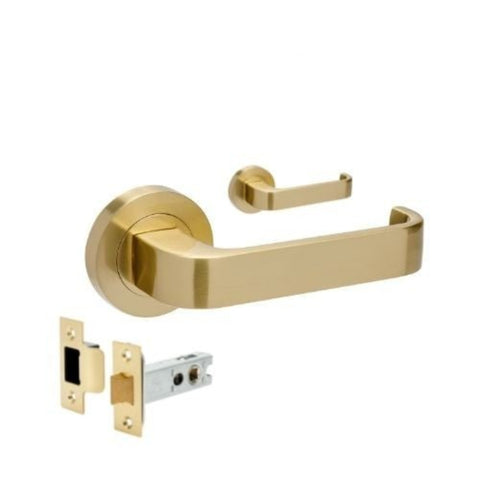

| Set 7314 | Streamline Passage Set, includes 1131 latch |

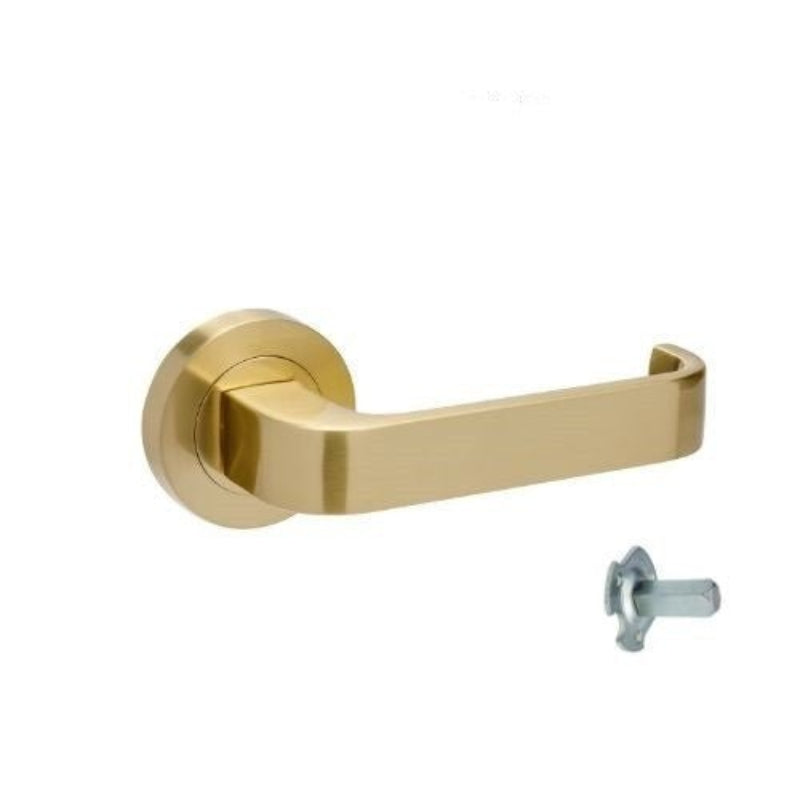

| Set 7313.D | Streamline Dummy Set - Non Handed |

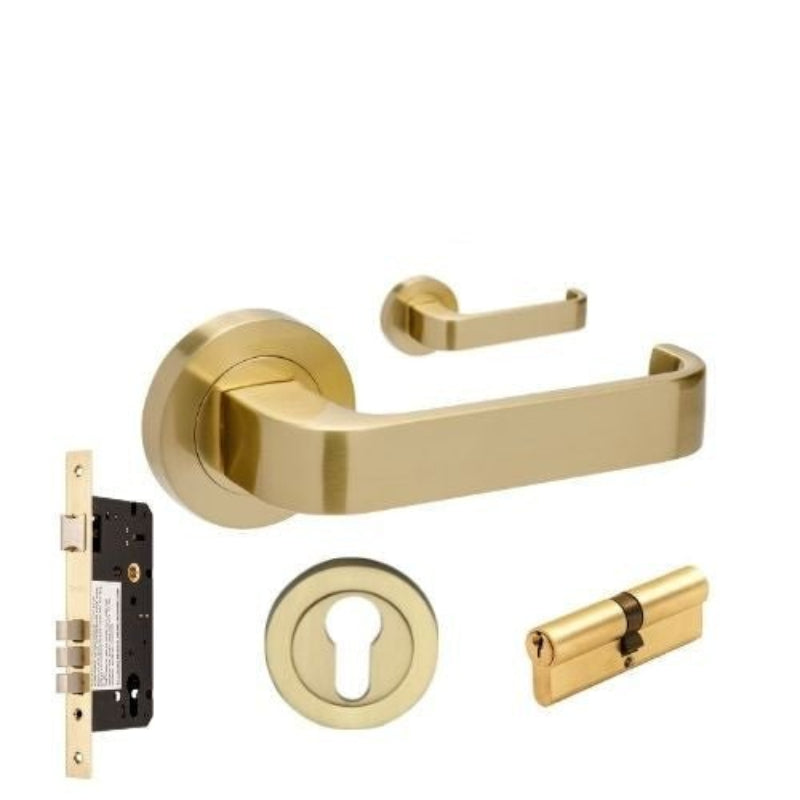

| Set 7316.3 | Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |

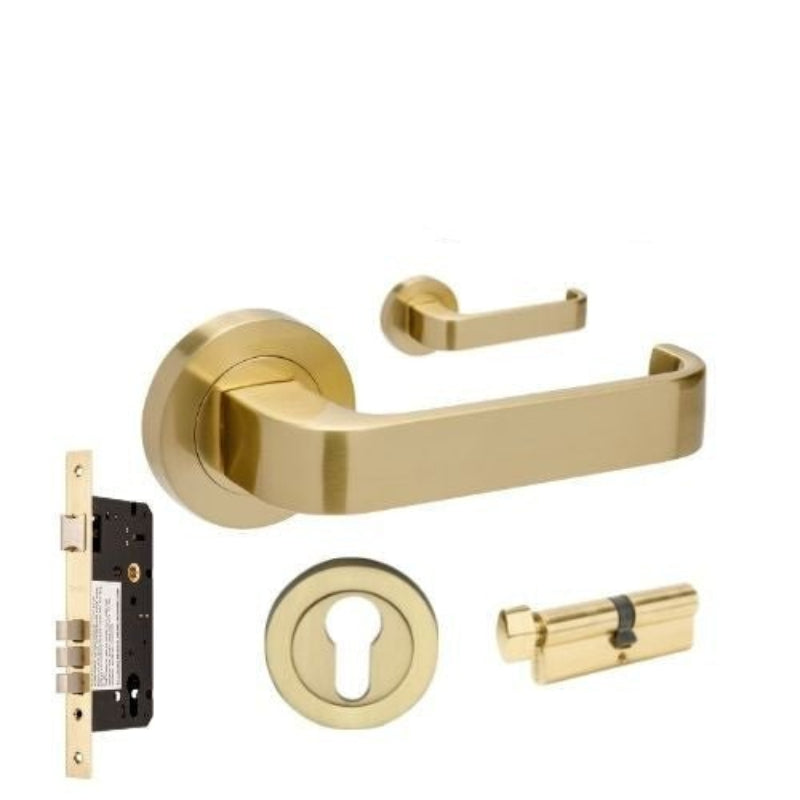

| Set 7316.4 | Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Set 7090 | Streamline Integrated Privacy Set - includes integrated privacy kit |
| Finish | Satin Brass |
| Material | Solid Brass |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts (will not twist out of square) |
| Matching pull handle | Streamline Pull Handle 7240 |
| Rebate kits | 1102.A (passage and privacy sets); 1146 (entrance sets) |
| Compliance | AS1428.1 disabled access compliant |
| Application | Domestic and light commercial doors |
| Warranty | 15-year manufacturer warranty (internal use); 10 years for external use |
Warranty
15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Streamline Lever Handle – Satin Brass (SB)?
It is a Zanda door lever on round rose from the Futura range, made from solid brass. Function: leverset only (no latch), Passage set, Dummy set, Entrance set, Integrated privacy set. Product code: 7313.SB, 7314.SB, 7313.D.SB, 7316.3.SB, 7316.4.SB, 7090.SB.
What does each option include?
7313: Streamline Leverset Only; 7314: Streamline Passage Set, includes 1131 latch; 7313.D: Streamline Dummy Set - Non Handed; 7316.3: Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 7316.4: Streamline Rose Entrance Set - includes 7313 leverset, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn); 7090: Streamline Integrated Privacy Set - includes integrated privacy kit.
What finishes is it available in?
This listing is finished in Satin Brass. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
Is it disabled access compliant?
AS1428.1 disabled access compliant. Always confirm requirements with your certifier for the specific project.
What warranty does it have?
15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
