Zanda Toorak Pull Handle 600mm 316SS AS1428 | 3 Finishes
Zanda Toorak Pull Handle 600mm 316SS AS1428 | 3 Finishes

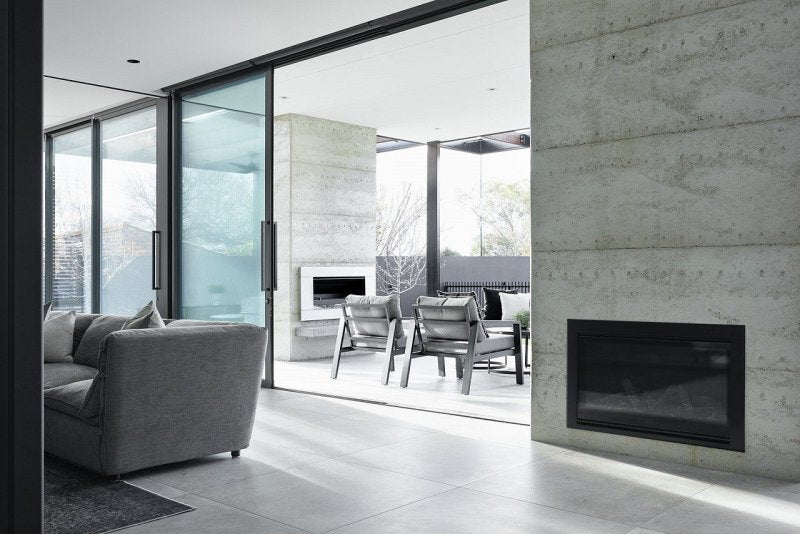

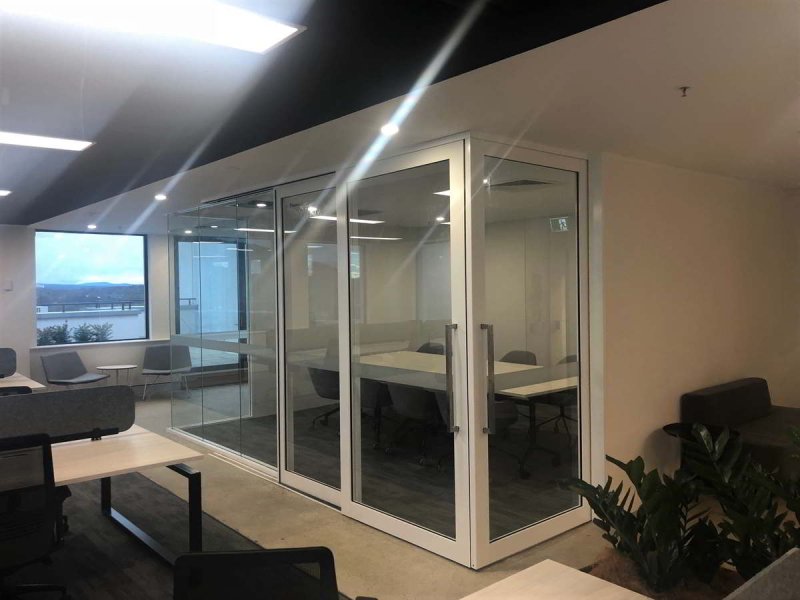

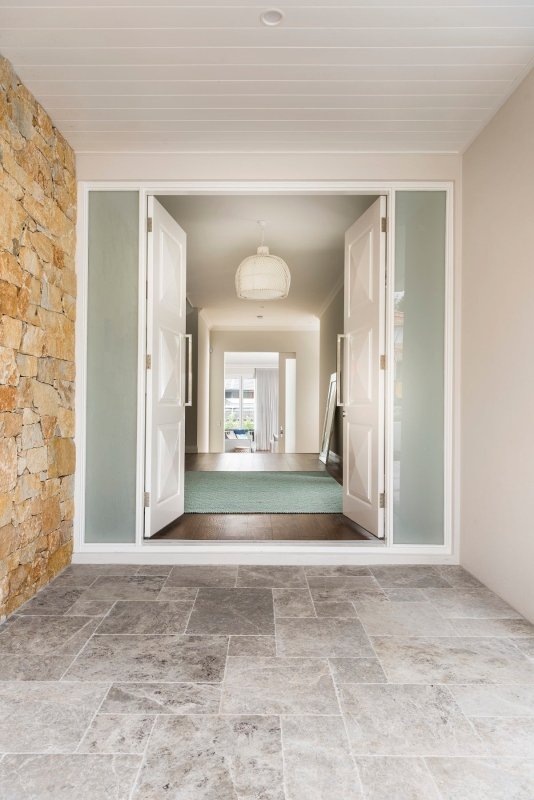

AS1428 disabled-access compliant and available in three finishes. Suits back-to-back, single face, and rear-fix installations on residential and commercial entry doors. Accessibility Compliant: AS1428 compliant for disabled access requirements. Suitable for residential and commercial entry doors including DDA-compliant applications.
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 13505 | 625 mm | 60mm |
Fixing Types Explained
| Fixing | What it means |
|---|---|
| Back to Back (Pair) | Two handles fixed through the door, one each side, bolted to each other. The strongest fixing and the usual choice for entry doors. |
| Face Fix (Single) | A single handle fixed from the front, with the screws visible on the face of the handle. |
| Rear Fix (Single) | A single handle fixed from behind the door, so no screws are visible on the handle face. |
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Matt Black | — | 1125.BLK |
Available Finishes (3) & Product Codes

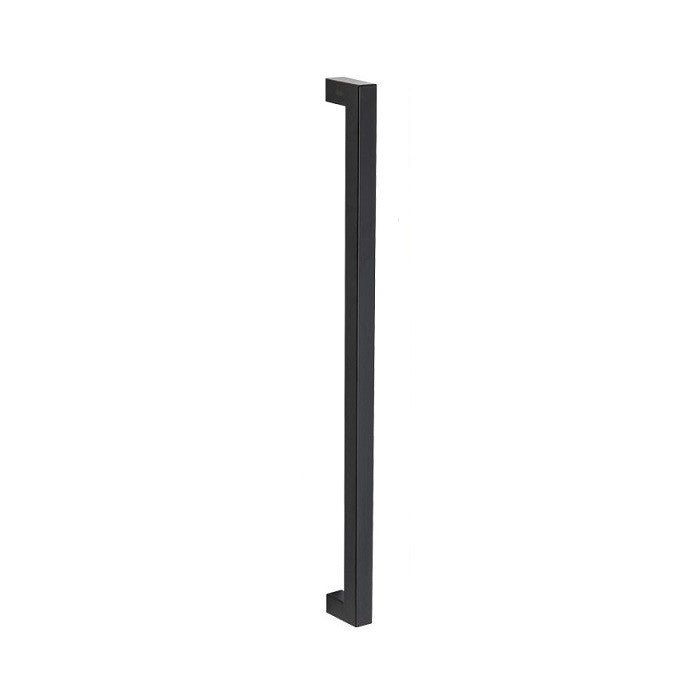

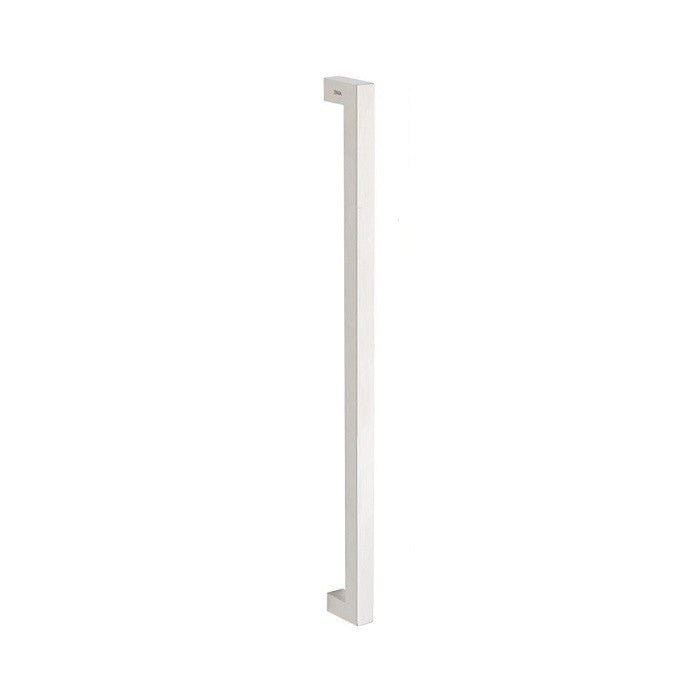

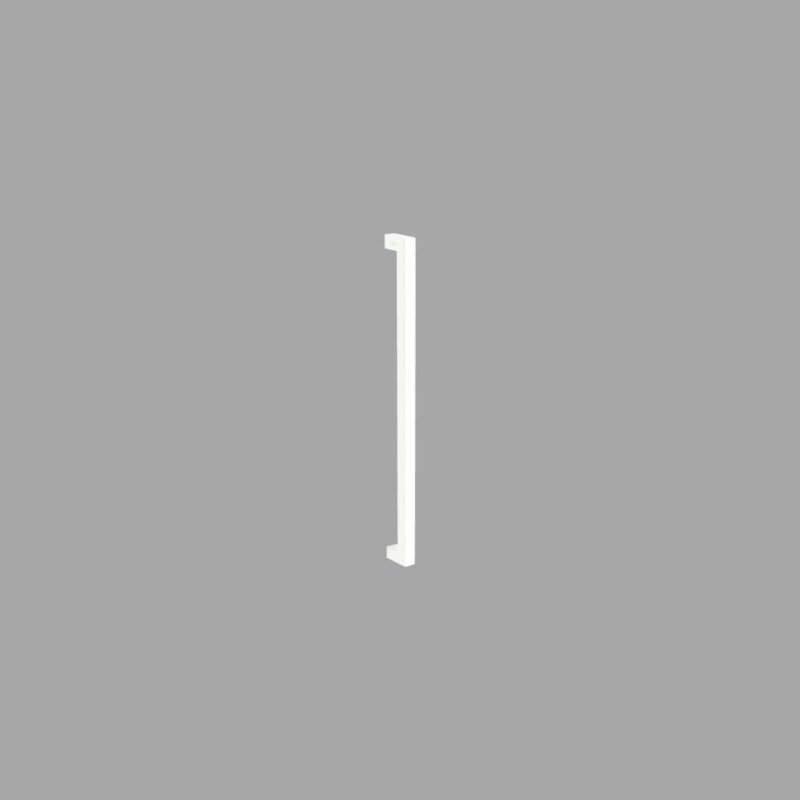

| Finish | 13505.BB.SS - 625mm Toorak Pull Handle - Back to Back (Pair) | 13505.RF.SS 625mm Toorak Pull Handle - Rear Fix | 13505.BB.WHT 625mm Toorak Pull Handle - Back to Back (Pair) | 13505.BB.BLK 625mm Toorak Pull Handle - Back to Back (Pair) | 13505.RF.BLK 625mm Toorak Pull Handle - Rear Fix |
|---|---|---|---|---|---|

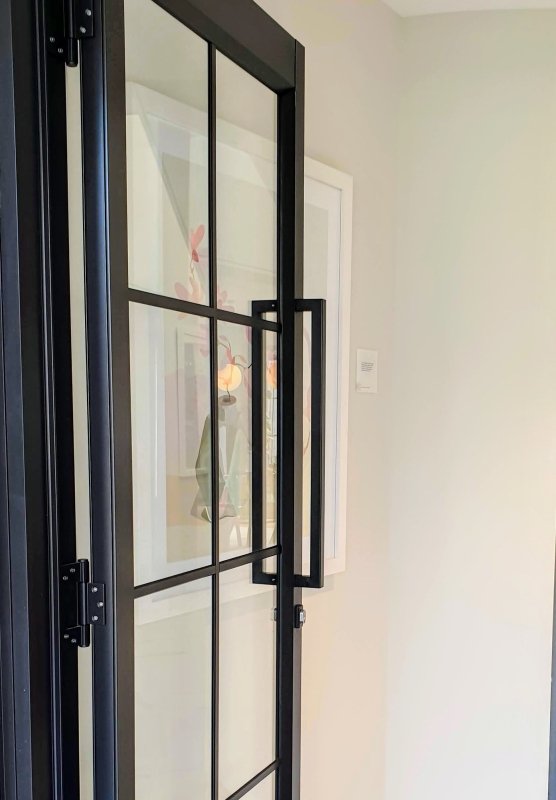

| Matt Black | — | — | — | 13505.BB.BLK | 13505.RF.BLK |

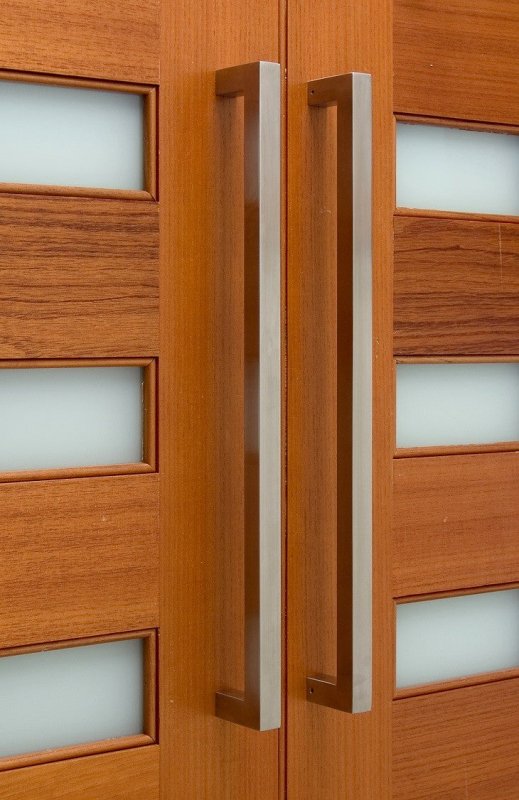

| Stainless Steel | 13505.BB.SS | 13505.RF.SS | — | — | — |
| Matt White | — | — | 13505.BB.WHT | — | — |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Toorak |
| Product type | Entrance pull handle (square) |
| Product code | 13505.BB.SS, 13505.RF.SS, 13505.BB.WHT, 13505.BB.BLK, 13505.RF.BLK |
| Finish | Stainless Steel, Matt White, Matt Black |
| Material | 316 marine grade stainless steel |
| Dimensions | 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection |
| Tube size | 25 x 25mm |

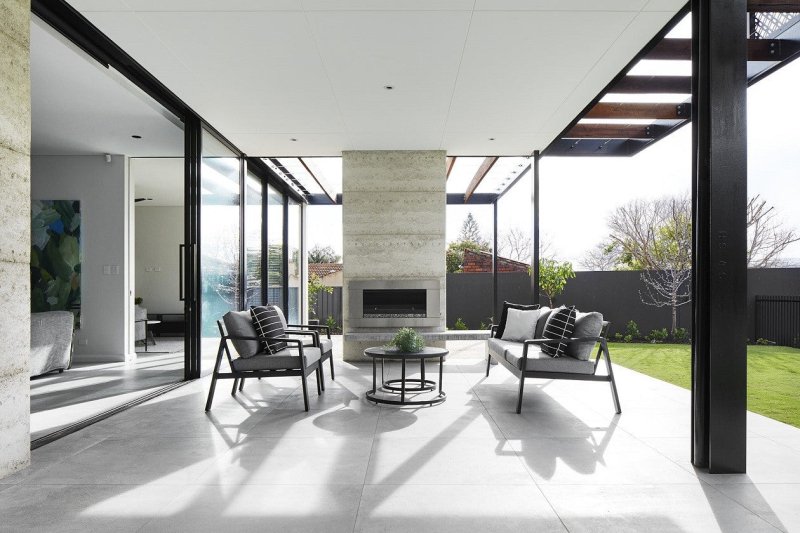

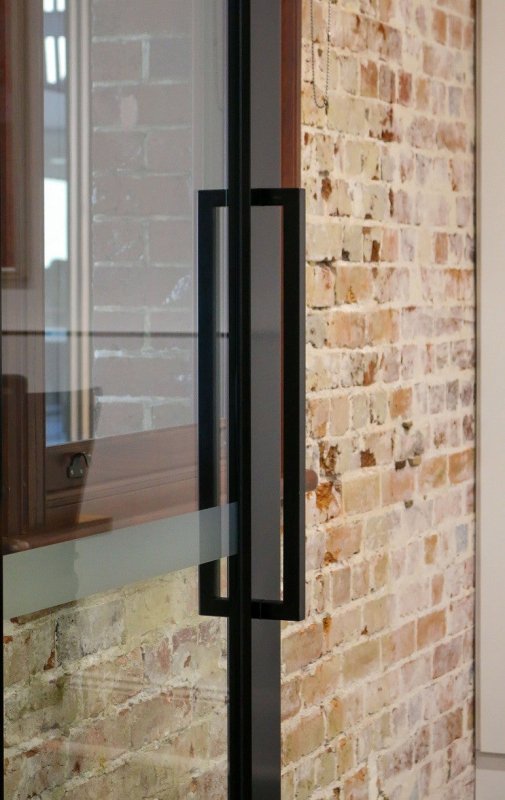

| Fixing | Back to back (pair) — suits timber, aluminium and glass doors; Rear fix (single) — suits timber and aluminium doors |
| Compliance | AS1428.1 disabled access compliant (per Zanda) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Toorak Pull Handle 600mm 316SS AS1428?
It is a Zanda entrance pull handle (square) from the Toorak range, made from 316 marine grade stainless steel. Product code: 13505.BB.SS, 13505.RF.SS, 13505.BB.WHT, 13505.BB.BLK, 13505.RF.BLK.
What finishes is it available in?
It is available in Stainless Steel, Matt White, Matt Black. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Dimensions: 600mm centres, 625mm overall, 25 x 25mm tube, 60mm projection; Tube size: 25 x 25mm.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
