Zanda TS9205 Door Closer Combined Unit with Flat Bar Armset
Zanda TS9205 Door Closer Combined Unit with Flat Bar Armset
The Zanda TS9205 Door Closer Combined Unit with Flat Bar Armset is a Zanda door closer component for controlled, quiet door closing, available in Antique Brass, Ember Bronze, Matt White and Polished Nickel Plate. Made from aluminium. Each finish has its own Zanda product code, listed below.
Available Finishes (4) & Product Codes
| Finish | Product code |
|---|---|

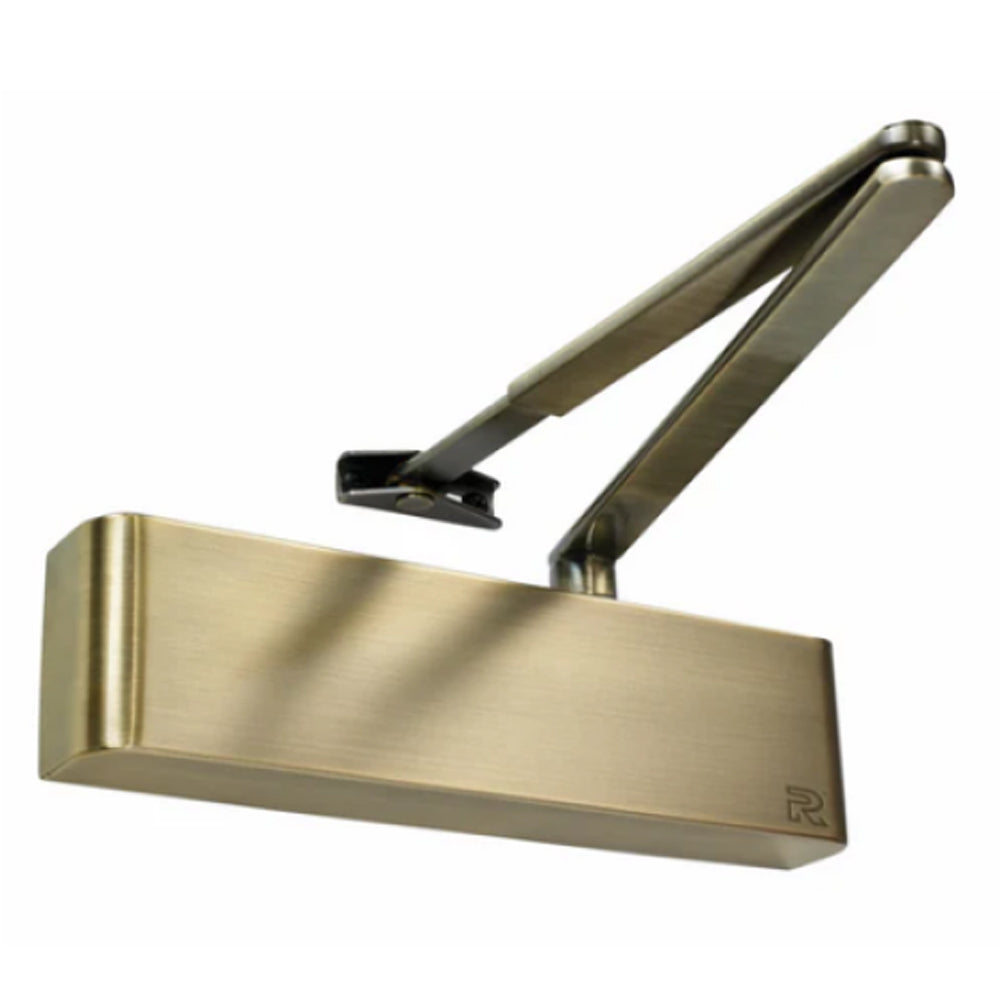

| Antique Brass | TS.9205.SRFB.AB |

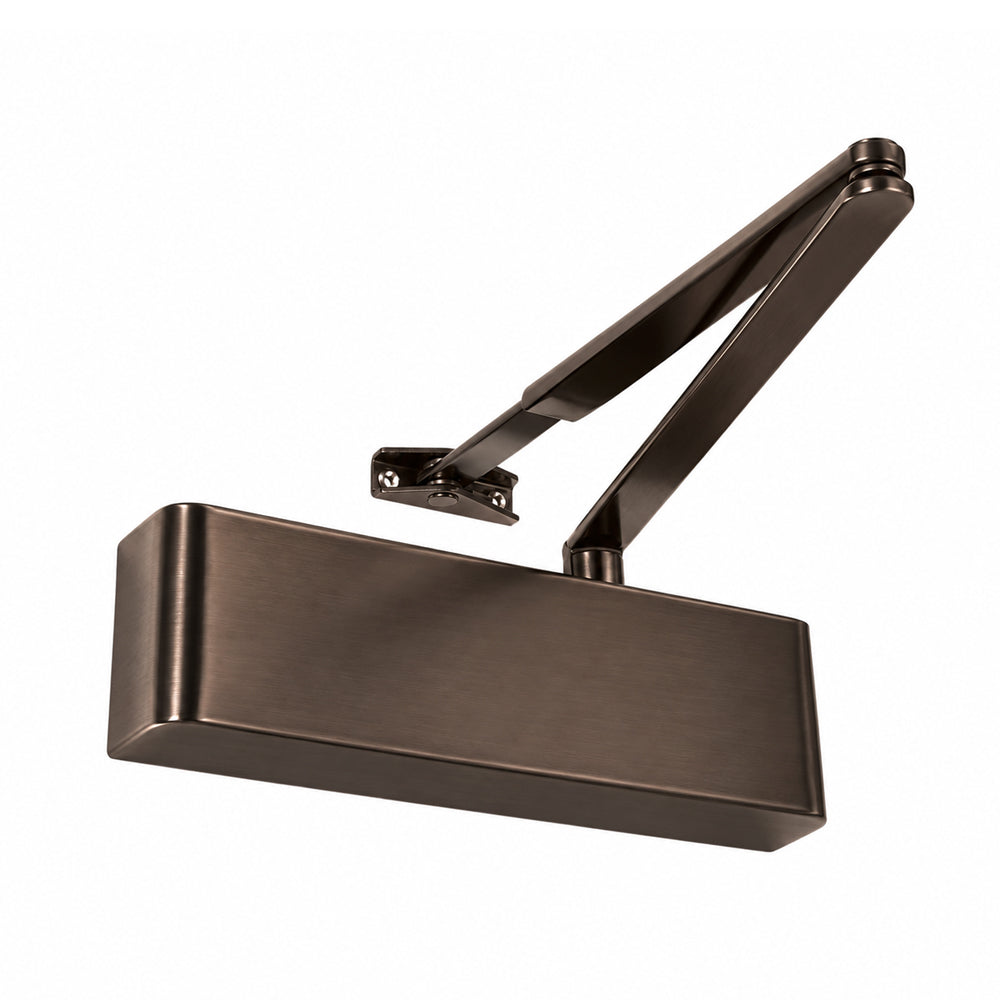

| Ember Bronze | TS.9205.SRFB.EB |

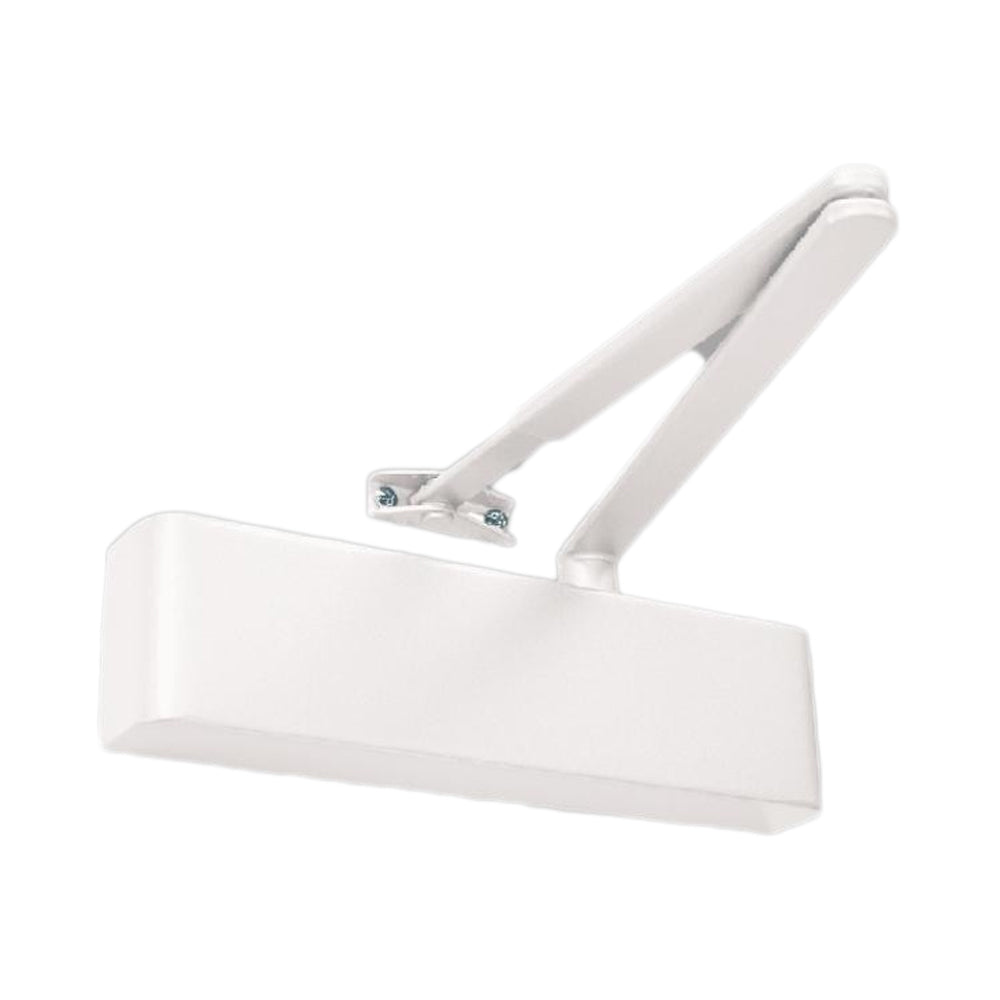

| Matt White | TS.9205.SRFB.WHT |

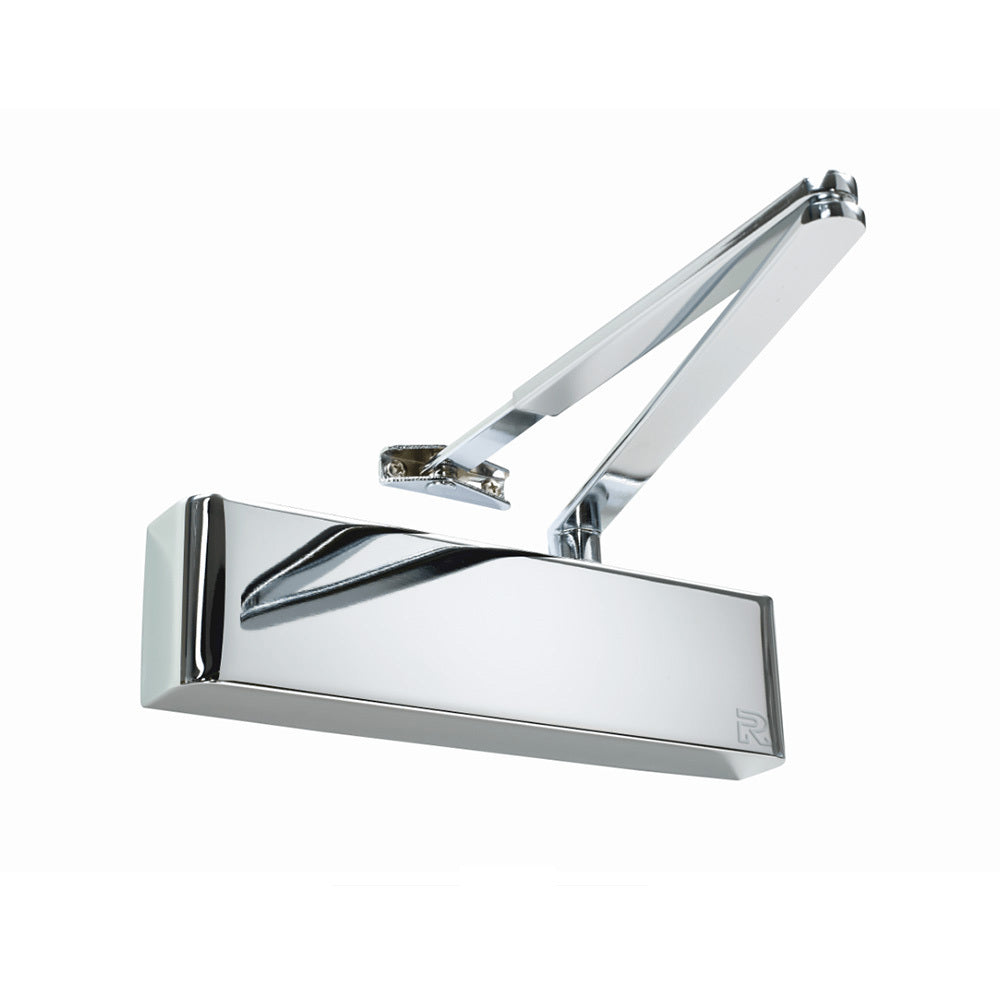

| Polished Nickel Plate | TS.9205.SRFB.PNP |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Product type | Architectural overhead door closer (Rutland) |
| Product code | TS.9205.SRFB.AB, TS.9205.SRFB.EB, TS.9205.SRFB.WHT, TS.9205.SRFB.PNP |
| Finish | Antique Brass, Ember Bronze, Matt White, Polished Nickel Plate |
| Material | Aluminium |
| Power size | Adjustable EN2–5 |
| Max door | 110kg, 1250mm wide |
| Fitting positions | Standard, parallel arm or transom |
| Adjustments | Closing speed, latch action, delayed action and backcheck |
| Opening angle | Up to 180° |
| Door types | Timber, metal and aluminium |
| Testing | Third-party tested to BS EN1154, CE marked |
| Mechanism | Rack and Pinion |
| Fire rating | Fire tested to Australian standards |
| Warranty | 35-year manufacturer guarantee |
Warranty
35-year manufacturer guarantee. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda TS9205 Door Closer Combined Unit with Flat Bar Armset?
It is a Zanda architectural overhead door closer (Rutland), made from aluminium. Product code: TS.9205.SRFB.AB, TS.9205.SRFB.EB, TS.9205.SRFB.WHT, TS.9205.SRFB.PNP.
What finishes is it available in?
It is available in Antique Brass, Ember Bronze, Matt White, Polished Nickel Plate. Each finish has its own product code, shown in the finishes table above.
What power size do I need?
This closer is Adjustable EN2–5. Power size is chosen by door width and weight — larger or heavier doors need a higher EN size. Maximum door: 110kg, 1250mm wide.
Is it suitable for fire-rated doors?
Fire tested to Australian standards. Fire door hardware must be installed as part of a tested door assembly — check with your certifier.
What warranty does it have?
35-year manufacturer guarantee, covering defects in materials and workmanship under normal use when correctly installed.
