Zanda TS9205 Door Closer Combined Unit with Slide Armset
Zanda TS9205 Door Closer Combined Unit with Slide Armset
The Zanda TS9205 Door Closer Combined Unit with Slide Armset is a Zanda door closer component for controlled, quiet door closing, available in Antique Brass, Electro Brass, Matt Black, Matt White and Stainless Steel. Made from aluminium. Each finish has its own Zanda product code, listed below.
Available Finishes (5) & Product Codes
| Finish | Product code |
|---|---|

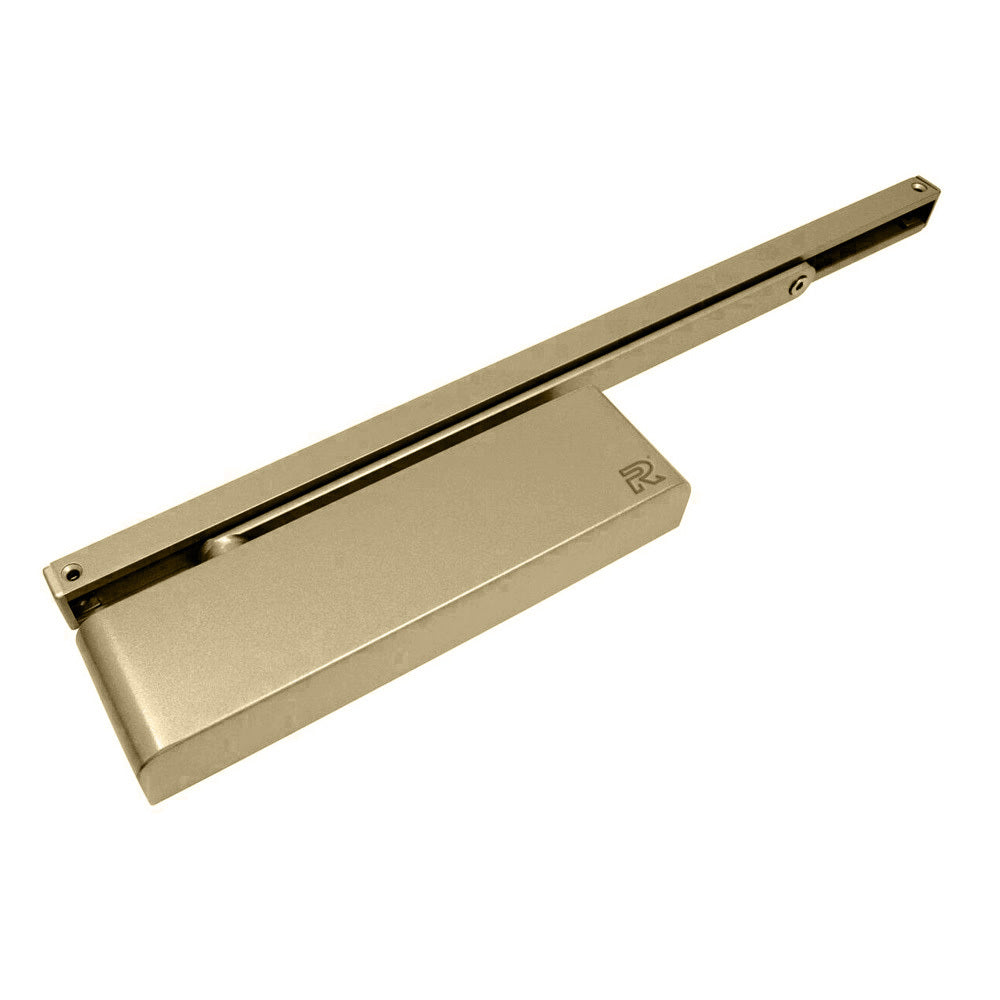

| Antique Brass | TS.9205.SRSA.AB |

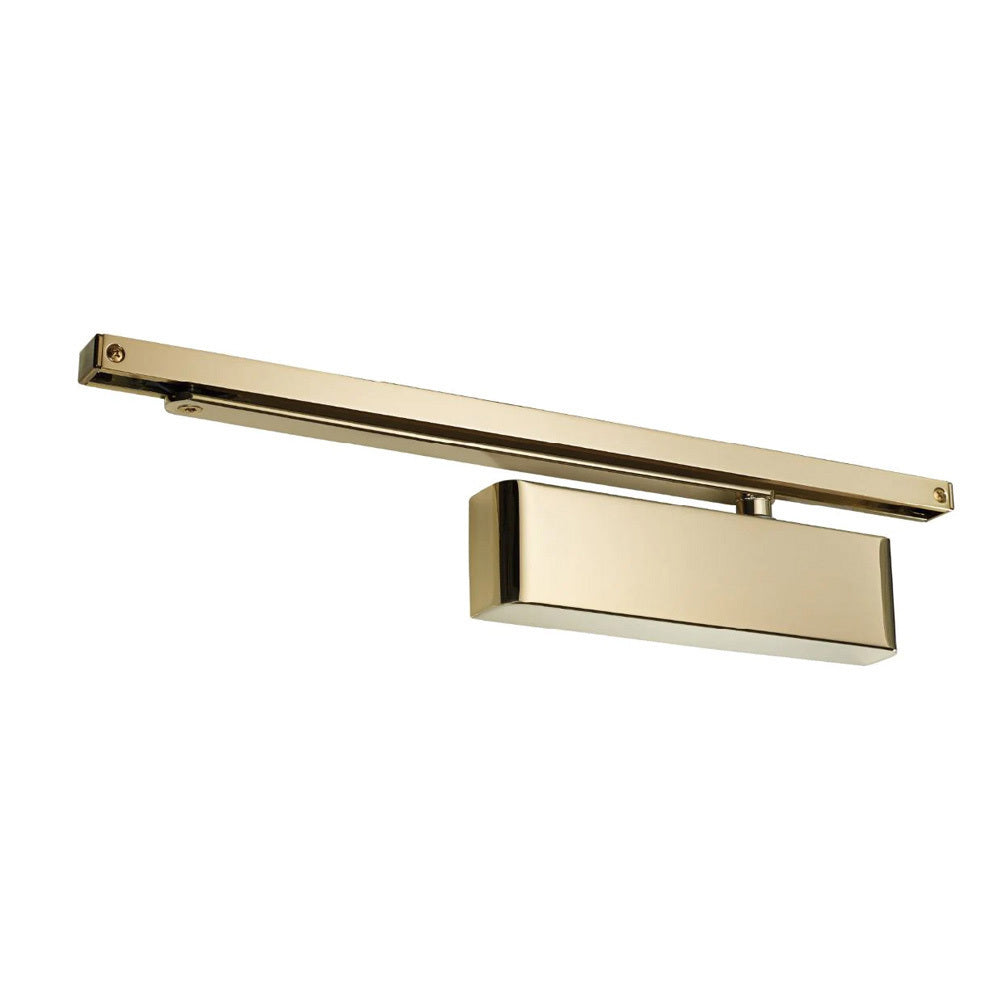

| Electro Brass | TS.9205.SRSA.EB |

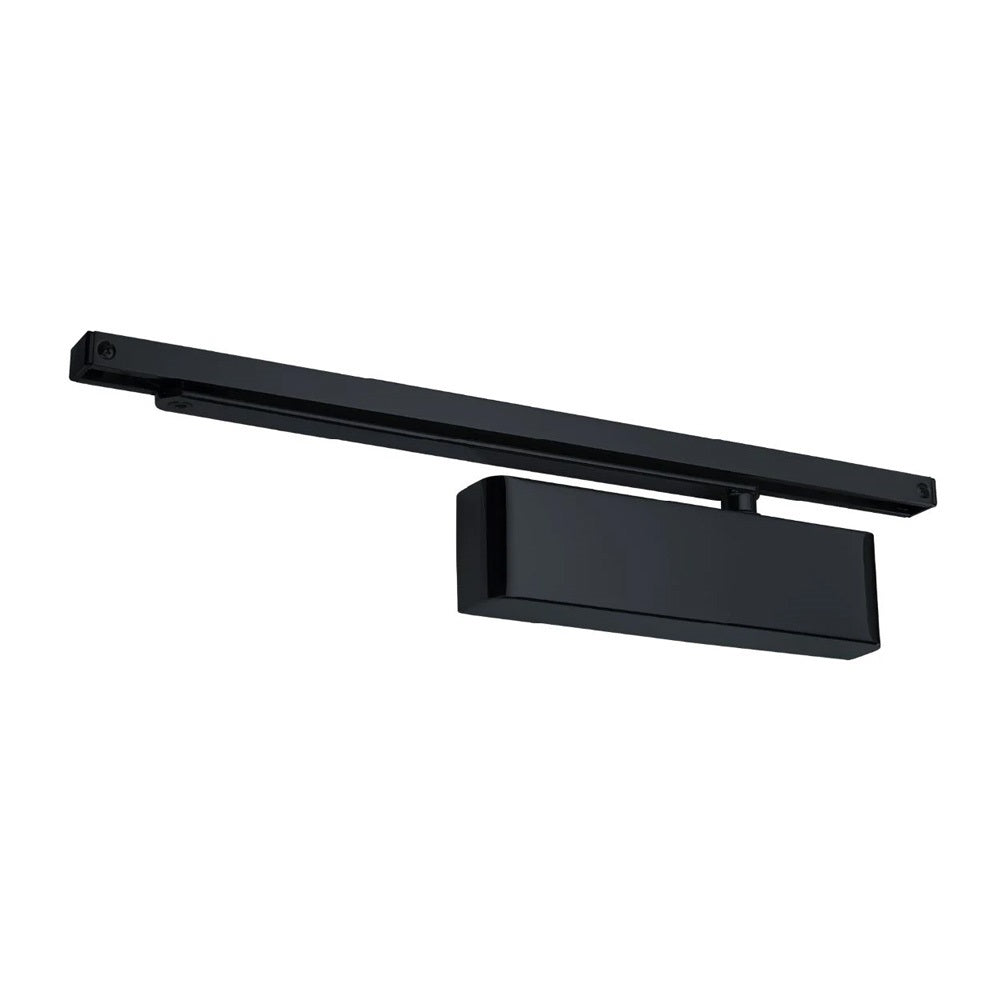

| Matt Black | TS.9205.SRSA.BLK |

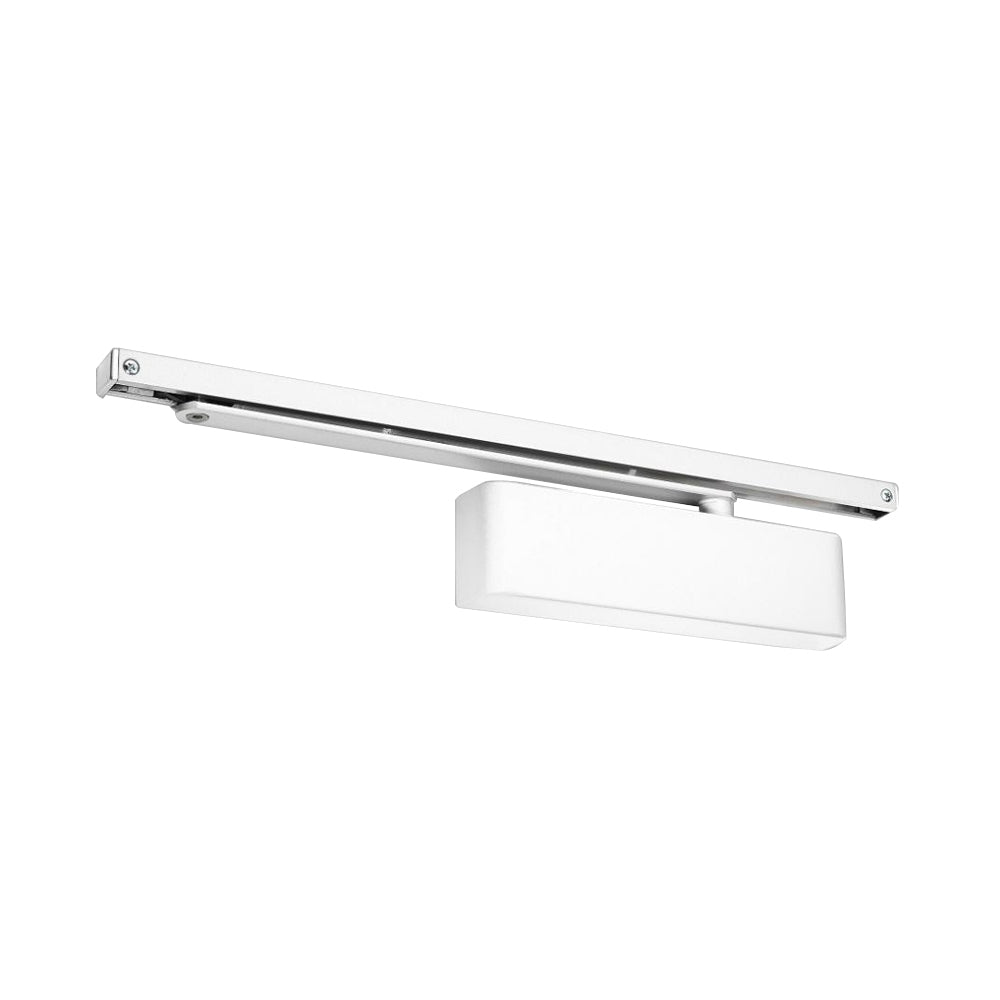

| Matt White | TS.9205.SRSA.WHT |

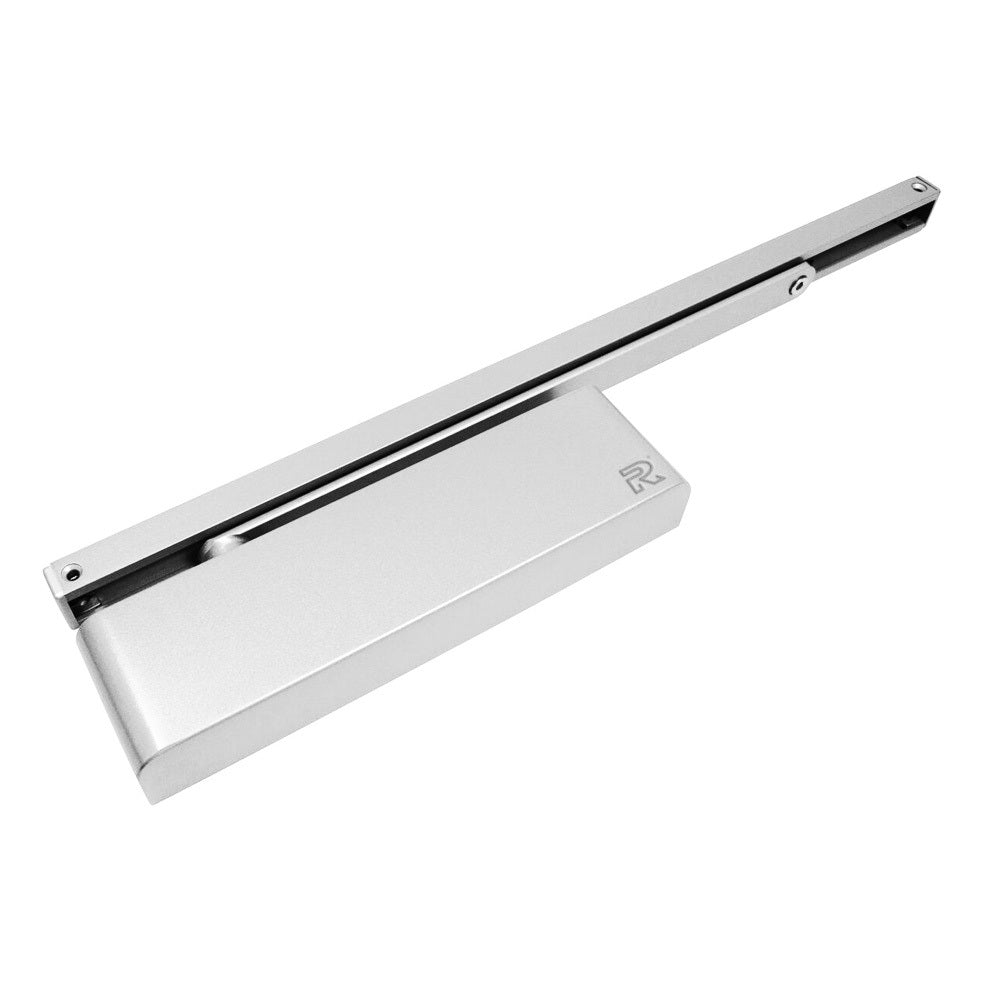

| Stainless Steel | TS.9205.SRSA.SSS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Finishes | Antique Brass, Electro Brass, Matt Black, Matt White, Stainless Steel |
| Strength | EN2-5 up to 850mm to 1250mm and 45kg to 110kg |
| Mechanism | Rack and Pinion |
| Adjustable Closing Speed | Yes |
| Adjustable Latch Action | Yes |
| Adjustable Delayed Action | Optional |
| Adjustable Back Check | Yes |
| Max Door Width | 1250mm |
| Max Door Weight | 110kg |
| Opening Angle | 180 degrees |
| Material | Aluminium |
| Fire Rating | Fire rated |
Warranty
Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda TS9205 Door Closer Combined Unit with Slide Armset?
It is a Zanda door closer component in aluminium.
What finishes are available?
This model is available in Antique Brass, Electro Brass, Matt Black, Matt White and Stainless Steel. Each finish has its own product code — see the finishes table in the description.
What doors does it suit?
Specifications: max door width 1250mm, max door weight 110kg. Please check your door before ordering.
What warranty applies?
Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range and is stated on the product where applicable.
