Zanda Vector Lever Handle BN Graphite Nickel Matt Black Passage Privac

Name: Prime Hardware
Rating: 4.9 (110 reviews)

Zanda Vector – Graphite Nickel - primehardware

Description & Specifications FAQs

Zanda

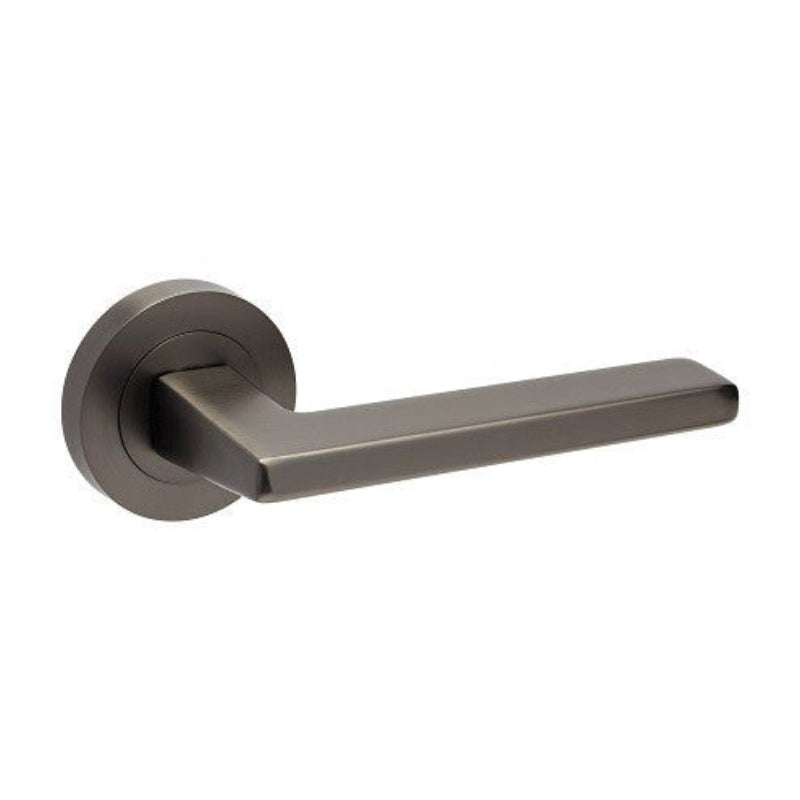

Zanda Vector Lever Handle BN Graphite Nickel Matt Black Passage Privacy Entrance

Product code (SKU): 7106.D.GN–7196.GN (by finish / function)

The Zanda Vector Lever Handle is part of the Futura range with three finishes at one price. Backed by a 10 year product guarantee and fire rated. 7107: Passage, 7196: Integrated Privacy, 7108: Separate Privacy, 7106.D: Dummy, 7110: Residential Entrance, 7327: Apartment Entrance

Graphite NickelFinish

Door Functions Explained

Passage	The latch operates from both sides and does not lock — for bedrooms, living rooms and studies.
Privacy	Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites.
Entrance	Key-lockable using a euro cylinder — for front and back doors.
Dummy / Fixed	A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door.

What's in the Box

1 pair of levers (or knobs) with roses / backplates
Face-fix wood screws and tie bolts
The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
Not included: hinges and flush bolts

Complete Your Door Hardware

The items below are sold separately. The product code for each finish is listed.

Complete Your Door Hardware

Zanda Door Stop

Protects the wall and the handle when the door swings open. Floor, skirting and magnetic types available.

Graphite Nickel 5240.GN

Zanda Hinges — 3 per door

Ball bearing suits heavy and high-use doors; butt hinges suit standard internal doors.

Graphite Nickel 5910GN

Zanda Flush Bolt

Secures the inactive leaf of a double door. A dust socket is used at the floor.

Ember Bronze 10423.EBSatin Brass 10423.SB

Available Finishes (1) & Product Codes

Graphite Nickel

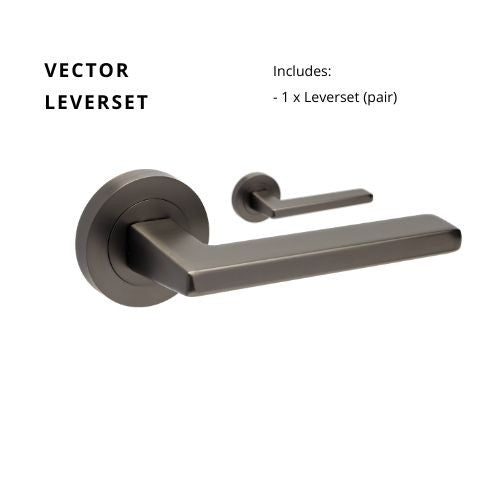

Finish	7106 Vector Leverset Only	Passage	Privacy	Dummy	7110.3 - Vector Rose Entrance Set - includes 7106 lever set 1143 7020 & 1147 (70mm Key/Key)	7110.4 - Vector Rose Entrance Set - includes 7106 lever set 1143 7020 & 1148 (70mm Key/Turn)	Privacy
Graphite Nickel	7106.GN	7107.GN	7108.GN	7106.D.GN	7110.3.GN	7110.4.GN	7196.GN

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

1What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.

Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm the latch or lock suits your frame profile.

2What does the door need to do?

PassageBedrooms, living rooms, studies — the door opens and closes but never locks.

You need tube latch

PrivacyBathrooms, ensuites and bedrooms — locks from the inside with a snib, emergency release outside.

You need tube latch + privacy turn, or a privacy mortice lock

Backset & door thickness The backset is the distance from the door edge to the spindle centre — tube latches come in 45, 60 and 70 mm; mortice locks in 44, 46 and 57 mm. Measure before ordering. A rebated double door needs the rebated version of the lock.

3Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

Hinges — Which One Do You Need?

Hinge type	Best for	Why
Ball bearing	Entrance and heavier doors	Bearings reduce friction and wear — best for high-use doors.
Fixed pin	Internal and lighter entrance doors	A reliable all-rounder for most internal applications.
Loose pin	Internal use — ideal for bathrooms	The pin withdraws so the door lifts off without unscrewing the hinge.
Parliament	Doors that must open 180°	Projects the door clear of the frame or architrave so it swings back against the wall.

Three hinges per door is standard for internal and entrance doors.

Specifications

Brand	Zanda
Range	Futura
Product type	Door lever on round rose
Function	Passage set, Entrance set, Leverset only (no latch), Separate privacy set, Dummy set, Integrated privacy set
Product code	7106.GN, 7107.GN, 7108.GN, 7106.D.GN, 7110.3.GN, 7110.4.GN, 7196.GN

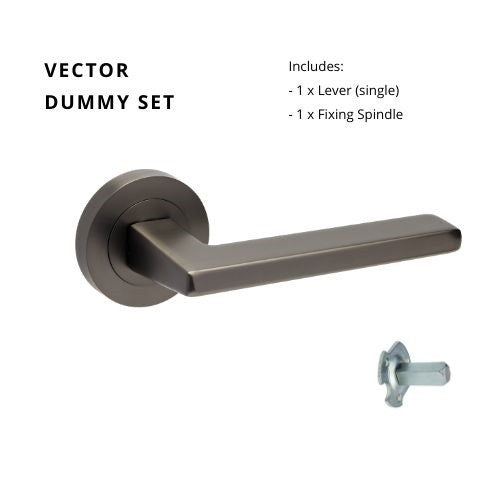

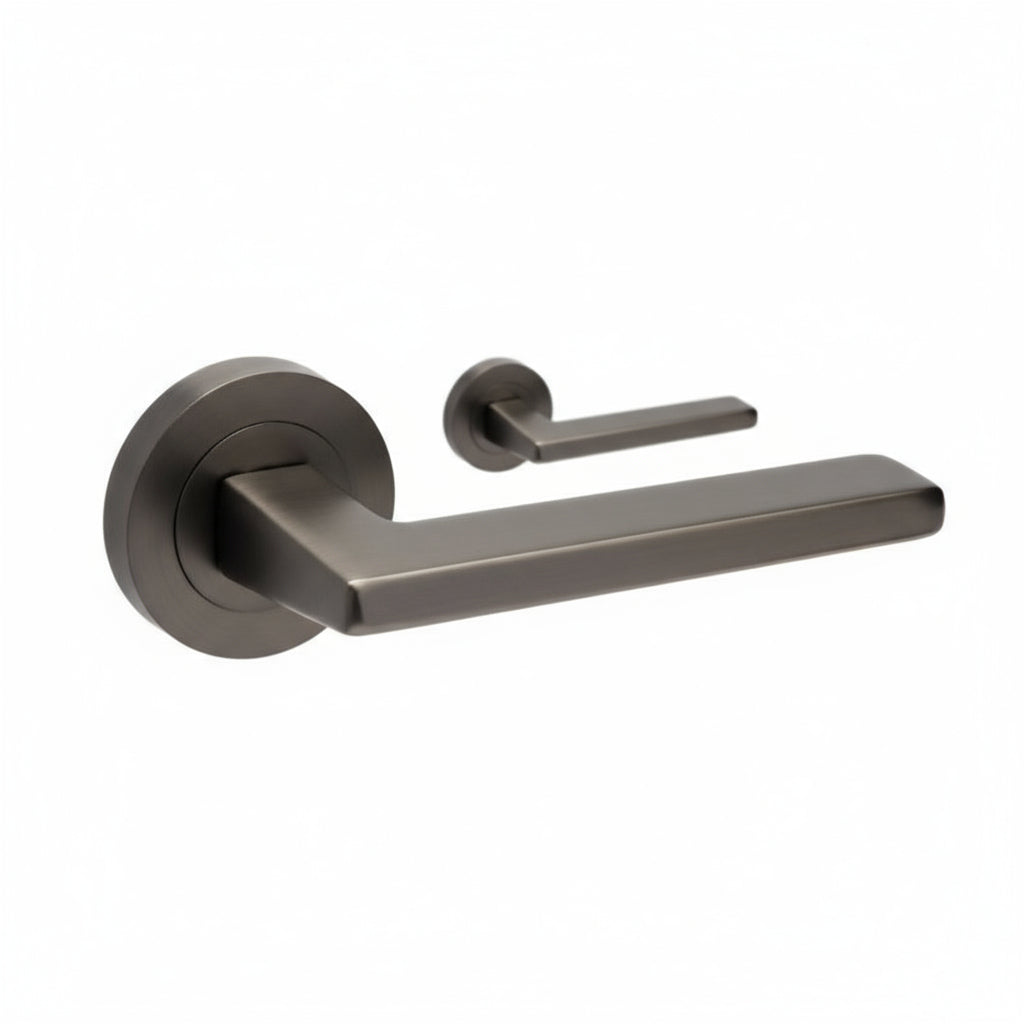

Set 7106	D Vector Dummy Set - Non-Handed

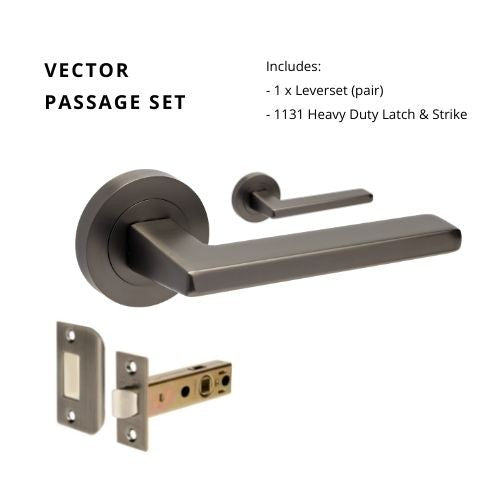

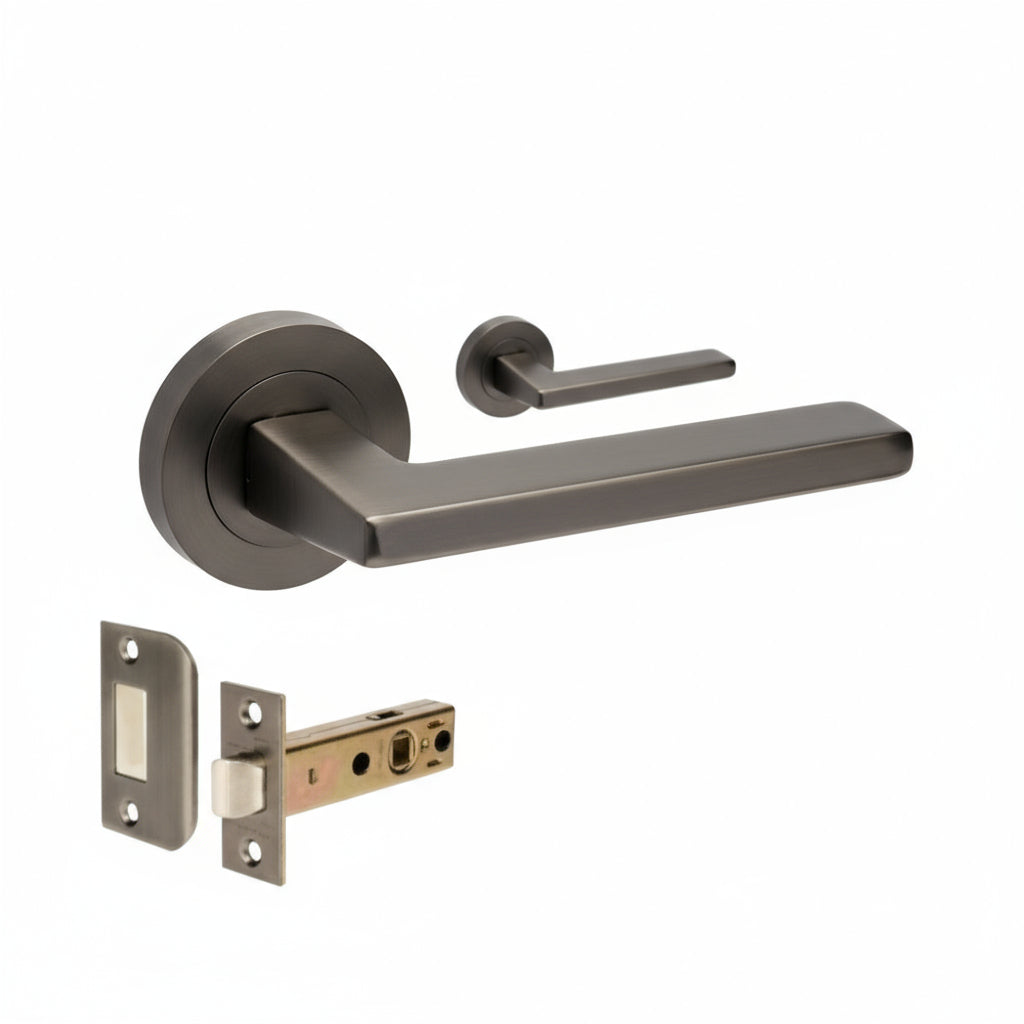

Set 7107	Vector Passage Set, includes 1131 latch

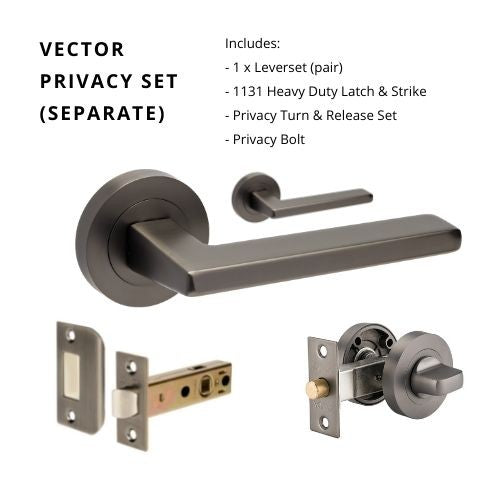

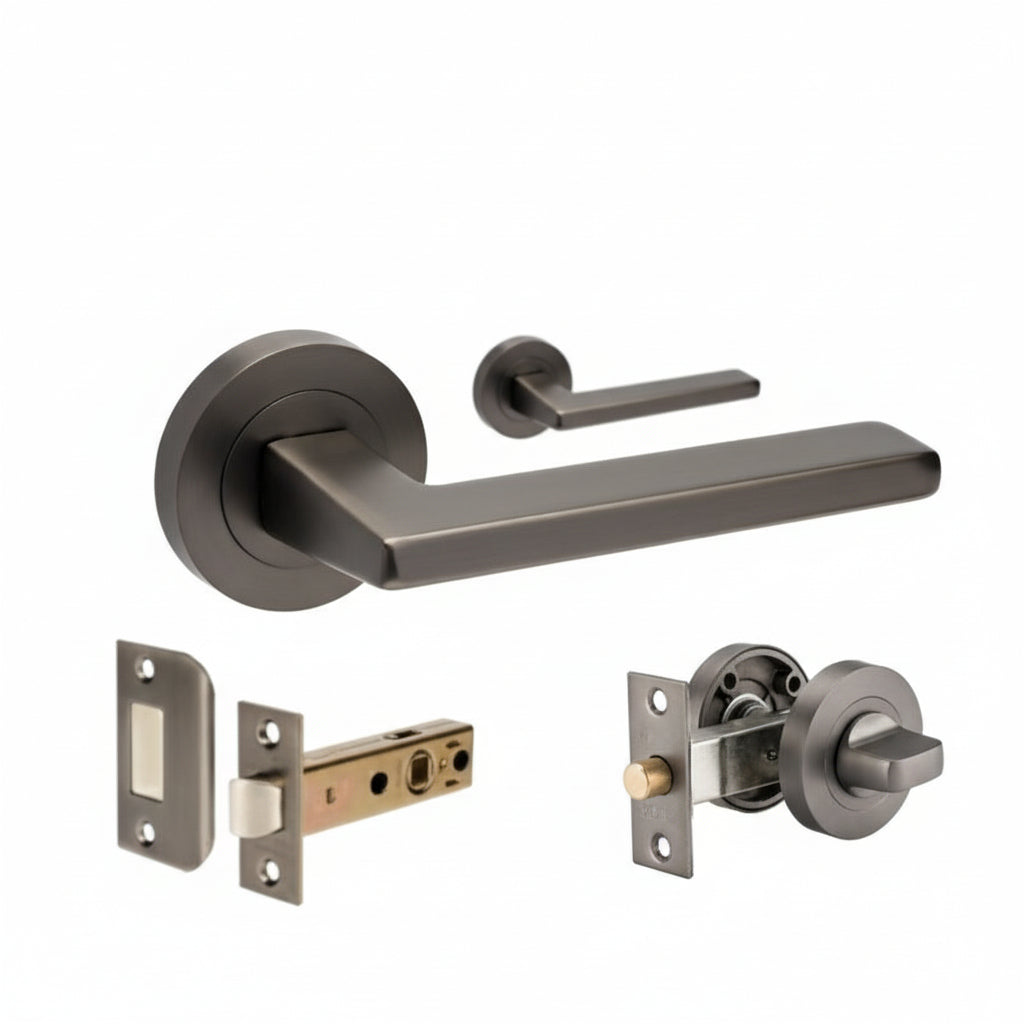

Set 7108	Vector Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release)

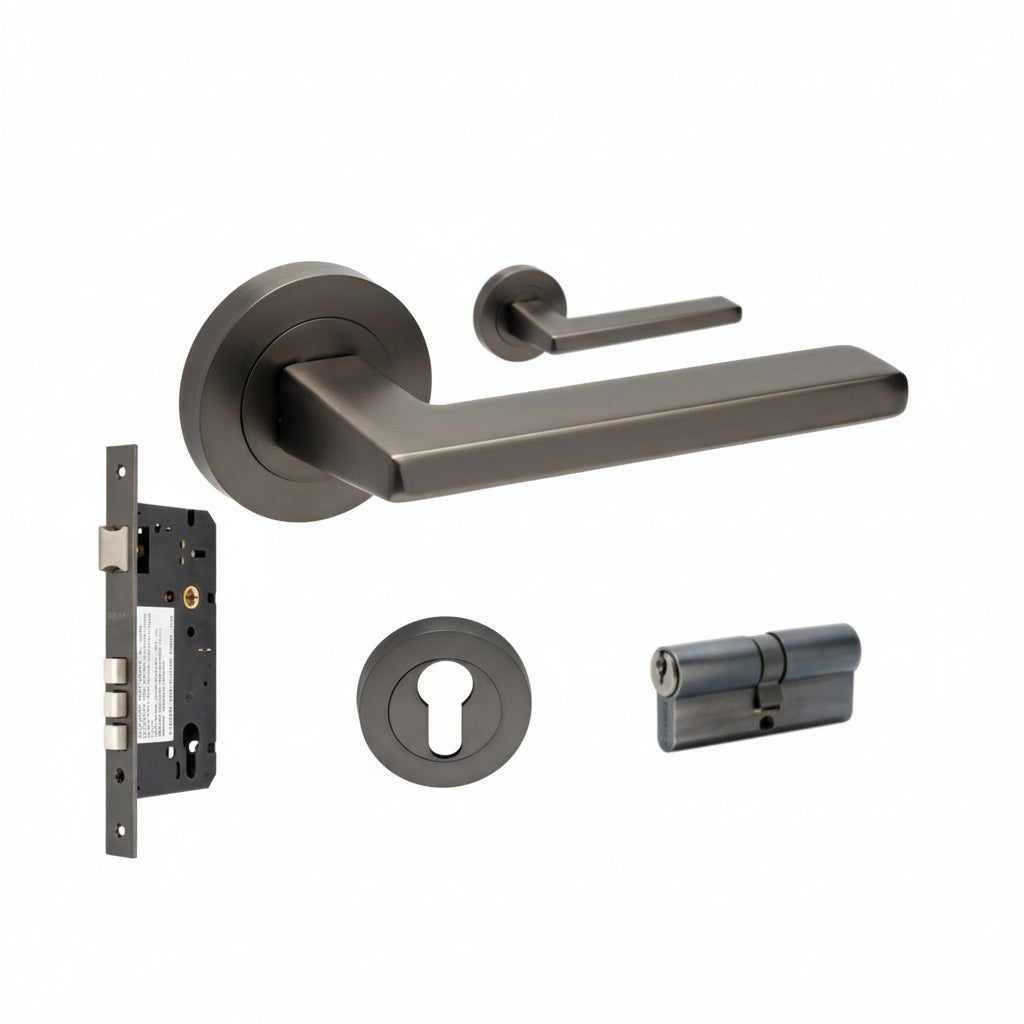

Set 7110.3	Vector Rose Entrance Set - includes 7106 lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key)

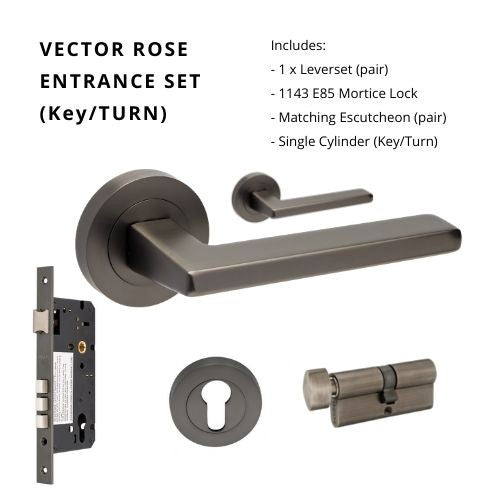

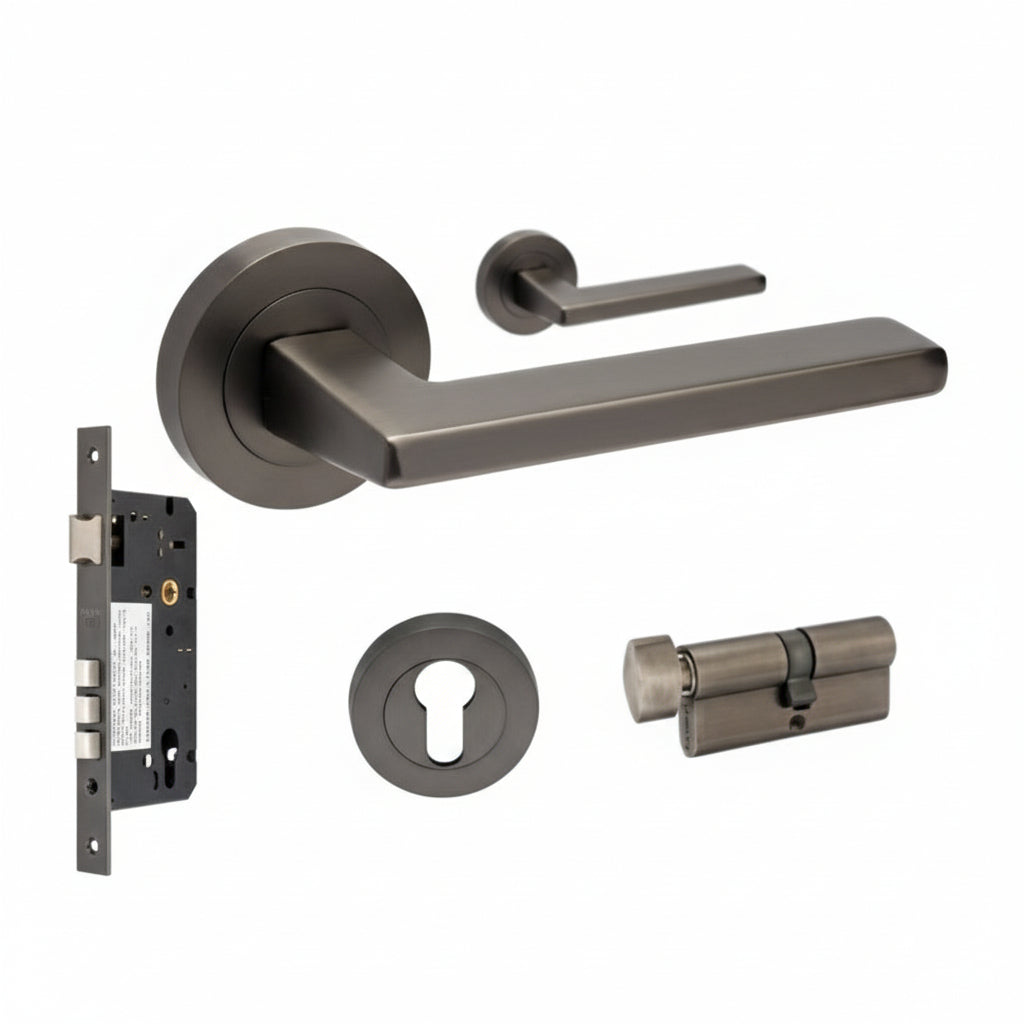

Set 7110.4	Vector Rose Entrance Set - includes 7106 lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn)

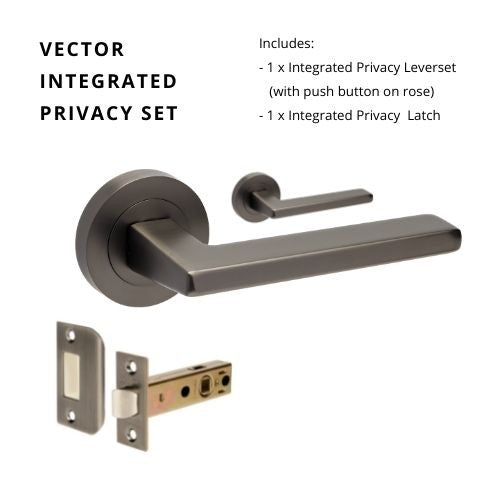

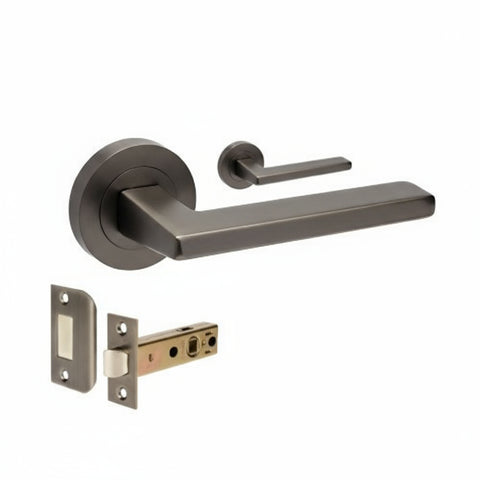

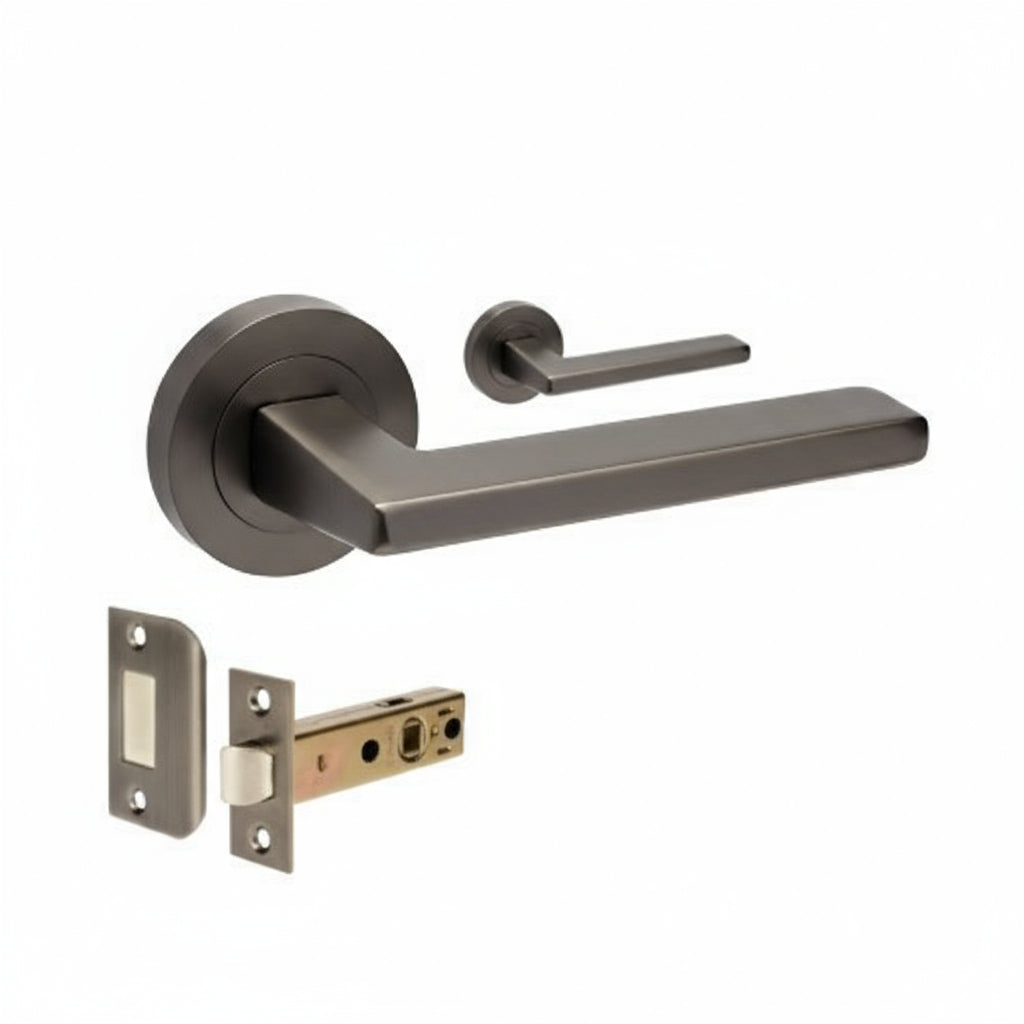

Set 7196	Vector Integrated Privacy Set, includes integrated privacy kit
Finish	Graphite Nickel
Rose / plate	54mm round, screw-on rose with concealed fixing
Backset	60mm (passage, privacy and entrance sets)
Fixing	Concealed screw-on rose with through-door bolts (will not twist out of square)

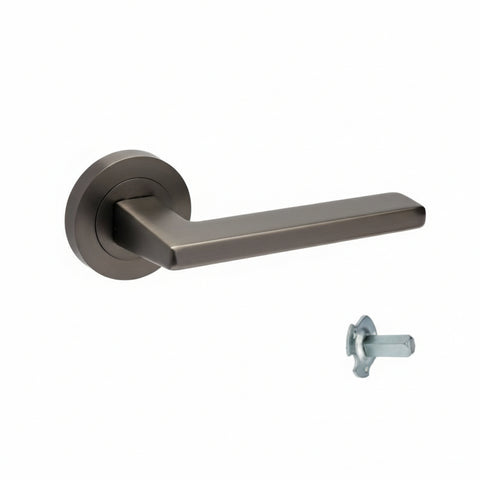

Dummy sets	Fixed, non-handed, with rear fixing plate
Rebate kits	1102.A (passage and privacy sets); 1146 (entrance sets)
Application	Domestic and light commercial doors
Warranty	15-year manufacturer warranty (internal use); 10 years for external use

Warranty

✓15-Year Manufacturer Warranty

15-year manufacturer warranty (internal use); 10 years for external use. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.

ⓘFinish care

Wipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.

What is the Zanda Vector Lever Handle BN Graphite Nickel Matt Black Passage Privacy Entrance?

It is a Zanda door lever on round rose from the Futura range. Function: passage set, Entrance set, Leverset only (no latch), Separate privacy set, Dummy set, Integrated privacy set. Product code: 7106.GN, 7107.GN, 7108.GN, 7106.D.GN, 7110.3.GN, 7110.4.GN, 7196.GN.

What does each option include?

7106: D Vector Dummy Set - Non-Handed; 7107: Vector Passage Set, includes 1131 latch; 7108: Vector Separate Privacy Set, includes 1131 tube latch & 7032 separate privacy kit (turn and release); 7110.3: Vector Rose Entrance Set - includes 7106 lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 7110.4: Vector Rose Entrance Set - includes 7106 lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn); 7196: Vector Integrated Privacy Set, includes integrated privacy kit.

What finishes is it available in?

This listing is finished in Graphite Nickel. Other Zanda finishes may be available — contact us to check.

What are the dimensions?

Rose / plate: 54mm round, screw-on rose with concealed fixing.

What backset does it suit?

Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.

Which set do I need for my door?

Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.

What warranty does it have?

15-year manufacturer warranty (internal use); 10 years for external use, covering defects in materials and workmanship under normal use when correctly installed.

How can I get help choosing the right product?

Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
