Zanda Verve Narrow Style Sliding Lock Kit — 30mm Backset, 200mm & 300mm, Aluminium Sliding Doors
Zanda Verve Narrow Style Sliding Lock Kit — 30mm Backset, 200mm & 300mm, Aluminium Sliding Doors

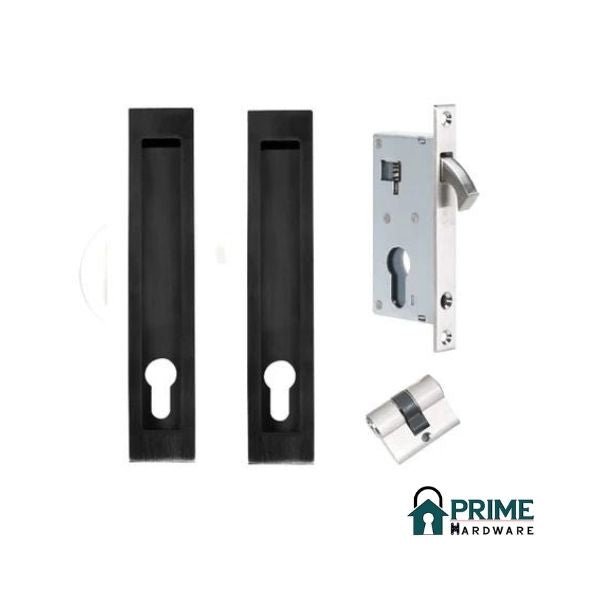

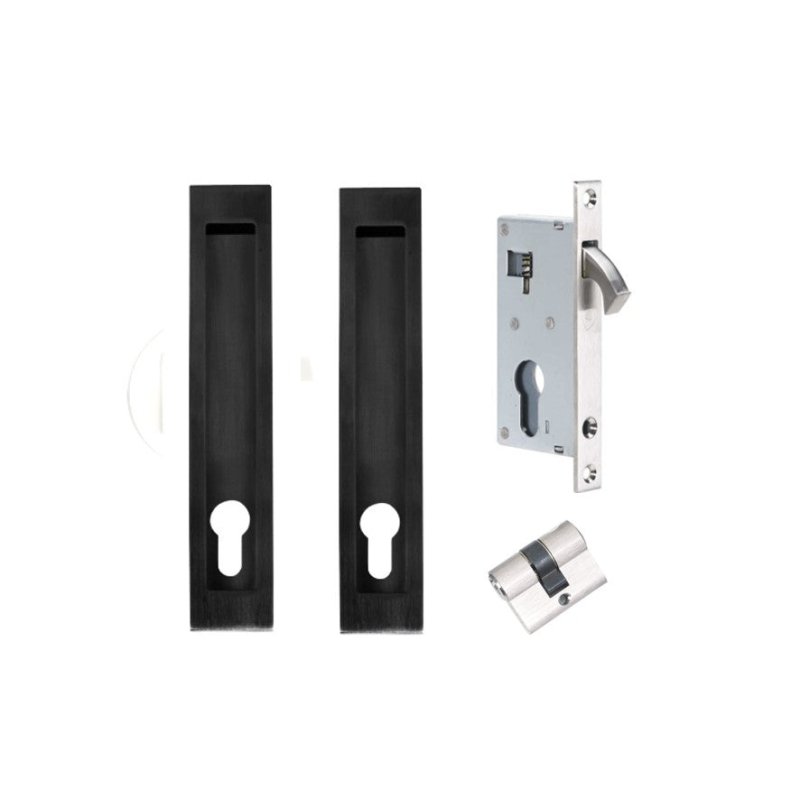

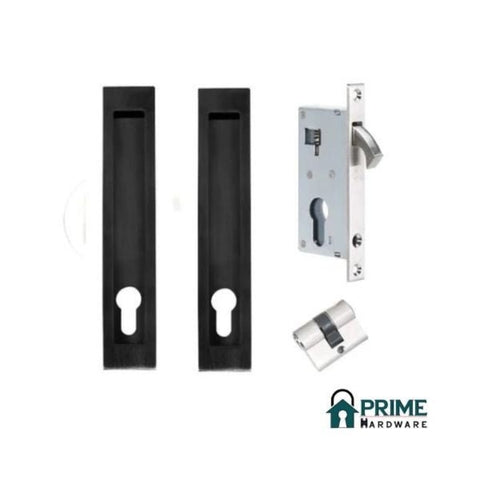

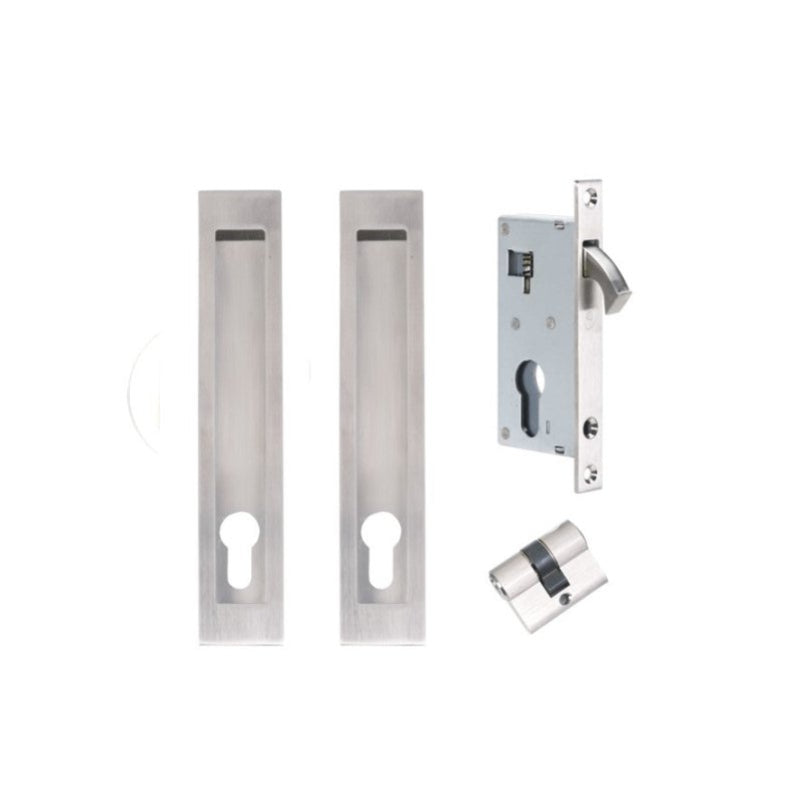

Zanda Verve Narrow Style Sliding Lock Kit — 30mm Backset Mortice Lock for Aluminium Sliding Doors, 200mm & 300mm The Zanda Verve Narrow Style Sliding Lock Kit is specifically engineered for aluminium sliding doors where a standard 60mm backset mortice lock will not fit into the door stile. Using the 10530 narrow style mortice lock with a 30mm backset and 50mm case size, this kit delivers a fully lockable sliding door installation in a slim 37mm wide Verve flush pull profile. Available in 200×37mm (10538) and 300×37mm (10540) sizes, each kit includes two Verve flush pulls with integrated euro keyhole cut-outs, the 10530 narrow mortice lock and a 1178 40mm double euro cylinder — all in a matched finish. ✔ Specifically designed for aluminium sliding doors with narrow stiles.
Available Finishes (4) & Product Codes
| Finish | 10538 - Verve Narrow Sliding Lock Kit 200 x 37mm | 10539 - Verve Narrow Sliding Lock Kit 250 x 37mm | 10540 - Verve Narrow Sliding Lock Ktt 300 x 37mm |
|---|---|---|---|
| Matt Black | 10538.BLK | 10539.BLK | 10540.BLK |
| Satin Brass | 10538.SB | — | 10540.SB |
| Graphite Nickel | 10538.GN | — | 10540.GN |
| Stainless Steel | 10538.SS | 10539.SS | 10540.SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Verve |
| Product type | Sliding door lock kit |
| Product code | 10538, 10539, 10540 (finish suffix varies — see table above) |
| Set 10538 | Verve Narrow Sliding Lock Kit, 200 x 37mm |
| Set 10539 | Verve Narrow Sliding Lock Kit, 250 x 37mm |
| Set 10540 | Verve Narrow Sliding Lock Kit, 300 x 37mm |
| Finish | Stainless Steel, Matt Black, Satin Brass, Graphite Nickel |
| Material | 316 stainless steel flush pulls |
| Size — 10538 | 200 x 37mm |
| Size — 10539 | 250 x 37mm |
| Size — 10540 | 300 x 37mm |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Verve Narrow Style Sliding Lock Kit — 30mm Backset, 200mm & 300mm, Aluminium Sliding Doors?
It is a Zanda sliding door lock kit from the Verve range, made from 316 stainless steel flush pulls. Product code: 10538, 10539, 10540 (finish suffix varies — see table above).
What does each option include?
10538: Verve Narrow Sliding Lock Kit, 200 x 37mm; 10539: Verve Narrow Sliding Lock Kit, 250 x 37mm; 10540: Verve Narrow Sliding Lock Kit, 300 x 37mm.
What finishes is it available in?
It is available in Stainless Steel, Matt Black, Satin Brass, Graphite Nickel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
code 10538: 200 x 37mm; code 10539: 250 x 37mm; code 10540: 300 x 37mm.
Is it suitable for cavity sliding doors?
Yes — flush pulls and edge pulls sit flush with the door face so the door can slide fully into the cavity. The edge pull lets you draw the door back out.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
