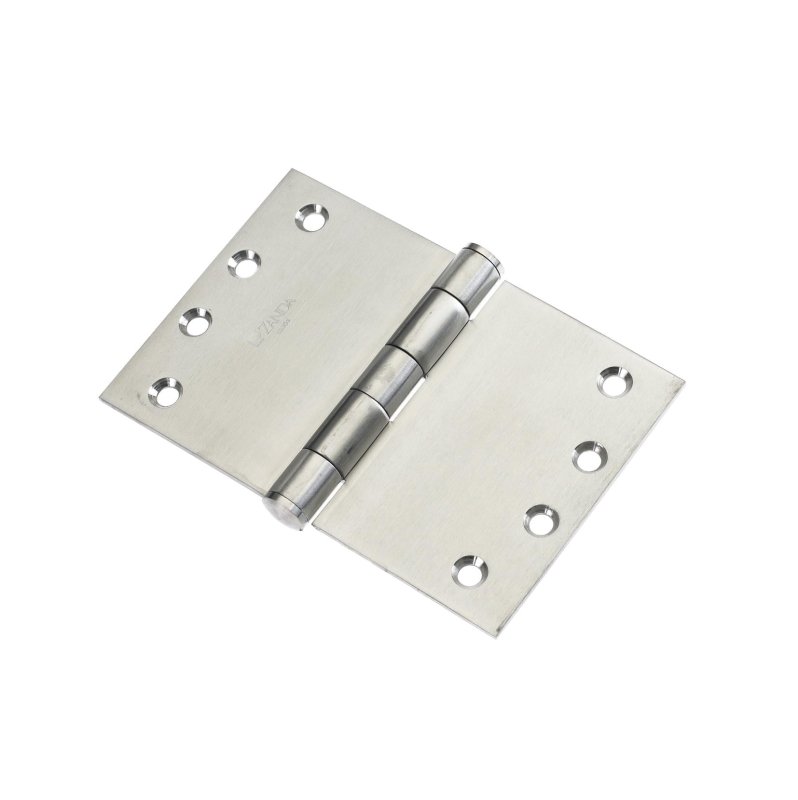

Zanda Wide Throw Butt Hinge, Stainless Steel 304, 3.2mm, Fixed Pin
You May Also Need
This product is included in the bundle below
Zanda 10500 Magnetic Door Stop — 5 Finishes | Wall & Floor Mount
Zanda Wide Throw Butt Hinge, Stainless Steel 304, 3.2mm, Fixed Pin
Made from 304 grade stainless steel at 3.2mm thickness with a fixed pin, available in four sizes from 100x125mm to 100x200mm. Select your size above: 100x125mm, 100x150mm, 100x175mm, or 100x200mm.
Fixing Types Explained
| Fixing | What it means |
|---|---|
| Back to Back (Pair) | Two handles fixed through the door, one each side, bolted to each other. The strongest fixing and the usual choice for entry doors. |
| Face Fix (Single) | A single handle fixed from the front, with the screws visible on the face of the handle. |
| Rear Fix (Single) | A single handle fixed from behind the door, so no screws are visible on the handle face. |
Available Finishes (1) & Product Codes
| Finish | 5909 - 100x125x3.2mm (Fixed Pin) | 5911 - 100x150x3.2mm (Fixed Pin) | 5925 - 100x175x3.2mm (Fixed Pin) | 5926 - 100x200x3.2mm (Fixed Pin) |
|---|---|---|---|---|
| Stainless Steel (304 Grade) | 5909.SS | 5911.SS | 5925.SS | 5926.SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Hinge Type: Fixed pin hinge
The pin is fixed in the knuckle. A reliable all-rounder for most internal doors.
Hinge types explained:
| Hinge type | What it does |
|---|---|
| Parliament hinge | Projects the door clear of the frame or architrave so it can swing back fully against the wall — used where a door must open 180° or clear deep reveals. |
| Ball bearing hinge | Bearings between the knuckles carry the load, reducing friction and wear. Best for heavy and high-use doors, including entrance doors. |
| Loose pin hinge | The pin can be withdrawn so the door lifts off without unscrewing the hinge. Internal use — handy for bathrooms and for removing doors during work. |
| Fixed pin hinge | The pin is fixed in the knuckle. A reliable all-rounder for most internal doors. |
| Butt hinge | The standard door hinge, mortised into the door edge and frame. |
| Lift-off hinge | The leaves separate so the door lifts off. Handed — order left or right hand to suit the door. |
Three hinges per door is standard for internal and entrance doors. Heavier and taller doors may require a fourth.
Specifications
| Brand | Zanda |
| Product type | Wide throw butt hinge, fixed pin |
| Product code | 5909.SS, 5911.SS, 5925.SS, 5926.SS |
| Finish | Stainless Steel (304 Grade) |
| Material | Stainless steel |
| Size — 5909 | 100 x 125 x 3.2mm, fixed pin |
| Size — 5911 | 100 x 150 x 3.2mm, fixed pin |
| Size — 5925 | 100 x 175 x 3.2mm, fixed pin |
| Size — 5926 | 100 x 200 x 3.2mm, fixed pin |
| Warranty | 7-year manufacturer mechanical warranty |
Warranty
7-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Wide Throw Butt Hinge, Stainless Steel 304, 3.2mm, Fixed Pin?
It is a Zanda wide throw butt hinge, fixed pin, made from stainless steel. Product code: 5909.SS, 5911.SS, 5925.SS, 5926.SS.
What finishes is it available in?
This listing is finished in Stainless Steel (304 Grade). Other Zanda finishes may be available — contact us to check.
What are the dimensions?
code 5909: 100 x 125 x 3.2mm, fixed pin; code 5911: 100 x 150 x 3.2mm, fixed pin; code 5925: 100 x 175 x 3.2mm, fixed pin; code 5926: 100 x 200 x 3.2mm, fixed pin.
How many hinges do I need per door?
Three hinges per door is standard for internal and entrance doors. Taller or heavier doors may need a fourth. Hinges are priced as listed — check whether the listing is each, a pair or a pack.
What warranty does it have?
7-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
