Ball Bearing Hinges: What They Are and Why Your Doors Deserve Them
If you specify only one hinge upgrade across an entire build, make it this one. Ball bearing hinges cost a little more than plain butt hinges and outperform them in every way that matters: smoother operation, silent movement, and a working life measured in decades rather than years.
How a Ball Bearing Hinge Works
A standard butt hinge rotates metal on metal — the knuckles grind directly against each other around the pin every time the door moves. It works, but friction slowly wears the bearing surfaces. That wear is what eventually produces the classic symptoms of a tired door: squeaking, stiffness, and a door that has dropped in its frame and started scraping the head or binding at the latch.
A ball bearing hinge interrupts that metal-on-metal contact with bearing races — hardened rings containing ball bearings — seated between the knuckles. The door's weight rides on rolling bearings instead of sliding surfaces. Friction drops dramatically, wear all but disappears, and the hinge feels the same on year twenty as it did on day one.

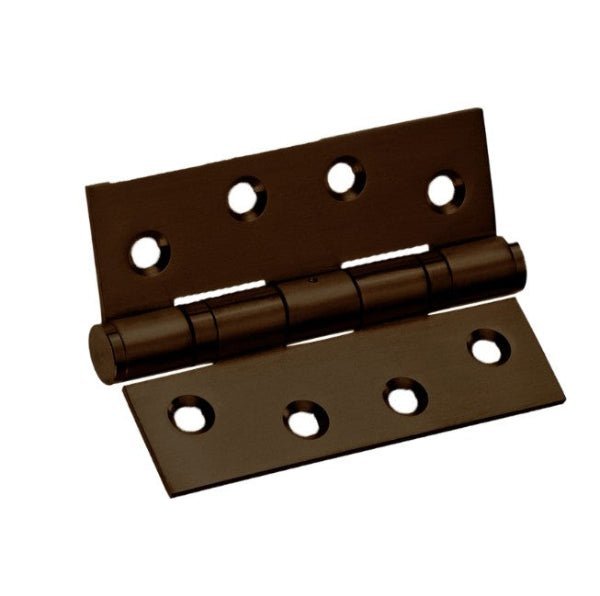

You can usually spot a ball bearing hinge by the slim bearing rings visible between the knuckles, typically at two points on the barrel.
Where Ball Bearing Hinges Earn Their Keep
External doors. Entry doors are the heaviest doors in most homes and the most frequently used. They're also the doors where a drop or bind is most annoying, because it affects weather sealing and lock alignment.
Solid core and heavy doors. The heavier the door, the harder plain hinges work and the faster they wear. Ball bearings carry heavy doors effortlessly.
Doors fitted with door closers. A closer applies constant spring pressure through the hinge line every time the door operates. Plain hinges wear quickly under this load, which is why ball bearing hinges are the standard companion to any door closer.
High-traffic openings. Hallway doors, main bedroom doors, commercial passage doors — anywhere the cycle count is high.
Everywhere, honestly. The price gap between a plain butt hinge and a quality ball bearing equivalent is small in the context of a whole-house hardware package. Many builders now fit ball bearing hinges throughout as a default, because callbacks for squeaking and dropped doors cost far more than the hinges ever did.
Ball Bearing vs Standard Butt Hinges
| Plain Butt Hinge | Ball Bearing Hinge | |
|---|---|---|
| Friction | Metal on metal | Rolling bearings |
| Noise over time | Prone to squeaking | Stays silent |
| Wear and door drop | Gradual, expected | Minimal |
| Heavy doors / closers | Not recommended | Designed for it |
| Cost | Lowest | Slightly higher |
Sizing and Quantity
The common Australian residential specification is 100 × 75mm ball bearing hinges, three per door for solid internal and external doors. Lighter internal doors can run 85 × 60mm, but if you're standardising across a build, 100 × 75mm everywhere simplifies ordering and door prep.
Fit three hinges to standard-height doors and four to doors over roughly 2340mm, extra-heavy doors, or doors under constant closer pressure. Check the manufacturer's door weight rating for the specific hinge — ratings generally assume three hinges fitted.
Pin Type Still Matters
Ball bearing describes the barrel, not the pin. Ball bearing hinges come in both fixed pin and loose pin versions. For external and outward-opening doors, choose fixed pin ball bearing hinges so the pin can't be driven out from the unsecured side — see our fixed pin hinge guide for why this matters.
Finishes
Quality brands produce ball bearing hinges across their full finish ranges — matt black, satin chrome, brushed nickel, polished brass, satin brass, bronze and more — so hinges can match your levers exactly. Tradco's plated finishes in Chrome Plated, Satin Chrome, Polished Nickel and Rumbled Nickel carry the brand's lifetime finish warranty; other finishes are covered under Australian Consumer Law. Always confirm the warranty on the specific product listing.
Frequently Asked Questions
Do ball bearing hinges need lubrication? Under normal residential use, no — the sealed bearing design is the point. They're effectively maintenance-free.
Can I replace my existing butt hinges with ball bearing hinges? Usually yes, and it's one of the best-value door upgrades there is. Match the leaf size to your existing hinge recesses and the swap is a straight screw-out, screw-in job.
Are ball bearing hinges suitable for fire doors? Fire doors require hardware approved as part of a tested doorset. Many commercial-grade ball bearing hinges are used on fire doors, but always confirm the specific hinge's fire door approval before specifying.
How many bearings should a hinge have? Residential ball bearing hinges typically have two bearing races; heavy-duty commercial patterns may have four. More bearings, more load capacity.
