Concealed Hinges: Invisible Hardware for Modern Doors

Modern architecture keeps subtracting: no architraves, shadow-line frames, flush doors that read as part of the wall. The traditional butt hinge — knuckle proudly on show — undoes all of that discipline in one glance. Concealed hinges finish the thought: when the door is closed, there is no visible hardware at all. Just a door, a shadow line, and nothing else.

How Concealed Hinges Work

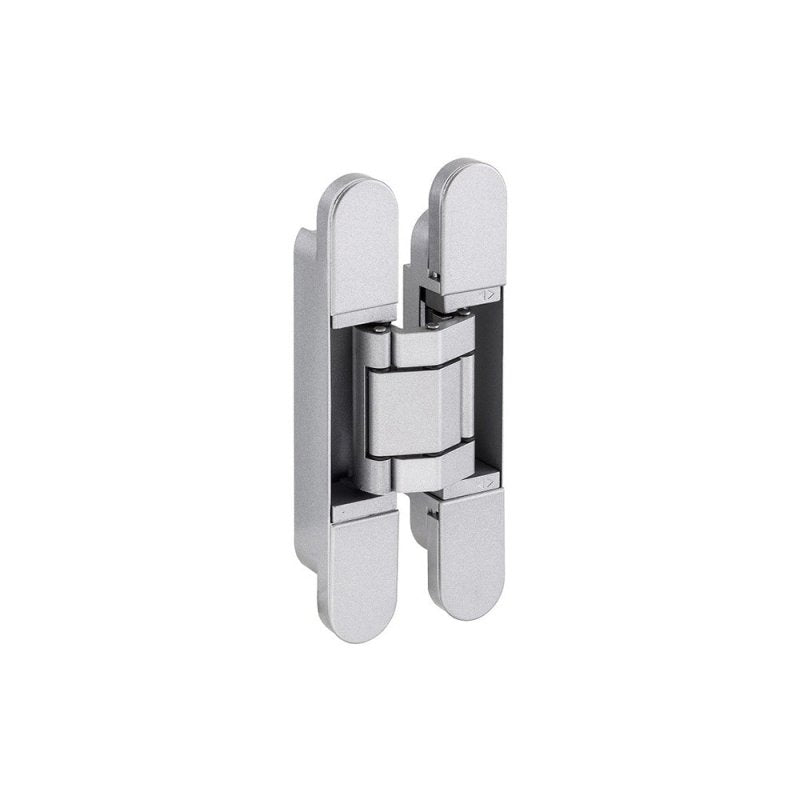

A concealed hinge mortises entirely into the edge of the door and the frame. The mechanism is a folding multi-link arrangement housed in two body sections — one buried in the door edge, one in the jamb — connected by articulated arms. Closed, everything folds flat inside the mortises and disappears. Open, the linkage extends and the door swings, typically through 180 degrees.

This is a fundamentally different mechanism from a butt hinge, and it brings a genuinely useful bonus: three-dimensional adjustability.

The 3D Adjustment Advantage

Quality concealed hinges allow the door to be adjusted after hanging, in three axes:

• Side to side — evening up the reveal gaps on both sides of the door.
• Height — raising or lowering the door in the frame.
• Depth — pulling the door face flush with the wall plane or seating it correctly against seals.

Anyone who has re-hung a door on butt hinges to chase a 2mm gap knows what this is worth. On a flush, shadow-line door — where the whole aesthetic depends on perfectly even margins — 3D adjustment isn't a luxury; it's how those doors get commissioned to look the way the renders promised. Buildings also move: with concealed hinges, seasonal adjustment is a screwdriver job, not a re-hang.

Where Concealed Hinges Belong

Flush and frameless door systems. Doors designed to sit in the wall plane, often paired with concealed frames and push-to-open or minimal lever hardware.

Minimalist interiors. Wherever the design language says "no visible hardware," concealed hinges carry the door side of that promise.

Premium joinery and hidden doors. Doors disguised as wall panelling or joinery fronts depend on invisible hinging.

Contemporary front doors. Increasingly common on high-end entry doors, paired with long pull handles — a signature Prime Hardware combination with brands like Zanda and Austyle pulls on the same door.

Acoustic and sealed doors. The depth adjustment helps achieve consistent compression on perimeter seals.

Weight Ratings: Read Them, Believe Them

Concealed hinges carry the door on an internal linkage rather than a continuous pin, so weight capacity per hinge is a hard specification, not a suggestion. Manufacturers publish capacities per model and per hinge quantity — typically assuming two or three hinges fitted, standard door proportions, and correct installation.

Practical rules:

• Weigh or calculate your door honestly — solid core and oversized doors add up fast.
• Wider-than-standard doors stress hinges more than the same weight in a normal width; some manufacturers de-rate for width.
• When between models, size up. A hinge loafing at 60% capacity outlives one straining at 95%.

Installation: Precision Is the Price of Invisibility

Concealed hinges demand accurate, router-cut mortises in both door and frame — this is careful joinery, not a chisel-and-hope job. A few notes:

• Templates or CNC prep deliver the accuracy the hinges assume. Most brands publish routing templates and dimensions.
• Frame construction matters. The jamb must have the depth and solidity to house the frame-side body; slimline steel frames and concealed-frame systems are often designed around specific hinge models.
• Plan hardware together. Concealed frames, hinges, flush handles and seals interact — specifying them as a system avoids on-site surprises.
• Because installation is less forgiving than butt hinges, factory prep or an experienced installer pays for itself.

Concealed Hinges vs Pivot Doors

Both deliver the minimal, hardware-free look on statement doors, so which one? Broadly: concealed hinges suit doors within their published weight ranges hung in a conventional (if slimline) frame; pivot systems take over for oversized and extra-heavy doors, carrying the weight through the floor and head instead of the jamb. If your door is pushing past what concealed hinge weight tables allow, you're in pivot territory — our pivot hinge guide picks up from there.

Frequently Asked Questions

Can concealed hinges be fitted to an existing door and frame? Sometimes, but it's a retrofit routing job in both door edge and jamb, and the frame must be deep and solid enough for the hinge body. It's most successful when planned into the doorset from the start.

Do concealed hinges open a full 180 degrees? Many models do — check the stated opening angle on the specific hinge, as it varies by design.

Are they suitable for external doors? Selected models are designed for external use with appropriate corrosion resistance and sealing. Confirm the specific hinge's suitability for external application before specifying.

Do they work on fire doors? Only if the specific hinge is approved as part of a tested fire doorset. Verify compliance for the exact application before purchase.

Prime Hardware stocks concealed hinges alongside flush pulls, concealed-fix levers and entry pulls to complete the minimal-hardware look — online at primehardware.com.au or in our Annangrove showroom. Start with our Complete Guide to Door Hinges for the full picture.
