Zanda Bellonia Door Lever — Privacy Set

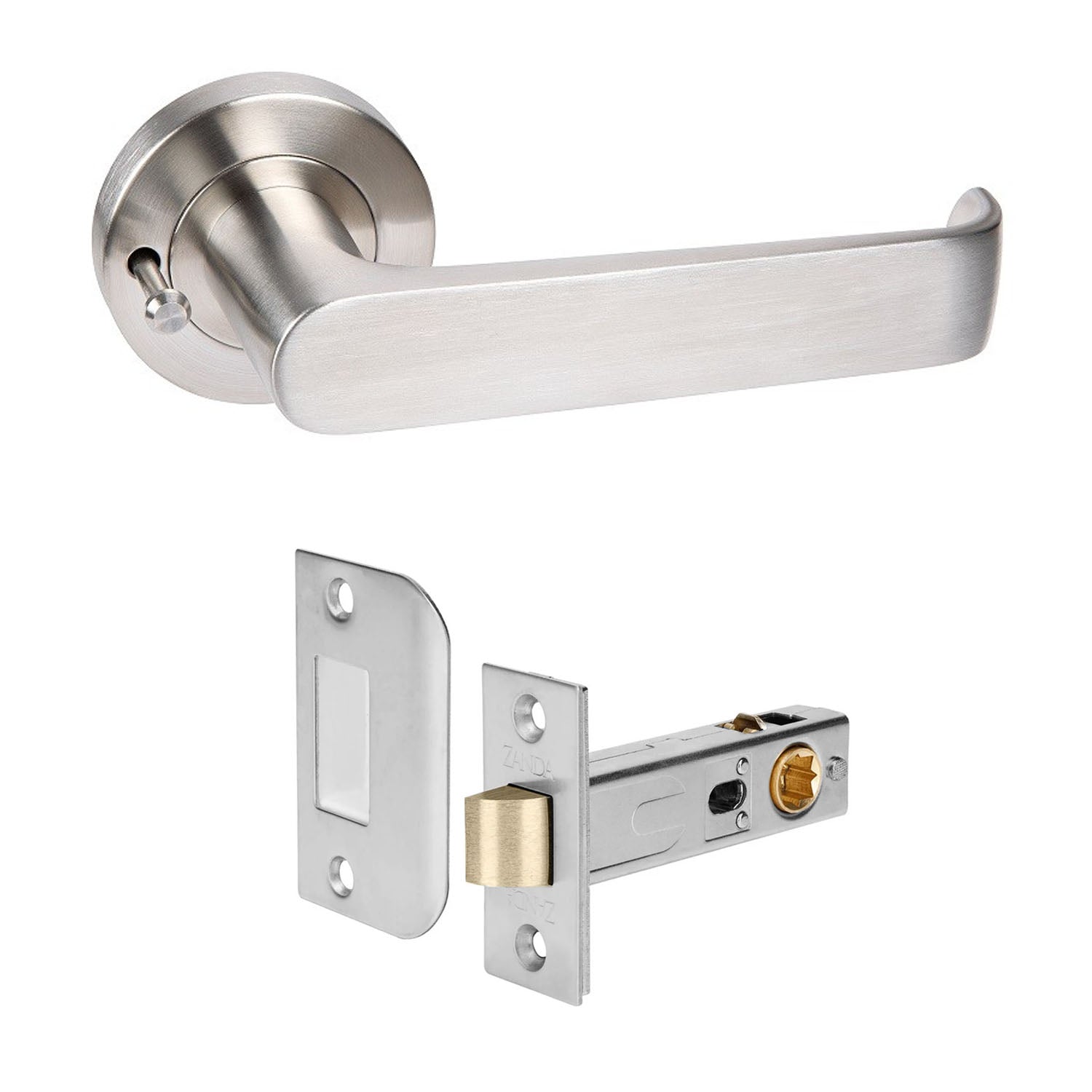

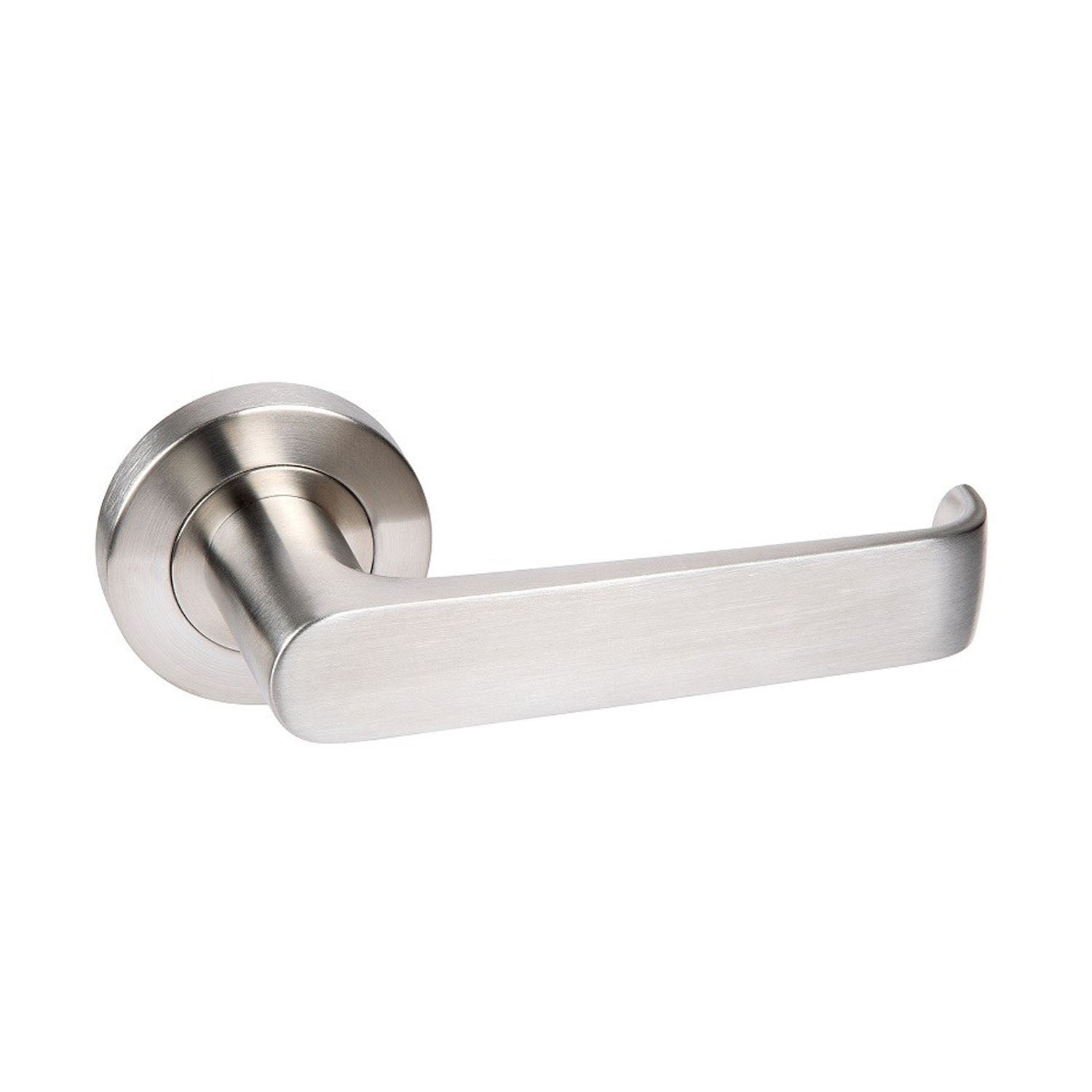

The Zanda Bellonia Door Lever — Privacy Set is a door lever on a 53mm round rose, available in Stainless Steel. This is the privacy set, which locks from the inside with a snib and has an emergency release on the outside — the usual choice for bathrooms and ensuites. Zanda product code shown below.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with this Privacy Set
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Privacy Set |
|---|---|
| Stainless Steel | 8030.SS |
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Finishes | Stainless Steel |
| Overall Length | 142mm |
| Projection | 51mm |
| Lever Width | 24mm |
| Rose Diameter | 53mm |
| Rose Width | 10mmm |
| Warranty | 25-Year Mechanical Warranty |
Warranty
Covers defects in materials and workmanship under normal use, when correctly installed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Bellonia Door Lever — Privacy Set?
It is a Zanda door handle. This is the privacy set, which locks from the inside with a snib and has an emergency release on the outside — the usual choice for bathrooms and ensuites.
What's the difference between Passage, Privacy, Euro and Skeleton Key?
Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. Euro: Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. Skeleton Key: A traditional lock operated by a skeleton (lever) key — suits heritage and period doors.
What is included in the box?
A pair of handles on roses, the spindle and fixing screws, plus the latch or lock for this set. Hinges and flush bolts are not included.
Which hinges do I need?
Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.
Do I need flush bolts?
Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
What finishes are available?
This model is available in Stainless Steel. Each finish has its own product code — see the finishes table in the description.
What are the dimensions?
Specifications: overall length 142mm, projection 51mm. Please check your door before ordering.
What warranty applies?
25-Year Mechanical Warranty — covering defects in materials and workmanship under normal use, when correctly installed.
