Zanda TS.7004 Floor Spring, Double Action Hold Open, White, EN4

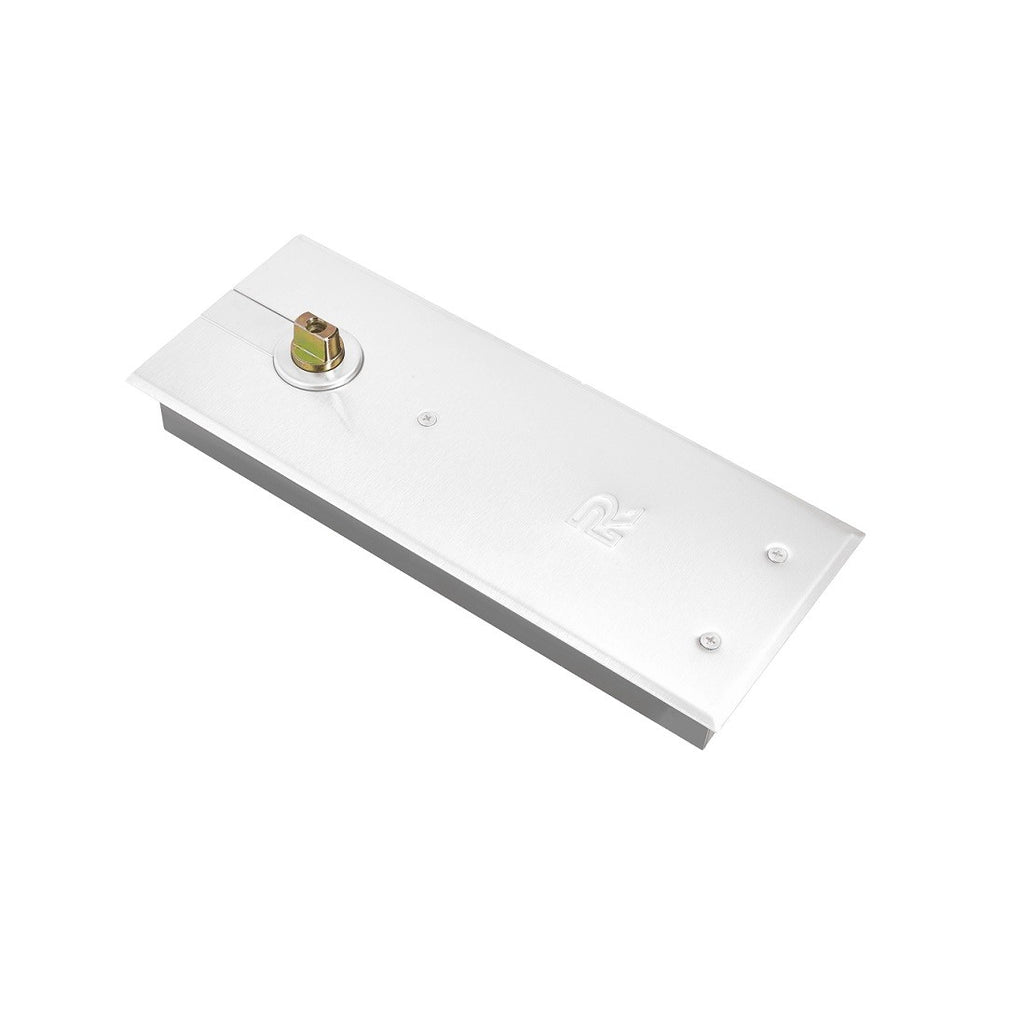

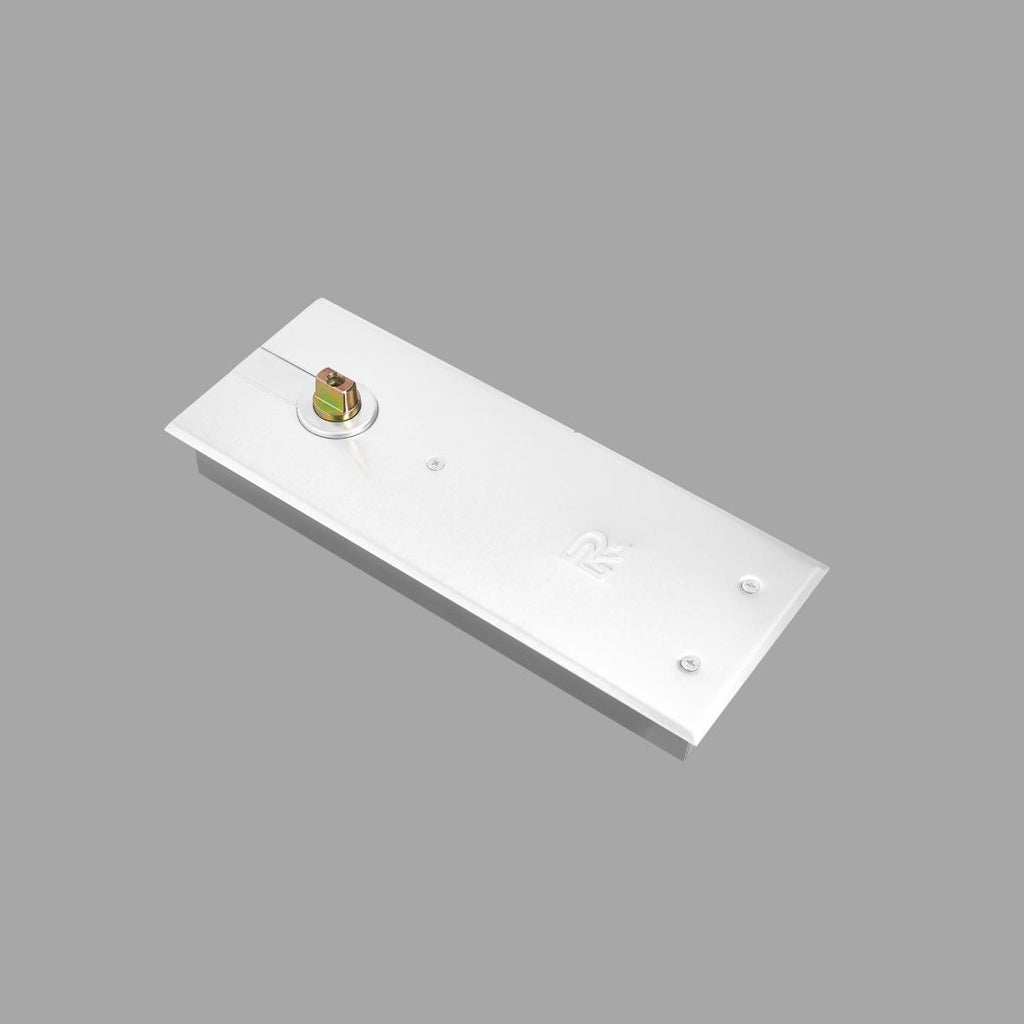

Zanda TS.7004 Floor Spring, Double Action Hold Open, White The Zanda TS.7004 is a concealed, floor-mounted closing mechanism for commercial entrance doors, finished in White. This kit is Double Action with Hold Open function (TS7004.HO.DAX), EN4 power size, non-handed. Closing and latching speed are adjustable on site. TS7004.HO.DAX: Double Action, Hold Open, EN4 power size.
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Matt White | TS.7004.NHO.DAX.WHT |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Product type | Floor spring (Rutland TS7000 series) |
| Product code | TS.7004.HO.DAX.WHT, TS.7004.NHO.DAX.WHT |
| Finish | Matt White |
| Power size | EN4 — max 150kg, 1200mm wide |
| Opening angle | 130° |
| Adjustments | Closing speed, latch action and backcheck |
| Operating range | -15°C to 40°C (temperature-stable oil) |
| Application | Timber, aluminium and frameless glass pivot doors |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda TS.7004 Floor Spring, Double Action Hold Open, White, EN4?
It is a Zanda floor spring (Rutland TS7000 series). Product code: TS.7004.HO.DAX.WHT, TS.7004.NHO.DAX.WHT.
What finishes is it available in?
This listing is finished in Matt White. Other Zanda finishes may be available — contact us to check.
What power size do I need?
This closer is EN4 — max 150kg, 1200mm wide. Power size is chosen by door width and weight — larger or heavier doors need a higher EN size.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
