Zanda Oxford Door Lever — Brushed Nickel

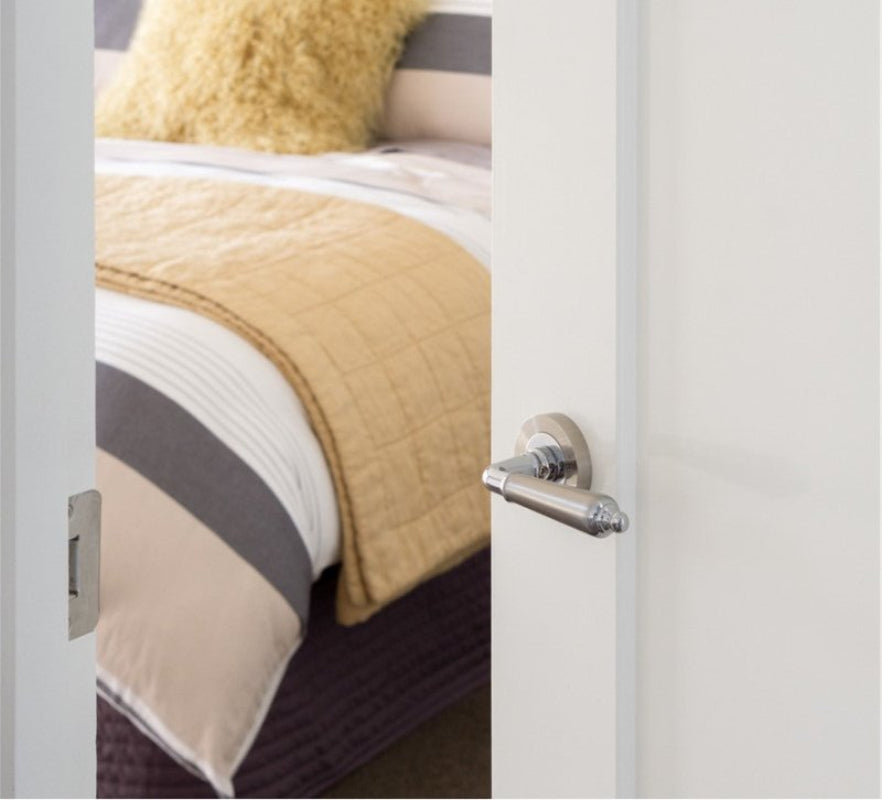

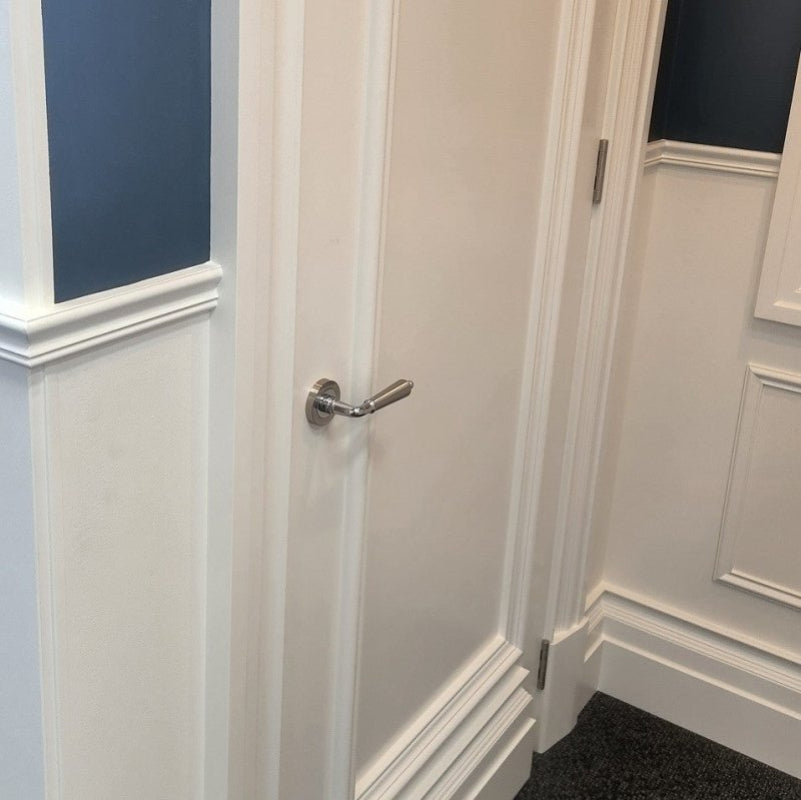

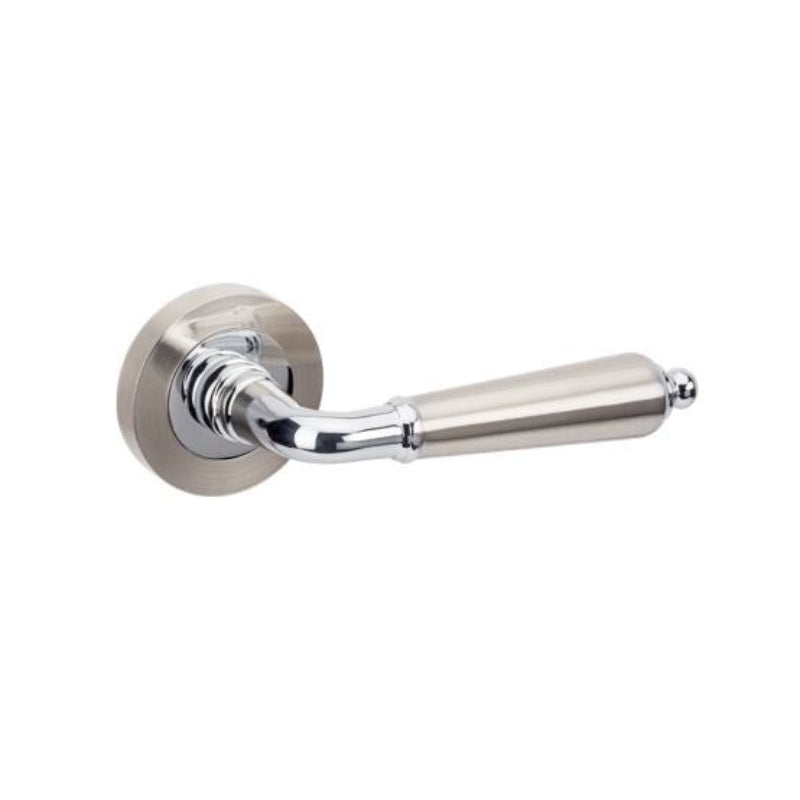

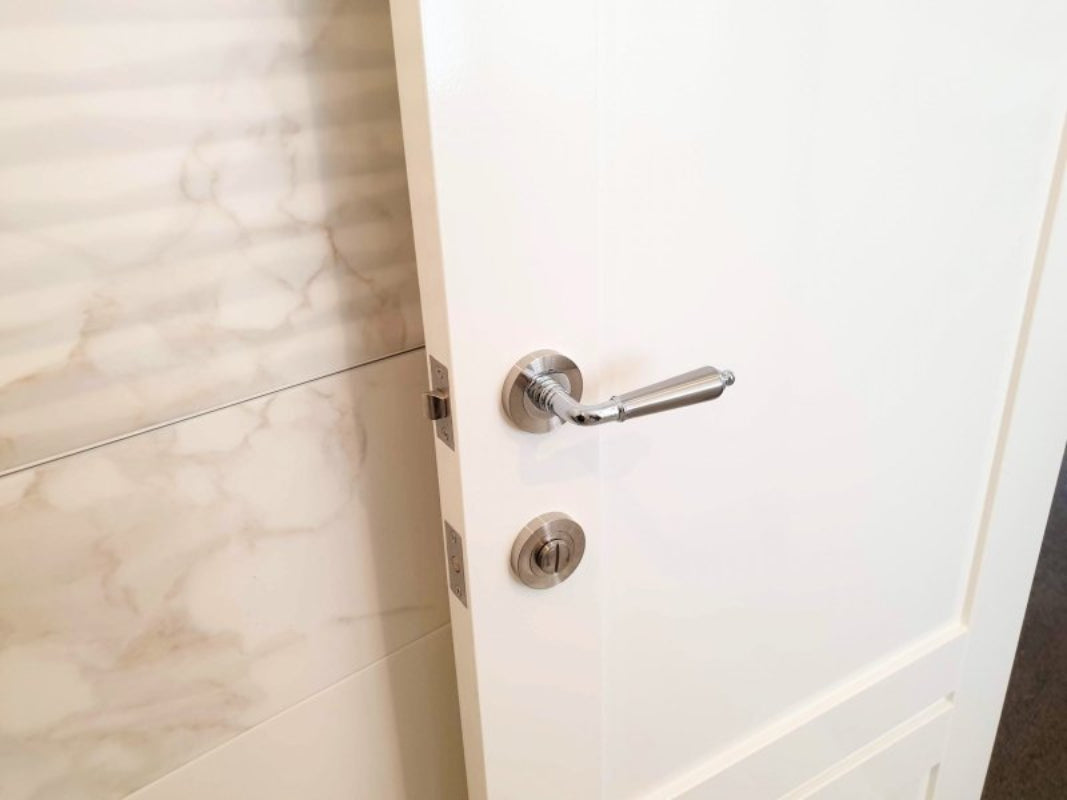

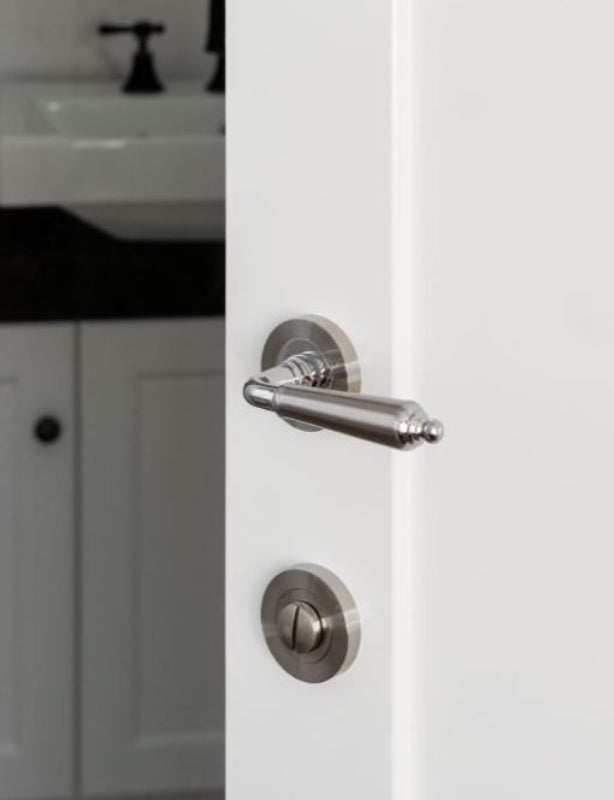

Zanda Oxford Door Lever — Brushed Nickel (Astron Range) The Zanda Oxford is part of the Astron range — a traditional door lever featuring a turned barrel shaft with ringed detail joints and a rounded end tip, on a round rose. The Brushed Nickel finish suits classic, transitional, and coastal-style interiors. Available across lever set only, passage, integrated privacy, separate privacy, dummy, and entrance configurations to cover every door in the project from a single range. Turned Barrel Design · Ringed Detail · Astron Range RANGE Astron FINISH Brushed Nickel ROSE Round DESIGN Turned Barrel Specification Detail Brand Zanda Range Astron Lever Name Oxford Finish Brushed Nickel (BN) Design Turned barrel shaft with ringed detail and rounded end tip Rose Style Round Lever Set Only Model 10070 Passage Model 10071 Integrated Privacy Model 10072 Separate Privacy Model 10076 Dummy Model 10073.D Entrance Model 10074 Also Available In Brushed Nickel/Chrome Plate (variant), Graphite Nickel, Matt Black, Satin Brass
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | 10070 - Leverset Only | Passage | Privacy | Dummy | 10074.1 - Oxford Entrance Set includes 10070 Lever set 1143 7020 & 1121 (60mm Key/Key) | 10074.2 - Oxford Entrance Set includes 10070 Lever set 1143 7020 & 1122 (60mm Key/Turn) | 10074.3 - Oxford Entrance Set includes 10070 Lever set 1143 7020 & 1147 (70mm Key/Key) | 10074.4 - Oxford Entrance Set includes 10070 Lever set 1143 7020 & 1148 (70mm Key/Turn) |
|---|---|---|---|---|---|---|---|---|
| Brushed Nickel/Chrome Plate | 10070.BN/CP | 10071.BN/CP | 10072.BN/CP | 10073.D.BN/CP | 10074.1.BN/CP | 10074.2.BN/CP | 10074.3.BN/CP | 10074.4.BN/CP |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Astron |
| Product type | Door lever on round rose |
| Function | Leverset only (no latch), Passage set, Integrated privacy set, Dummy set, Entrance set |
| Product code | 10070.BN/CP, 10071.BN/CP, 10072.BN/CP, 10073.D.BN/CP, 10074.1.BN/CP, 10074.2.BN/CP, 10074.3.BN/CP, 10074.4.BN/CP |

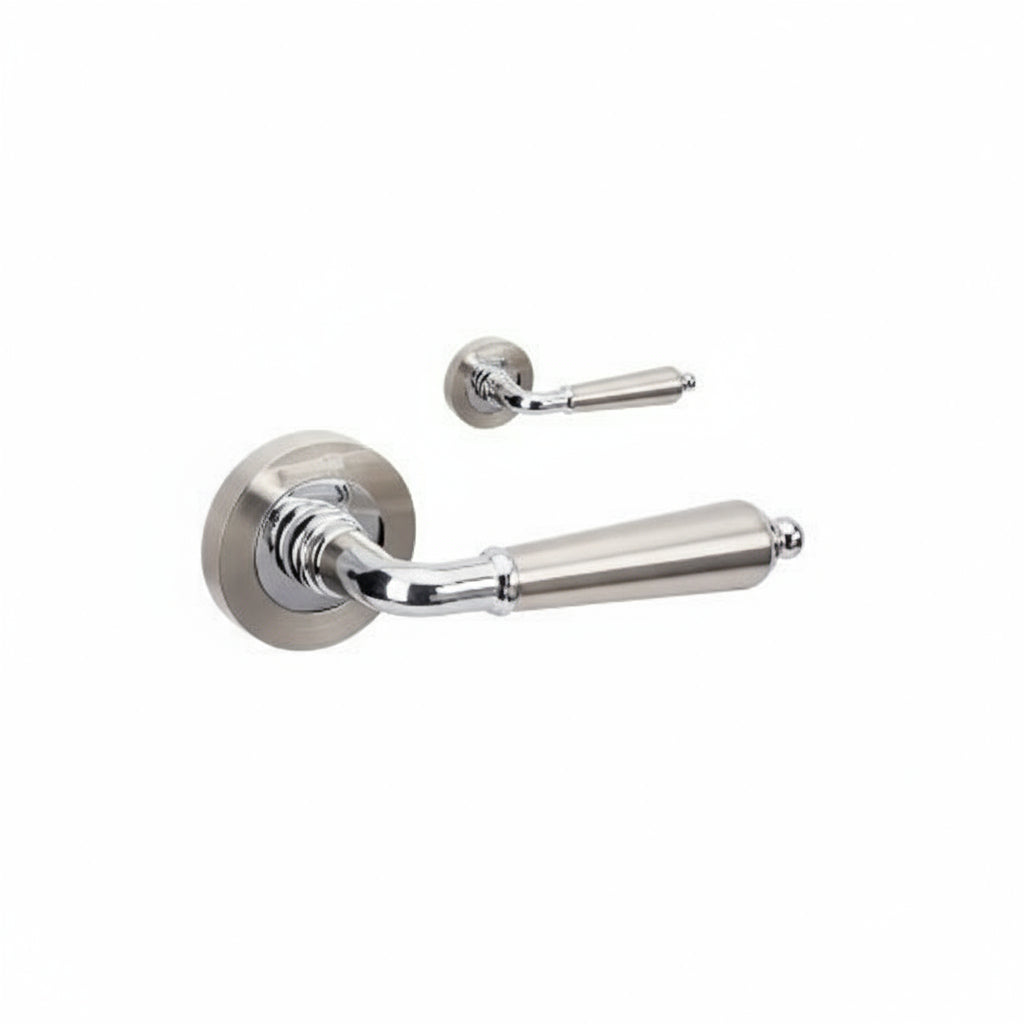

| Set 10070 | Oxford Leverset Only |

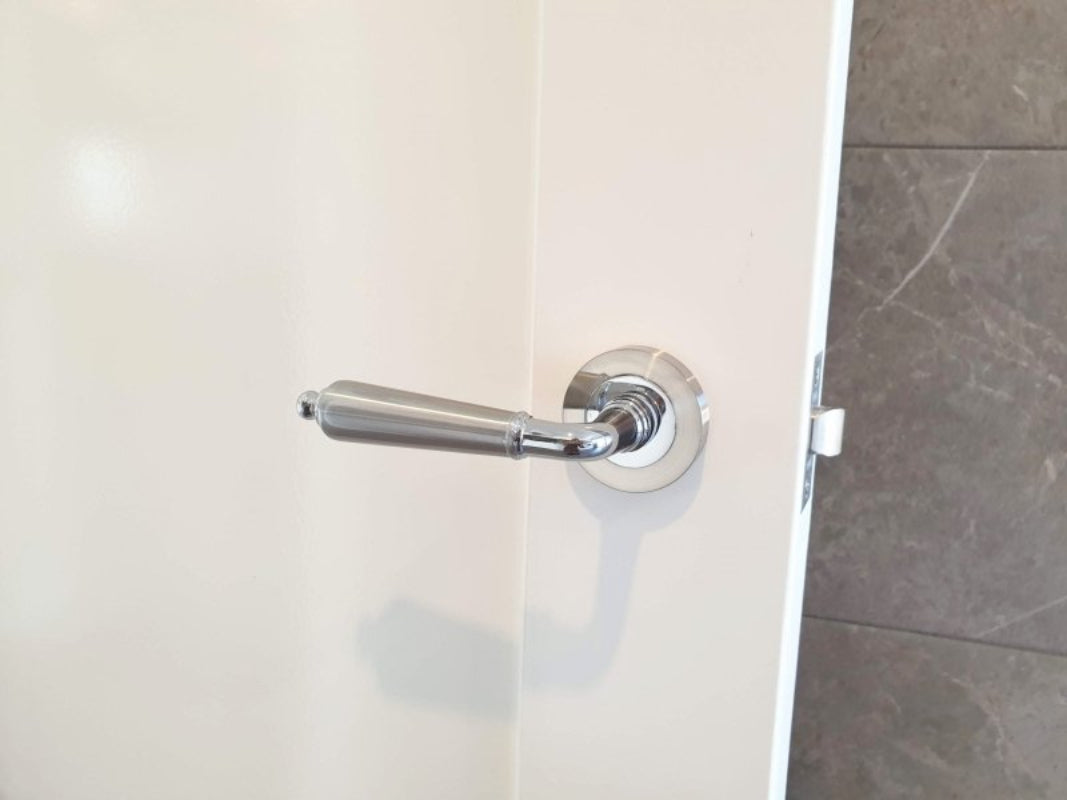

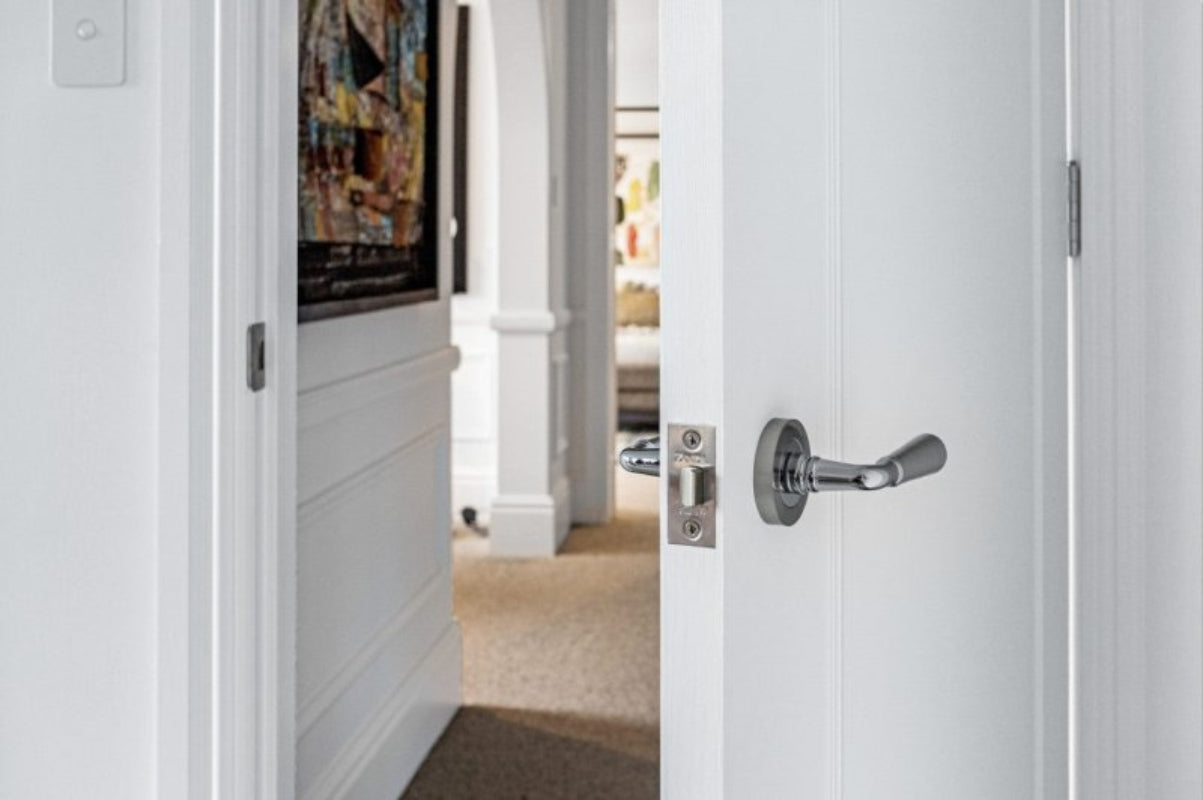

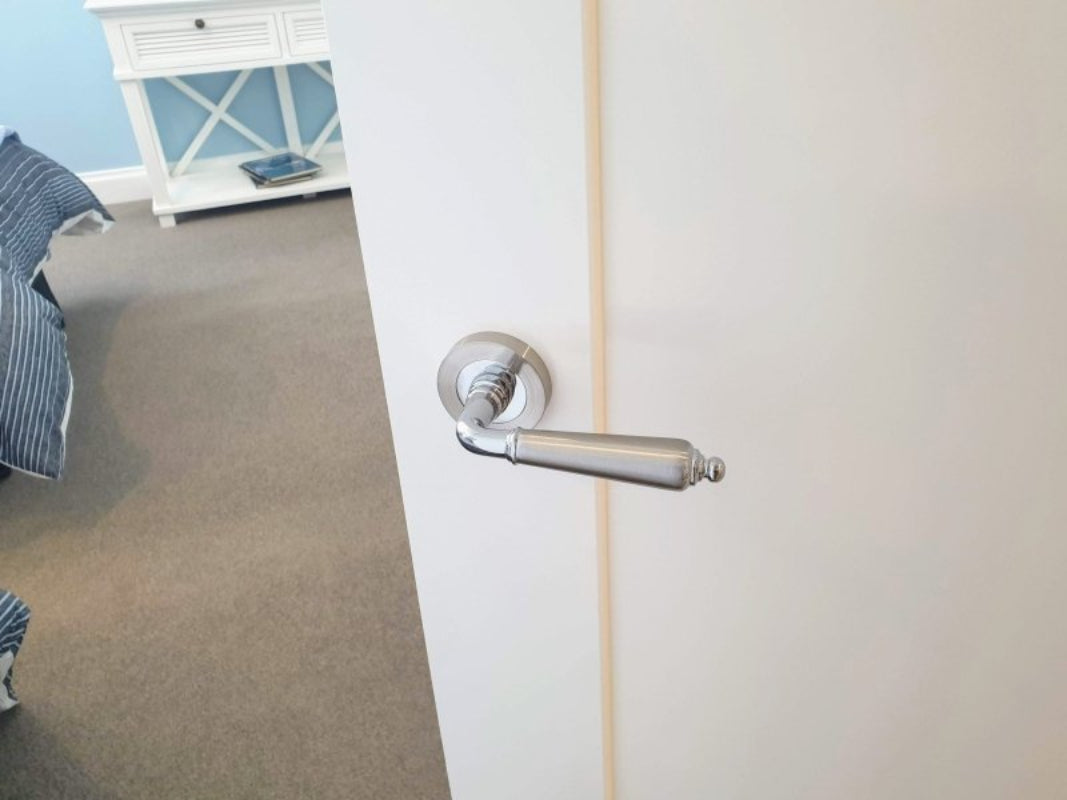

| Set 10071 | Oxford Passage Set, includes 1131 latch |

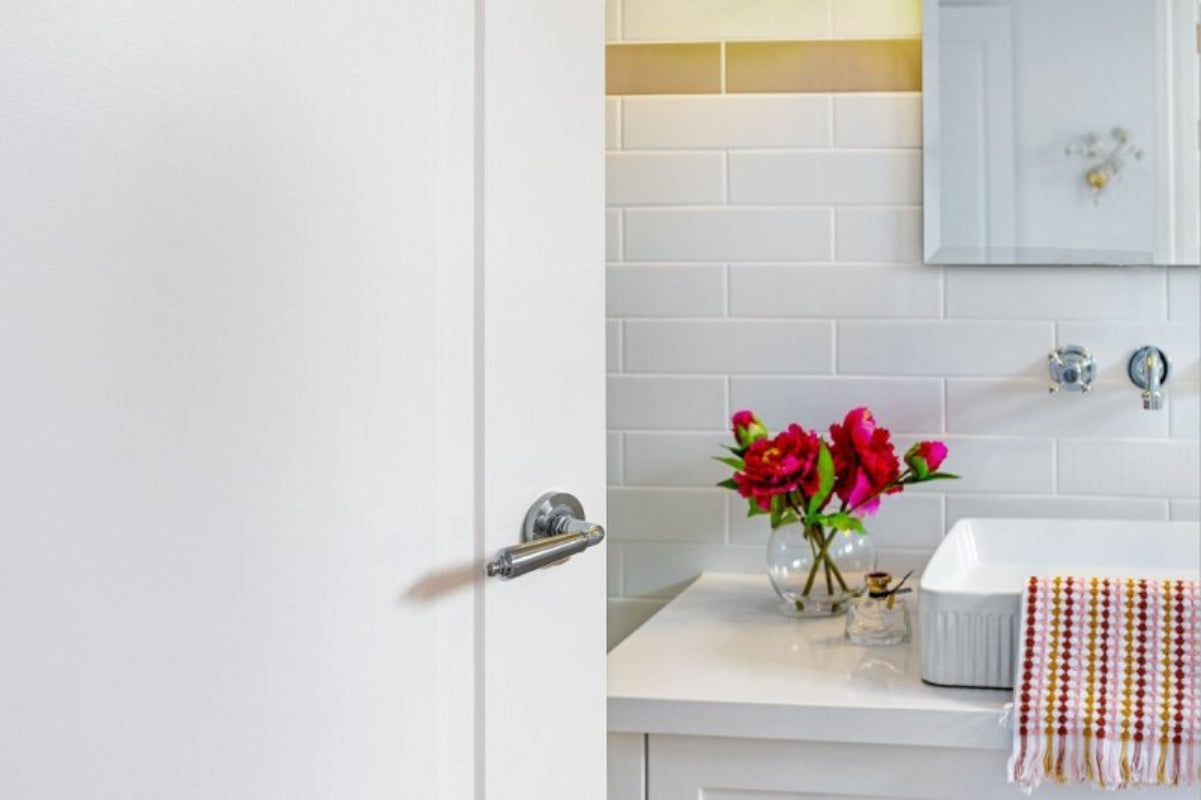

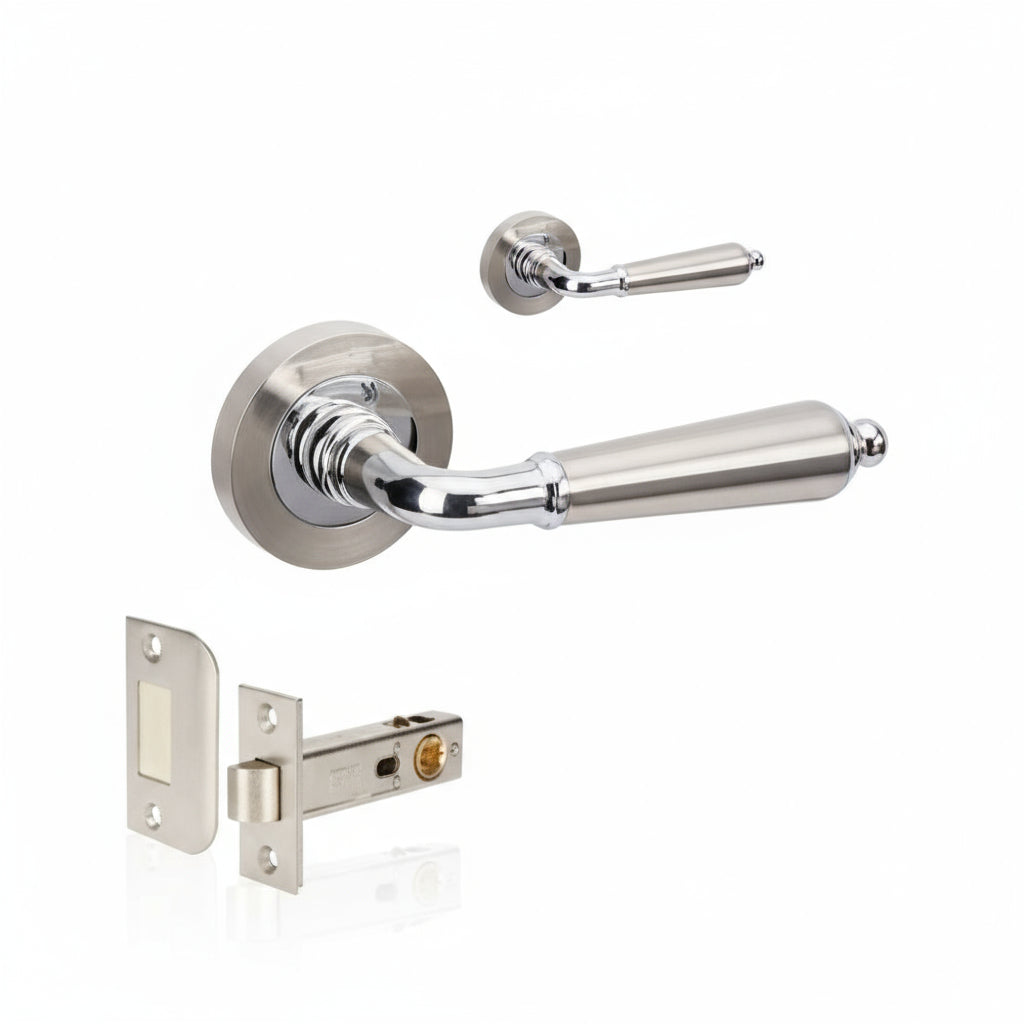

| Set 10072 | Oxford Privacy Set, includes integrated privacy kit |

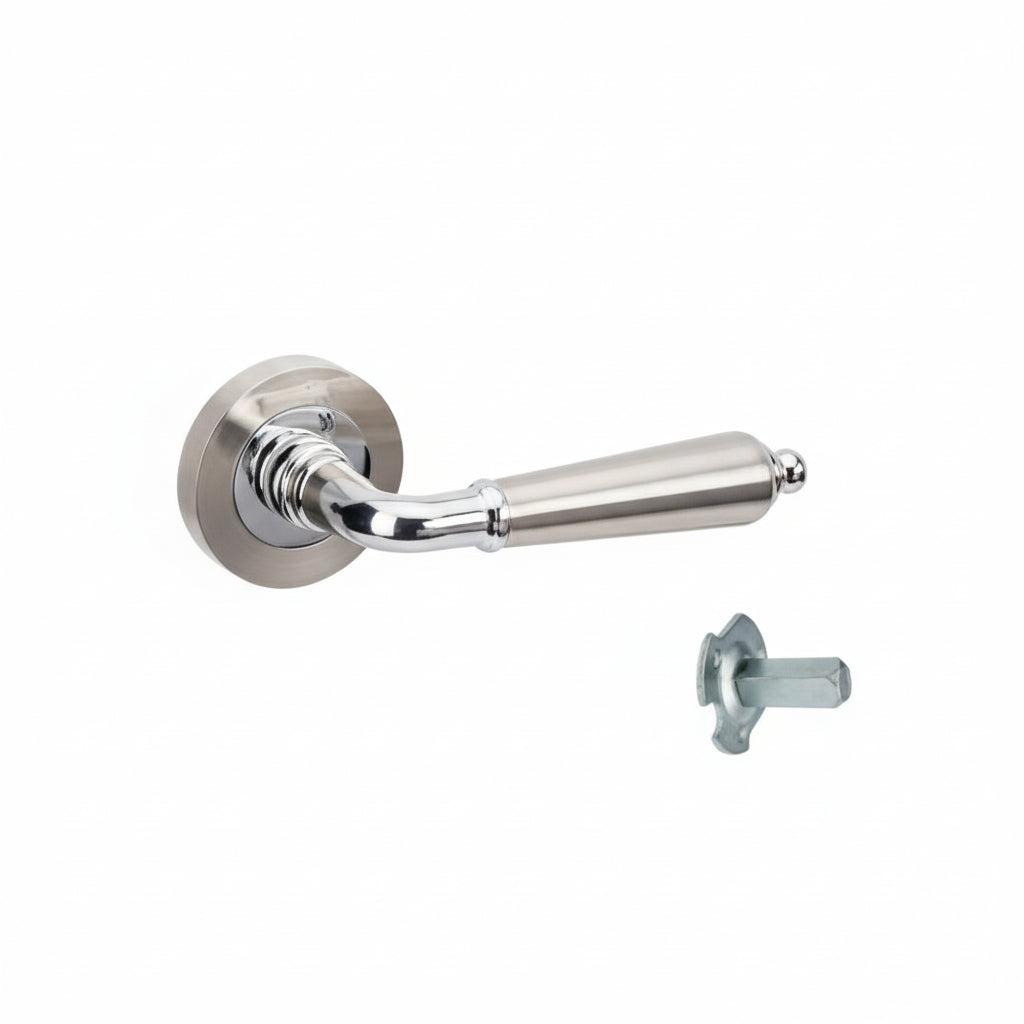

| Set 10073.D | Oxford Dummy Set (Non-handed) |

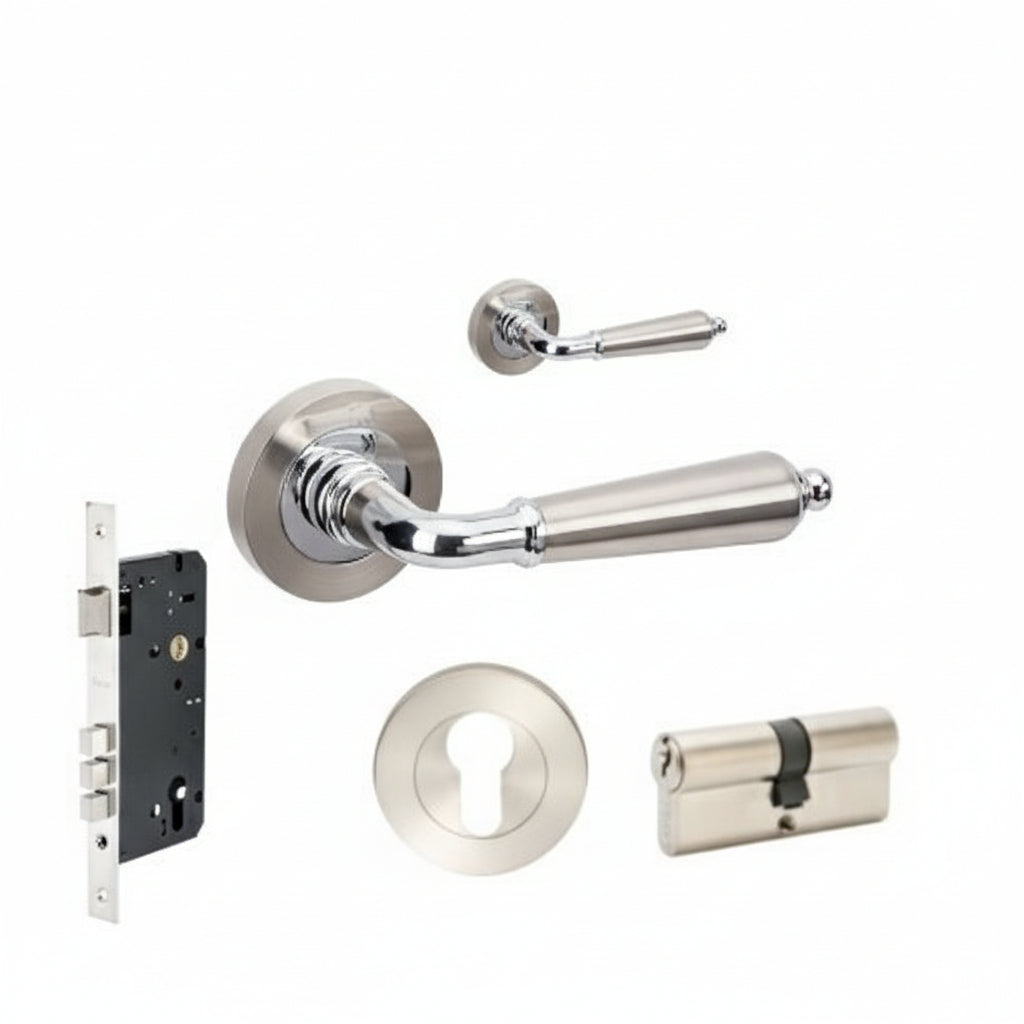

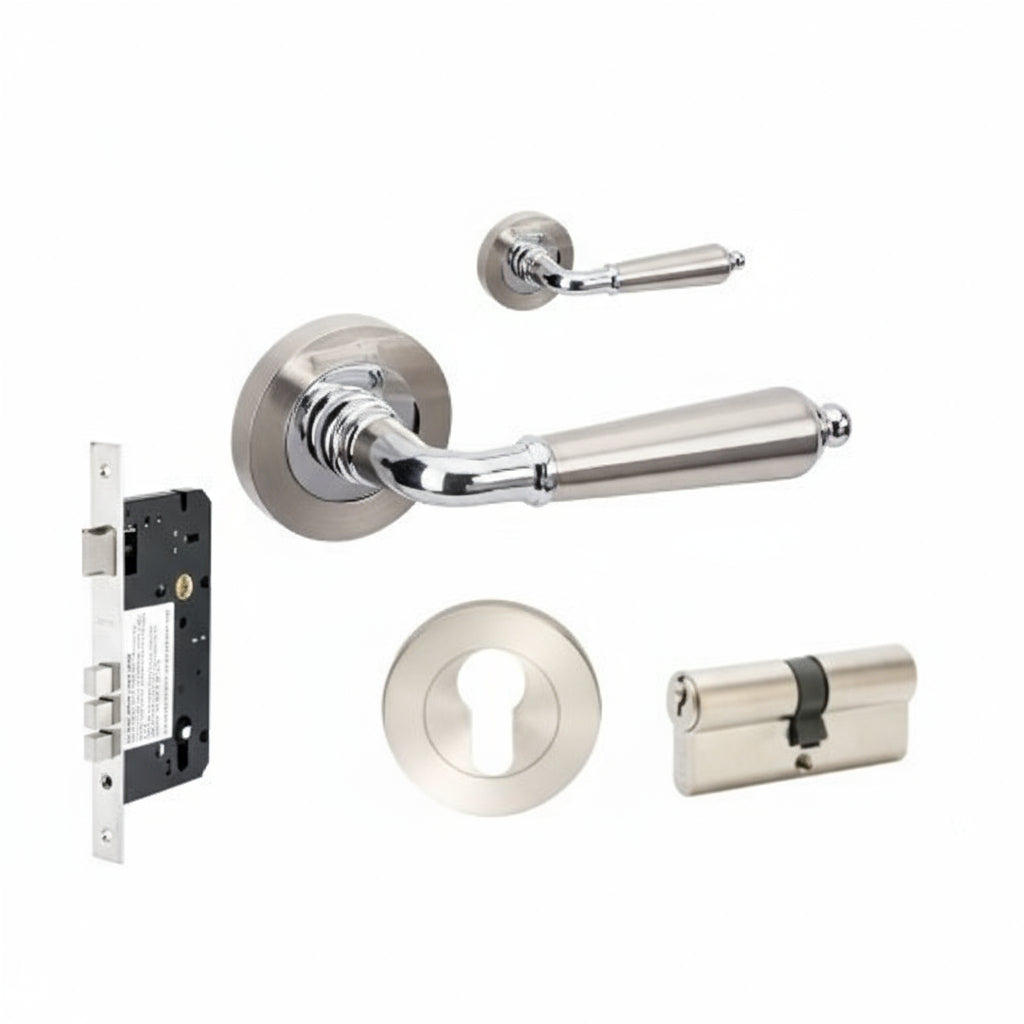

| Set 10074.1 | Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1121 60mm double cylinder (60mm Key/Key) |

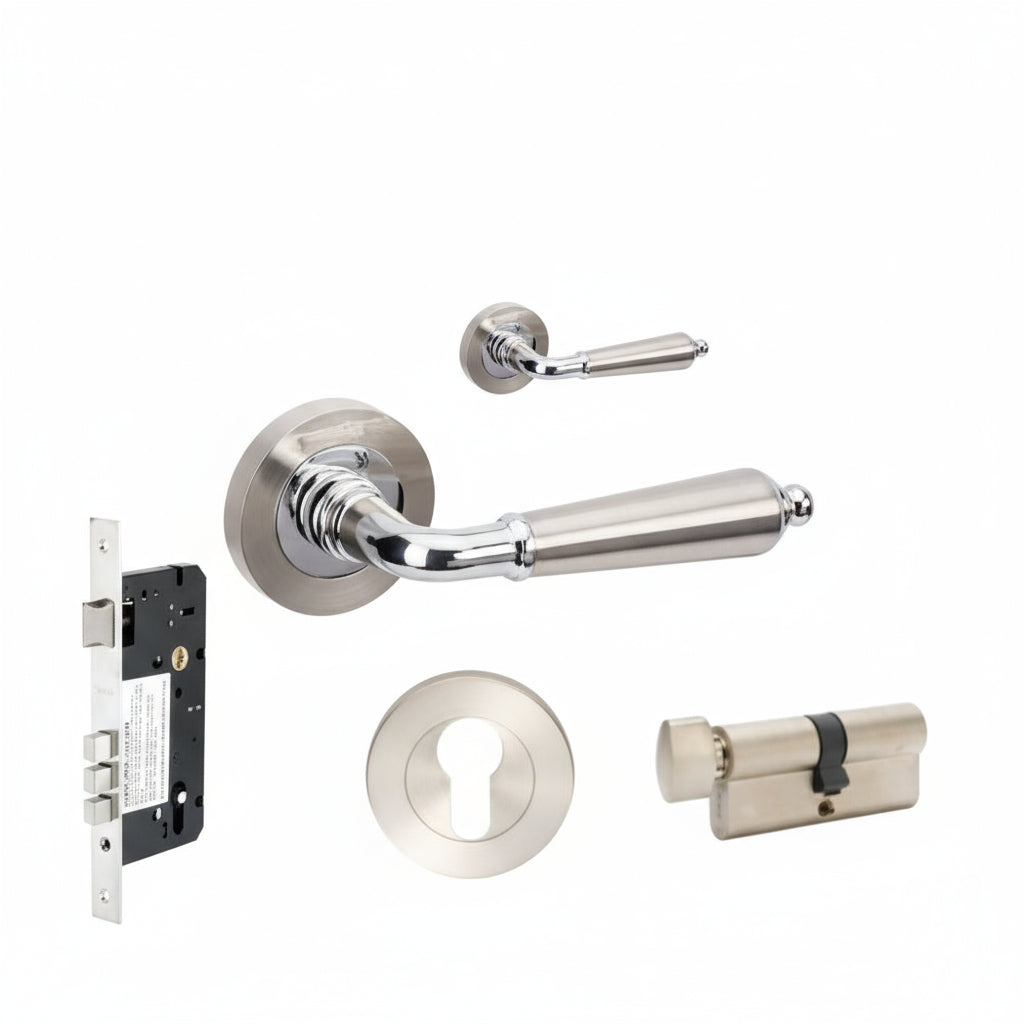

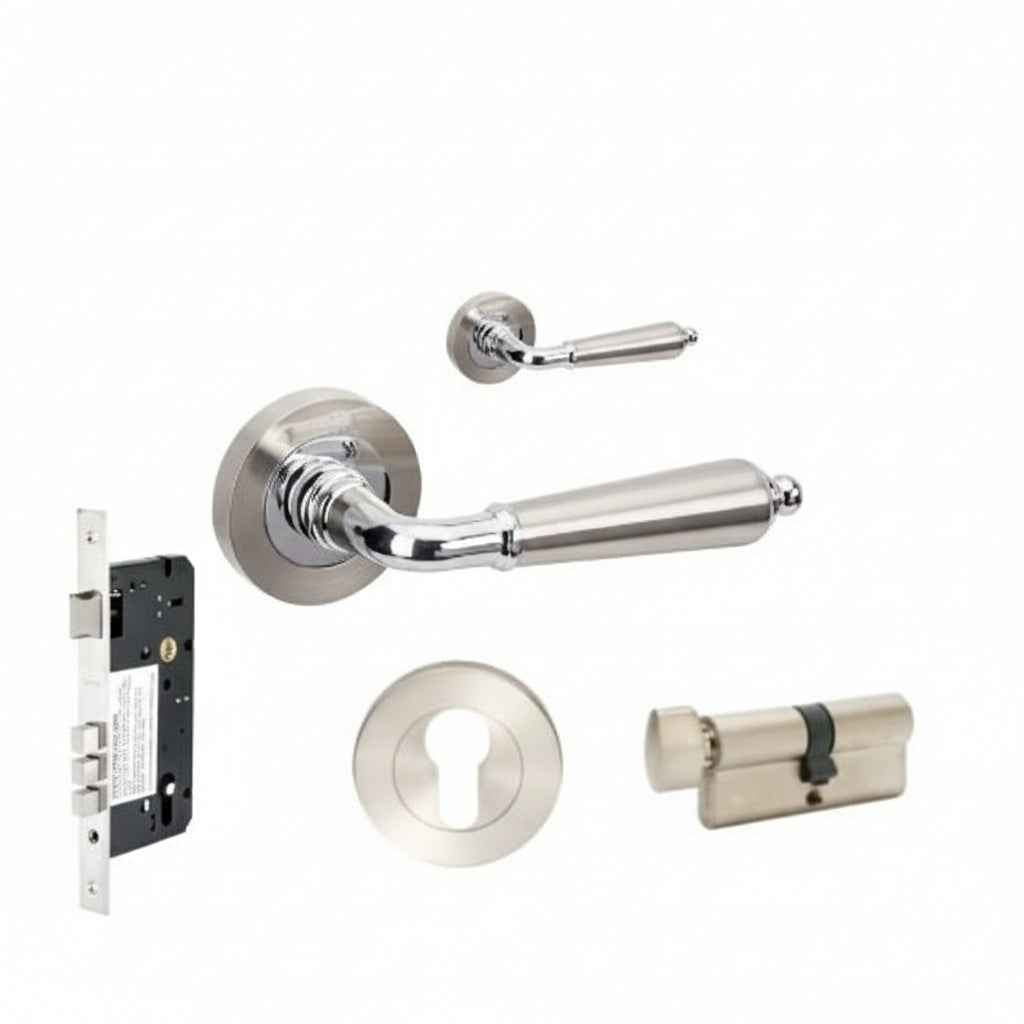

| Set 10074.2 | Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1122 60mm single cylinder (60mm Key/Turn) |
| Set 10074.3 | Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key) |
| Set 10074.4 | Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Brushed Nickel/Chrome Plate |
| Material | Solid Brass |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts |
| Rebate kits | 1102.A.SC (passage and privacy sets); 1146.SS (entrance sets) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Oxford Door Lever — Brushed Nickel?
It is a Zanda door lever on round rose from the Astron range, made from solid brass. Function: leverset only (no latch), Passage set, Integrated privacy set, Dummy set, Entrance set. Product code: 10070.BN/CP, 10071.BN/CP, 10072.BN/CP, 10073.D.BN/CP, 10074.1.BN/CP, 10074.2.BN/CP, 10074.3.BN/CP, 10074.4.BN/CP.
What does each option include?
10070: Oxford Leverset Only; 10071: Oxford Passage Set, includes 1131 latch; 10072: Oxford Privacy Set, includes integrated privacy kit; 10073.D: Oxford Dummy Set (Non-handed); 10074.1: Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1121 60mm double cylinder (60mm Key/Key); 10074.2: Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1122 60mm single cylinder (60mm Key/Turn); 10074.3: Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1147 70mm double cylinder (70mm Key/Key); 10074.4: Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn).
What finishes is it available in?
This listing is finished in Brushed Nickel/Chrome Plate. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing.
What backset does it suit?
Backset: 60mm (passage, privacy and entrance sets). Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
