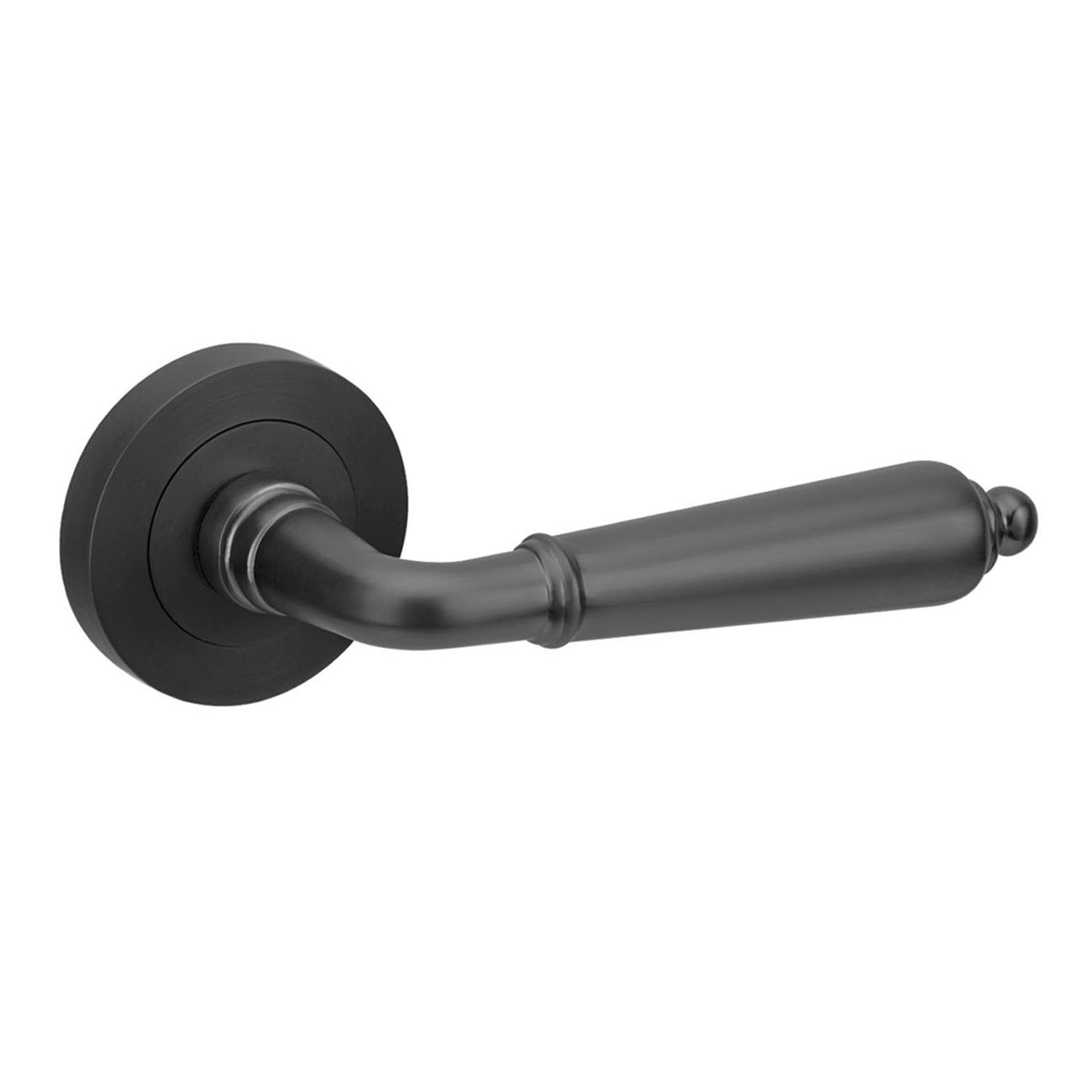

Zanda Oxford Door Lever — Entrance Set 70mm Cylinder (Key/Turn)
The Zanda Oxford Door Lever — Entrance Set 70mm Cylinder (Key/Turn) is a door lever, available in Matt Black. This is the entrance set with a key on the outside and a thumb turn on the inside for quick locking from within. Backset: 60mm. Zanda product code shown below.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with this Entrance Set 70mm Cylinder (Key/Turn)
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Entrance Set 70mm Cylinder (Key/Turn) |
|---|---|
| Matt Black | 10074.4.BLK |
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Astron |
| Product type | Door lever on round rose |
| Function | Entrance set |
| Product code | 10074.4.BLK |

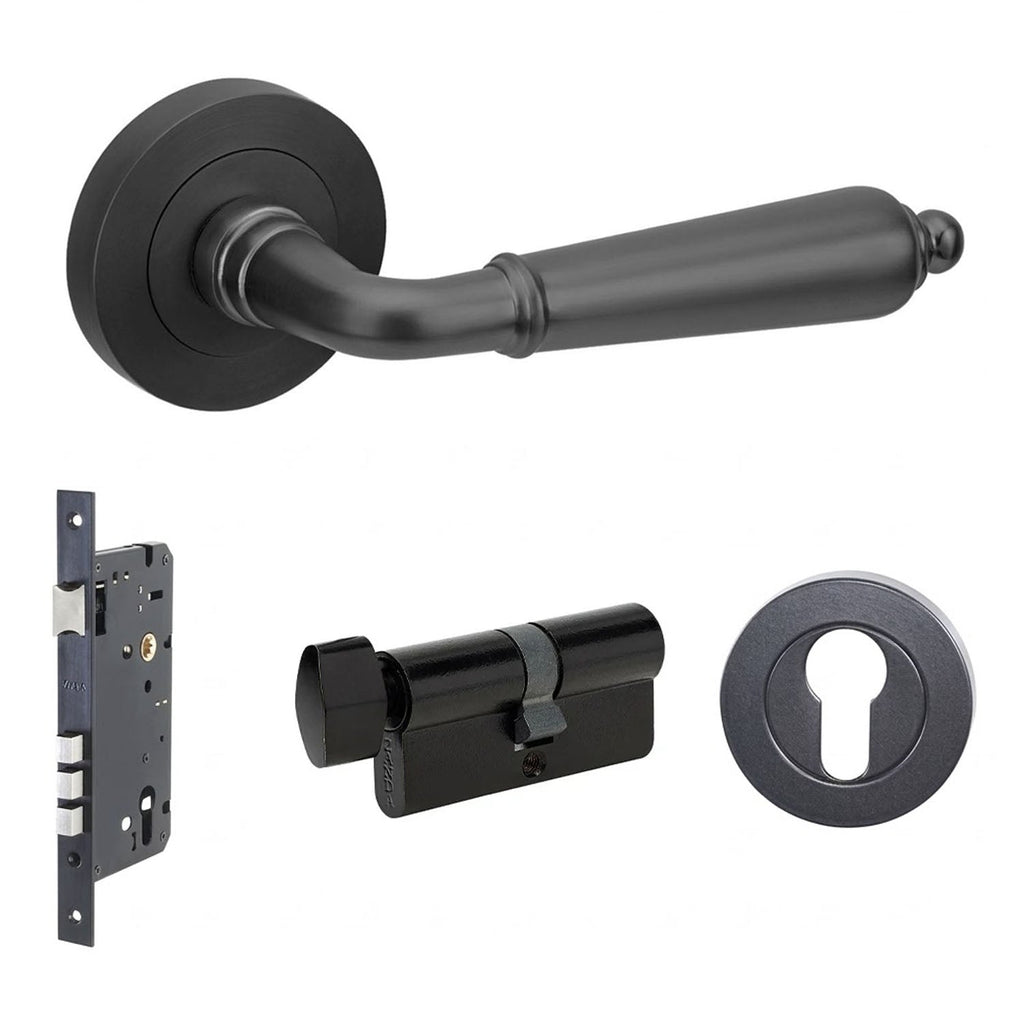

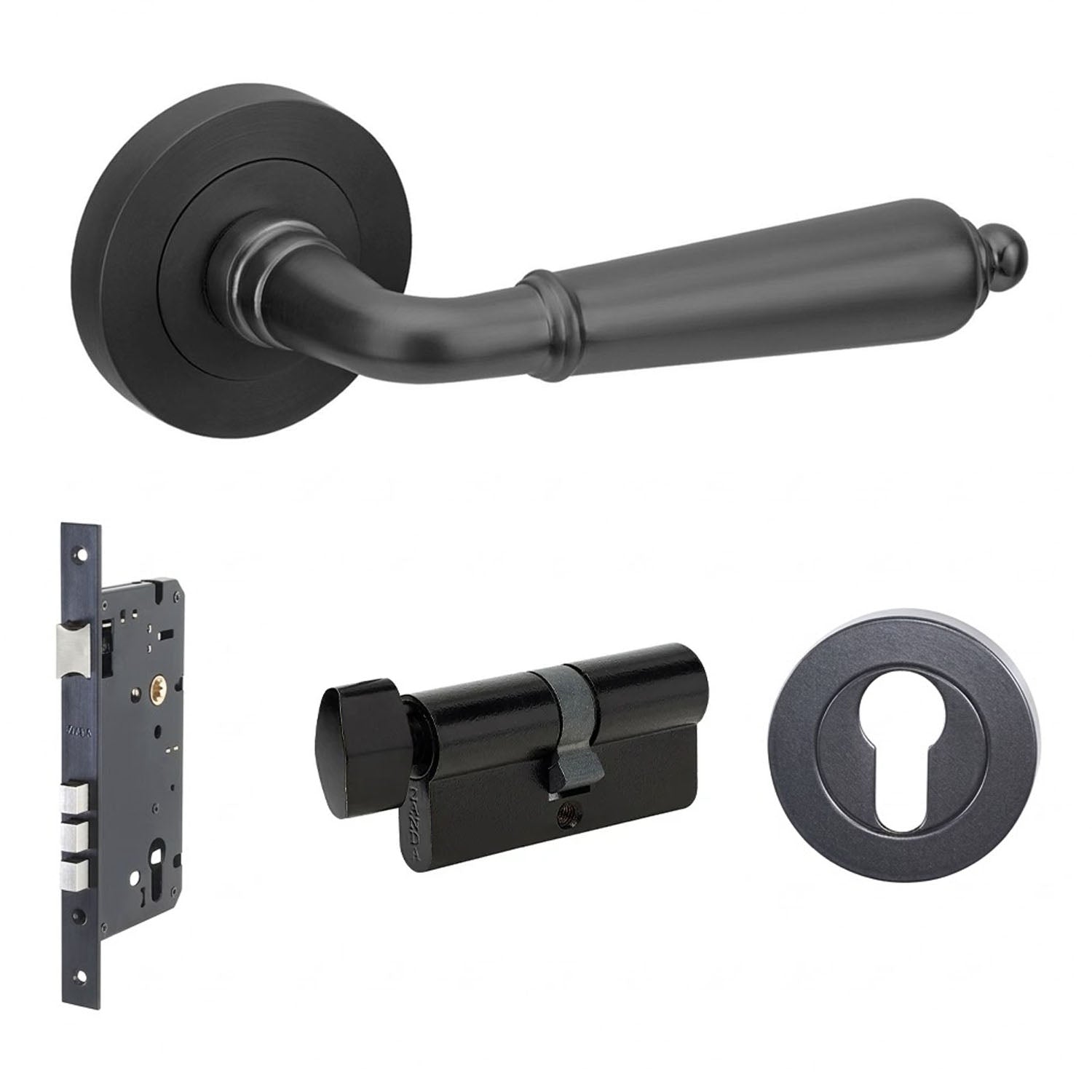

| Zanda set | 10074.4 — Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn) |
| Finish | Matt Black |
| Rose / plate | 54mm round, screw-on rose with concealed fixing |
| Backset | 60mm (passage, privacy and entrance sets) |
| Fixing | Concealed screw-on rose with through-door bolts |
| Rebate kits | 1102.A.SC (passage and privacy sets); 1146.SS (entrance sets) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Oxford Door Lever — Entrance Set 70mm Cylinder (Key/Turn)?
It is a Zanda door lever on round rose from the Astron range. Function: entrance set. Product code: 10074.4.BLK.
What is included in this set?
Oxford Entrance Set, includes 10070 Lever set, 1143 euro mortice lock, 7020 round euro escutcheons & 1148 70mm single cylinder (70mm Key/Turn). Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
This listing is finished in Matt Black. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 54mm round, screw-on rose with concealed fixing; Backset: 60mm (passage, privacy and entrance sets).
How do I choose the right cylinder length?
Measure the door thickness and the lock position. Zanda cylinders are sold in fixed lengths (for example 40, 60, 70 and 90mm); the cylinder should sit flush with, or slightly proud of, the escutcheons on both sides. If unsure, send us the door thickness and lock model.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
