Zanda Phoenix Commercial Lever — Classroom Set

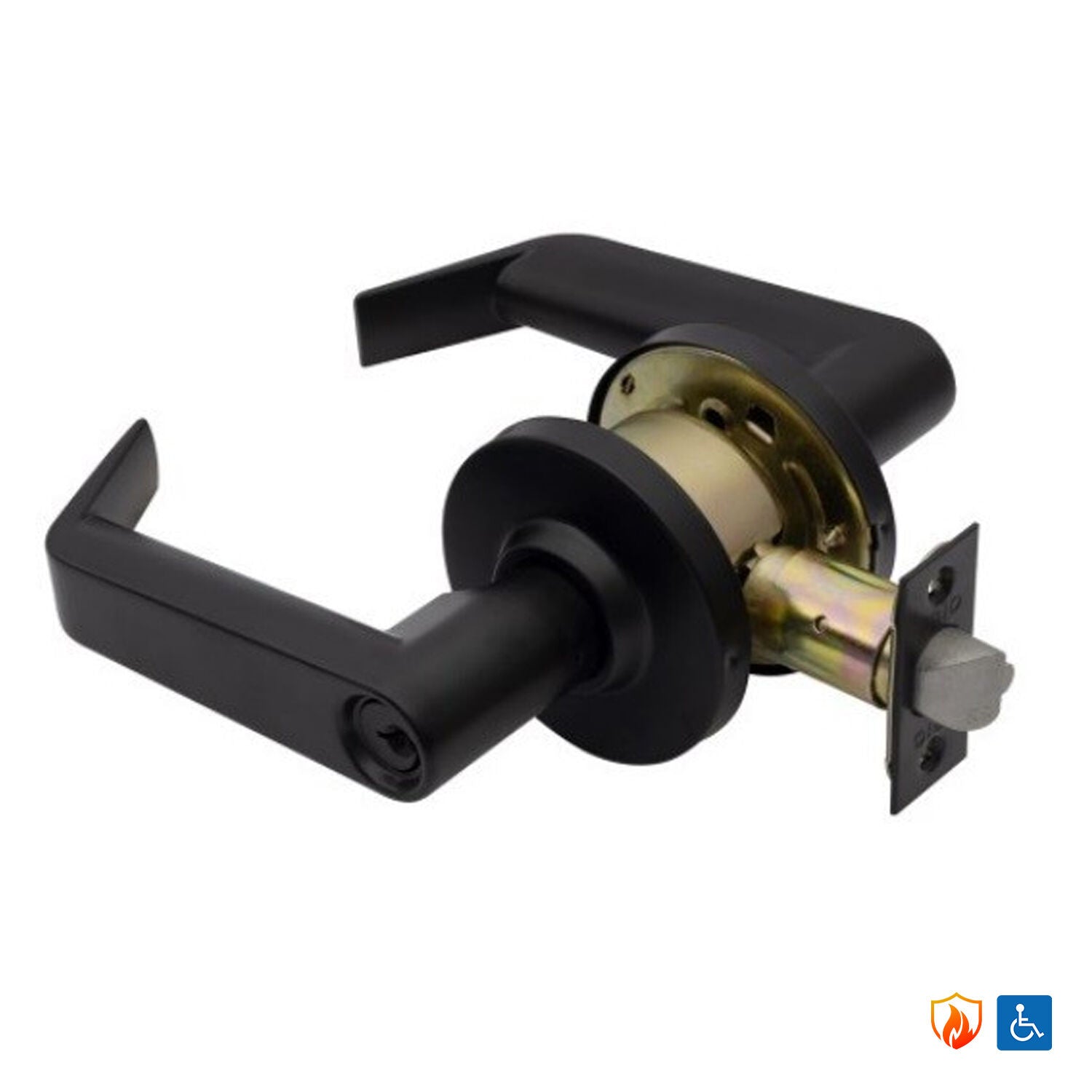

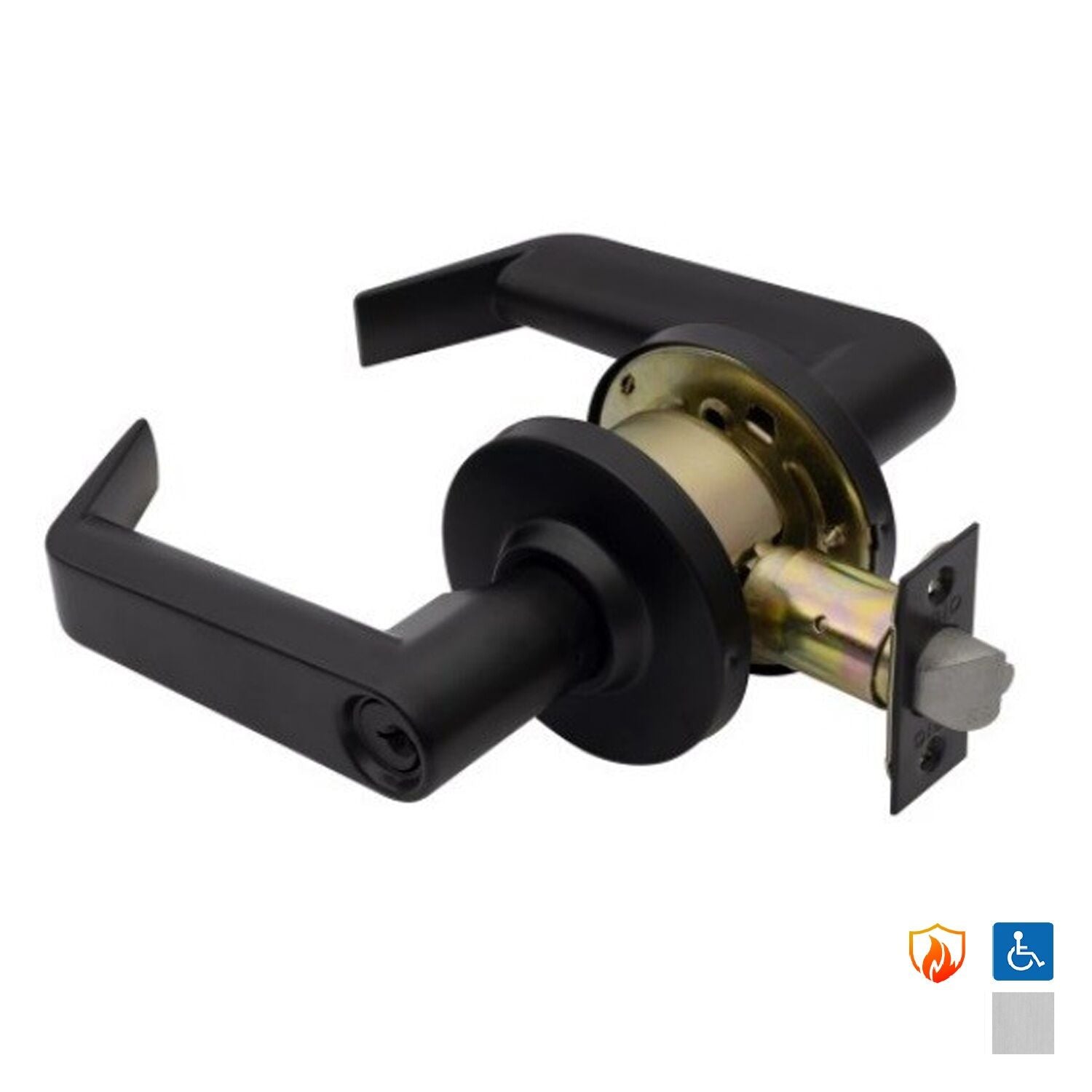

The Zanda Phoenix Commercial Lever — Classroom Set is a stainless steel door lever on a 75mm round rose, available in Matt Black. This is the classroom function: locked or unlocked from the outside by key, while the inside lever always opens the door. It suits doors 35mm to 47mm thick. Backset: 70mm. Zanda product code shown below.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with this Classroom Set
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Classroom Set |
|---|---|
| Matt Black | 11023.BLK |
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Phoenix CL Series (Garrison) |
| Product type | Commercial cylindrical lever set |
| Function | Classroom set |
| Product code | 11023.BLK |
| Zanda set | 11023.BLK — (CL8012D-BLK) Phoenix Fire Rated Lever Classroom Set |
| Finish | Matt Black |
| Material | Stainless Steel |
| Rose / plate | 75mm round rose |
| Backset | 70mm |
| Door thickness | 35–47mm |
| Keyway | C4, 6 pin |
| Latchbolt | Stainless steel |
| Compliance | Disabled access compliant (AS1428.1) |
| Fire rating | Fire tested to AS1530.4 |
| Warranty | 10-year manufacturer mechanical warranty |
Warranty
10-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Phoenix Commercial Lever — Classroom Set?
It is a Zanda commercial cylindrical lever set from the Phoenix CL Series (Garrison) range, made from stainless steel. Function: classroom set. Product code: 11023.BLK.
What is included in this set?
(CL8012D-BLK) Phoenix Fire Rated Lever Classroom Set. Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
This listing is finished in Matt Black. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 75mm round rose.
What door thickness does it suit?
Zanda specifies 35–47mm. Measure your door before ordering; for thicker doors, contact us about longer fixings or alternatives.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
Is it disabled access compliant?
Disabled access compliant (AS1428.1). Always confirm requirements with your certifier for the specific project.
Is it suitable for fire-rated doors?
Fire tested to AS1530.4. Fire door hardware must be installed as part of a tested door assembly — check with your certifier.
What warranty does it have?
10-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
