Zanda Wyatt Door Lever — Passage Set 60mm Backset

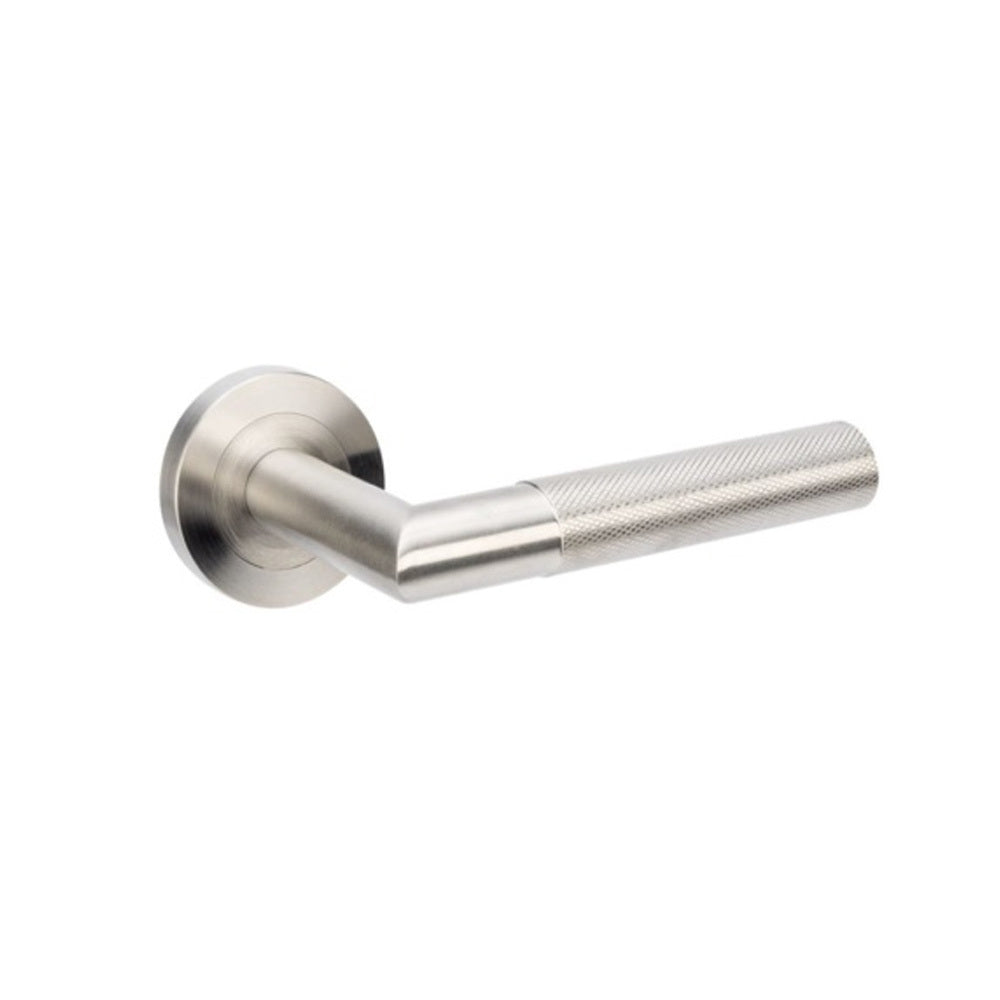

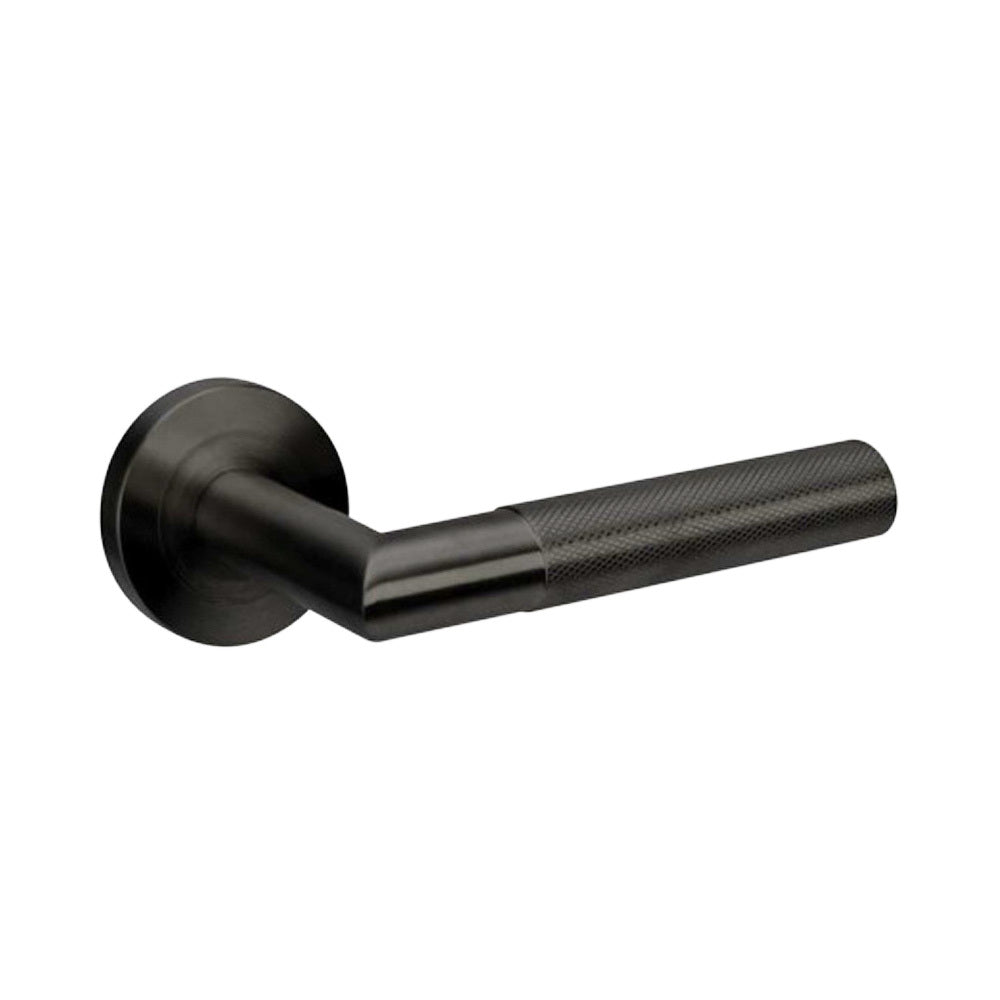

The Zanda Wyatt Door Lever — Passage Set 60mm Backset is a door lever on a 50mm round rose, available in Matt Black and Stainless Steel. This is the passage set: the latch works from both sides and never locks, suiting bedrooms, living areas and studies. Each finish has its own Zanda product code, listed below.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box

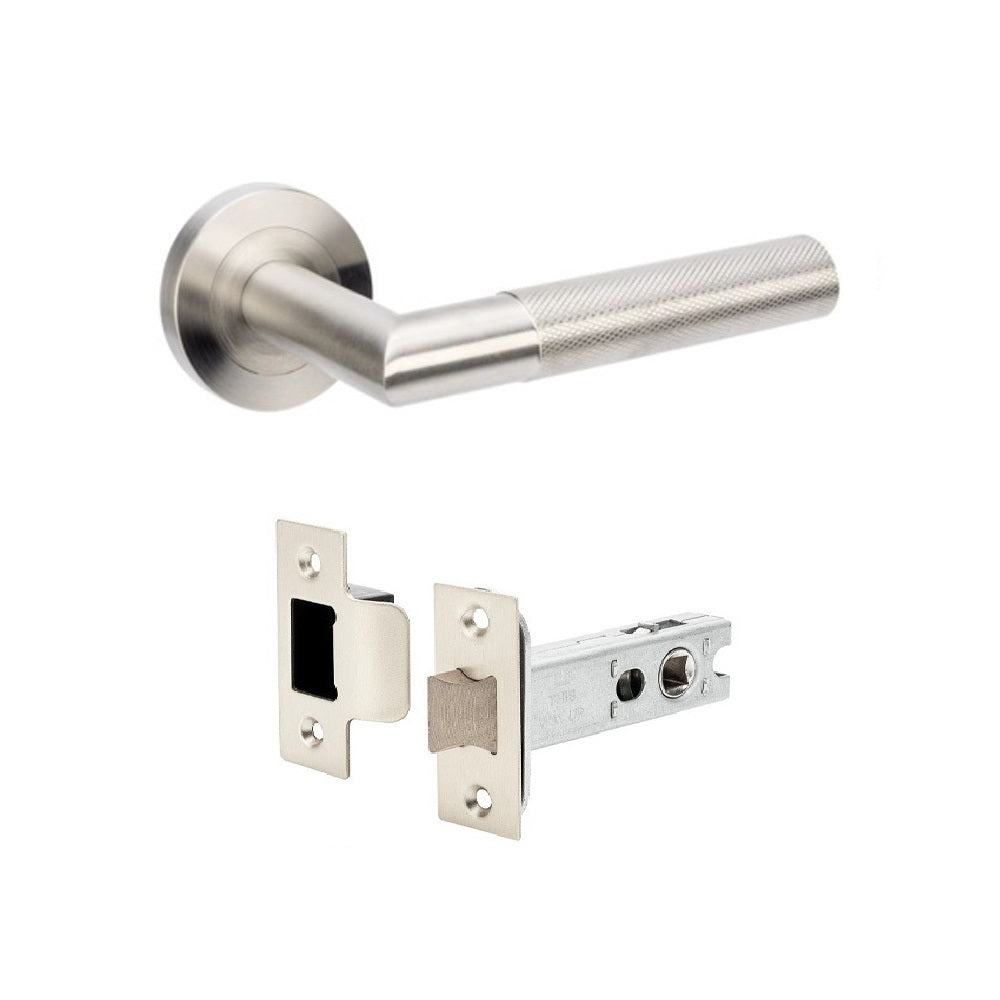

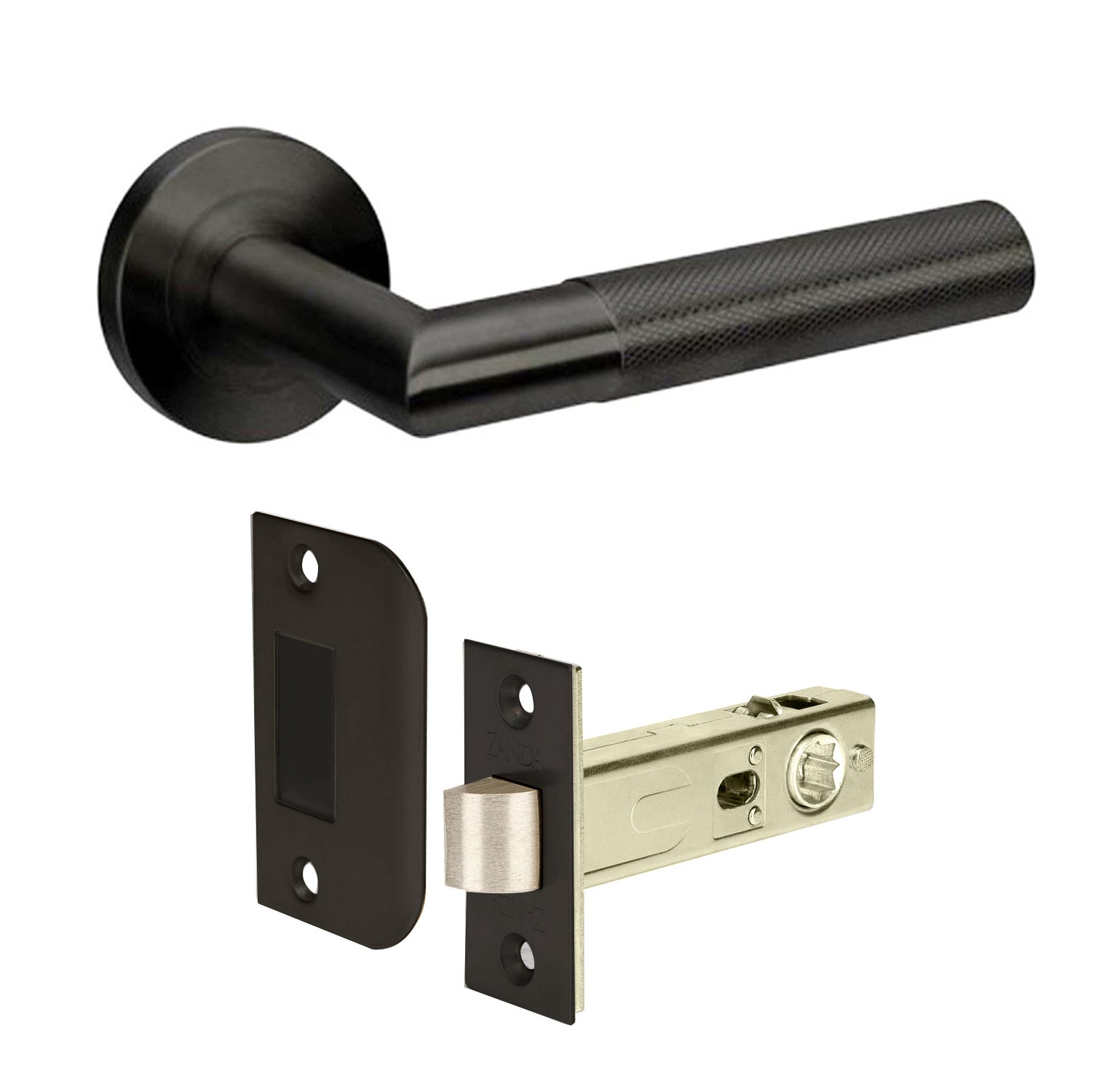

- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts
- The latch or lock supplied with this Passage Set 60mm Backset
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (2) & Product Codes
| Finish | Passage Set 60mm Backset |
|---|---|
| Matt Black | 11231.BLK |
| Stainless Steel | 11231.SS |
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Visca |
| Product type | Door lever on round rose (knurled) |
| Function | Passage set |
| Product code | 11231.BLK, 11231.SS |
| Zanda set | 11231 — Wyatt Passage Set, includes 1131 latch |
| Finish | Matt Black, Stainless Steel |
| Material | 304 stainless steel |
| Rose / plate | 50mm round rose |
| Backset | 60mm |
| Supplied with | Spindle and fixing screws in matching finish |
| Fixing | Concealed Fix |
| Warranty | 20-year manufacturer guarantee |
Warranty
20-year manufacturer guarantee. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Wyatt Door Lever — Passage Set 60mm Backset?
It is a Zanda door lever on round rose (knurled) from the Visca range, made from 304 stainless steel. Function: passage set. Product code: 11231.BLK, 11231.SS.
What is included in this set?
Wyatt Passage Set, includes 1131 latch. Hinges, door stops and flush bolts are sold separately.
What finishes is it available in?
It is available in Matt Black, Stainless Steel. Each finish has its own product code, shown in the finishes table above.
What are the dimensions?
Rose / plate: 50mm round rose.
What backset does it suit?
Backset: 60mm. Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
20-year manufacturer guarantee, covering defects in materials and workmanship under normal use when correctly installed.
