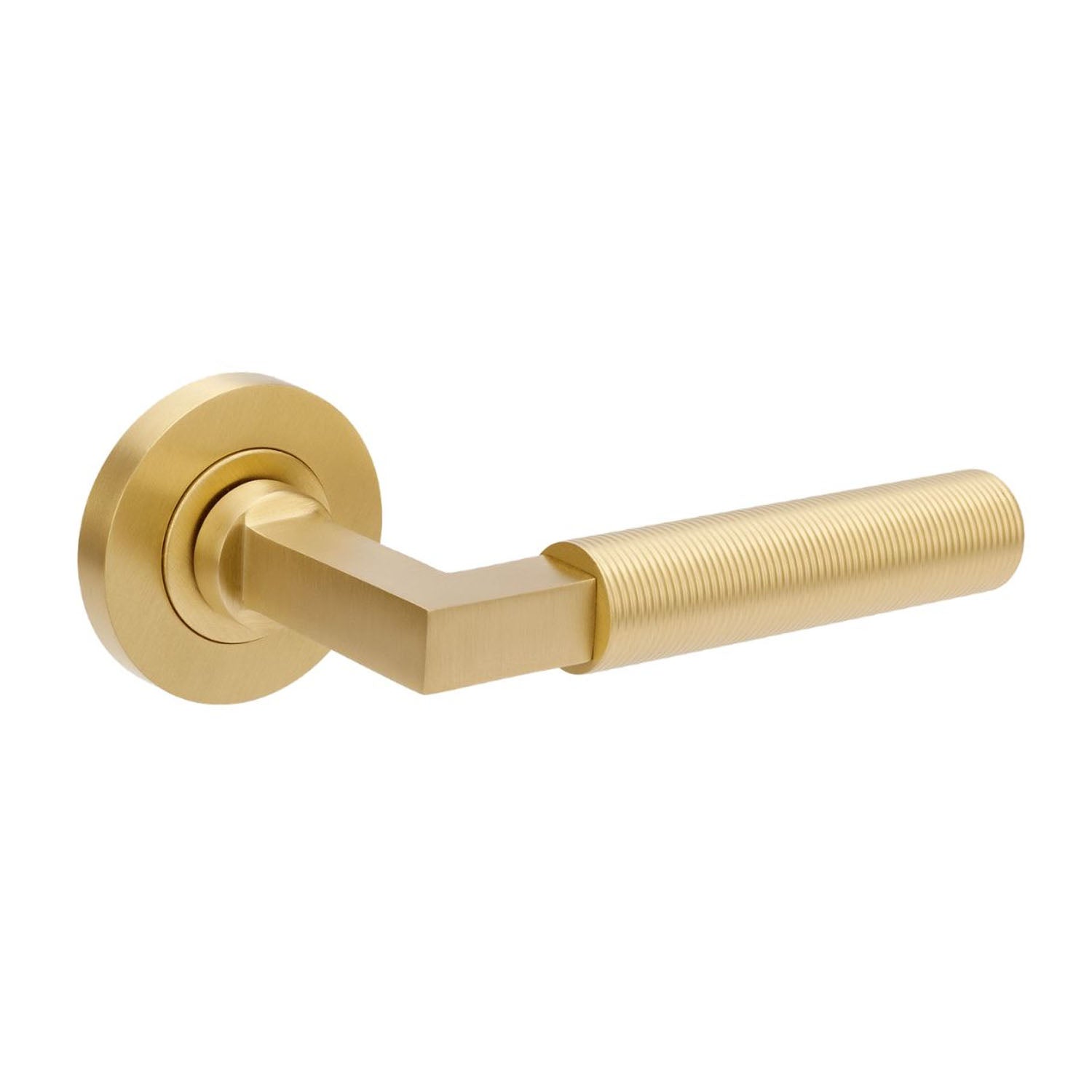

Zanda Zurich Fluted Door Lever — Passage Set 60mm Backset
The Zanda Zurich Fluted Door Lever — Passage Set 60mm Backset is a door lever on a 53mm round rose, available in Satin Brass. This is the passage set: the latch works from both sides and never locks, suiting bedrooms, living areas and studies. Zanda product code shown below.
Door Functions Explained
| Passage | The latch operates from both sides and does not lock — for bedrooms, living rooms and studies. |
| Privacy | Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites. |
| Entrance | Key-lockable using a euro cylinder — for front and back doors. |
| Dummy / Fixed | A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door. |
What's in the Box
- 1 pair of levers (or knobs) with roses / backplates
- Face-fix wood screws and tie bolts

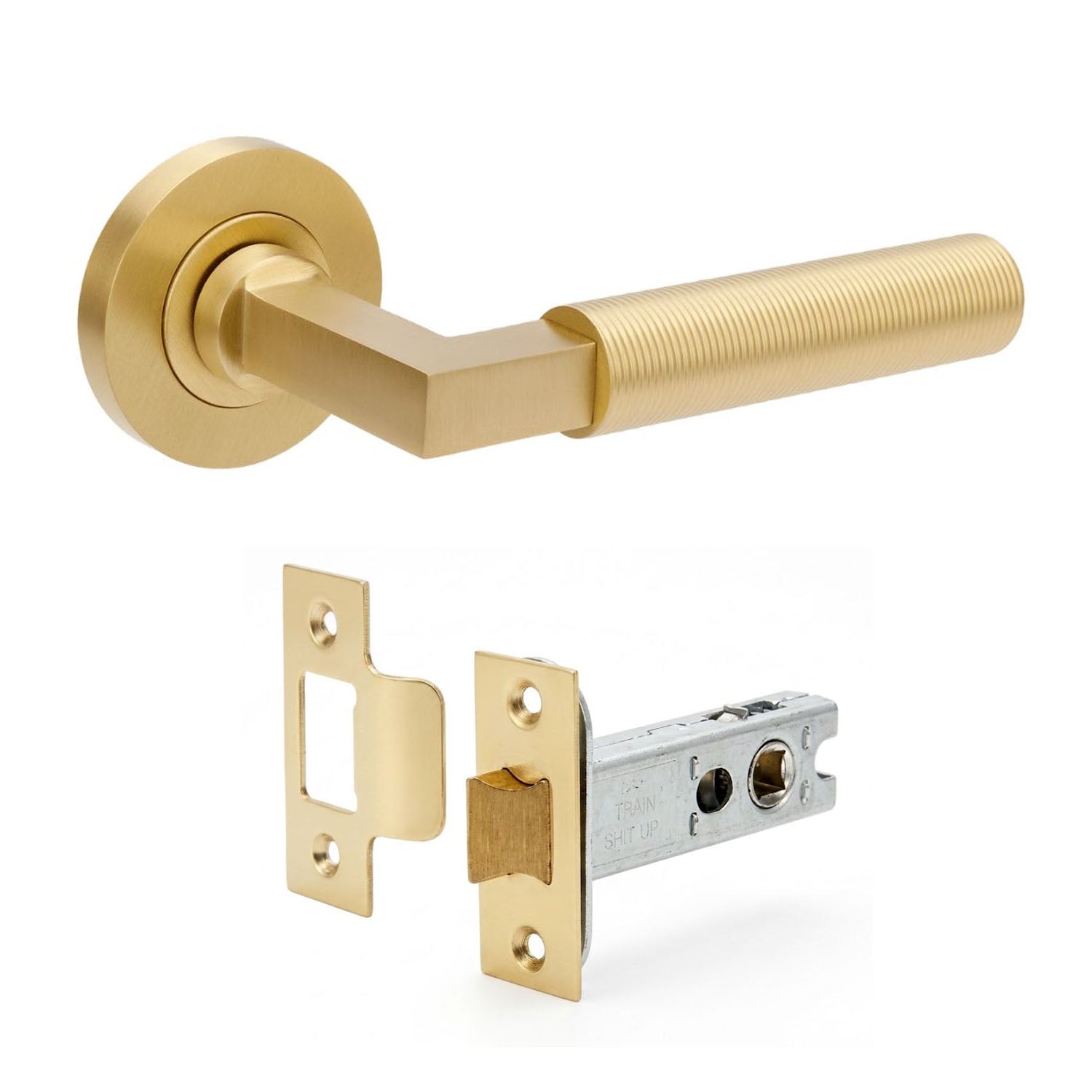

- The latch or lock supplied with this Passage Set 60mm Backset
- Not included: hinges and flush bolts
Complete Your Door Hardware
The items below are sold separately. The product code for each finish is listed.
Available Finishes (1) & Product Codes
| Finish | Passage Set 60mm Backset |
|---|---|
| Satin Brass | 9356.SB |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Bundle Guide — What Else Do You Need?
A complete door set depends on the door material, the function required and whether it is a double door.
Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.
Hinges — Which One Do You Need?
| Hinge type | Best for | Why |
|---|---|---|
| Ball bearing | Entrance and heavier doors | Bearings reduce friction and wear — best for high-use doors. |
| Fixed pin | Internal and lighter entrance doors | A reliable all-rounder for most internal applications. |
| Loose pin | Internal use — ideal for bathrooms | The pin withdraws so the door lifts off without unscrewing the hinge. |
| Parliament | Doors that must open 180° | Projects the door clear of the frame or architrave so it swings back against the wall. |
Three hinges per door is standard for internal and entrance doors.
Specifications
| Brand | Zanda |
| Range | Visca |
| Product type | Door lever on round rose |
| Function | Passage set |
| Product code | 9356.SB |
| Finish | Satin Brass |
| Material | Solid brass |
| Rose / plate | 55mm round architectural rose |
| Backset | 60mm |
| Privacy function | Separate turn and release (9348) with 1172 latch |
| Entrance sets | 1143 mortice lock, 9349 escutcheons and 60mm or 70mm euro cylinder |
| Lever Length | 124mm |
| Warranty | Lifetime manufacturer warranty |
Warranty
Lifetime manufacturer warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Zurich Fluted Door Lever — Passage Set 60mm Backset?
It is a Zanda door lever on round rose from the Visca range, made from solid brass. Function: passage set. Product code: 9356.SB.
What finishes is it available in?
This listing is finished in Satin Brass. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
Rose / plate: 55mm round architectural rose; Lever Length: 124mm.
What backset does it suit?
Backset: 60mm. Backset is the distance from the door edge to the centre of the spindle — measure your existing latch before ordering.
Which set do I need for my door?
Passage sets suit bedrooms and living areas (never lock). Privacy sets suit bathrooms and ensuites (lock from inside with an emergency release outside). Entrance sets add a mortice lock, escutcheons and a euro cylinder for external doors. Dummy sets are fixed handles for wardrobes or the inactive leaf of a double door.
What warranty does it have?
Lifetime manufacturer warranty, covering defects in materials and workmanship under normal use when correctly installed.
