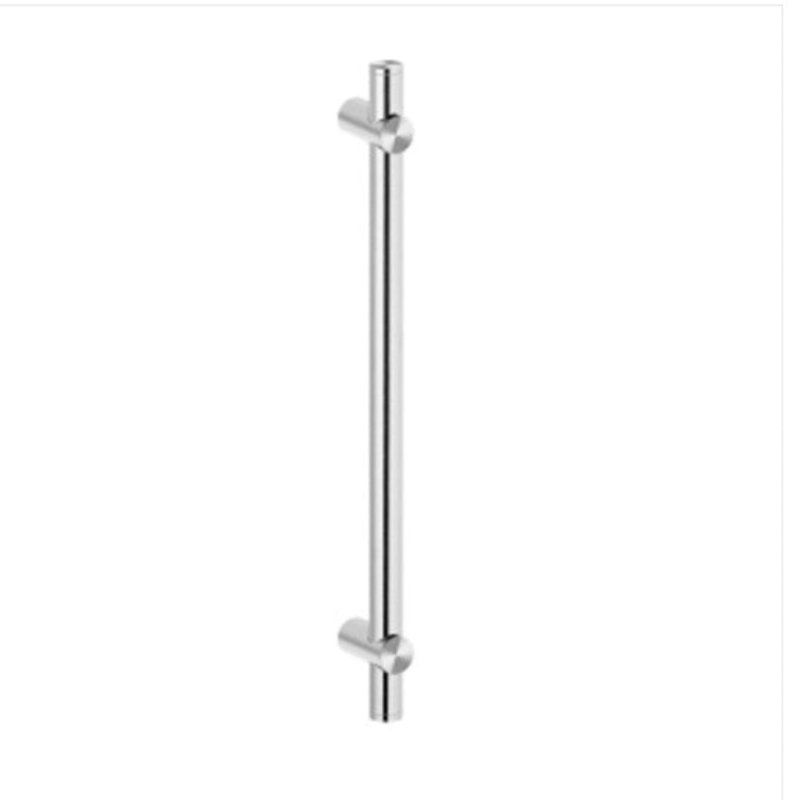

Zanda Sutton Adjustable Pull Handle | Stainless Steel 900mm Adjustable Centres 200–850mm
Premium stainless steel pull handle with unique adjustable fixing centres from 200mm to 850mm. 900mm overall length / 30mm tube diameter / 75mm projection. Available in Satin Stainless Steel and Matte Black. Suitable for timber, aluminium, and glass entrance doors. Backed by a 20-year mechanical warranty. Made in Italy.
Adjustable centres 200–850mm. 20-year mechanical warranty. Suitable for timber, aluminium, and glass doors. The Sutton's adjustable fixing centres eliminate the need for exact hole spacing during installation or retrofit, making it ideal for replacement projects and new builds alike. The 30mm tube diameter and 75mm projection deliver a bold architectural presence on commercial and high-end residential entrance doors. Through-bolt or back-to-back fixing. Latch, lock and hinges sold separately.
|
Material
Stainless Steel
|
Overall Length
~900mm
|
Adj. Centres
200–850mm
|
Warranty
20 Years
|
| Specifications | |
| Brand | Zanda Architectural Hardware |
| Product | Sutton Adjustable Pull Handle |
| Material | Premium Stainless Steel |
| Finish options | Satin Stainless Steel / Matte Black |
| Overall length | Approximately 900mm |
| Adjustable centres | 200mm – 850mm |
| Tube diameter | 30mm |
| Projection | 75mm |
| Fixing type | Through-bolt or back-to-back fixing |
| Application | Timber, aluminium, and glass entrance doors |
| Warranty | 20-year mechanical warranty |
| Country of manufacture | Italy |
| Range | Sutton Adjustable Pull Handle — Zanda |
How does the adjustable centre feature work?
The Sutton's fixing legs slide along the main tube and can be positioned anywhere between 200mm and 850mm apart. Once set to the desired centre-to-centre distance, the legs are fixed securely in place. This eliminates the need for precise hole spacing during installation and makes the handle ideal for retrofit projects where existing hole positions may vary.
What door types is the Sutton Adjustable Pull Handle suitable for?
The Sutton is suitable for timber, aluminium, and glass entrance doors in both residential and commercial applications. The through-bolt or back-to-back fixing options accommodate a wide range of door constructions. For glass doors, confirm fixing compatibility with Prime Hardware before installation.
What warranty does this handle come with?
The Sutton Adjustable Pull Handle is backed by a 20-year mechanical warranty, covering defects in materials and workmanship under normal use conditions. Contact Prime Hardware on 1800 329 028 for warranty claim assistance.
What is the recommended installation height for this handle?
A typical adult-access pull height is approximately 1000–1100mm from the finished floor level. This ensures comfortable grip for most users and aligns with general accessible design guidance. For AS1428 compliant projects, confirm the required installation height with your specifier or builder.
What finishes are available for the Sutton pull handle?
The Sutton is available in Satin Stainless Steel and Matte Black. Contact Prime Hardware on 1800 329 028 to confirm current finish availability and lead times for your project.
How do I maintain the stainless steel finish?
Clean with a soft, non-abrasive cloth and a mild cleaner. Avoid harsh abrasives, steel wool, or bleach-based products which can scratch or damage the surface. For exterior installations in coastal environments, more frequent cleaning is recommended to remove salt and moisture buildup.
Does this handle include a latch or lock?
No. This is a pull handle only. Latch, lock, and hinges are sold separately. Contact Prime Hardware on 1800 329 028 for compatible hardware recommendations.
Where can I purchase the Zanda Sutton Adjustable Pull Handle?
Available online at primehardware.com.au or in-store at our Annangrove showroom. Call 1800 329 028 for stock and specification enquiries.
