Zanda Duke Entrance Pull Handle | 316 Marine Grade Stainless Steel — 300mm / 600mm / 900mm Marine Grade 316 Stainless Steel finish. Square profile entrance pull handle available in three sizes. 30×10mm profile / 55mm projection. Back-to-back, face fix, or rear fix.
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 7111 | 300 mm | 55mm | ||
| 7113 | 600 mm | 55mm | ||
| 7114 | 900 mm | 55mm |
Fixing Types Explained
| Fixing | What it means |
|---|---|
| Back to Back (Pair) | Two handles fixed through the door, one each side, bolted to each other. The strongest fixing and the usual choice for entry doors. |
| Face Fix (Single) | A single handle fixed from the front, with the screws visible on the face of the handle. |
| Rear Fix (Single) | A single handle fixed from behind the door, so no screws are visible on the handle face. |
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Brushed Nickel | 1147.BN | 1148.BN |
| Matt Black | — | 1125.BLK |
| Satin Brass | 1147.SB | 1148SB |
| Graphite Nickel | 1147.GN | 1148.GN |
| Satin Chrome | 1147.SC | 1148.SC |
Available Finishes (1) & Product Codes
| Finish | 7111 SS– Centers: 300mm Overall Length: 330mm Width: 30x10mm Projection: 55mm — Back to Back | 7111 SS– Centers: 300mm Overall Length: 330mm Width: 30x10mm Projection: 55mm — Face Fixing (Single) | 7111 SS– Centers: 300mm Overall Length: 330mm Width: 30x10mm Projection: 55mm — Rear Fixing (Single) | 7113SS – Centers: 600mm Overall Length: 630mm Width: 30x10mm Projection: 55mm — Back to Back | 7113SS – Centers: 600mm Overall Length: 630mm Width: 30x10mm Projection: 55mm — Face Fixing (Single) | 7113SS – Centers: 600mm Overall Length: 630mm Width: 30x10mm Projection: 55mm — Rear Fixing (Single) | 7114SS – Centers:900mm Overall Length: 330mm Width: 30x10mm Projection: 55mm — Back to Back | 7114SS – Centers:900mm Overall Length: 330mm Width: 30x10mm Projection: 55mm — Face Fixing (Single) | 7114SS – Centers:900mm Overall Length: 330mm Width: 30x10mm Projection: 55mm — Rear Fixing (Single) |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 7111.BB.SS | 7111.FF.SS | 7111.RF.SS | 7113.BB.SS | 7113.FF.SS | 7113.RF.SS | 7114.BB.SS | 7114.FF.SS | 7114.RF.SS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | Duke |
| Product type | Entrance pull handle (flat bar) |
| Product code | 7111, 7113, 7114 (finish suffix varies — see table above) |
| Finish | Stainless Steel |
| Material | 316 marine grade stainless steel |

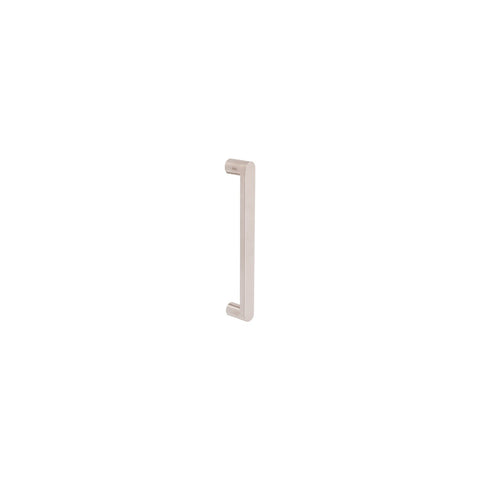

| Size — 7111 | 300mm centres, 330mm overall, 30 x 10mm bar, 55mm projection |

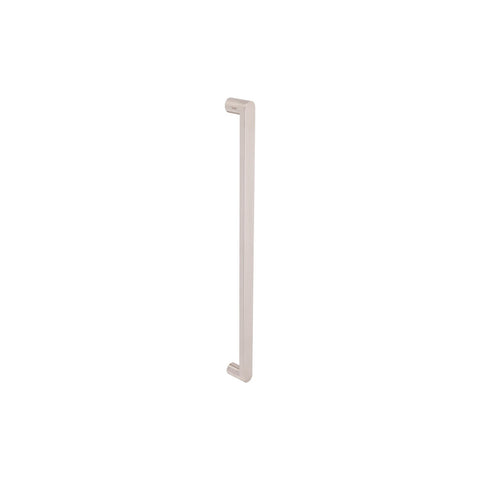

| Size — 7113 | 600mm centres, 630mm overall, 30 x 10mm bar, 55mm projection |

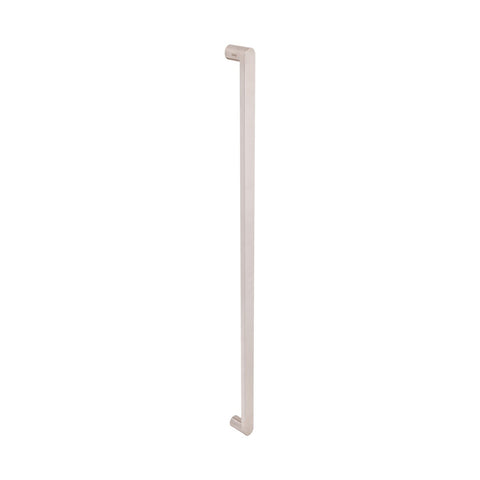

| Size — 7114 | 900mm centres, 930mm overall, 30 x 10mm bar, 55mm projection |
| Fixing | Back to back (pair) — suits timber, aluminium and glass doors; Face fix (single) — suits timber doors; Rear fix (single) — suits timber and aluminium doors |
| Compliance | AS1428.1 disabled access compliant (per Zanda) |
| Application | Internal and external doors, residential and commercial |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda Duke Entrance Pull Handle?
It is a Zanda entrance pull handle (flat bar) from the Duke range, made from 316 marine grade stainless steel. Product code: 7111, 7113, 7114 (finish suffix varies — see table above).
What finishes is it available in?
This listing is finished in Stainless Steel. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
code 7111: 300mm centres, 330mm overall, 30 x 10mm bar, 55mm projection; code 7113: 600mm centres, 630mm overall, 30 x 10mm bar, 55mm projection; code 7114: 900mm centres, 930mm overall, 30 x 10mm bar, 55mm projection.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Is it disabled access compliant?
AS1428.1 disabled access compliant (per Zanda). Always confirm requirements with your certifier for the specific project.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
How can I get help choosing the right product?
Call Prime Hardware on 1800 329 028 (Mon–Fri 10am–5pm), email sales@primehardware.com.au, or visit our showroom at 2/249 Annangrove Road, Annangrove NSW 2156, where over 6,000 products are on display. Send us your door type, thickness and the function you need and we will confirm the right parts.
