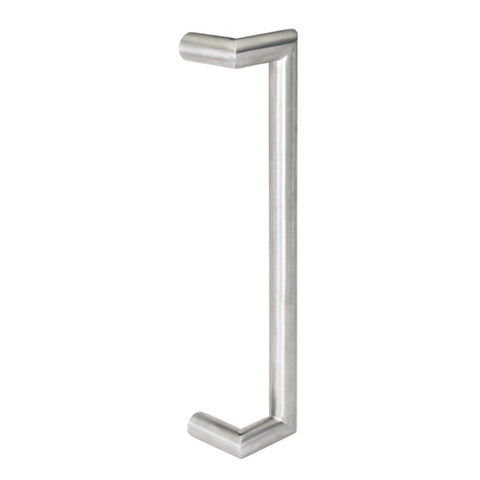

Zanda V23 Round Pull Handle 32mm 450mm to 900mm CRS 316 Stainless Steel
Sizes: 7306 (CRS 450mm, overall 482mm), 7307 (CRS 600mm, overall 632mm), 7308 (CRS 900mm, overall 932mm) Profile: 32mm round, projection: 85mm, height: 100mm Marine Grade 316 Stainless Steel
Sizes & Product Codes
O/A is the overall length; CRS is the centre-to-centre distance between fixings.
| Code | O/A length | CRS | Section | Projection |
|---|---|---|---|---|
| 7306 | 482 mm | with 85mm projection, available in three | 85mm | |
| 7307 | 632 mm | with 85mm projection, available in three | 85mm | |
| 7308 | 932 mm | with 85mm projection, available in three | 85mm |
Complete Your Set
The items below are sold separately. The product code for each finish is listed.
| Finish | Key / Key (1147) | Key / Turn (1148) |
|---|---|---|
| Brushed Nickel | 1147.BN | 1148.BN |
| Matt Black | — | 1125.BLK |
| Satin Brass | 1147.SB | 1148SB |
| Graphite Nickel | 1147.GN | 1148.GN |
| Satin Chrome | 1147.SC | 1148.SC |
Available Finishes (1) & Product Codes
| Finish | Handle set |
|---|---|
| Stainless Steel | 7308RFSS |
Living finishes such as Polished and Brushed Brass develop a natural patina over time.
Specifications
| Brand | Zanda |
| Range | V23 |
| Product type | Offset round entrance pull handle |
| Product code | 7306, 7307, 7308 (finish suffix varies — see table above) |
| Finish | Stainless Steel |
| Material | 316 stainless steel |
| Size — 7306 | 450mm centres, 482mm overall, 32mm diameter, 85mm projection, 100mm offset |
| Size — 7307 | 600mm centres, 632mm overall, 32mm diameter, 85mm projection, 100mm offset |
| Size — 7308 | 900mm centres, 932mm overall, 32mm diameter, 85mm projection, 100mm offset |
| Tube diameter | 32mm |
| Fixing | Back to Back (Pair), Face Fix (Single), Rear Fix (Single) |
| Warranty | 20-year manufacturer mechanical warranty |
Warranty
20-year manufacturer mechanical warranty. Zanda covers this product against defects in materials and workmanship under normal use, when installed and maintained as directed.
ⓘFinish careWipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.
What is the Zanda V23 Round Pull Handle 32mm 450mm to 900mm CRS 316 Stainless Steel?
It is a Zanda offset round entrance pull handle from the V23 range, made from 316 stainless steel. Product code: 7306, 7307, 7308 (finish suffix varies — see table above).
What finishes is it available in?
This listing is finished in Stainless Steel. Other Zanda finishes may be available — contact us to check.
What are the dimensions?
code 7306: 450mm centres, 482mm overall, 32mm diameter, 85mm projection, 100mm offset; code 7307: 600mm centres, 632mm overall, 32mm diameter, 85mm projection, 100mm offset; code 7308: 900mm centres, 932mm overall, 32mm diameter, 85mm projection, 100mm offset; Tube diameter: 32mm.
What is the difference between back to back, face fix and rear fix?
Back to back (pair) joins two handles through the door and suits timber, aluminium and glass doors. Face fix (single) screws through the handle into the door face and suits timber doors. Rear fix (single) fixes from the back of the door and suits timber and aluminium doors. Zanda's rear-fixing bolts are 7312 (M8) and 7340 (M6) for timber and aluminium doors, and 7304 (M8) and 7305 (M6) for glass doors.
How do I lock a door that uses a pull handle?
Pull handles have no latch, so pair them with a lock kit — Zanda's roller lock kits (roller bolt with deadbolt, 57mm backset) or double turn lock kits (1143 euro mortice lock with turn snibs) are made for this.
Can it be used outdoors?
Yes. 316 marine grade stainless steel resists corrosion, making it suitable for external and coastal doors. Clean it regularly with fresh water and a soft cloth.
What warranty does it have?
20-year manufacturer mechanical warranty, covering defects in materials and workmanship under normal use when correctly installed.
